Technical details
Technical details
Capacity 2200 kg
Steering wheel material Solid rubber
Fork roller material Polyurethane (PU)
Fork roller diameter 82 mm
Lift range 83 - 205 mm
Overall length 1520 mm
Load centre 600 mm
Pump strokes to lift pallet 7
Colour chassis Jungheinrich yellow
Aisle width 1784 mm
Control panel two-handed
Face of forks length 373 mm
Fork roller width 62 mm
Ground clearance 30 mm
Lift 122 mm
Model Jungheinrich AM 22
Pallet truck material Steel
Route Short distance
Temperature range -10 - 50 °C
Tiller height 1234 mm
Fork length 1.150 mm
Steering wheel diameter 170 mm
Fork roller equipment Tandem
Fork support width 520 mm
Overall width 520 mm
Infeed rollers Yes
Lift height per pump stroke 10 mm
Turning radius 1274 mm
Net weight 63 kg
Chassis surface powder-coated
Drive manual
Fork height 53 mm
Fork width 150 mm
Handle fittings Steel
Lowering speed with/without load 0,09 / 0,02 m/s
Operator type Manual
Pump strokes to max. lift height 12
Steering wheel width 50 mm
Tiller RAL colour RAL 7016 anthracite grey
Tiller surface powder-coated
Technical details
Capacity 2200 kg
Steering wheel material Solid rubber
Fork roller material Polyurethane (PU)
Fork roller diameter 82 mm
Lift range 83 - 205 mm
Overall length 1520 mm
Load centre 600 mm
Pump strokes to lift pallet 7
Colour chassis Jungheinrich yellow
Aisle width 1784 mm
Control panel two-handed
Face of forks length 373 mm
Fork roller width 62 mm
Ground clearance 30 mm
Lift 122 mm
Model Jungheinrich AM 22
Pallet truck material Steel
Route Short distance
Temperature range -10 - 50 °C
Tiller height 1234 mm
Fork length 1.150 mm
Steering wheel diameter 170 mm
Fork roller equipment Tandem
Fork support width 520 mm
Overall width 520 mm
Infeed rollers Yes
Lift height per pump stroke 10 mm
Turning radius 1274 mm
Net weight 63 kg
Chassis surface powder-coated
Drive manual
Fork height 53 mm
Fork width 150 mm
Handle fittings Steel
Lowering speed with/without load 0,09 / 0,02 m/s
Operator type Manual
Pump strokes to max. lift height 12
Steering wheel width 50 mm
Tiller RAL colour RAL 7016 anthracite grey
Tiller surface powder-coated
Product description
Product description

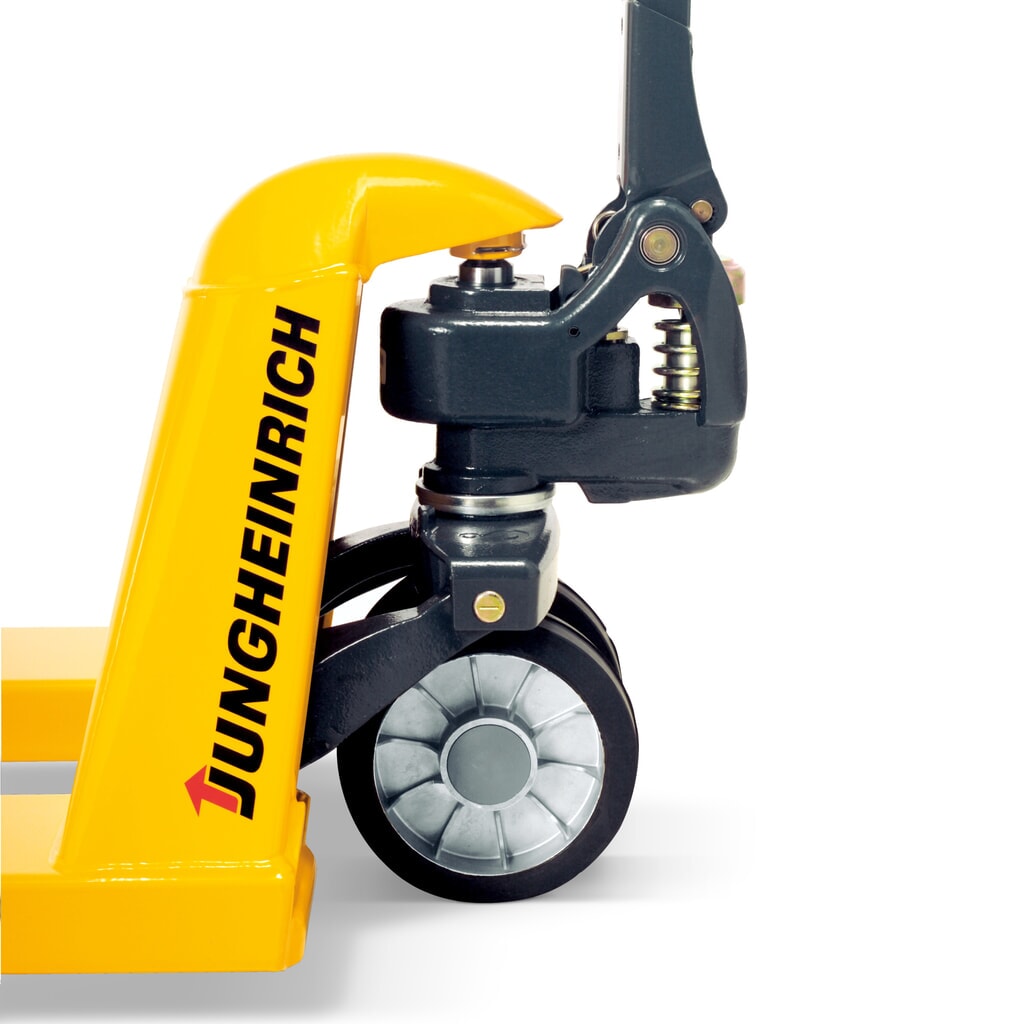

The Jungheinrich AM 22 hand pallet truck with a capacity of 2200 kg is a robust and reliable premium product for daily pallet handling. It impresses in continuous daily use thanks to its easy handling, maintenance-free design and outstanding durability.
Ergonomic control element can be operated with either hand Optimised hydraulics for reduced effort Durable thanks to robust materials and solid construction Maintenance-free design with all connections lubricated for life Special lowering valve for precision lowering
AM 22 - the classic in the Jungheinrich pallet truck range

The Jungheinrich AM 22 hand pallet truck with a capacity of 2200 kg is a high-quality product. The patented, ergonomic Jungheinrich operating concept allows the tiller to be controlled from any position and is equally well suited to right or left-handed users. All functions can be easily operated with one hand. Thanks to the special lowering valve, sensitive loads can be set down with utmost control and precision.

The hand pallet truck does not require any servicing as the connections are lubricated for life and the pump hydraulics are maintenance-free. The outstanding stability and durability of the product is ensured by heavy-duty steel, a sophisticated design and a welded tiller mount. The covered entry rollers and rounded fork tips make insertion and retraction from the pallet particularly easy.

The Jungheinrich AM 22 hand pallet truck with 1150 mm fork length and 2200 kg capacity is available in different wheel configurations. Depending on the ground conditions and specific application, you can choose between a range of roller materials. You can also opt for single or tandem fork rollers.

Durable, reliable and proven in continuous daily use - the Jungheinrich AM 22 hand pallet truck with a capacity of 2200 kg and standard fork length is the ideal partner for your everyday pallet transport. Order this classic product from the pallet truck range in our shop in your chosen configuration.
Product description
The Jungheinrich AM 22 hand pallet truck with a capacity of 2200 kg is a robust and reliable premium product for daily pallet handling. It impresses in continuous daily use thanks to its easy handling, maintenance-free design and outstanding durability.
Ergonomic control element can be operated with either hand Optimised hydraulics for reduced effort Durable thanks to robust materials and solid construction Maintenance-free design with all connections lubricated for life Special lowering valve for precision lowering
AM 22 - the classic in the Jungheinrich pallet truck range

The Jungheinrich AM 22 hand pallet truck with a capacity of 2200 kg is a high-quality product. The patented, ergonomic Jungheinrich operating concept allows the tiller to be controlled from any position and is equally well suited to right or left-handed users. All functions can be easily operated with one hand. Thanks to the special lowering valve, sensitive loads can be set down with utmost control and precision.

The hand pallet truck does not require any servicing as the connections are lubricated for life and the pump hydraulics are maintenance-free. The outstanding stability and durability of the product is ensured by heavy-duty steel, a sophisticated design and a welded tiller mount. The covered entry rollers and rounded fork tips make insertion and retraction from the pallet particularly easy.

The Jungheinrich AM 22 hand pallet truck with 1150 mm fork length and 2200 kg capacity is available in different wheel configurations. Depending on the ground conditions and specific application, you can choose between a range of roller materials. You can also opt for single or tandem fork rollers.

Durable, reliable and proven in continuous daily use - the Jungheinrich AM 22 hand pallet truck with a capacity of 2200 kg and standard fork length is the ideal partner for your everyday pallet transport. Order this classic product from the pallet truck range in our shop in your chosen configuration.
