- Ergonomic control element that can be operated with either hand
- Powerful hydraulic pump with external hydraulic reservoir
- Easy to steer thanks to ball-bearing mounted piston rod
16 Working days
- Quick lift (up to 120 kg)
- Short and agile
- Durable and robust thanks to high-quality materials and first-class construction
- Quick lift (up to 120 kg)
- Durability and stability
- Maintenance-free use: no regreasing required
30 Working days
- Quick lift (up to 120 kg) for faster throughput
- 105° steering angle for utmost agility
- High manoeuvrability thanks to short fork length
4 Working days
- Quick lift (up to 120 kg) for faster throughput
- 105° steering angle for utmost agility
- High manoeuvrability thanks to short fork length
4 Working days
- Ideal for transport in trucks
- High manoeuvrability thanks to short fork length
- Ergonomic control element
71 Working days
- Ergonomic control element can be operated with either hand
- Optimised hydraulics for reduced effort
- Durable thanks to robust materials and solid construction
16 Working days
- Extra-long forks in different lengths for all applications
- Optimised hydraulics and smooth-running wheels for effortless use
- Quiet operation and maximum stability thanks to tandem fork rollers
16 Working days
- Quick lift (up to 120 kg)
- For load carriers with special dimensions or simultaneous transport of multiple pallets
- Durable and robust thanks to high-quality materials and first-class construction
16 Working days
- Hard-wearing heavy-duty pallet truck with a capacity of 3000 kg
- Time-saving rapid lift for loads of up to 120 kg
- Ergonomic tiller suitable for both right and left-handed users
16 Working days
- Quick lift (up to 120 kg)
- Integrated drum brake
- Durable and robust thanks to high-quality materials and first-class construction
16 Working days
- Integrated drum brake
- Extremely agile thanks to short headlength
- Durable and robust thanks to high-quality materials and first-class construction
16 Working days
- Low entry height of just 51 mm
- Quick lift (up to 120 kg)
- Connections feature lifetime lubrication for maintenance-free use
16 Working days
- Low entry height of just 51 mm
- Quick lift (up to 120 kg)
- Connections feature lifetime lubrication for maintenance-free use
16 Working days
- Quick lift up to 120 kg
- Minimises the noise produced during load transports
- Tiller for ergonomic operation by right and left-handed users
21 Working days
- Minimises the noise produced during load transports
- Tiller for ergonomic operation by right and left-handed users
- Extremely agile in tight spaces thanks to short headlength
21 Working days
- Corrosion and acid-resistant chassis
- Closed fork tips to protect against dirt splashes
- Easy to clean
16 Working days
- Vollelektrische Fahr-, Hub- und Absenkfunktion
- Leicht, kurz und wendig dank kompakter Bauart
- Variantenauswahl bei der Gabellänge
16 Working days
- 0 – 2,200 kg measuring range
- 1 kg display increments across the entire measuring range
- Max. 0.1% deviation from measuring range
16 Working days
- 685 mm distance across forks for special pallets
- Fully electric travel, lifting and lowering function
- Lightweight, short and agile thanks to compact dimensions
16 Working days
- High manoeuvrability thanks to short fork length
- 105° steering angle for utmost agility
- Ergonomic control element that can be operated with either hand
71 Working days
- 0.5 kW motor for electro-hydraulic lifting
- Maintenance-free 12 V / 70 Ah battery
- Flexible application, can also be used as a lift table or workbench
16 Working days
- Manually adjustable fork spacing (140-585 mm)
- Extremely quiet operation
- Quick lift up to 120 kg for quick and easy goods transport
16 Working days
- 0 – 2,200 kg measuring range
- Automatic multi-range display: 0.2-200 kg; 0.5-500 kg; 1–2,200 kg
- Max. 0.1% deviation from measured weight
Jungheinrich pallet trucks – versatile, robust and reliable
With pallet trucks from Jungheinrich, pallets and other goods can be lifted, transported and lowered quickly and easily. Our product selection includes manual and electric Jungheinrich pallet trucks as well as models for special applications. This buying guide will help you quickly find the right industrial truck for your needs.
1. The Jungheinrich pallet jacks available in our store
2. Buying a Jungheinrich pallet jack: what do you need to consider?
Before you buy a Jungheinrich pallet truck, you need to consider several important factors. A thorough benefit and function analysis will help you determine which features the industrial truck should have. By answering these questions, you can create a detailed requirements profile:
- Where will the Jungheinrich pallet truck be used?
- Which drive is required for travel and lift functions?
- What is the maximum load weight to be carried?
- What fork length and width are required for the load?
- How intensively will the industrial truck be used?
- Are long distances to be covered and if so, do you need a model with passenger drive?
- Which tyres are suitable for the surfaces in your company warehouse?
- Do you need special functions such as a quick lift, crawl speed button or a weighing function to work more efficiently?
Do you need help drawing up a requirements profile or would you like more information about Jungheinrich pallet jacks? You can reach our customer service via our contact form, who will also be happy to put you in touch with a specialist consultant – at your premises if you wish.
Selecting a suitable type of industrial truck for your needs
One of the most important selection criteria is the working environment in which the pallet truck is primarily to be used. This determines which type of model should be purchased and which performance parameters it must have:
| Place of use | Details and examples | Suitable Jungheinrich pallet truck type |
|---|---|---|
| Dry indoor and outdoor areas |
|
|
| Indoor and outdoor areas with condensation |
|
|
| Indoor areas with specific safety requirements |
|
|
| Indoor areas with limited turning and manoeuvring possibilities |
|
|
| Multi-purpose use |
|
|
Considering models for special tasks
In addition to Jungheinrich pallet trucks for the classic applications mentioned above, you will also find variants in our range that are suitable for special tasks:
| Task | Suitable model type |
|---|---|
| Transporting and weighing goods |
|
| Transverse pick-up of Euro pallets |
|
| Picking up non-standardised pallets |
|
| Picking up long goods |
|
| Transport of sensitive or fragile goods |
|
Choosing Jungheinrich pallet trucks with the right drive and lift functions
In our range of Jungheinrich pallet trucks you will find models with manual, semi-electric and electric drive functions. The electric models in particular offer a wide range of functions and ergonomic advantages. Fully electric pallet trucks reduce the physical strain on the operator to a minimum, so that you and your employees can work efficiently and in a back-friendly manner. Therefore, opt for a electrically powered Jungheinrich pallet truck if:
- you regularly have to transport and lift high loads and
- you often have to cover longer transport distances with the unit.
Manual pallet jacks from Jungheinrich also allow for a certain degree of ergonomic comfort: technical developments such as an optimised hydraulic system reduce the effort required for pumping, while chrome-plated axles, plain bushes on the wheels or smooth-running wheel bearings make it easier to start up, brake and manoeuvre in confined spaces.
| Operation | Features | Applications |
|---|---|---|
| Manual drive |
|
|
| Semi-electric drive |
|
|
| Fully electric drive |
|
|
Load capacity: important for safe loading and transport
You can tell whether a Jungheinrich pallet truck is suitable for lifting and transporting loads in your company by taking note of the load capacity indicated on the truck: this indicates the maximum load up to which the industrial truck may be loaded. Depending on the model and design, this can be up to 3000kg. To ensure you buy the right pallet jack, base your selection on the average weight of the loads to be transported regularly. If possible, also take peak loads into account – this way you can use the truck in a particularly flexible way if you need to. To ensure that an industrial truck is not overloaded, many of our models have an overload protection feature.
With Jungheinrich stacker trucks, a distinction is made between nominal load capacity and actual load capacity, depending on the lifting height. However, this does not need to be taken into account with pallet trucks, as long as the load centre distance is noted and the load is evenly distributed. An exception to this can be our Jungheinrich pallet truck models with extra-long forks.
Choosing the right fork lengths and widths
In our store you can buy manual and electrically powered Jungheinrich pallet jacks with different fork lengths and fork widths. Loads that are regularly transported in your company should determine which fork variant is the most suitable. Standard-sized fork lengths and widths are ideal for transporting Euro pallets, mesh pallets and other loads of a similar size. However, if you want to move smaller pallets or goods in excess length with these machines, you should choose a model with special dimensions:
| Load | Examples | Corresponding fork dimensions | Advantages |
|---|---|---|---|
| Standard |
· Mesh boxes |
|
|
| Special small sizes |
|
|
|
| Special large sizes |
|
|
|
Please note: For Jungheinrich pallet trucks with extra-long forks, the load capacity may decrease as the fork length increases.
Intensity of use: how powerful should your Jungheinrich pallet truck be?
Depending on the model, the scope of performance of our Jungheinrich models determines
- how often,
- how many hours at a time,
- and how intensively you should use the truck.
The maximum operating time is particularly decisive for our electric models. Depending on the design and battery type, the trucks are suitable for single-shift or two-shift operation:
| Operating intensity | Operating hours per year | Pallets per hour |
|---|---|---|
| One-shift operation |
Approx. 500 to 1000 operating hours per year: corresponds to light intensity of use. |
|
| Two-shift operation |
Approx. 1000 to 1700 operating hours per year: corresponds to medium intensity of use. |
|
With Jungheinrich hand pallet trucks, the possible intensity of use is determined by the hydraulics or the installed hydraulic pump. Depending on the design and construction materials, the pump reaches a certain maximum number of lifting cycles before it shows wear. Depending on the model, between 3,500 (BASIC models from Jungheinrich) and 10,000 lifting cycles (with optimised Jungheinrich hydraulic system) are possible. In addition, the intensity of use is determined by the robustness and workmanship of the materials and components used.
Choose tyres suitable for your surfaces
In our online shop you can buy Jungheinrich industrial trucks with different tyre materials. Which wheel material is most suitable for your desired model depends on the operating and ambient conditions. Among other things, the following parameters must be taken into account:
- Load-bearing capacity of the floor
- Floor condition (paved/unpaved, degree of contamination, floor covering)
- Floor slope
- Noise level
- Hygiene requirements
- Starting and rolling resistance
- Impact load
- Environmental influences such as the presence of water, chemicals or oils
- Ambient temperature
- Electrical conductivity requirements
Choose the Jungheinrich pallet truck with tyres that correspond to the respective maximum load required for transport and area of application. We offer a range of tyres in the following materials:
| Tyre material | Characteristics | Application |
|---|---|---|
| Polyurethane |
|
|
| Nylon |
|
|
| Solid rubber |
|
|
| Steel |
|
|
When choosing the right tyres, you should also consider the function of the individual wheel types:
- Jungheinrich hand pallet trucks are usually equipped with two steering wheels and at least two fork rollers.
- Electrically powered Jungheinrich pallet trucks have a 3-, 4- or 5-point chassis depending on the model. These can also have a drive wheel, support wheels and fork rollers.
For particularly high loads, fork wheels are also available as tandem models. The double castors distribute the weight better, which is why they are particularly suitable for use on uneven ground, transporting loads over speed humps and similar obstacles. They also ensure smooth running and additional stability when moving loads and reduce wear on the single wheels. In general, the following applies to all Jungheinrich models: smooth-running wheels and rollers ensure effort-saving use, while run-in rollers in the fork tip make it easier to enter and exit the pallet.
3. Jungheinrich pallet trucks in detail
Below you will find further information about the different types of Jungheinrich pallet trucks available from our online store and their range of functions. Upon request, you can also get practical accessories from us or order your model with additional functions.

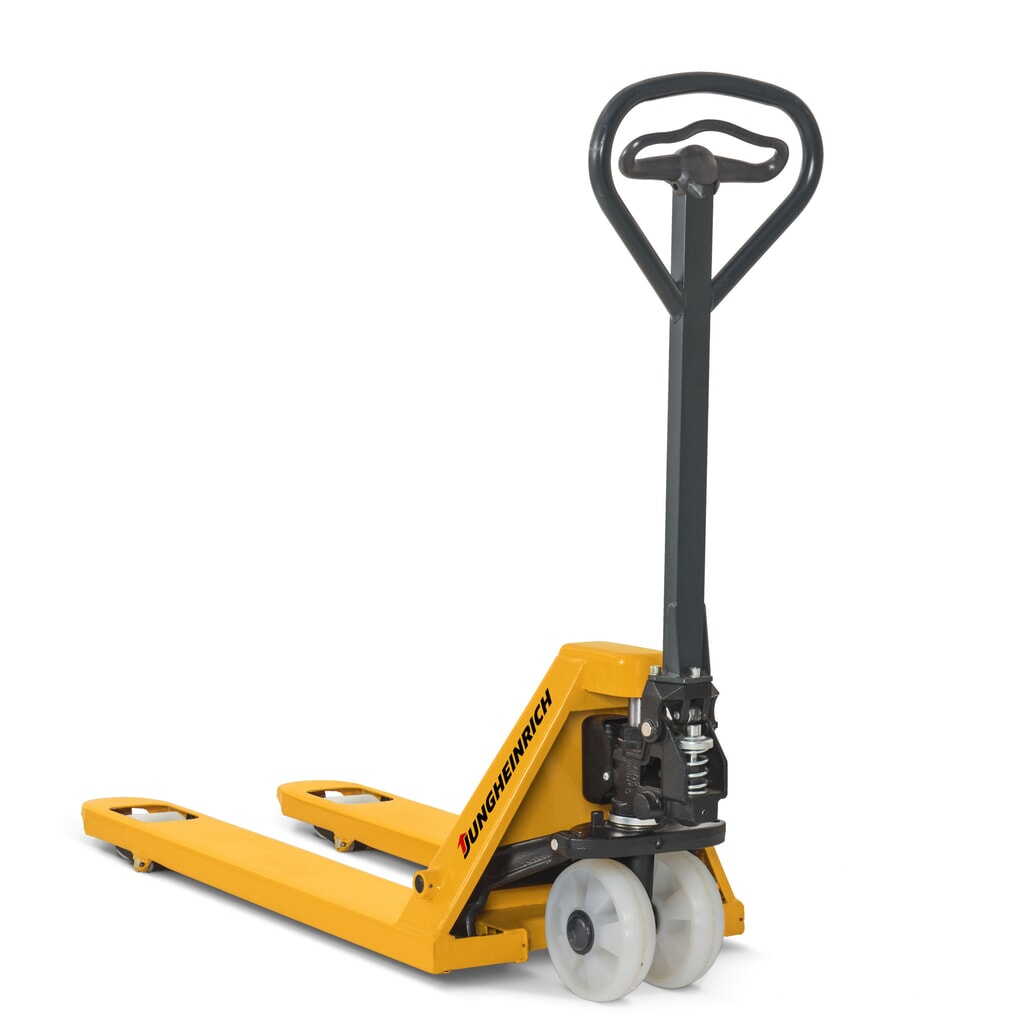

Jungheinrich hand pallet trucks
The basic technical principle of our Jungheinrich pallet jacks with a hand-hydraulic lift function has been around since 1929. These versatile industrial trucks, designed for the horizontal transport of pallets, transport boxes and wire mesh boxes, have added many functions in the meantime and are still among the transport classics in warehouses, logistics and trade. No wonder: Jungheinrich hand pallet trucks are easy to operate and uncomplicated in function, operation and maintenance.
The basic principle of their operation has always remained unchanged despite many innovations: hand pallet trucks consist of a fork with two prongs responsible for picking up a load and a steering tiller, with which the truck is manually steered and moved over short distances. Pumping the tiller several times activates the hydraulic pump and causes the fork to be lifted until the ground clearance necessary for transporting the load is reached. The load can be lowered again via a lever on the handle, which releases the hydraulic pump and lowers the fork back to ground level. Integrated wheels allow the pallet truck to be pulled or pushed as well as turned on the spot.
| Parameter | Details |
|---|---|
| Drive type |
|
| Lifting type |
|
| Load capacity |
|
| Fork length |
|
| Optional equipment and accessories (model depending) |
|
| Application |
|
| Advantages |
|
| Disadvantages |
|
As special models among the manual hand pallet truck range, we also stock Jungheinrich flat pallet trucks. These models, also known as low-profile pallet trucks, make it possible to pick up special or customised pallets, non-standardised Euro pallets or one-way pallets close to the floor. These trucks have a particularly low entry height of approx. 51mm and a low fork height, which allow loads to be lifted and moved almost at floor level.
Please note: Due to the low entry height, Jungheinrich flat pallet trucks only have a very low ground clearance. The subfloors in your operating areas should therefore be level. The trucks cannot be used on ramps.
Jungheinrich electric pallet trucks
Electric pallet trucks from Jungheinrich are equipped with one or two electric motors, depending on the model. This allows loads to be lifted, transported and lowered faster and with less effort. Control is via the multifunction tiller head. A particularly compact design also enables manoeuvring in the smallest of spaces and is facilitated by the optional crawl speed button. Thanks to the electric drive, our electrically powered Jungheinrich pallet trucks can be moved more precisely and sensitively than manual industrial trucks.
You can buy electrically powered Jungheinrich pallet trucks from us as fully electric models: in this case, both the lifting and driving as well as the lowering functions are operated by an electric motor.
Depending on the model series, the truck motors are powered by a robust lead-gel or powerful lead-acid battery or are available as long-life Jungheinrich lithium-ion pallet trucks.
Jungheinrich electric low-platform trucks: strong support for warehousing and logistics
Our powerful and robust electric pallet trucks from Jungheinrich with all-electric operation are available as variants for both towbar-guided pedestrian operation and, on request, pedestrian operation with side seat or operator ride-on platform. Depending on the model series, you can use the Jungheinrich pallet truck for both light indoor applications and for demanding indoor and outdoor applications. Many models can also be used for truck-mounted applications.
All Jungheinrich battery-powered pallet trucks in our range always have a 5-point chassis to ensure the greatest possible driving and cornering stability. The drive wheel is positioned centrally under the towbar. The lateral support wheels prevent the truck from rocking on uneven ground.
| Parameter | Details |
|---|---|
| Drive type |
|
| Lifting type |
|
| Load capacity |
|
| Fork length |
|
| Optional equipment and accessories (model depending) |
|
| Application |
|
| Advantages |
|
| Disadvantages |
|
Depending on the model, Jungheinrich Performance Series pallet trucks are available with a drive via a DC or three-phase motor and are powered either by powerful lead-acid, maintenance-free lead-gel batteries or innovative lithium-ion batteries. The industrial trucks are "refuelled" by charging the battery with a battery charger. Usually, all vehicles are equipped with an integrated charger for this purpose: this allows the battery to be charged at any 230 V socket. Depending on the battery type, certain specifications must be observed during the charging process. These are usually listed in the Jungheinrich pallet jack service manual of the individual vehicle.
Ergonomic and versatile: scissor lift trucks from Jungheinrich
Our scissor lift trucks combine the function of a lift truck with that of a mobile work table. The scissor mechanism allows the load to be lifted to a height of approx. 800mm: this makes it possible to work with goods or merchandise in a way that is back friendly. Jungheinrich scissor lift pallet trucks also make it easier to transfer goods from the raised forks to a workbench or production line. Manual trucks are raised by pumping the towbar (optionally with quick lift function) and electric scissor lift trucks are lifted via the electro-hydraulic function.
| Parameter | Details |
|---|---|
| Drive type |
|
| Lifting type |
|
| Load capacity |
|
| Fork length |
|
| Optional equipment and accessories (model depending) |
|
| Application |
|
| Advantages |
|
| Disadvantages |
|
Stainless steel pallet trucks from Jungheinrich
Our stainless steel Jungheinrich pallet trucks are particularly durable, corrosion-resistant and insensitive to moisture, acids, alkalis or aggressive gases. We offer models made of resistant plain steel with hot-dip galvanising (electroplating) as well as pure stainless steel. The hot-dip galvanisation on the steel models protects the surface from corrosion and allows the truck to be cleaned hygienically, even with high-pressure cleaners.
Their smooth surface also prevents the build-up of dirt and contamination: as a result, Jungheinrich stainless steel pallet trucks meet the highest hygiene standards and are ideal for businesses where hazardous materials are handled or strict hygiene regulations must be observed. These include laboratories, cold stores, slaughterhouses, food operations, and pharmaceutical or chemical plants. Equipped with additional equipment, steel pallet trucks can also be used in ESD or ATEX zones.
| Parameter | Details |
|---|---|
| Drive type |
|
| Lifting type |
|
| Available models |
|
| Optional equipment and accessories (model depending) |
|
| Application |
|
| Advantages |
|
| Disadvantages |
|
Jungheinrich pallet trucks with weigh scales combine the functions of weighing and transporting in one device. The scales integrated into the industrial truck are also suitable for determining and checking the shipping weight of goods and merchandise. Depending on the model, these Jungheinrich pallet jacks feature scales with 1-5kg display increments or precision scales with multiple weighing cells that can determine weights with an accuracy of 0.1-0.5% deviation. The scales are equipped with practical functions such as tare input, zero correction, the possibility to add a sequence number and other similar functions, depending on the model.
You can purchase Jungheinrich pallet trucks with scales from us as hand pallet trucks with exclusively manual operation.
4. FAQ for Jungheinrich pallet trucks
Ideally, you should use the oil types recommended in the service manual that comes with your Jungheinrich pallet jack. In most cases, these are the hydraulic oils HLP32 or HLP46. Both are characterized by a high performance level, good viscosity-temperature behaviour, reliable corrosion protection and a long service life.
Pallet truck hydraulic oil must be changed regularly, otherwise impurities can affect oil pressure and the overall performance of the equipment, causing the truck to react slowly or imprecisely.
Both electric and hand pallet trucks from Jungheinrich must be inspected at least once a year. For some models, this is a legal requirement that must be carried out in accordance with LOLER (Lifting Operations and Lifting Equipment Regulations) and be inspected under PUWER (Provision and Use of Work Equipment Regulations). A short operational test must also be carried out every day. This includes:
- a visual inspection for externally visible damage or leaks
- drive and braking test
- checking the hydraulics and oil level
- observation of driving behaviour, especially during cornering and turning manoeuvres
To ensure that both manual and electric models can be used safely and efficiently, regular maintenance should be carried out on the pallet truck, regardless of model type. This should only be carried out by appropriately qualified and authorised personnel. In most cases, these are trained employees, however external specialists from outside the company can also be brought in to check the equipment for defects that could endanger occupational safety. The following components, among others, should be checked for damage, wear or corrosion:
- steering and brakes
- drivetrain
- wheels and chassis
- handholds and ride-on platform, if applicable
- switches, warning devices and lighting
- batteries and chargers
- signage
