Jungheinrich pallet trucks – versatile, robust and reliable

Table of contents

The Jungheinrich pallet jacks available in our store
Buying a Jungheinrich pallet jack: what do you need to consider?
Jungheinrich pallet trucks in detail
FAQ for Jungheinrich pallet trucks

With pallet trucks from Jungheinrich, pallets and other goods can be lifted, transported and lowered quickly and easily. Our product selection includes manual and electric Jungheinrich pallet trucks as well as models for special applications. This buying guide will help you quickly find the right industrial truck for your needs.

1. The Jungheinrich pallet jacks available in our store

Jungheinrich hand pallet trucks

Jungheinrich electric pallet trucks

Jungheinrich scissor lift pallet trucks

Jungheinrich pallet trucks with weigh scales

Jungheinrich stainless steel pallet trucks

2. Buying a Jungheinrich pallet jack: what do you need to consider?

Jungheinrich AM 20 hand pallet truck, fork length 1150 mm

Before you buy a Jungheinrich pallet truck, you need to consider several important factors. A thorough benefit and function analysis will help you determine which features the industrial truck should have. By answering these questions, you can create a detailed requirements profile:

Where will the Jungheinrich pallet truck be used?
Which drive is required for travel and lift functions?
What is the maximum load weight to be carried?
What fork length and width are required for the load?
How intensively will the industrial truck be used?
Are long distances to be covered and if so, do you need a model with passenger drive?
Which tyres are suitable for the surfaces in your company warehouse?
Do you need special functions such as a quick lift, crawl speed button or a weighing function to work more efficiently?

Do you need help drawing up a requirements profile or would you like more information about Jungheinrich pallet jacks? You can reach our customer service via our contact form, who will also be happy to put you in touch with a specialist consultant – at your premises if you wish.

Selecting a suitable type of industrial truck for your needs

One of the most important selection criteria is the working environment in which the pallet truck is primarily to be used. This determines which type of model should be purchased and which performance parameters it must have:

Place of use	Details and examples	Suitable Jungheinrich pallet truck type
Dry indoor and outdoor areas	Indoor areas, e.g., in supermarkets, warehouses or sales rooms Dry, level outdoor areas, e.g., in outdoor warehouses or delivery zones	Hand pallet trucks Semi-electric pallet trucks Fully electric pallet trucks
Indoor and outdoor areas with condensation	Damp environments, e.g., cold stores or greenhouses, fruit storage areas	Stainless steel pallet trucks Models with hot-dip galvanising
Indoor areas with specific safety requirements	Areas with strict hygiene regulations, e.g., slaughterhouses, food processing plants or medical laboratories Clean rooms Explosive environments, e.g., in electrical engineering Environments where corrosive chemicals are handled, e.g., in the production of cleaning materials or building materials	Stainless steel pallet trucks Pallet trucks with antistatic steering wheel Jungheinrich pallet truck with additional equipment for ex-zones
Indoor areas with limited turning and manoeuvring possibilities	Small storage environments, e.g., narrow storage rooms, overseas containers, narrow corridors	Jungheinrich hand pallet trucks and electric pallet trucks with extra short forks
Multi-purpose use	Use as a worktable, e.g., on production lines or in the workshop	Jungheinrich scissor lift pallet truck

To the table of contents

Considering models for special tasks

In addition to Jungheinrich pallet trucks for the classic applications mentioned above, you will also find variants in our range that are suitable for special tasks:

Task	Suitable model type
Transporting and weighing goods	Jungheinrich pallet truck with scales
Transverse pick-up of Euro pallets	All models with special fork carrying widths
Picking up non-standardised pallets	Jungheinrich flat pallet trucks for goods close to the ground Manual and electric models with special fork widths
Picking up long goods	Manual and electric models with extra-long fork widths
Transport of sensitive or fragile goods	Manual or electric models with a special lowering valve for particularly sensitive lowering

Choosing Jungheinrich pallet trucks with the right drive and lift functions

Jungheinrich AM 22 hand pallet truck, fork length 1150 mm

In our range of Jungheinrich pallet trucks you will find models with manual, semi-electric and electric drive functions. The electric models in particular offer a wide range of functions and ergonomic advantages. Fully electric pallet trucks reduce the physical strain on the operator to a minimum, so that you and your employees can work efficiently and in a back-friendly manner. Therefore, opt for a electrically powered Jungheinrich pallet truck if:

you regularly have to transport and lift high loads and
you often have to cover longer transport distances with the unit.

Manual pallet jacks from Jungheinrich also allow for a certain degree of ergonomic comfort: technical developments such as an optimised hydraulic system reduce the effort required for pumping, while chrome-plated axles, plain bushes on the wheels or smooth-running wheel bearings make it easier to start up, brake and manoeuvre in confined spaces.

Operation	Features	Applications
Manual drive	Operated manually via the tiller for both travel and lifting Powerful hydraulics support the lifting function	Ideally suited for short transport distances
Semi-electric drive	Travel motions are electrically driven Lifting is carried out via manual pumping of the tiller Lowering via manually operated lowering valve	Suitable for longer transport distances
Fully electric drive	Travel and lifting functions are operated electrically via the vehicle battery	Easy and efficient movement as well as lifting and lowering possible Suitable for longer distances and frequent lifting work (depending on model)

Load capacity: important for safe loading and transport

You can tell whether a Jungheinrich pallet truck is suitable for lifting and transporting loads in your company by taking note of the load capacity indicated on the truck: this indicates the maximum load up to which the industrial truck may be loaded. Depending on the model and design, this can be up to 3000kg. To ensure you buy the right pallet jack, base your selection on the average weight of the loads to be transported regularly. If possible, also take peak loads into account – this way you can use the truck in a particularly flexible way if you need to. To ensure that an industrial truck is not overloaded, many of our models have an overload protection feature.

With Jungheinrich stacker trucks, a distinction is made between nominal load capacity and actual load capacity, depending on the lifting height. However, this does not need to be taken into account with pallet trucks, as long as the load centre distance is noted and the load is evenly distributed. An exception to this can be our Jungheinrich pallet truck models with extra-long forks.

To the table of contents

Choosing the right fork lengths and widths

Jungheinrich AM 22 hand pallet truck with long forks

In our store you can buy manual and electrically powered Jungheinrich pallet jacks with different fork lengths and fork widths. Loads that are regularly transported in your company should determine which fork variant is the most suitable. Standard-sized fork lengths and widths are ideal for transporting Euro pallets, mesh pallets and other loads of a similar size. However, if you want to move smaller pallets or goods in excess length with these machines, you should choose a model with special dimensions:

Load	Examples	Corresponding fork dimensions	Advantages
Standard	Euro pallets · Mesh boxes	Standard fork length from 1150mm Standard fork width from 520 to 540mm	Versatile in use Suitable for many load carriers in standard dimensions
Special small sizes	General cargo such as cartons or boxes Display pallets Half pallets Quarter pallets (CHEP pallets)	Short forks between 800 and 1000mm	High manoeuvrability, small turning radius Ideal for use in narrow aisles Suitable for transport in lorries or vans
Special large sizes	Pallets with excess width or length Pick-up of several pallets at the same time Transverse pick-up of Euro pallets	Extra-long forks from 1207 to 2400mm Extra wide fork carrying width of 680mm	Simultaneous pick-up of several pallets accelerates pallet handling

Load

Examples

Corresponding fork dimensions

Advantages

Standard

Euro pallets

· Mesh boxes

Standard fork length from 1150mm
Standard fork width from 520 to 540mm

Versatile in use
Suitable for many load carriers in standard dimensions

Special small sizes

General cargo such as cartons or boxes
Display pallets
Half pallets
Quarter pallets (CHEP pallets)

Short forks between 800 and 1000mm

High manoeuvrability, small turning radius
Ideal for use in narrow aisles
Suitable for transport in lorries or vans

Special large sizes

Pallets with excess width or length
Pick-up of several pallets at the same time
Transverse pick-up of Euro pallets

Extra-long forks from 1207 to 2400mm
Extra wide fork carrying width of 680mm

Simultaneous pick-up of several pallets accelerates pallet handling

Please note: For Jungheinrich pallet trucks with extra-long forks, the load capacity may decrease as the fork length increases.

Intensity of use: how powerful should your Jungheinrich pallet truck be?

Depending on the model, the scope of performance of our Jungheinrich models determines

how often,
how many hours at a time,
and how intensively you should use the truck.

The maximum operating time is particularly decisive for our electric models. Depending on the design and battery type, the trucks are suitable for single-shift or two-shift operation:

Operating intensity	Operating hours per year	Pallets per hour
One-shift operation	Approx. 500 to 1000 operating hours per year: corresponds to light intensity of use.	Up to 15 pallets (electric hand pallet truck) Up to 20 pallets (electric low-lift pallet truck)
Two-shift operation	Approx. 1000 to 1700 operating hours per year: corresponds to medium intensity of use.	Up to 30 pallets (Jungheinrich Performance series)

With Jungheinrich hand pallet trucks, the possible intensity of use is determined by the hydraulics or the installed hydraulic pump. Depending on the design and construction materials, the pump reaches a certain maximum number of lifting cycles before it shows wear. Depending on the model, between 3,500 (BASIC models from Jungheinrich) and 10,000 lifting cycles (with optimised Jungheinrich hydraulic system) are possible. In addition, the intensity of use is determined by the robustness and workmanship of the materials and components used.

To the table of contents

Choose tyres suitable for your surfaces

In our online shop you can buy Jungheinrich industrial trucks with different tyre materials. Which wheel material is most suitable for your desired model depends on the operating and ambient conditions. Among other things, the following parameters must be taken into account:

Load-bearing capacity of the floor
Floor condition (paved/unpaved, degree of contamination, floor covering)
Floor slope
Noise level
Hygiene requirements
Starting and rolling resistance
Impact load
Environmental influences such as the presence of water, chemicals or oils
Ambient temperature
Electrical conductivity requirements

Choose the Jungheinrich pallet truck with tyres that correspond to the respective maximum load required for transport and area of application. We offer a range of tyres in the following materials:

Tyre material	Characteristics	Application
Polyurethane	Particularly flexible and resistant Quiet, low-noise running Shock-absorbing Low wear Highly resilient Long service life Low rolling resistance Non-marking Temperature resistant from -20°C to +80°C Oil and grease resistant	For frequent use on hard and sensitive floors
Nylon	High surface pressure High running noise More susceptible to impact Low wear Hard and abrasion resistant Low rolling resistance Non-chalking Temperature resistant from -40°C to +90°C Resistant to acids and alkalis	In the food and chemical industry On smooth and even floors Only conditionally suitable on soft or pressure-sensitive floors (e.g., tiles)
Solid rubber	Good traction even on rough, uneven, damp and smooth floors Good load distribution Very smooth running Not susceptible to impact Particularly resistant High elasticity Temperature resistant from -5°C to +80°C Higher running resistance Slightly chalking	For environments where smooth running is required, e.g., when loading goods at night For applications requiring special grip, e.g., on uneven floors, for outdoor use in damp conditions or for use on ramps
Steel	Weather resistant Extremely wear and pressure resistant Low rolling resistance Antistatic Electrically conductive Temperature resistant at -100°C to +300°C Resistant to oils and greases	Suitable for working environments in heavy industry

When choosing the right tyres, you should also consider the function of the individual wheel types:

Jungheinrich hand pallet trucks are usually equipped with two steering wheels and at least two fork rollers.
Electrically powered Jungheinrich pallet trucks have a 3-, 4- or 5-point chassis depending on the model. These can also have a drive wheel, support wheels and fork rollers.

For particularly high loads, fork wheels are also available as tandem models. The double castors distribute the weight better, which is why they are particularly suitable for use on uneven ground, transporting loads over speed humps and similar obstacles. They also ensure smooth running and additional stability when moving loads and reduce wear on the single wheels. In general, the following applies to all Jungheinrich models: smooth-running wheels and rollers ensure effort-saving use, while run-in rollers in the fork tip make it easier to enter and exit the pallet.

To the table of contents

3. Jungheinrich pallet trucks in detail

Below you will find further information about the different types of Jungheinrich pallet trucks available from our online store and their range of functions. Upon request, you can also get practical accessories from us or order your model with additional functions.

Jungheinrich hand pallet trucks

The basic technical principle of our Jungheinrich pallet jacks with a hand-hydraulic lift function has been around since 1929. These versatile industrial trucks, designed for the horizontal transport of pallets, transport boxes and wire mesh boxes, have added many functions in the meantime and are still among the transport classics in warehouses, logistics and trade. No wonder: Jungheinrich hand pallet trucks are easy to operate and uncomplicated in function, operation and maintenance.

The basic principle of their operation has always remained unchanged despite many innovations: hand pallet trucks consist of a fork with two prongs responsible for picking up a load and a steering tiller, with which the truck is manually steered and moved over short distances. Pumping the tiller several times activates the hydraulic pump and causes the fork to be lifted until the ground clearance necessary for transporting the load is reached. The load can be lowered again via a lever on the handle, which releases the hydraulic pump and lowers the fork back to ground level. Integrated wheels allow the pallet truck to be pulled or pushed as well as turned on the spot.

Discover our Jungheinrich hand pallet trucks

Parameter	Details
Drive type	Manual
Lifting type	Hand-hydraulic
Load capacity	2000–2500kg For heavy duty transport, models up to 3000kg are available
Fork length	1150mm for standard models Models with extra-long and extra-short forks also available
Optional equipment and accessories (model depending)	Noise-reduction equipment Lift truck dock Antistatic steering wheel Steel steering wheels and fork rollers Parking brake Driving and parking brake Folding frame Inox axles with grease nipple Quick lift Special painting according to RAL table
Application	Transport and transfer of medium-heavy loads, goods and pallets can be moved from underneath Mobile use Can be used in indoor areas Can also be used sporadically in dry outdoor areas
Advantages	Low maintenance Inexpensive to purchase and maintain Annual UVV inspection not required Can be used without forklift licence Independent of power sources and batteries
Disadvantages	High effort required for travel and lifting movements Low handling speed: limited scope of performance

As special models among the manual hand pallet truck range, we also stock Jungheinrich flat pallet trucks. These models, also known as low-profile pallet trucks, make it possible to pick up special or customised pallets, non-standardised Euro pallets or one-way pallets close to the floor. These trucks have a particularly low entry height of approx. 51mm and a low fork height, which allow loads to be lifted and moved almost at floor level.

Please note: Due to the low entry height, Jungheinrich flat pallet trucks only have a very low ground clearance. The subfloors in your operating areas should therefore be level. The trucks cannot be used on ramps.

To the table of contents

Jungheinrich electric pallet trucks

Jungheinrich powered pallet truck EJE 116

Electric pallet trucks from Jungheinrich are equipped with one or two electric motors, depending on the model. This allows loads to be lifted, transported and lowered faster and with less effort. Control is via the multifunction tiller head. A particularly compact design also enables manoeuvring in the smallest of spaces and is facilitated by the optional crawl speed button. Thanks to the electric drive, our electrically powered Jungheinrich pallet trucks can be moved more precisely and sensitively than manual industrial trucks.

Discover our Jungheinrich electric pallet trucks

You can buy electrically powered Jungheinrich pallet trucks from us as fully electric models: in this case, both the lifting and driving as well as the lowering functions are operated by an electric motor.

Depending on the model series, the truck motors are powered by a robust lead-gel or powerful lead-acid battery or are available as long-life Jungheinrich lithium-ion pallet trucks.

Jungheinrich electric low-platform trucks: strong support for warehousing and logistics

Our powerful and robust electric pallet trucks from Jungheinrich with all-electric operation are available as variants for both towbar-guided pedestrian operation and, on request, pedestrian operation with side seat or operator ride-on platform. Depending on the model series, you can use the Jungheinrich pallet truck for both light indoor applications and for demanding indoor and outdoor applications. Many models can also be used for truck-mounted applications.

All Jungheinrich battery-powered pallet trucks in our range always have a 5-point chassis to ensure the greatest possible driving and cornering stability. The drive wheel is positioned centrally under the towbar. The lateral support wheels prevent the truck from rocking on uneven ground.

Parameter	Details
Drive type	Electric
Lifting type	Electro-hydraulic
Load capacity	1400–2000kg (Performance Series)
Fork length	1150mm
Optional equipment and accessories (model depending)	Ramp lift Crawl speed button Stroke pulse control Curve control
Application	Transport and transfer of under-ride pallets, unit loads, goods and transport boxes with high load weight Suitable for transport in trucks (depending on model)
Advantages	Can be used without a forklift licence High handling speeds without operator fatigue Low maintenance Emission-free
Disadvantages	Not designed for stacking operation Models with lead-acid battery require a charging station and regular refilling of the battery with distilled water (wet cell battery)

Depending on the model, Jungheinrich Performance Series pallet trucks are available with a drive via a DC or three-phase motor and are powered either by powerful lead-acid, maintenance-free lead-gel batteries or innovative lithium-ion batteries. The industrial trucks are "refuelled" by charging the battery with a battery charger. Usually, all vehicles are equipped with an integrated charger for this purpose: this allows the battery to be charged at any 230 V socket. Depending on the battery type, certain specifications must be observed during the charging process. These are usually listed in the Jungheinrich pallet jack service manual of the individual vehicle.

To the table of contents

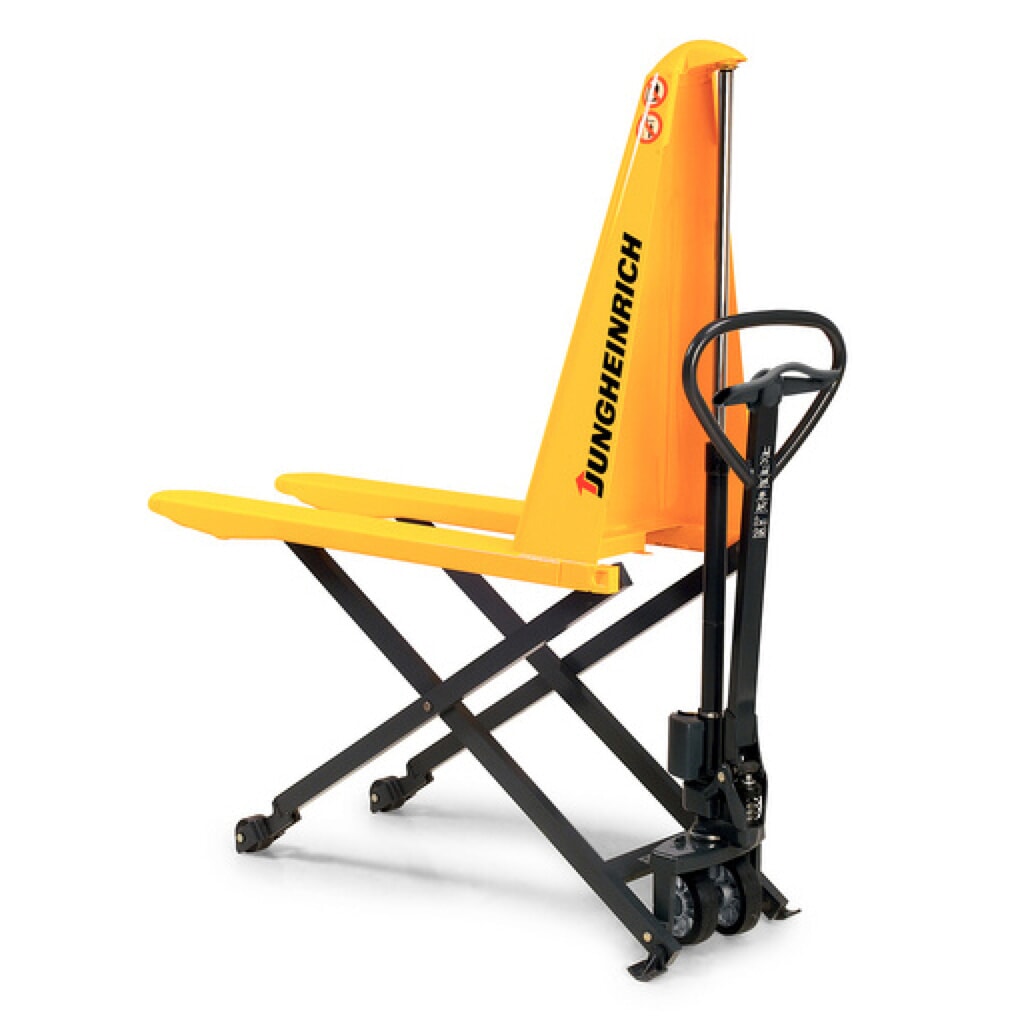

Ergonomic and versatile: scissor lift trucks from Jungheinrich

Jungheinrich AMX 10e scissor lift pallet truck

Our scissor lift trucks combine the function of a lift truck with that of a mobile work table. The scissor mechanism allows the load to be lifted to a height of approx. 800mm: this makes it possible to work with goods or merchandise in a way that is back friendly. Jungheinrich scissor lift pallet trucks also make it easier to transfer goods from the raised forks to a workbench or production line. Manual trucks are raised by pumping the towbar (optionally with quick lift function) and electric scissor lift trucks are lifted via the electro-hydraulic function.

Discover Jungheinrich scissor lift pallet trucks

Parameter	Details
Drive type	Manual
Lifting type	Hand- or electro-hydraulic (model depending)
Load capacity	Up to 1000kg
Fork length	86–800mm (model depending)
Optional equipment and accessories (model depending)	Side support rollers Overload valve Antistatic steering wheel Driving and parking brake Special painting according to RAL table
Application	Transfer of pallets, palletised goods, unit loads, goods and transport boxes at an ergonomic working height (also from shelves) Can be used as a mobile worktable or packaging table Stainless steel models can be used in hygienically sensitive areas and clean rooms
Advantages	Can be used without forklift licence Can be used as transport vehicle and mobile worktable at the same time Enables ergonomic work individually for each employee
Disadvantages	Manual models require high effort for transport and lifting Low handling speed

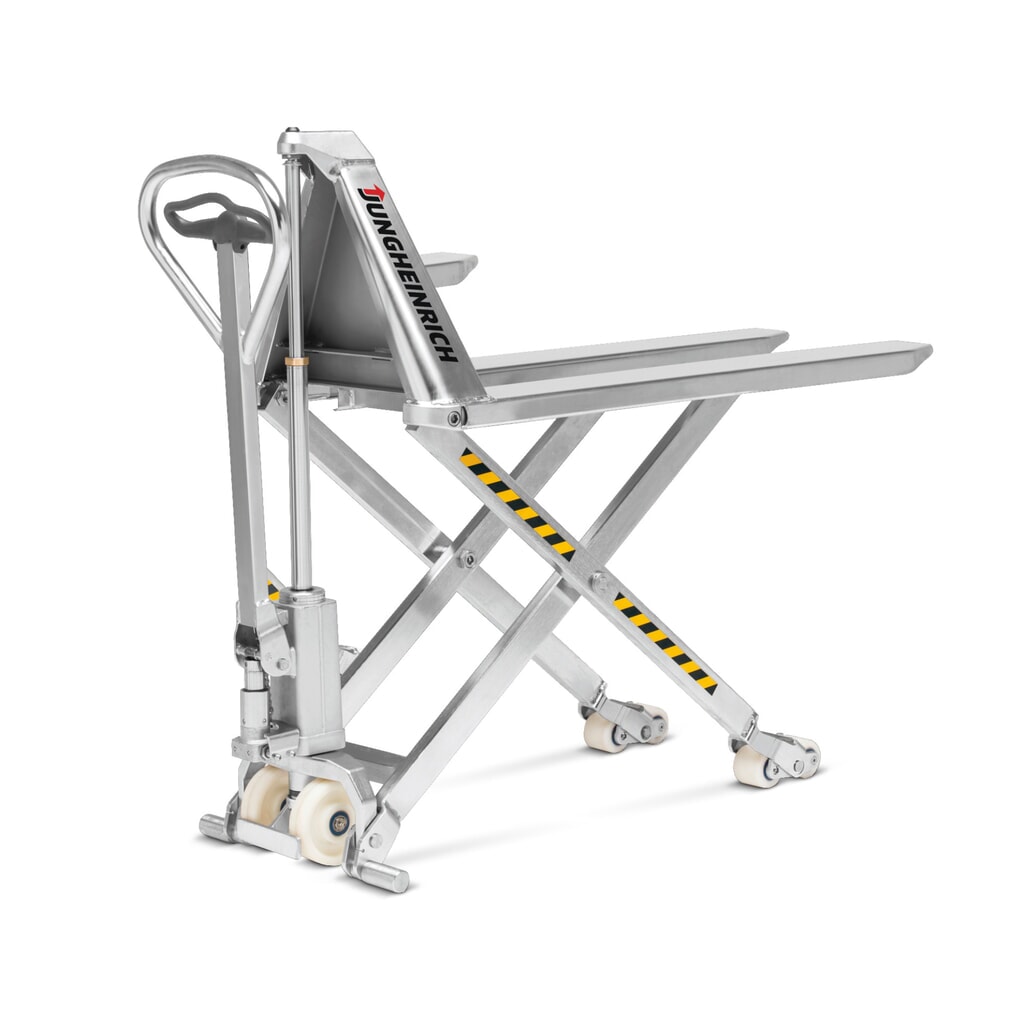

Stainless steel pallet trucks from Jungheinrich

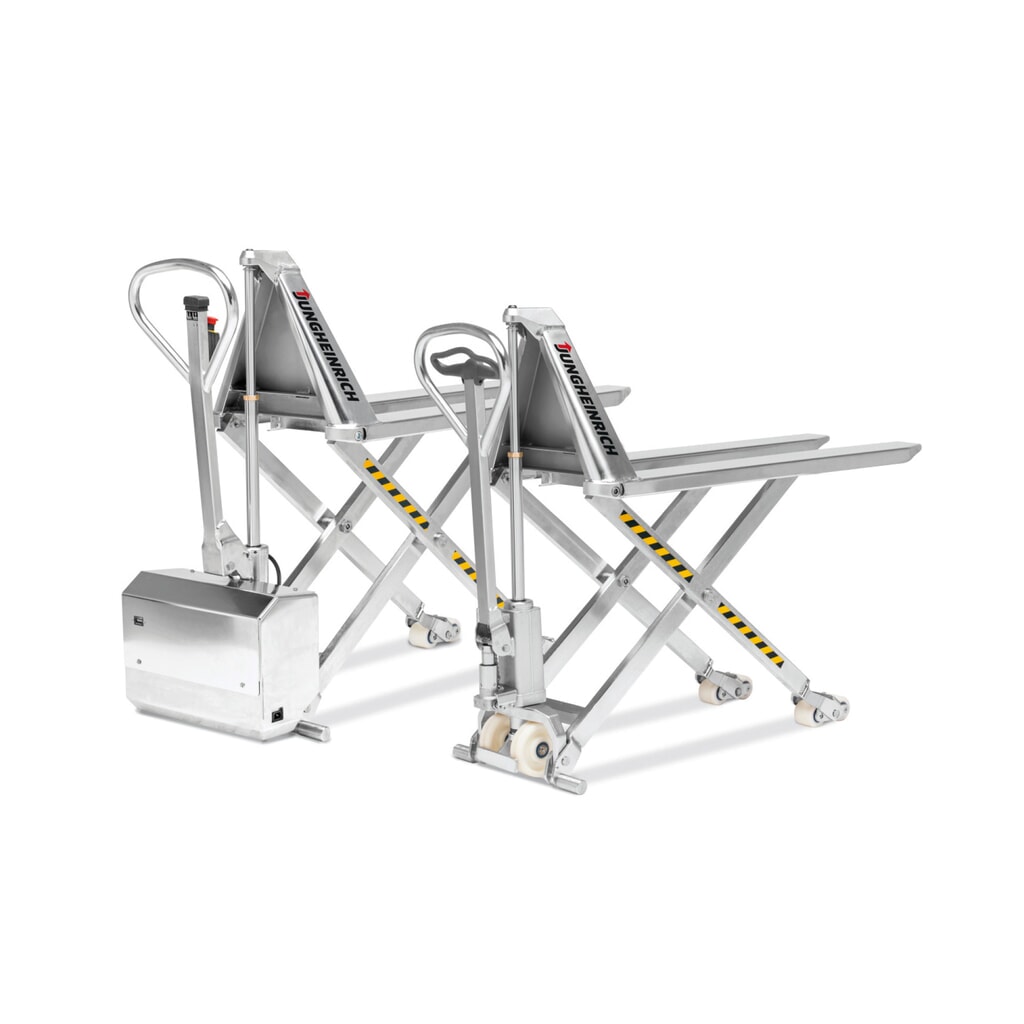

Jungheinrich AMX I15ep stainless steel scissor lift pallet truck – professional version

Our stainless steel Jungheinrich pallet trucks are particularly durable, corrosion-resistant and insensitive to moisture, acids, alkalis or aggressive gases. We offer models made of resistant plain steel with hot-dip galvanising (electroplating) as well as pure stainless steel. The hot-dip galvanisation on the steel models protects the surface from corrosion and allows the truck to be cleaned hygienically, even with high-pressure cleaners.

Their smooth surface also prevents the build-up of dirt and contamination: as a result, Jungheinrich stainless steel pallet trucks meet the highest hygiene standards and are ideal for businesses where hazardous materials are handled or strict hygiene regulations must be observed. These include laboratories, cold stores, slaughterhouses, food operations, and pharmaceutical or chemical plants. Equipped with additional equipment, steel pallet trucks can also be used in ESD or ATEX zones.

Discover Jungheinrich stainless steel pallet trucks

Parameter	Details
Drive type	Manual
Lifting type	Hand- or electro-hydraulic (model depending)
Available models	Jungheinrich stainless steel hand pallet truck Jungheinrich stainless steel scissor pallet truck
Optional equipment and accessories (model depending)	Parking brake for polyurethane wheels Parking brake for solid rubber steering wheels Antistatic steering wheel EX-protection
Application	Transport and relocation of under-ride pallets, unit loads, goods and transport boxes Can be used in hygienically sensitive areas and clean rooms Depending on equipment type, also suitable for use in ATEX and ESD zones
Advantages	Hygienic and easy to clean thoroughly Resistant to moisture, acids, alkalis and many chemicals Can be used without a forklift licence
Disadvantages	Higher purchase costs for pure stainless steel pallet trucks The zinc coating can peel off over time on stainless steel trucks, so long-lasting rust protection is not guaranteed

To the table of contents

Jungheinrich AMW 22p hand pallet truck with weighing scale

Jungheinrich pallet trucks with weigh scales combine the functions of weighing and transporting in one device. The scales integrated into the industrial truck are also suitable for determining and checking the shipping weight of goods and merchandise. Depending on the model, these Jungheinrich pallet jacks feature scales with 1-5kg display increments or precision scales with multiple weighing cells that can determine weights with an accuracy of 0.1-0.5% deviation. The scales are equipped with practical functions such as tare input, zero correction, the possibility to add a sequence number and other similar functions, depending on the model.

You can purchase Jungheinrich pallet trucks with scales from us as hand pallet trucks with exclusively manual operation.

4. FAQ for Jungheinrich pallet trucks

Ideally, you should use the oil types recommended in the service manual that comes with your Jungheinrich pallet jack. In most cases, these are the hydraulic oils HLP32 or HLP46. Both are characterized by a high performance level, good viscosity-temperature behaviour, reliable corrosion protection and a long service life.

Pallet truck hydraulic oil must be changed regularly, otherwise impurities can affect oil pressure and the overall performance of the equipment, causing the truck to react slowly or imprecisely.

Both electric and hand pallet trucks from Jungheinrich must be inspected at least once a year. For some models, this is a legal requirement that must be carried out in accordance with LOLER (Lifting Operations and Lifting Equipment Regulations) and be inspected under PUWER (Provision and Use of Work Equipment Regulations). A short operational test must also be carried out every day. This includes:

a visual inspection for externally visible damage or leaks
drive and braking test
checking the hydraulics and oil level
observation of driving behaviour, especially during cornering and turning manoeuvres

To ensure that both manual and electric models can be used safely and efficiently, regular maintenance should be carried out on the pallet truck, regardless of model type. This should only be carried out by appropriately qualified and authorised personnel. In most cases, these are trained employees, however external specialists from outside the company can also be brought in to check the equipment for defects that could endanger occupational safety. The following components, among others, should be checked for damage, wear or corrosion:

steering and brakes
drivetrain
wheels and chassis
handholds and ride-on platform, if applicable
switches, warning devices and lighting
batteries and chargers
signage

To the table of contents

Further advice on this topic:

Jungheinrich pallet trucks – versatile, robust and reliable

1. The Jungheinrich pallet jacks available in our store

2. Buying a Jungheinrich pallet jack: what do you need to consider?

Selecting a suitable type of industrial truck for your needs

Considering models for special tasks

Choosing Jungheinrich pallet trucks with the right drive and lift functions

Load capacity: important for safe loading and transport

Choosing the right fork lengths and widths

Intensity of use: how powerful should your Jungheinrich pallet truck be?

Choose tyres suitable for your surfaces

3. Jungheinrich pallet trucks in detail

Jungheinrich hand pallet trucks

Jungheinrich electric pallet trucks

Jungheinrich electric low-platform trucks: strong support for warehousing and logistics

Ergonomic and versatile: scissor lift trucks from Jungheinrich

Stainless steel pallet trucks from Jungheinrich

4. FAQ for Jungheinrich pallet trucks

Which hydraulic oil is suitable for Jungheinrich pallet trucks?

How often should Jungheinrich pallet trucks be inspected?

What maintenance tasks must be performed on Jungheinrich pallet trucks?
