Scissor lift tables

With scissor lift tables, you can raise palletised or individual goods to an ergonomic working height and even further to higher storage areas. These lift tables also enable you to move loads over short distances. With our buying guide, you can choose the most suitable type of scissor lift table available for your needs in our UK store.

1. Lift tables can be operated in a variety of ways

Scissor lift tables can be essential tools in warehouses, intralogistics, manufacturing facilities and sales areas. They can be used to lift and lower goods onto or into various load carriers such as pallets, packaging or pallet boxes. There are different types of scissor lift tables available including: static and mobile scissor lift tables, which can be raised manually, electrically, or with compressed air, depending on the model. Here is an overview of the possible applications of the lift tables available from Jungheinrich PROFISHOP:

Scope of application / tasks	Details
Ergonomic working	The platform can be raised to a specific height, ensuring work is ergonomic for the user Picking work can be carried out in a back-friendly manner
Use as a workbench or worktable	Assembly or packaging work can be carried out on the lifting table It can be used as a sitting or standing workstation with an adjustable ergonomic working height
Use as a lift for transporting goods	The platform can be raised or lowered vertically using a flat, single or double scissor frame For loading and unloading shelves and production lines Offers a maximum lifting range of up to 2700mm
Alternative for dock levellers and ramp systems	Can be loaded or driven over with pallet jacks or forklifts Can be used for barrier-free loading using a ramp
Integration into automated processes	Can be used as an interface between different automatic manufacturing or packaging units, for example

2. Here's how to choose a suitable scissor lift table

We offer a wide range of scissor lift tables with varying lifting capacity, lifting range, and other parameters. To find the lift table that suits your needs, consider the following important selection criteria:

• What weight capacity does the lift table need to support?
• What lifting height should the table platform be able to reach?
• What are the dimensions of the product, and what platform size is appropriate?
• Where will the lift table be placed (indoors or outdoors)?
• What types of loading methods will the equipment be used for?
• Should the scissor lift table be static or mobile?
• What type of operation function should the table offer?
• Are specific safety features required for the lift table?

Lifting capacity

1. If the load is evenly distributed across the entire platform, the load capacity specified by the manufacturer is sufficient. For a maximum load of 1000kg for example, a scissor lift table with a load capacity of 1000kg is the appropriate choice.
2. If the load is only placed on half the platform length, the lift table must still be able to support at least half the weight of the load. Therefore, if the lift table has a capacity of 1000kg for example, a maximum load weight of only 500kg can be loaded over half the platform length. Conversely, if a load weight of 1000kg is to be loaded over half the platform length, the purchase of a lift table with a capacity of 2000kg is necessary.
3. If the load is only placed on half the platform width, the lift table must still be able to support at least one third of the weight of the load. Therefore, if the lift table has a capacity of 1000kg for example, a maximum load weight of only 330kg can be loaded on half the platform width. Conversely, if a load weighing 1000kg is to be regularly placed across over half the platform width, a lift table with a capacity of 3000kg instead of just 1000kg is the right choice.

Lifting height

Whether a scissor lift table is suitable for your operational processes depends not only on its load capacity but also on its lifting height. This can vary depending on the type of scissor mechanism or the length of the scissor frame.

• Lifting tables primarily used as stationary workstations at ergonomic heights:

Lifting tables	Lifting range
Pallet positioner	270 to 780mm
Low-profile scissor lift tables	80 to 840mm

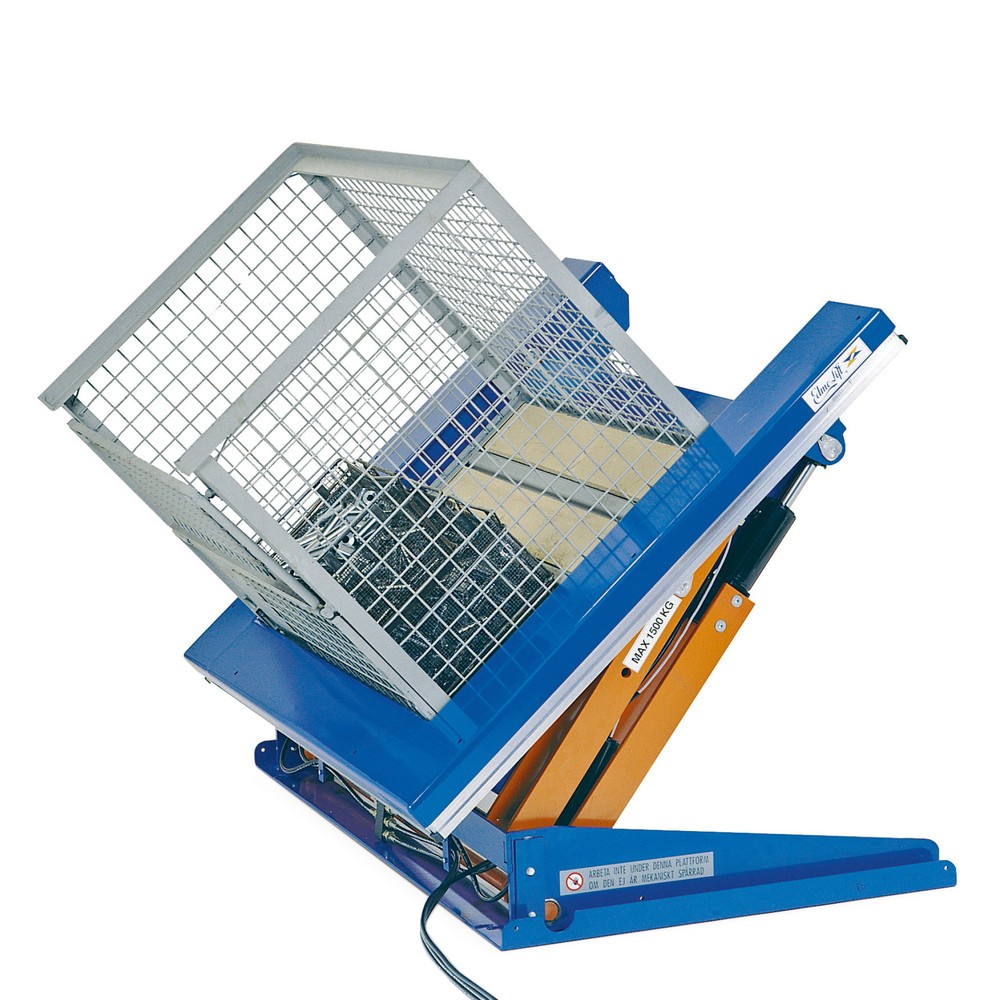

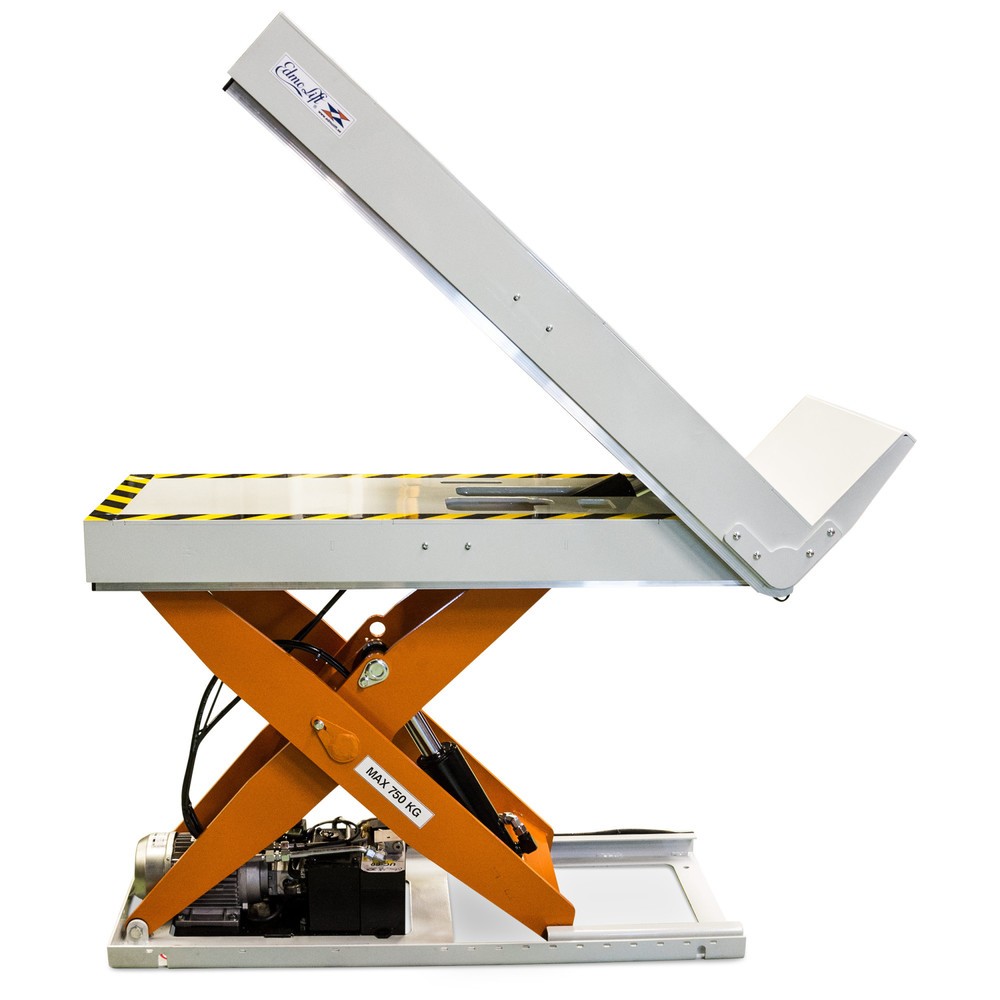

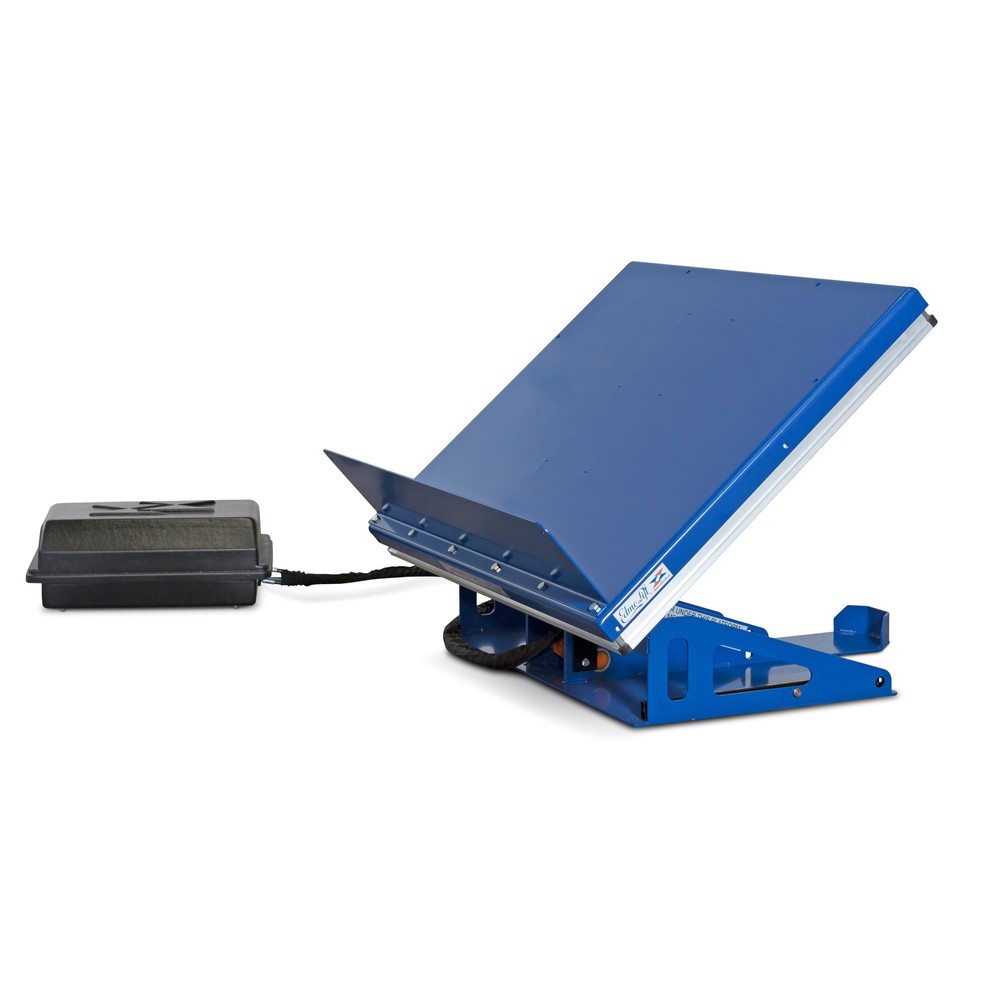

Tilt lift tables	190 to 850mm

• Lift tables used as stationary lifts for materials or goods:

Lifting tables	Lifting range
Single scissor lift tables	150 to 1880mm
Loading dock lift tables	80 to 2700mm

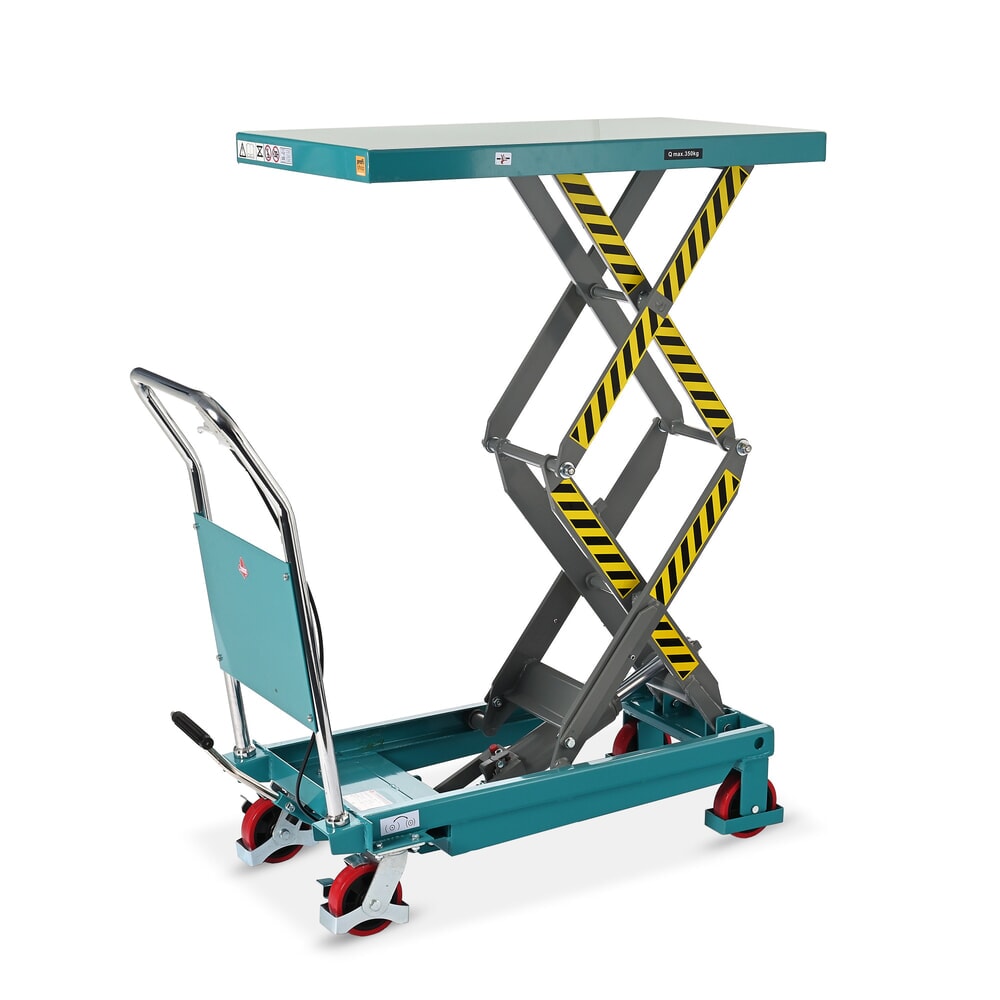

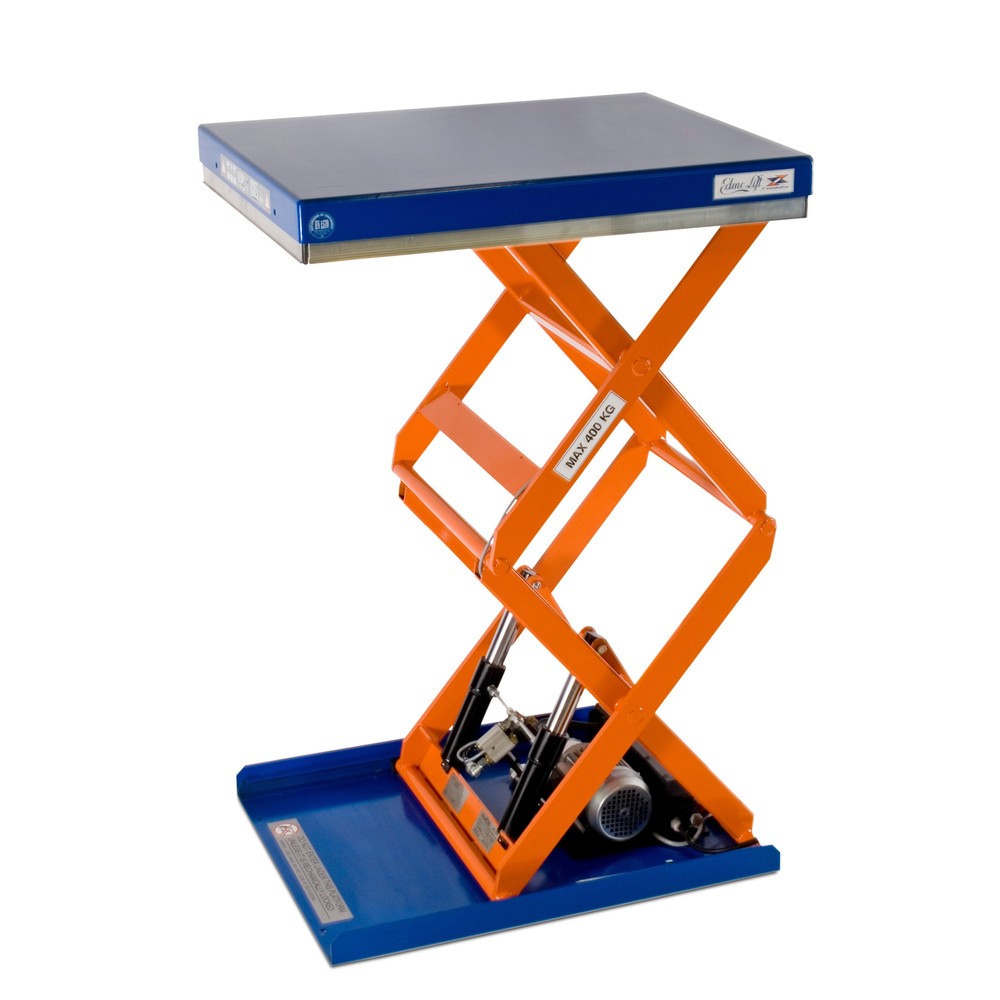

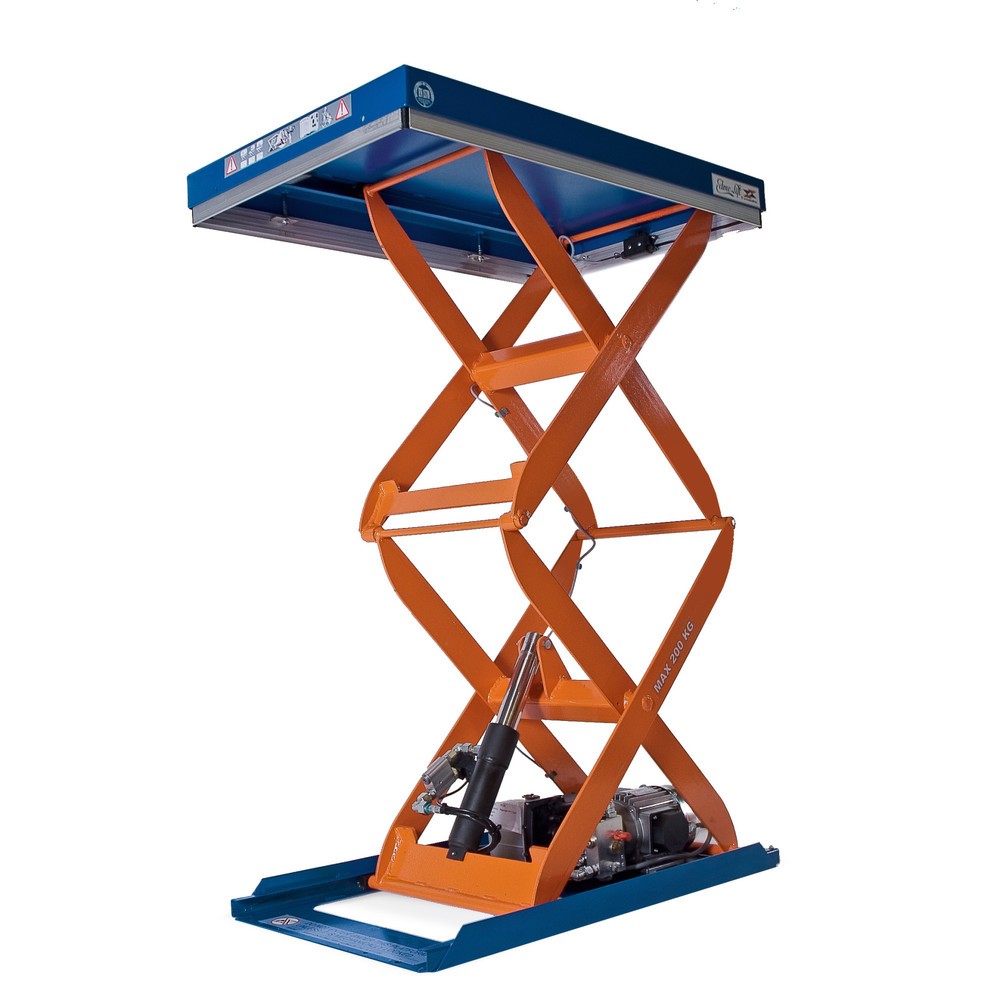

Double scissor lift tables	270 to 2700mm

• Lift tables used as mobile workstations for materials or goods:

Lifting tables	Lifting range

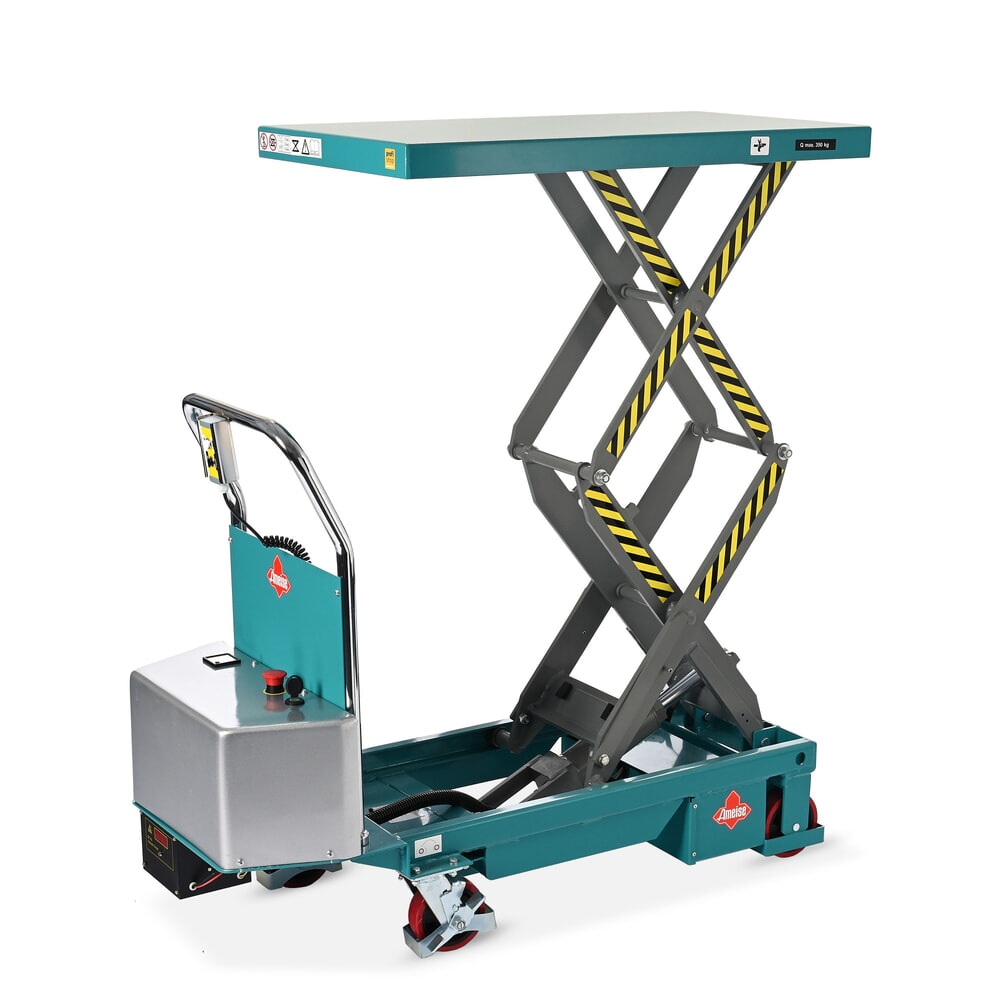

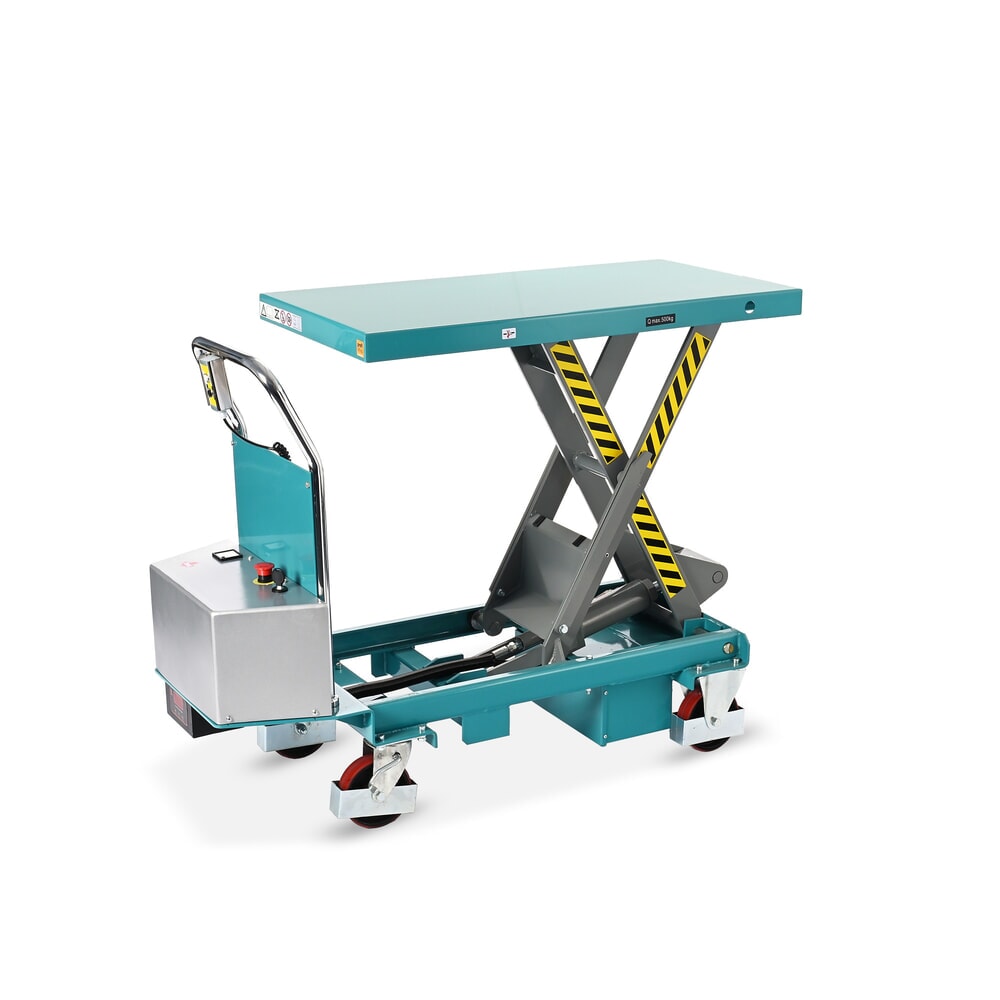

Electric scissor lift tables	368 to 1300mm

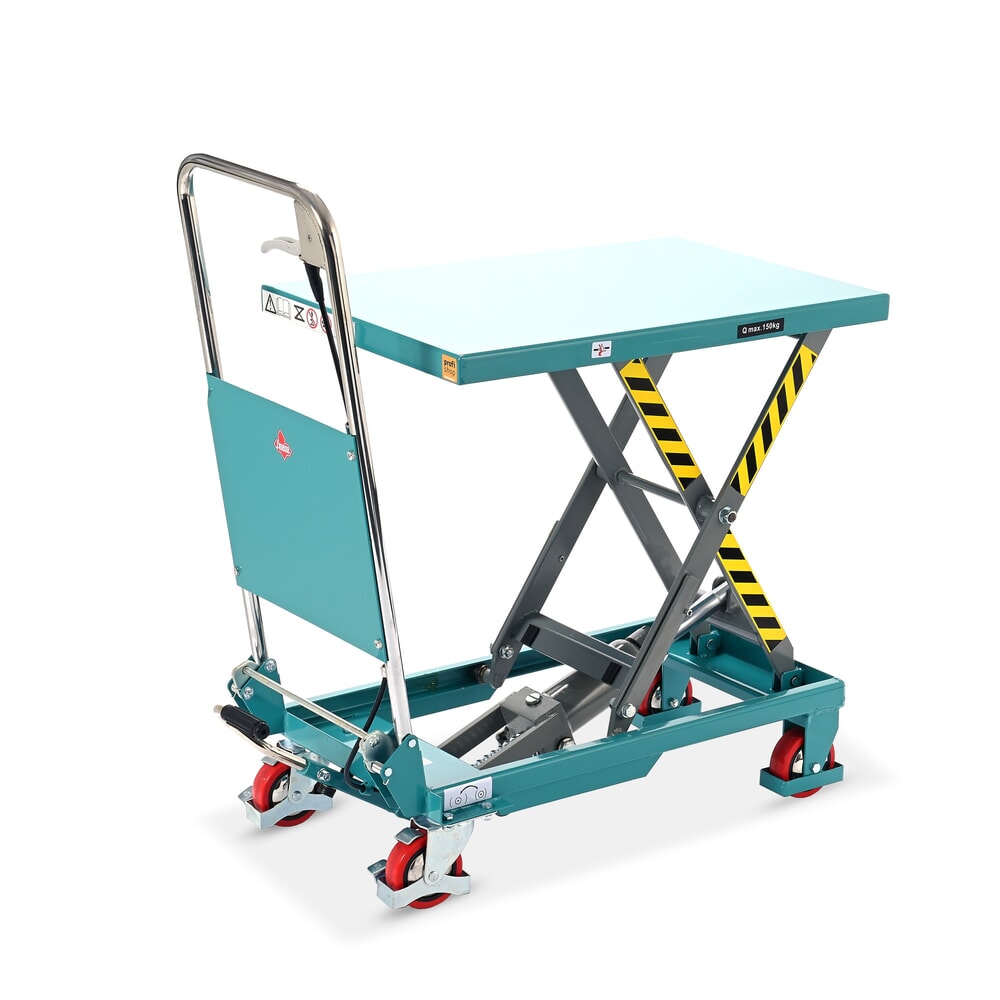

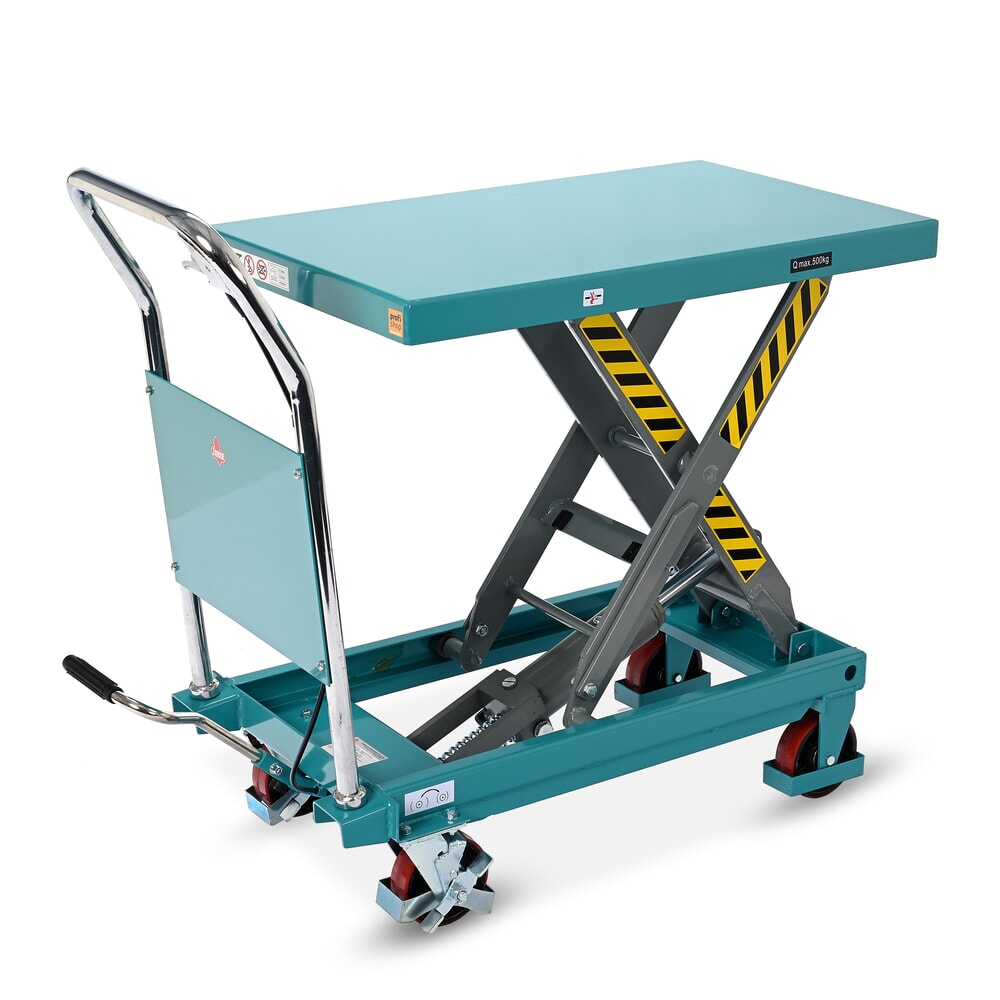

Manual scissor lift tables	216 to 1800mm

Installation site

Loading capacity

To load or unload goods onto or from the scissor lifting platform, usually material handling equipment such as pallet trucks, or stacker trucks are used. Depending on the load weight, local conditions and the functions of the lifting table, the following options are possible:

• Direct entry with a stacker truck or pallet truck: In this case, the truck is directly driven into the U-shaped recess of the lifting table. The truck platform can then be easily and safely lowered, and the load placed on the table.
• Loading or unloading via a ramp: These scissor lift tables have a closed platform, which is why the forks of pallet or stacker trucks cannot be driven directly into it. Instead, it is possible to drive up to the platform via a sturdy ramp and remove or deposit goods.
• Loading or unloading with wide-aisle stacker trucks: Wide-aisle stacker trucks have a larger fork spacing than standard models. Lift tables with platforms that are not wider than 800mm allow the forks of wide-aisle stacker trucks to easily surround the table on both sides, allowing for the palletised goods to be directly deposited or picked up over the table platform.
• Pit installation: Many of our static scissor lift tables are suitable for pit installation, providing barrier-free access to the platforms with material handling equipment. This allows the ground and platform to be at the same level, enabling straightforward loading and unloading via pallet trucks.

Mobile or stationary use

Scissor lift tables can be used either in a mobile or stationary manner depending on their design. The main difference between the variants lies in the load capacity and achievable lifting heights: mobile scissor lift tables have smaller platforms and a lower load capacity compared to static scissor lift tables. They also usually do not reach the same lifting heights as static models. However, they can be easily moved over short distances and thus offer versatile application possibilities.

In contrast, static lift tables can be installed permanently on the ground or even in pits. As these models can handle high load capacities and lifting heights, heavy loads or even material handling equipment can be transported vertically using them.

Lift table type	Areas of application
Mobile scissor lift table	as workstations and tool trolleys in workshops or assembly areas as mobile workbenches as placement aids for machines or conveyor systems for material transport in shipping and production areas for picking and warehousing tasks
Static scissor lift table	at conveyor belts and roller conveyors as part of production lines at loading stations or loading ramps in warehouses with mezzanines or intermediate levels in workshops or assembly areas as workbenches

Lifting function

At Jungheinrich PROFISHOP, you can buy scissor lift tables with various lifting drives. The drive system suitable for your operation depends on the load capacity, tasks, and application area required of the lift table. Depending on the drive system required, there are various advantages and disadvantages for each lifting function:

Safety features for safe work

Our robust scissor lift tables are available with certain safety features depending on their intended use and individual function requirements:

Safety equipment	Characteristics
Deadman switch	The lifting or lowering movement only takes place if the corresponding switch of the control element is pressed continuously.
Emergency stop function	The switch is attached to the control unit: when it is flipped, all operations and the power supply are immediately interrupted.
Safety contact strip	The bar is located on the underside of the platform and triggers when touched as this means the specified foot space has not been maintained. When triggered, the lifting or lowering movement is stopped immediately.
Tear plate	The profiled aluminium surfaces are a non-slip element for platforms on which unevenly distributed or dynamic loads are moved.
Safety gear	In the event of a defect in the drive train, a hydraulic catch cylinder catches the raised load platform.
Pressure relief valve for pneumatic and hydraulic lift drives	Overpressure is automatically dissipated via the valve: This prevents damage or leaks to adjusting screws, lines or hoses.
Heat protection for electric drive systems	The heat protection function prevents electrical systems from overheating and thus avoids short circuits or cable fires.
Key switch	A lift table with a key switch can only be operated by inserting a key. This means that the device can only be put into operation by authorized personnel.

3. Our lifting tables in detail

The scissor lift tables in our range meet all required safety standards and are tested and certified according to the European Standard BS EN 1570. The equipment is exclusively made from high-quality materials such as powder-coated profile steel, solid construction or tool steel (ST52 or ST37) and is excellently processed. This makes the lift tables reliable and safe pieces of equipment with a long service life.

Scissor lift platforms

The static scissor lift platform tables available from our UK store enable you to raise and lower loads to various heights (depending on the model). For this purpose, the lift platform is mounted on at least two scissor-like supports that can be bolted to the ground or installed in pits. The scissor lift platforms are available in different designs, tailored to specific applications and can be expanded upon with accessories:

Type of scissor lift platforms	Characteristics

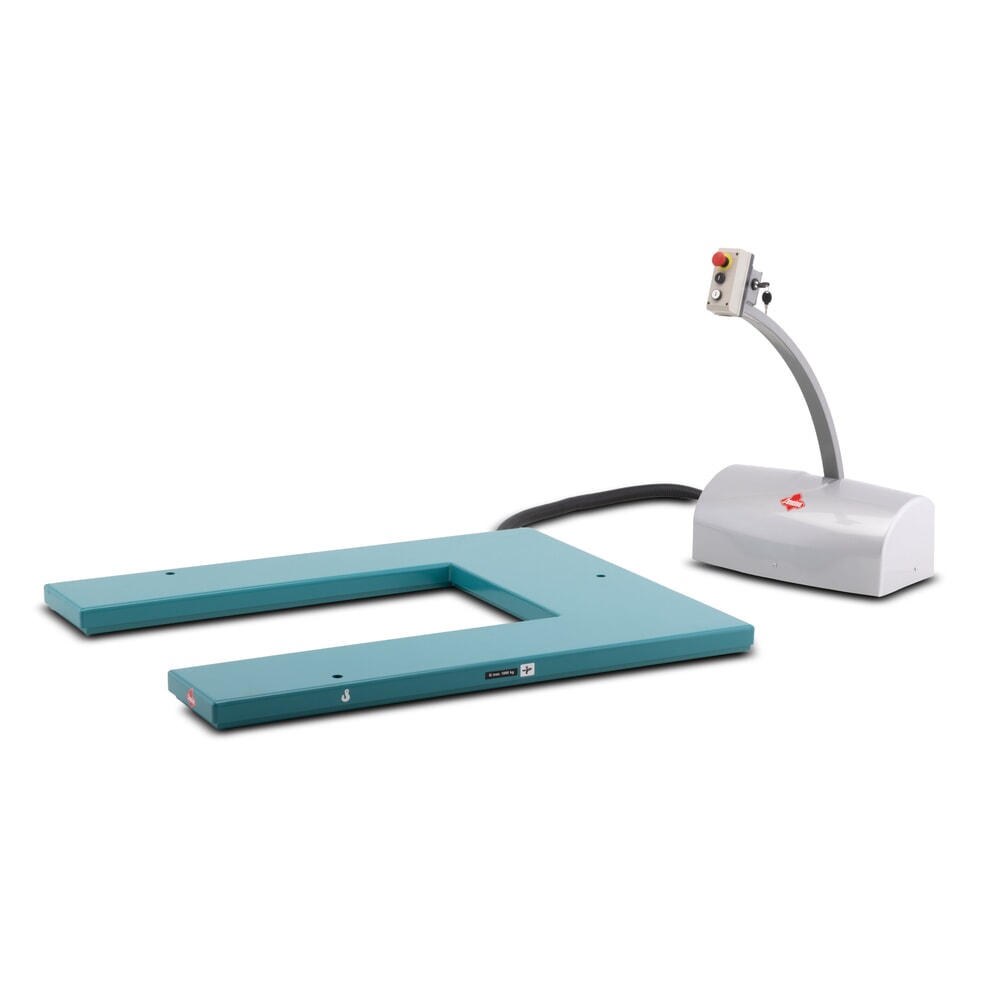

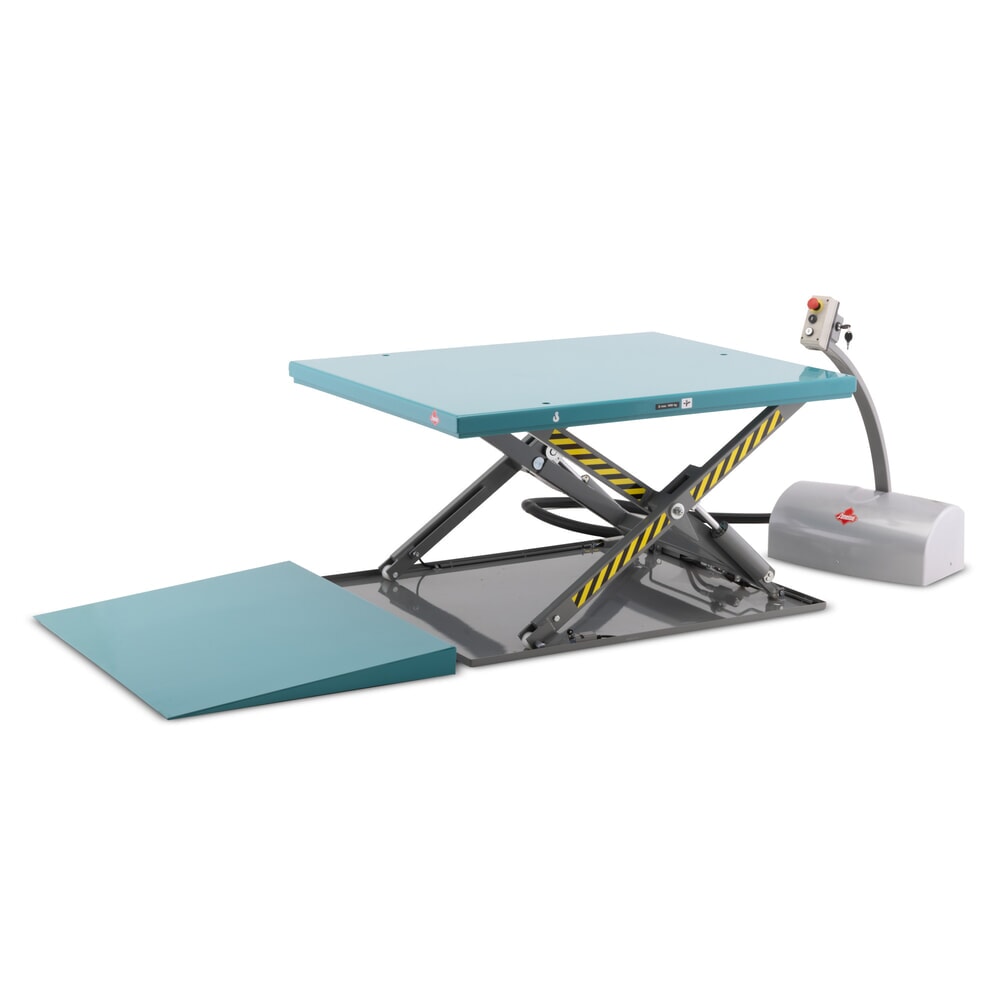

Flat scissor lift table	Closed, U or E-shaped load platform Separate control panel available Optional equipment with hydraulic foot guard contact strip Various colour finishes available Lifting height up to 840mm Load capacity between 600 and 1500kg Maximum lifting speed of 42mm/s Maximum lowering speed of 84mm/s Ideal for use as stationary worktables

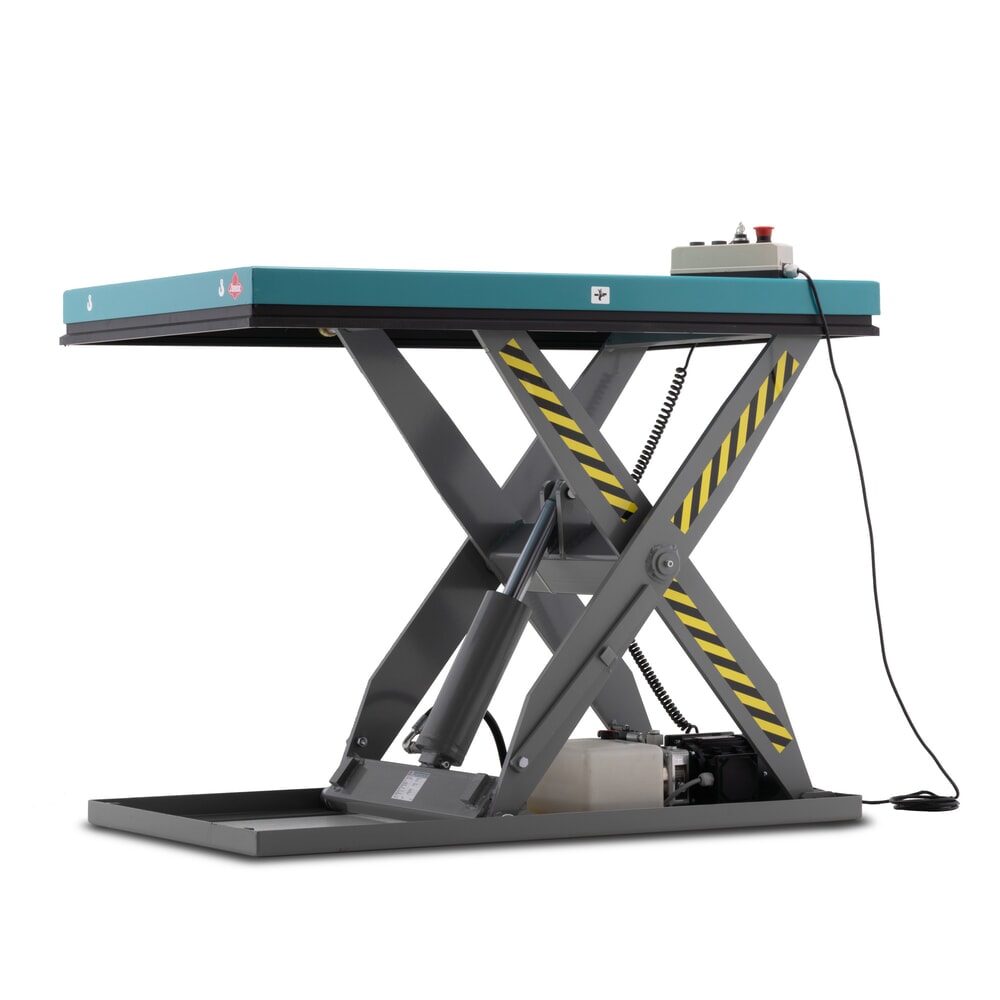

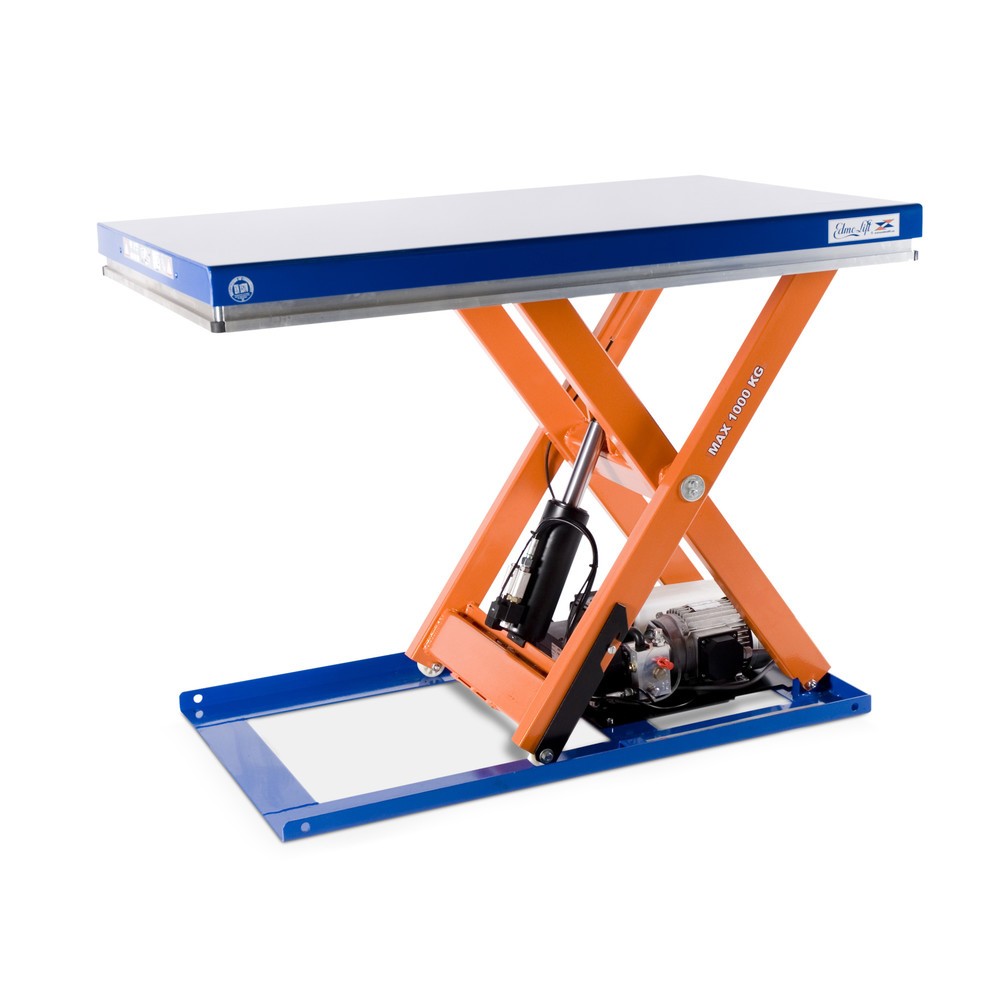

Single scissor lift table	Closed platform Continuously adjustable electric-hydraulic lifting drive CEE plug and up to 3m long connection cable included Models with key switch provide additional safety Lifting height up to 1880mm Load capacity between 500 and 3000kg Maximum lifting speed of 69mm/s Maximum lowering speed of 150mm/s Can be used as a stationary worktable, goods or material lift

Scissor lift platform trucks

4. FAQ on lifting tables
