Topseller
Item number:
197356
Ameise® PSM 1.0 hydraulic stacker truck with quick lift, single mast, lift height 1,600 mm, load capacity 1,000 kg
With 1000 kg capacity and quick lift function
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
Ameise® PSM 1.0 hydraulic stacker truck with quick lift, single mast, lift height 1,600 mm, load capacity 1,000 kg
Article number: 197356 | EAN/GTIN: 4055091280776
| Brand | Ameise® |
| Capacity | 1000 kg |
| Chassis RAL colour | RAL 5018 turquoise blue |
| Chassis surface | powder-coated |
| Control panel | right-handed |
| Drive | manual |
| Drive wheel diameter front | 150 mm |
| Drive wheel material | Polyurethane (PU) |
| Drive wheel width front | 80 mm |
| Fork height | 55 mm |
| Fork length | 1150 mm |
| Fork roller diameter | 80 mm |
| Fork roller equipment | Single |
| Fork roller material | Polyurethane (PU) |
| Fork roller width | 50 mm |
| Fork support width | 520 mm |
| Fork width | 150 mm |
| Ground clearance | 25 mm |
| Hydraulic oil quantity | 2 l |
| Hydraulic oil type | Mineral oil |
| Hydraulic oil viscosity acc. to ISO-VG | 32 |
| Lift | 1510 mm |
| Lift height per pump stroke | 50 mm |
| Lift range | 90 - 1600 mm |
| Load centre | 600 mm |
| Mast | Single-stage mast |
| Mast height | 1965 mm |
| Model | Ameise® FC |
| Net weight | 207 kg |
| Operator type | Manual |
| Overall length | 1670 mm |
| Overall width | 760 mm |
| Rapid lift | Yes |
| Section | Performance |
| Support arm height | 55 mm |
| Support arm length | 1016 mm |
| Support arm width | 150 mm |
| Temperature range | 5 - 40 °C |
| Tiller RAL colour | RAL 7016 anthracite grey |
| Tiller surface | powder-coated |
| Turning radius | 1450 mm |
Item description

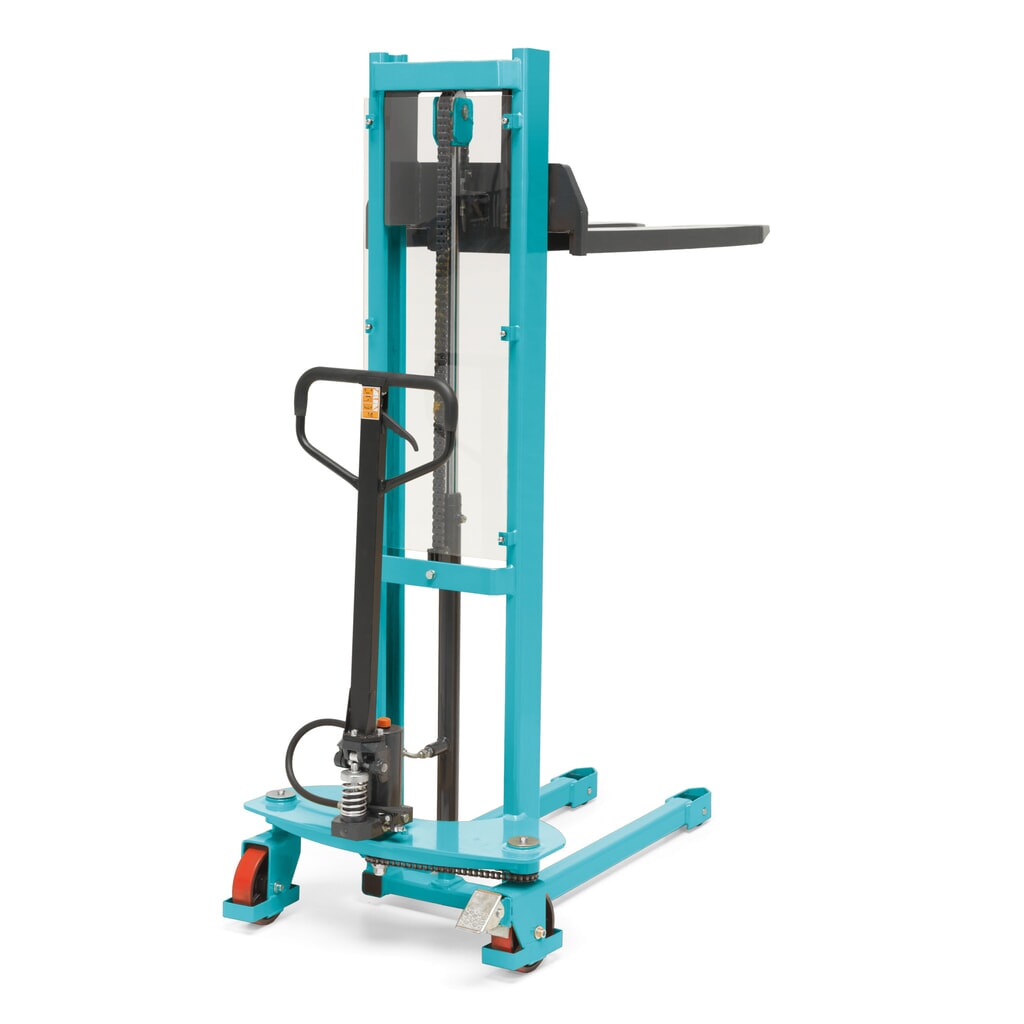

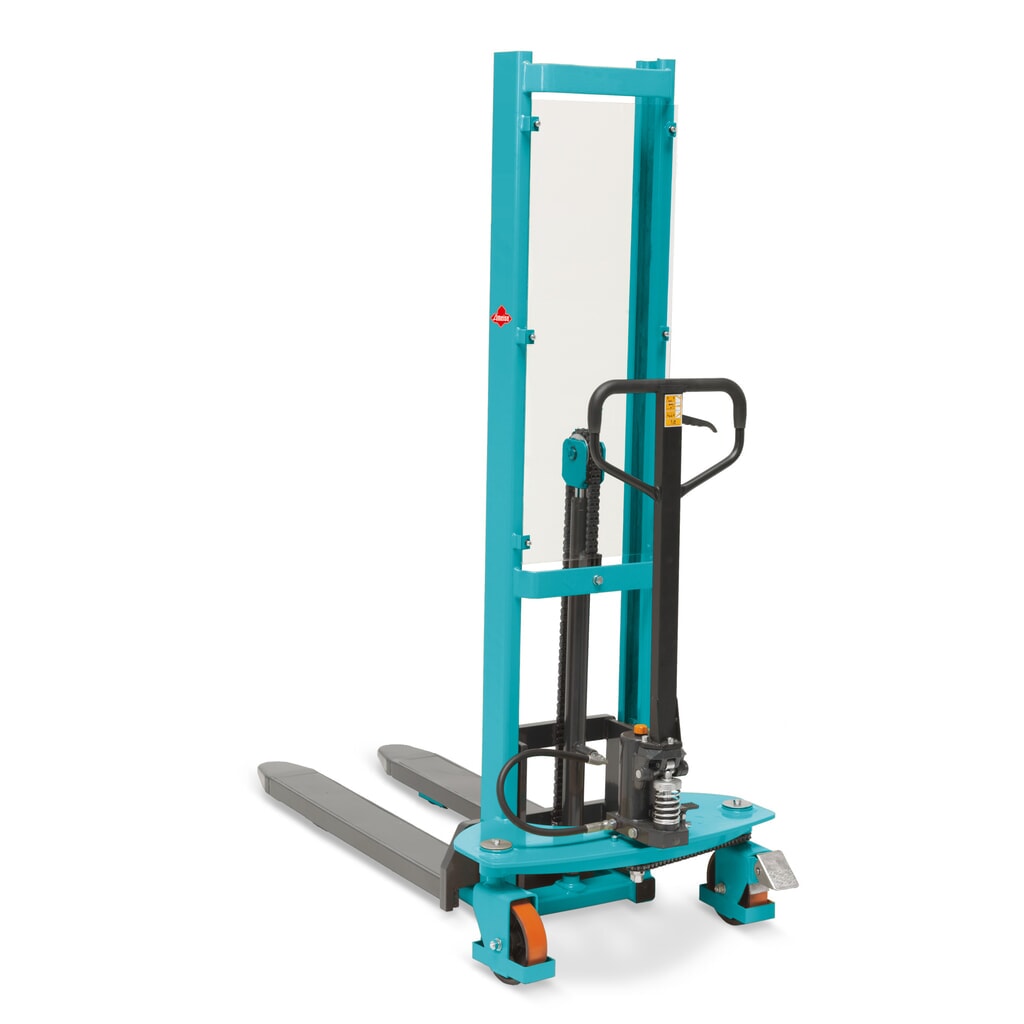

Ameise® PSM 1.0 hydraulic stacker truck with quick lift, single mast, lift height 1,600 mm, load capacity 1,000 kg
Article number: 197356 | EAN/GTIN: 4055091280776
The Ameise® Quick Lift hydraulic stacker truck offers proven Ameise® quality for rapid pick-up and transport of all loads. The quick lift function allows you to achieve greater throughput with reduced effort.
- Automatic quick lift (up to 100 kg)
- Single mast with 1600 mm lift height
- Small turning circle thanks to compact dimensions
- Guided steering castor via link chain ensures excellent manoeuvrability
- Safe operation thanks to Plexiglas panel
- High-precision lowering via tiller or foot pedal
Agile and practical all-rounder for rapid deployment with proven Ameise® quality
The Ameise® Quick Lift hydraulic stacker truck is a robust and durable product with reliable Ameise ® quality.
The practical all-rounder for rapid deployment as a lifting and transport device saves you expensive forklift and maintenance costs. The quick lift function (up to 100 kg) allows you to lift the load clear of the ground with just three pumps of the tiller. Maximum lift height is reached after just 30 pump strokes, saving you both time and energy.
The robust, welded frame with central support and load forks made from torsion-resistant sectional steel ensures reliable dimensional stability of the hydraulic stacker truck, even when handling significant loads weighing up to 1000 kg.

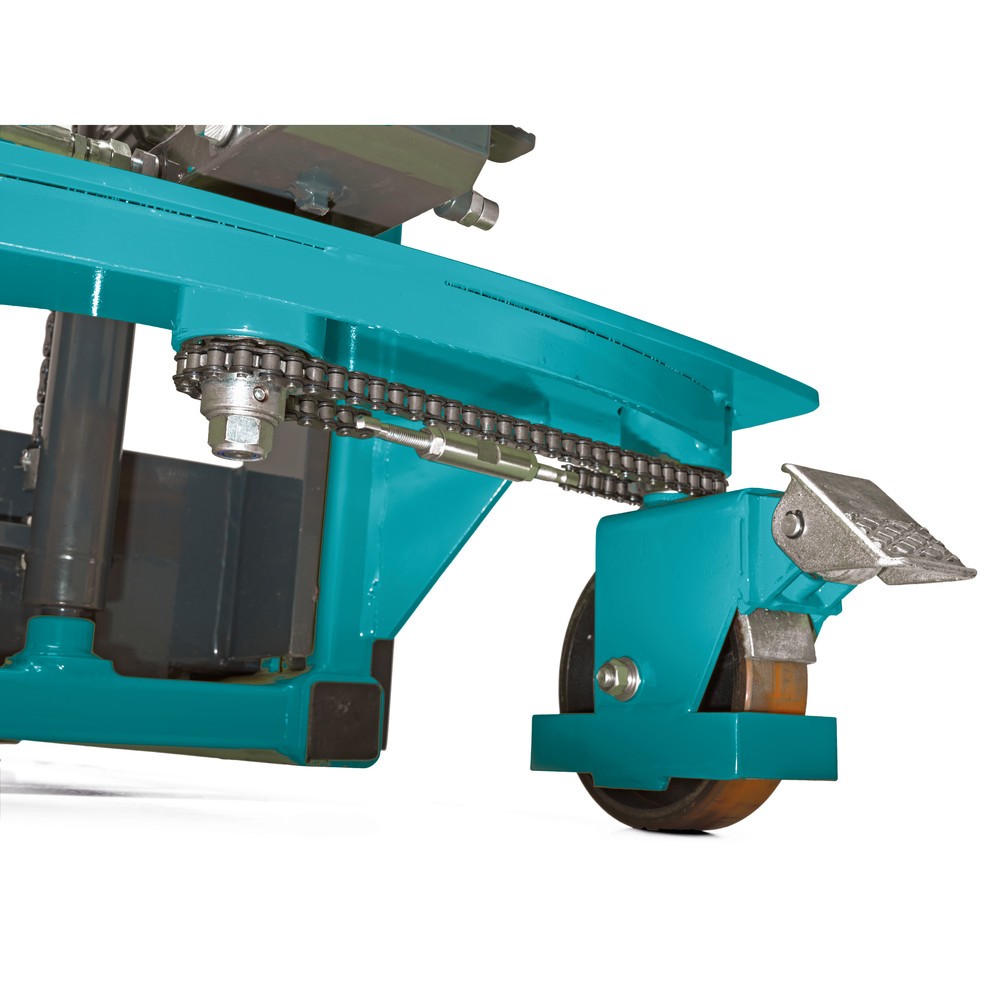

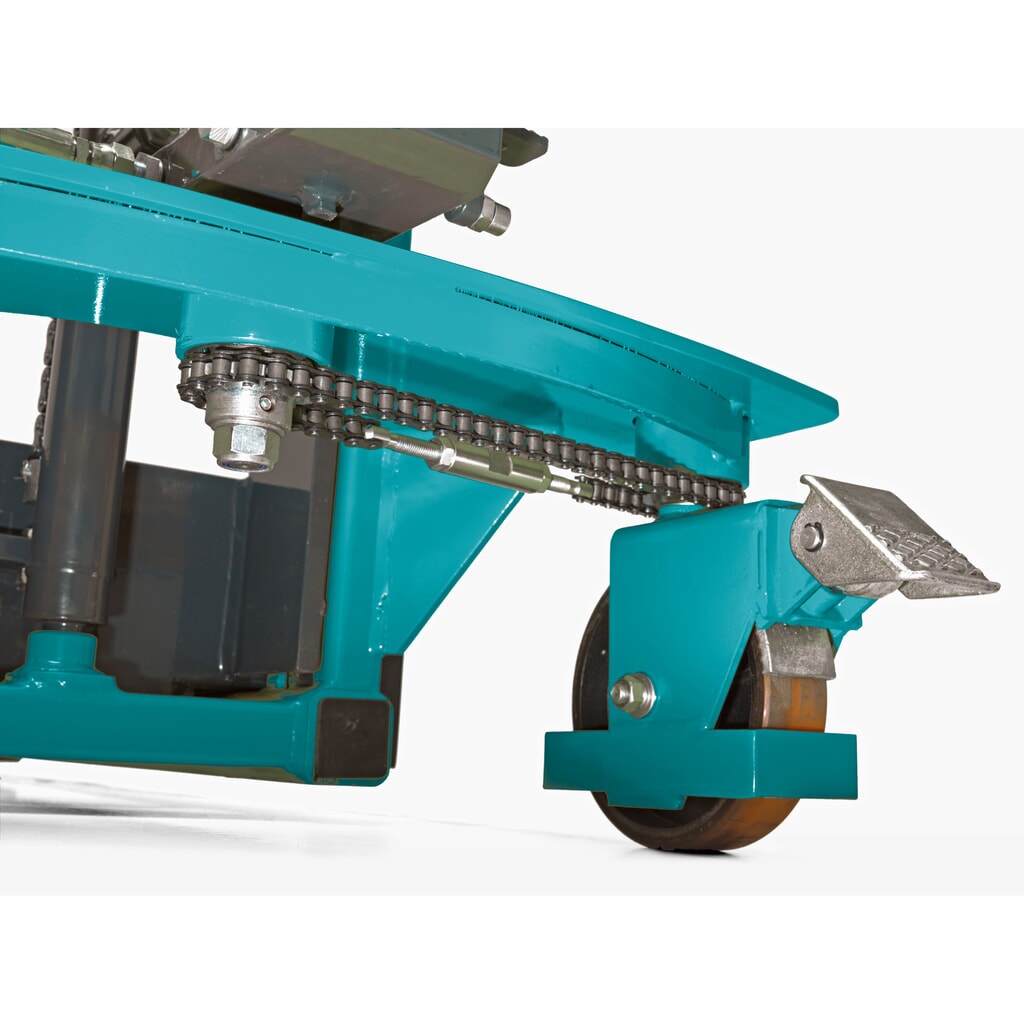

The steering castor is guided by an adjustable link chain, allowing you to move the load and manoeuvre the truck via the tiller with utmost ease. This also gives the truck a very small turning radius. The control lever for lifting and lowering the load is located on the ergonomic, rubberised tiller handle. This allows you to transport and lower your loads in a straightforward, ergonomic manner. Fragile loads can be lowered gently and with precision control either using the tiller or via the foot pedal.
The hydraulic stacker truck also ensures maximum operator safety. The transparent Plexiglas panel within the steel frame offers protection against falling objects and provides a clear view in the direction of travel. The steering castors feature foot guards as standard and are also equipped with an easy to operate foot brake. This serves as optimum protection against foot injuries while also preventing the truck from rolling away.
The two large steering castors and the single polyurethane fork rollers ensure smooth travel over uneven ground and on floors with high rolling resistance. Thanks to its low height of 1965 mm, the hydraulic stacker truck fits through virtually every door, which enables flexible use in warehouses, dispatch areas and other environments.
Benefit from tried-and-tested Ameise® quality by ordering the robust and agile Ameise® Quick Lift hydraulic stacker truck from our shop.
The Ameise® Quick Lift hydraulic stacker truck is a robust and durable product with reliable Ameise ® quality.
The practical all-rounder for rapid deployment as a lifting and transport device saves you expensive forklift and maintenance costs. The quick lift function (up to 100 kg) allows you to lift the load clear of the ground with just three pumps of the tiller. Maximum lift height is reached after just 30 pump strokes, saving you both time and energy.
The robust, welded frame with central support and load forks made from torsion-resistant sectional steel ensures reliable dimensional stability of the hydraulic stacker truck, even when handling significant loads weighing up to 1000 kg.
The steering castor is guided by an adjustable link chain, allowing you to move the load and manoeuvre the truck via the tiller with utmost ease. This also gives the truck a very small turning radius. The control lever for lifting and lowering the load is located on the ergonomic, rubberised tiller handle. This allows you to transport and lower your loads in a straightforward, ergonomic manner. Fragile loads can be lowered gently and with precision control either using the tiller or via the foot pedal.
The hydraulic stacker truck also ensures maximum operator safety. The transparent Plexiglas panel within the steel frame offers protection against falling objects and provides a clear view in the direction of travel. The steering castors feature foot guards as standard and are also equipped with an easy to operate foot brake. This serves as optimum protection against foot injuries while also preventing the truck from rolling away.
The two large steering castors and the single polyurethane fork rollers ensure smooth travel over uneven ground and on floors with high rolling resistance. Thanks to its low height of 1965 mm, the hydraulic stacker truck fits through virtually every door, which enables flexible use in warehouses, dispatch areas and other environments.
Benefit from tried-and-tested Ameise® quality by ordering the robust and agile Ameise® Quick Lift hydraulic stacker truck from our shop.
