Item number:
197349

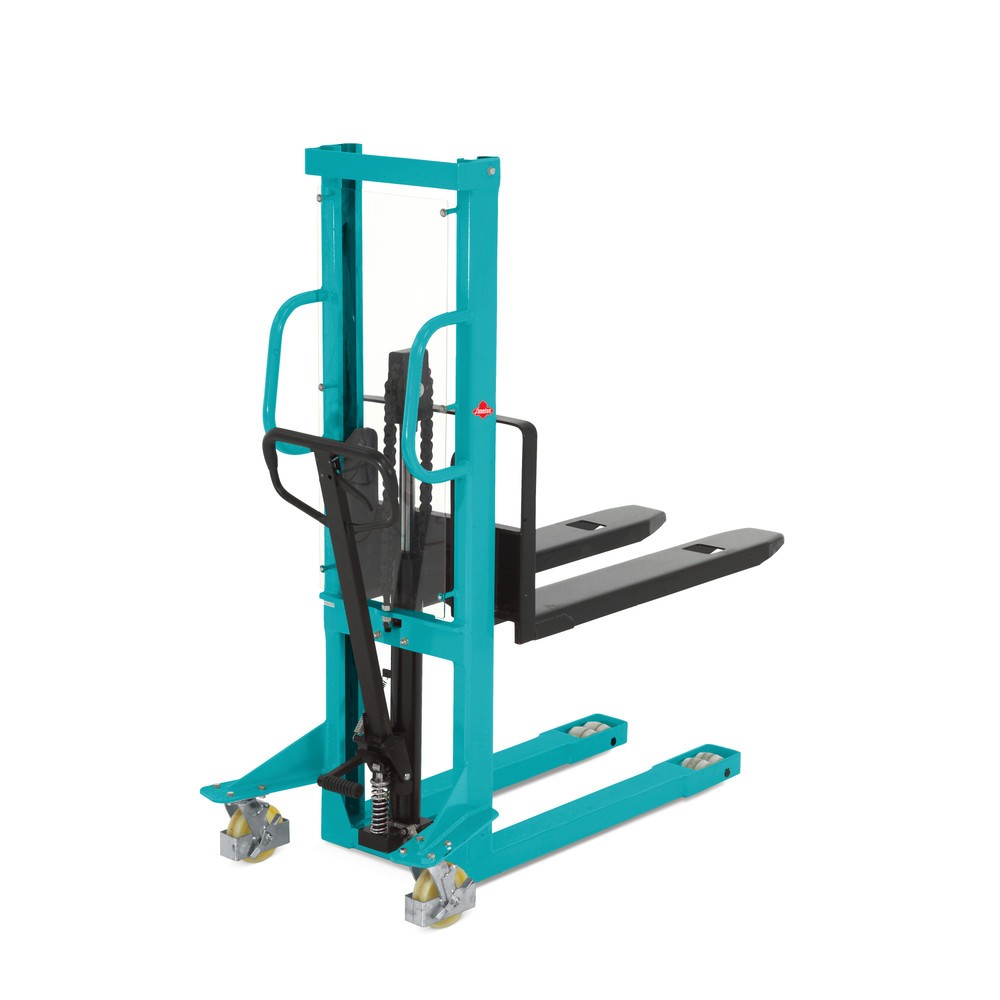

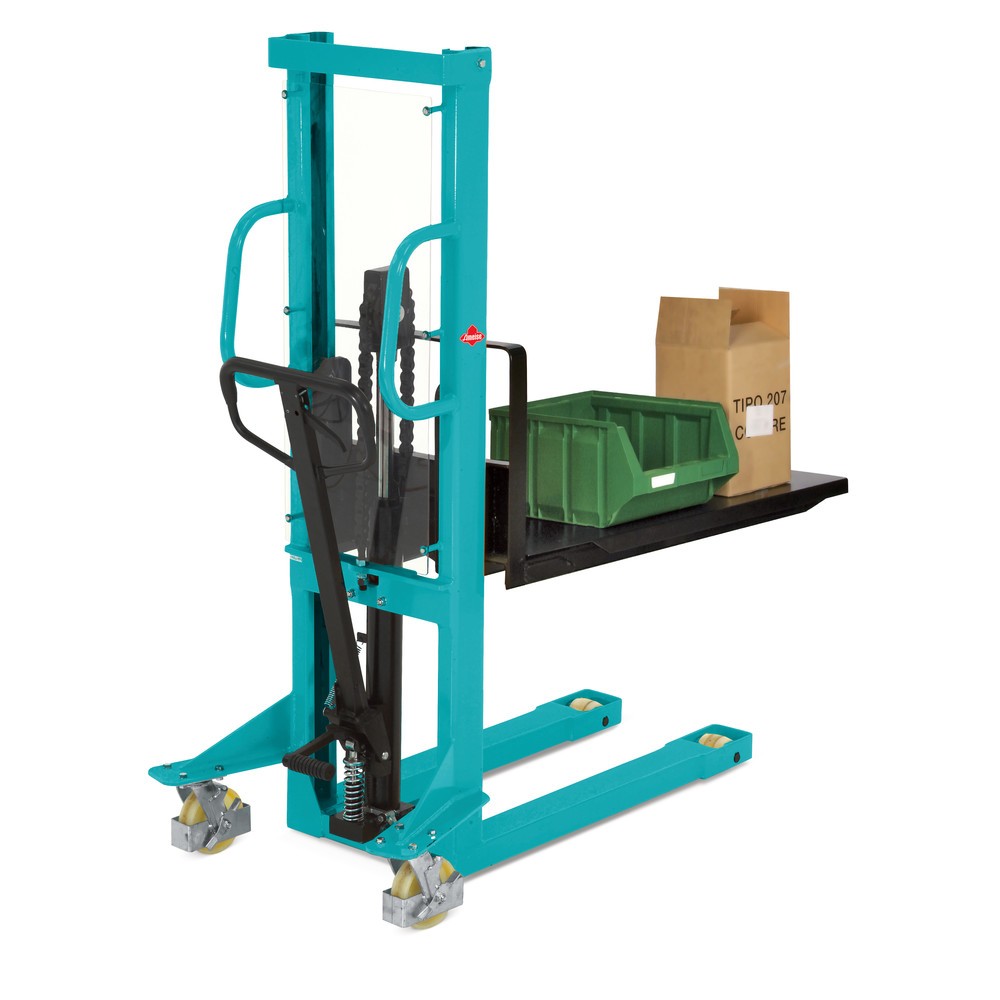

Ameise® PSM 1.0 hydraulic stacker truck with single mast, lift height 1,000 mm, capacity 1,000 kg
The practical all-rounder for your lifting and transport tasks
Technical details
Ameise® PSM 1.0 hydraulic stacker truck with single mast, lift height 1,000 mm, capacity 1,000 kg
-
Aisle width1945 mm
-
BrakeParking brakes
-
BrandAmeise®
-
Capacity1000 kg
-
Chassis RAL colourRAL 5018 turquoise blue
-
Chassis surfacepowder-coated
-
Control panelright-handed
-
Drivemanual
-
Drive wheel diameter front147 mm
-
Drive wheel materialNylon
-
Drive wheel width front40 mm
-
Face of forks length555 mm
-
Fork height61 mm
-
Fork length1.100 mm
-
Fork roller diameter83 mm
-
Fork roller equipmentTandem
-
Fork roller materialNylon
-
Fork roller width60 mm
-
Fork support width550 mm
-
Fork width170 mm
-
Ground clearance25 mm
-
Hydraulic oil quantity0.95 l
-
Hydraulic oil typeSynthetic oil
-
Hydraulic oil viscosity acc. to ISO-VG32
-
Lift1000 mm
-
Lift height per pump stroke20 mm
-
Lift range90 - 1000 mm
-
Load centre600 mm
-
MastSingle-stage mast
-
Mast height1490 mm
-
ModelAmeise® SDJ
-
Net weight192 kg
-
Operator typeManual
-
Overall length1655 mm
-
Overall width755 mm
-
SectionPerformance
-
Support arm height55 mm
-
Support arm length1290 mm
-
Support arms inside clearance215 mm
-
Support arms outer distance560 mm
-
Swivel castor diameter147 mm
-
Swivel castor width40 mm
-
Temperature range5 - 40 °C
-
Tiller RAL colourRAL 7016 anthracite grey
-
Tiller height1100 mm
-
Tiller surfacepowder-coated
-
Turning radius1380 mm
Item description
Ameise® PSM 1.0 hydraulic stacker truck with single mast, lift height 1,000 mm, capacity 1,000 kg
The Ameise® hydraulic stacker truck with single mast is a versatile aid that is ideal for transport tasks and occasional stacking of palletised loads. Available in a range of capacities and lift heights, the Ameise® hydraulic stacker truck covers a wide range of applications.
- Hydraulic lifting via tiller or foot pedal
- High-performance hydraulic pump made from high-strength steel
- Overload valve for long service life
- Robust construction with welded sectional steel
- High stability even under full load
The hydraulic stacker truck with single mast is a quality Ameise® product offering the ultimate in robustness and durability
You can easily raise your pallets to the required height via the hydraulic foot pump or by pumping the reinforced tiller. A lowering valve in the tiller head enables fully variable, precision lowering of the load. The Ameise® hydraulic stacker truck consists of a robust, welded frame with central support and load forks made from torsion-resistant sectional steel. This design prevents the truck from buckling even under the heaviest loads.
The ergonomic, rubberised tiller handle ensures utmost comfort when lifting, moving and lowering your loads. Some models feature a transparent Plexiglas panel within the steel frame, while others are equipped with a mesh panel. Both versions offer protection against falling objects while providing a clear view in travel direction.
The large tubular push handles ensure excellent manoeuvrability. The wheel stops on the two large steering castors prevent the hydraulic stacker truck from rolling away and guarantee utmost stability. The steering castors and tandem fork rollers are made from nylon and are thus very smooth-running and wear-resistant.
The Ameise® hydraulic stacker truck with single mast is a versatile option that is ideal for occasional stacking and retrieval tasks in warehouses and production facilities.
Save yourself expensive procurement and maintenance costs with this effective alternative to an electric forklift truck. We offer the Ameise® hydraulic stacker truck with a range of capacities and lift heights. Purchase the hydraulic stacker truck from our shop in your required configuration.
You can easily raise your pallets to the required height via the hydraulic foot pump or by pumping the reinforced tiller. A lowering valve in the tiller head enables fully variable, precision lowering of the load. The Ameise® hydraulic stacker truck consists of a robust, welded frame with central support and load forks made from torsion-resistant sectional steel. This design prevents the truck from buckling even under the heaviest loads.
The ergonomic, rubberised tiller handle ensures utmost comfort when lifting, moving and lowering your loads. Some models feature a transparent Plexiglas panel within the steel frame, while others are equipped with a mesh panel. Both versions offer protection against falling objects while providing a clear view in travel direction.
The large tubular push handles ensure excellent manoeuvrability. The wheel stops on the two large steering castors prevent the hydraulic stacker truck from rolling away and guarantee utmost stability. The steering castors and tandem fork rollers are made from nylon and are thus very smooth-running and wear-resistant.
The Ameise® hydraulic stacker truck with single mast is a versatile option that is ideal for occasional stacking and retrieval tasks in warehouses and production facilities.
Save yourself expensive procurement and maintenance costs with this effective alternative to an electric forklift truck. We offer the Ameise® hydraulic stacker truck with a range of capacities and lift heights. Purchase the hydraulic stacker truck from our shop in your required configuration.
