Sale
Item number:
197353

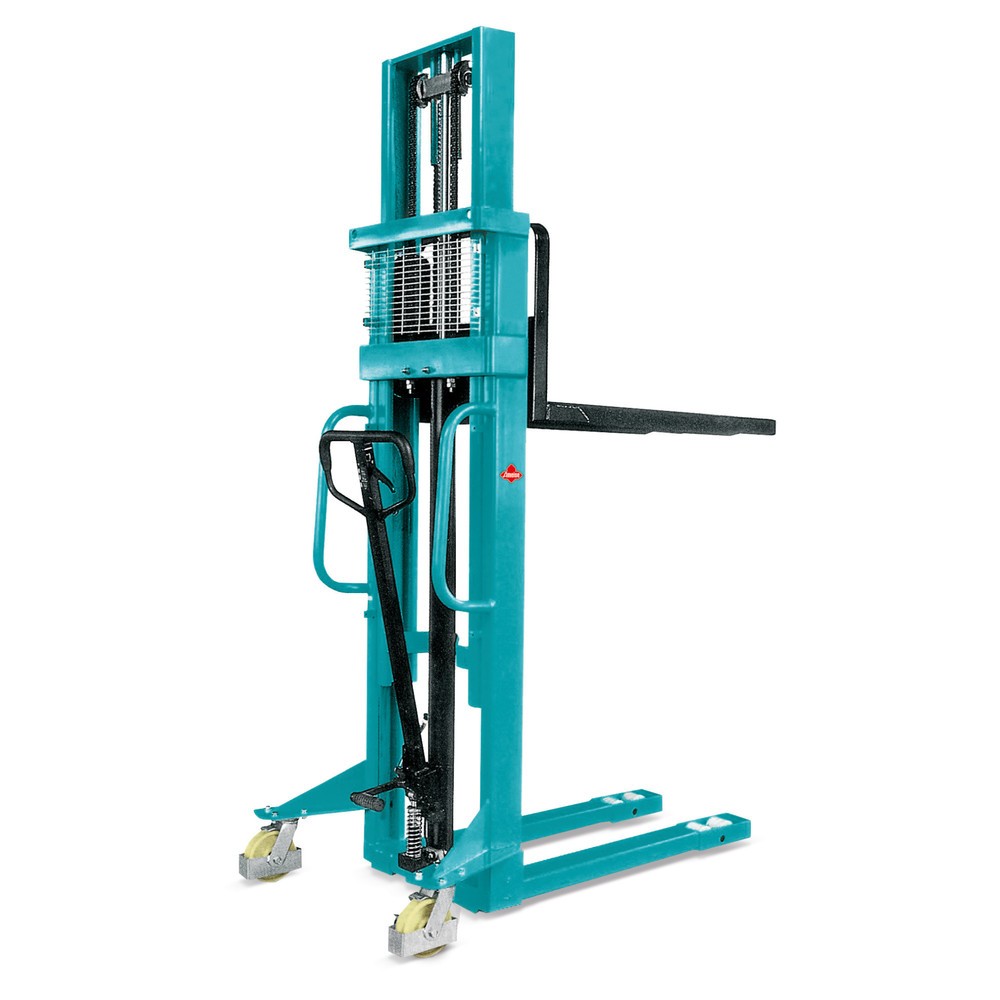

Ameise® PSM 1.0 hydraulic stacker truck with two-stage telescopic mast, lift height 2,000 mm, load capacity 1,000 kg
Practical all-rounder for occasional work at great heights
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
Ameise® PSM 1.0 hydraulic stacker truck with two-stage telescopic mast, lift height 2,000 mm, load capacity 1,000 kg
Article number: 197353 | EAN/GTIN: 4055091194691
| Aisle width | 1945 mm |
| Brake | Parking brakes |
| Brand | Ameise® |
| Capacity | 1000 kg |
| Chassis RAL colour | RAL 5018 turquoise blue |
| Chassis surface | powder-coated |
| Control panel | right-handed |
| Drive | manual |
| Drive wheel diameter front | 147 mm |
| Drive wheel material | Nylon |
| Drive wheel width front | 40 mm |
| Face of forks length | 555 mm |
| Fork height | 61 mm |
| Fork length | 1100 mm |
| Fork roller diameter | 83 mm |
| Fork roller equipment | Tandem |
| Fork roller material | Nylon |
| Fork roller width | 60 mm |
| Fork support width | 550 mm |
| Fork width | 170 mm |
| Free lift | 400 mm |
| Ground clearance | 25 mm |
| Hydraulic oil quantity | 1.8 l |
| Hydraulic oil type | Synthetic oil |
| Hydraulic oil viscosity acc. to ISO-VG | 32 |
| Lift | 2000 mm |
| Lift height per pump stroke | 20 mm |
| Lift range | 90 - 2000 mm |
| Load centre | 600 mm |
| Mast | Two-stage telescopic mast (ZT) |
| Mast height | 1688 - 2480 mm |
| Model | Ameise® SDJ |
| Net weight | 286 kg |
| Operator type | Manual |
| Overall length | 1655 mm |
| Overall width | 850 mm |
| Section | Performance |
| Swivel castor diameter | 147 mm |
| Swivel castor width | 40 mm |
| Temperature range | 5 - 40 °C |
| Tiller RAL colour | RAL 7016 anthracite grey |
| Tiller height | 1250 mm |
| Tiller surface | powder-coated |
| Turning radius | 1380 mm |
Item description
Ameise® PSM 1.0 hydraulic stacker truck with two-stage telescopic mast, lift height 2,000 mm, load capacity 1,000 kg
Article number: 197353 | EAN/GTIN: 4055091194691
The Ameise® hydraulic stacker truck with two-stage telescopic mast is characterised by its robust construction and durable quality. It is ideal for occasional use as a lifting or transport device. Thanks to the telescopic mast, the truck can be used for stacking at heights of up to 3000 mm.
- Hydraulic lifting via reinforced tiller or foot pedal
- High-performance hydraulic pump made from high-strength steel
- Overload protection for long service life
- Ergonomic, rubberised tiller handle
- Mechanical wheel stops on both steering castors
The Ameise® hydraulic stacker truck with telescopic mast for occasional stacking tasks at great heights
You can raise your loads to the required height either via the hydraulic foot pump or using the reinforced tiller. The robust hydraulic system is equipped with overload protection.
The manual-hydraulic stacker truck consists of a robust, welded frame with central support and load forks made from torsion-resistant sectional steel. This prevents the truck from buckling even under the heaviest loads. The ergonomic, rubberised tiller handle ensures utmost comfort when lifting, moving and lowering your loads. The lowering valve in the tiller head enables fully variable lowering of the load with utmost precision.
A transparent Plexiglas panel or metal grill is fitted between the steel frame. Both versions offer protection against falling objects while providing a clear view in travel direction. Thanks to its low height with the mast retracted, the Ameise® hydraulic stacker truck fits through virtually any door.
The large tubular push handles are mounted at the perfect height for straightforward manoeuvring of the truck. The mechanical wheel stops on the two large steering castors prevent the hydraulic stacker truck from rolling away and guarantee utmost stability. The steering castors and tandem fork rollers are made from nylon and are thus very smooth-running and wear-resistant.
The Ameise® hydraulic stacker truck with telescopic mast is a versatile option that is ideal for occasional stacking and retrieval tasks at great heights. It represents a more cost-effective alternative to an electric forklift truck. We offer the Ameise® hydraulic stacker truck with 1000 kg capacity in a range of lift heights. Purchase the right version for your needs from our shop.
You can raise your loads to the required height either via the hydraulic foot pump or using the reinforced tiller. The robust hydraulic system is equipped with overload protection.
The manual-hydraulic stacker truck consists of a robust, welded frame with central support and load forks made from torsion-resistant sectional steel. This prevents the truck from buckling even under the heaviest loads. The ergonomic, rubberised tiller handle ensures utmost comfort when lifting, moving and lowering your loads. The lowering valve in the tiller head enables fully variable lowering of the load with utmost precision.
A transparent Plexiglas panel or metal grill is fitted between the steel frame. Both versions offer protection against falling objects while providing a clear view in travel direction. Thanks to its low height with the mast retracted, the Ameise® hydraulic stacker truck fits through virtually any door.
The large tubular push handles are mounted at the perfect height for straightforward manoeuvring of the truck. The mechanical wheel stops on the two large steering castors prevent the hydraulic stacker truck from rolling away and guarantee utmost stability. The steering castors and tandem fork rollers are made from nylon and are thus very smooth-running and wear-resistant.
The Ameise® hydraulic stacker truck with telescopic mast is a versatile option that is ideal for occasional stacking and retrieval tasks at great heights. It represents a more cost-effective alternative to an electric forklift truck. We offer the Ameise® hydraulic stacker truck with 1000 kg capacity in a range of lift heights. Purchase the right version for your needs from our shop.
