Item number:
197357
Ameise® PSM 1.0 Wide-tread hydraulic stacker truck with single mast, lift height 1,600 mm, load capacity 1,000 kg
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
Ameise® PSM 1.0 Wide-tread hydraulic stacker truck with single mast, lift height 1,600 mm, load capacity 1,000 kg
Article number: 197357 | EAN/GTIN: 4055091194738
| Aisle width | 2005 mm |
| Brake | Parking brakes |
| Brand | Ameise® |
| Capacity | 1000 kg |
| Chassis RAL colour | RAL 5018 turquoise blue |
| Chassis surface | powder-coated |
| Control panel | right-handed |
| Drive | manual |
| Drive wheel diameter front | 147 mm |
| Drive wheel material | Nylon |
| Drive wheel width front | 40 mm |
| Face of forks length | 500 mm |
| Fork height | 61 mm |
| Fork length | 1100 mm |
| Fork roller diameter | 83 mm |
| Fork roller equipment | Tandem |
| Fork roller material | Nylon |
| Fork roller width | 60 mm |
| Fork support width | 550 mm |
| Fork width | 170 mm |
| Ground clearance | 30 mm |
| Hydraulic oil quantity | 1.5 l |
| Hydraulic oil type | Synthetic oil |
| Hydraulic oil viscosity acc. to ISO-VG | 32 |
| Lift | 1600 mm |
| Lift height per pump stroke | 20 mm |
| Lift range | 90 - 1600 mm |
| Load centre | 600 mm |
| Mast | Single-stage mast |
| Mast height | 1980 - 2090 mm |
| Net weight | 255 kg |
| Operator type | Manual |
| Overall length | 1600 mm |
| Overall width | 1490 mm |
| Section | Performance |
| Support arms inside clearance | 1250 mm |
| Swivel castor diameter | 147 mm |
| Swivel castor width | 40 mm |
| Temperature range | 5 - 40 °C |
| Tiller RAL colour | RAL 7016 anthracite grey |
| Tiller height | 1100 mm |
| Tiller surface | powder-coated |
| Turning radius | 1290 mm |
Item description
Ameise® PSM 1.0 Wide-tread hydraulic stacker truck with single mast, lift height 1,600 mm, load capacity 1,000 kg
Article number: 197357 | EAN/GTIN: 4055091194738

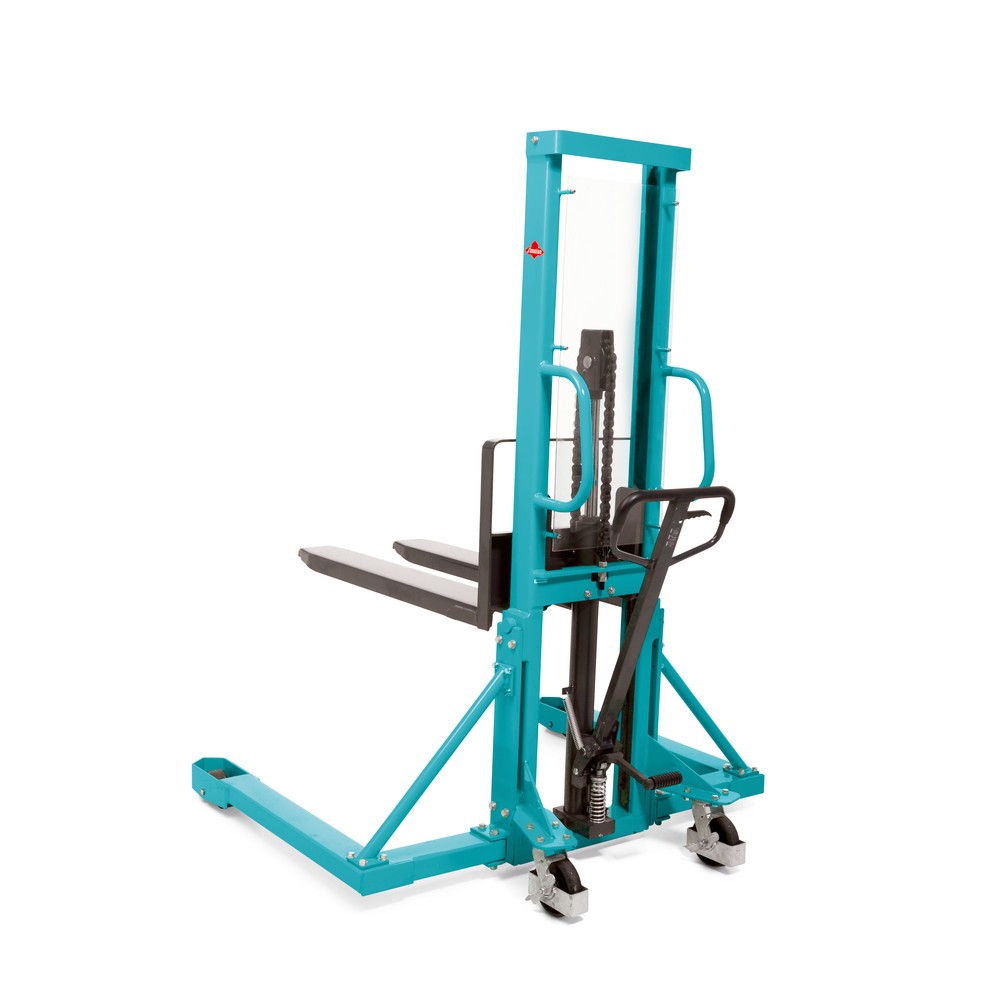

The Ameise® hydraulic stacker truck in wide-tread design for sideways lifting of pallets
This hydraulic stacker truck is a quality Ameise® product offering the ultimate in robustness and durability. The practical all-rounder for occasional use as a lifting and transport device serves as a cost-effective alternative to en expensive electric forklift truck. Thanks to its manual drive, the truck is always ready for use and is also cheap to maintain. The high-lift truck is suitable for occasional stacking and retrieval of pallets and other piece goods at heights of up to 1600 mm or for loading and unloading lorries without using a ramp. However, its main strength lies in transverse lifting of pallets or lifting pallets that are closed on all 4 sides. This is done by passing the support arms along the sides of the pallet (not into the pallet like standard stacker trucks). The distance between the support arms measures 1250 mm (enough to pass either side of a 1200x1000mm or 1200x800mm pallet).
You can raise your loads to the required height either via the hydraulic foot pump or using the reinforced tiller. The robust hydraulic system is equipped with overload protection. The manual-hydraulic stacker truck consists of a robust, welded frame with central support and load forks made from torsion-resistant sectional steel. This prevents the Ameise® wide-tread hydraulic stacker truck from buckling even under the heaviest loads. The ergonomic, rubberised tiller handle ensures utmost comfort when lifting, moving and lowering your loads. The lowering valve in the tiller head enables fully variable lowering of the load with utmost precision.

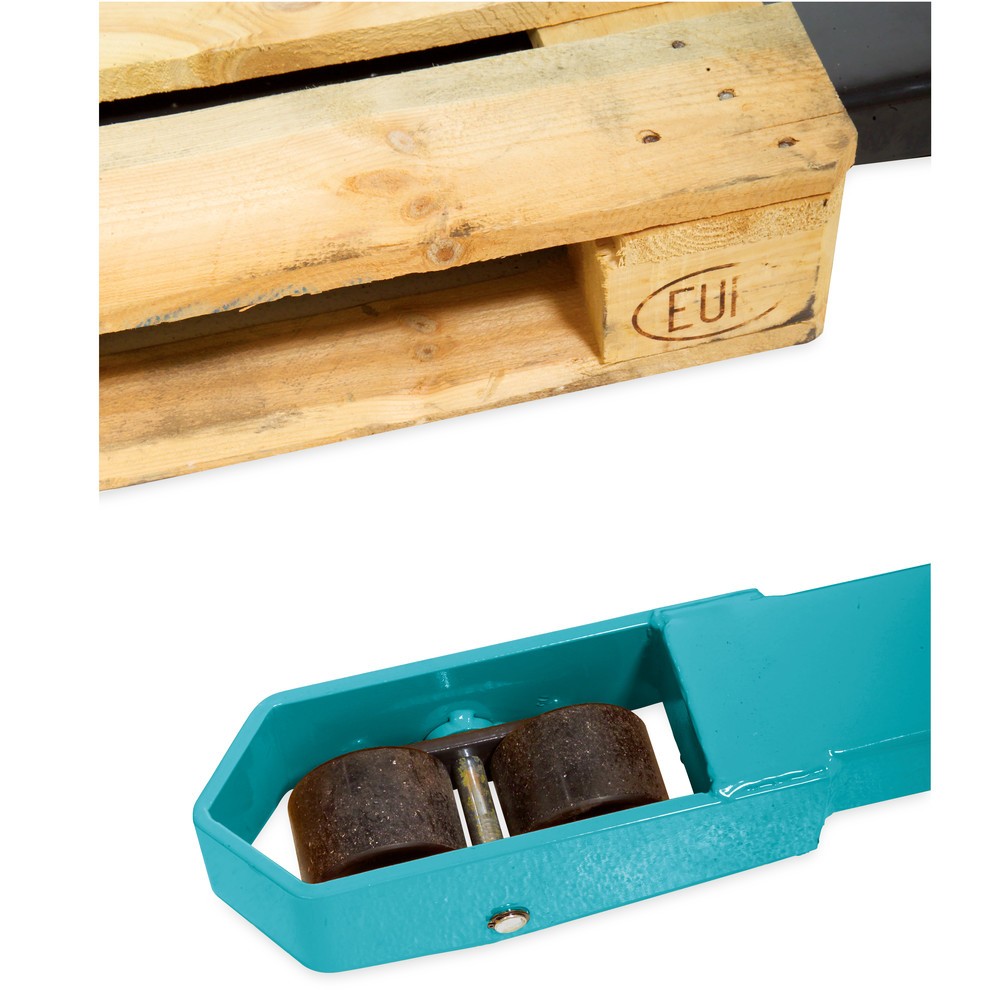

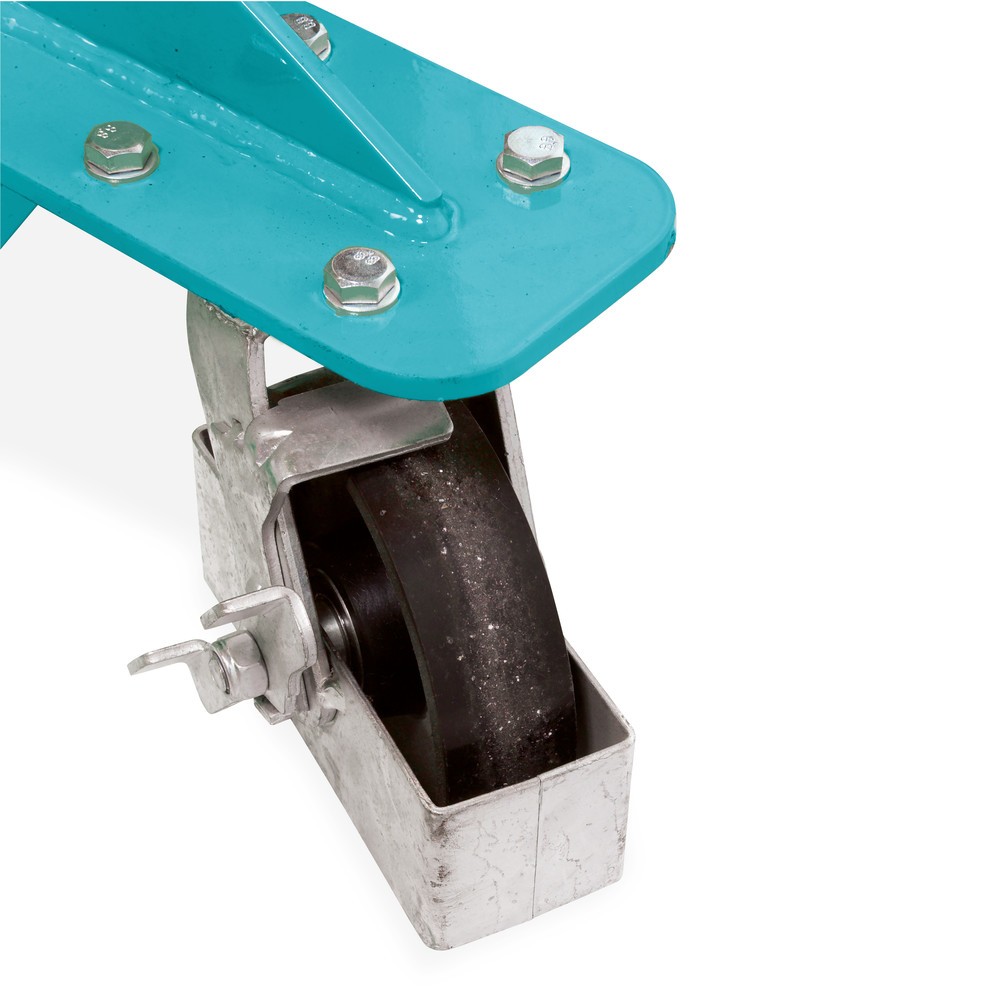

The transparent Plexiglas panel within the steel frame offers protection against falling objects and provides a clear view in the direction of travel. The large tubular push handles are mounted at the perfect height for straightforward manoeuvring of the truck. The mechanical wheel stops on the two large steering castors prevent the Ameise® hydraulic stacker truck from rolling away and guarantee utmost stability. The steering castors and tandem fork rollers are made from nylon and are thus very smooth-running and wear-resistant.
The flexible Ameise® hydraulic stacker truck with wide support arms represents a cost-effective alternative to an electric forklift truck. Order the manual truck from our shop today.
