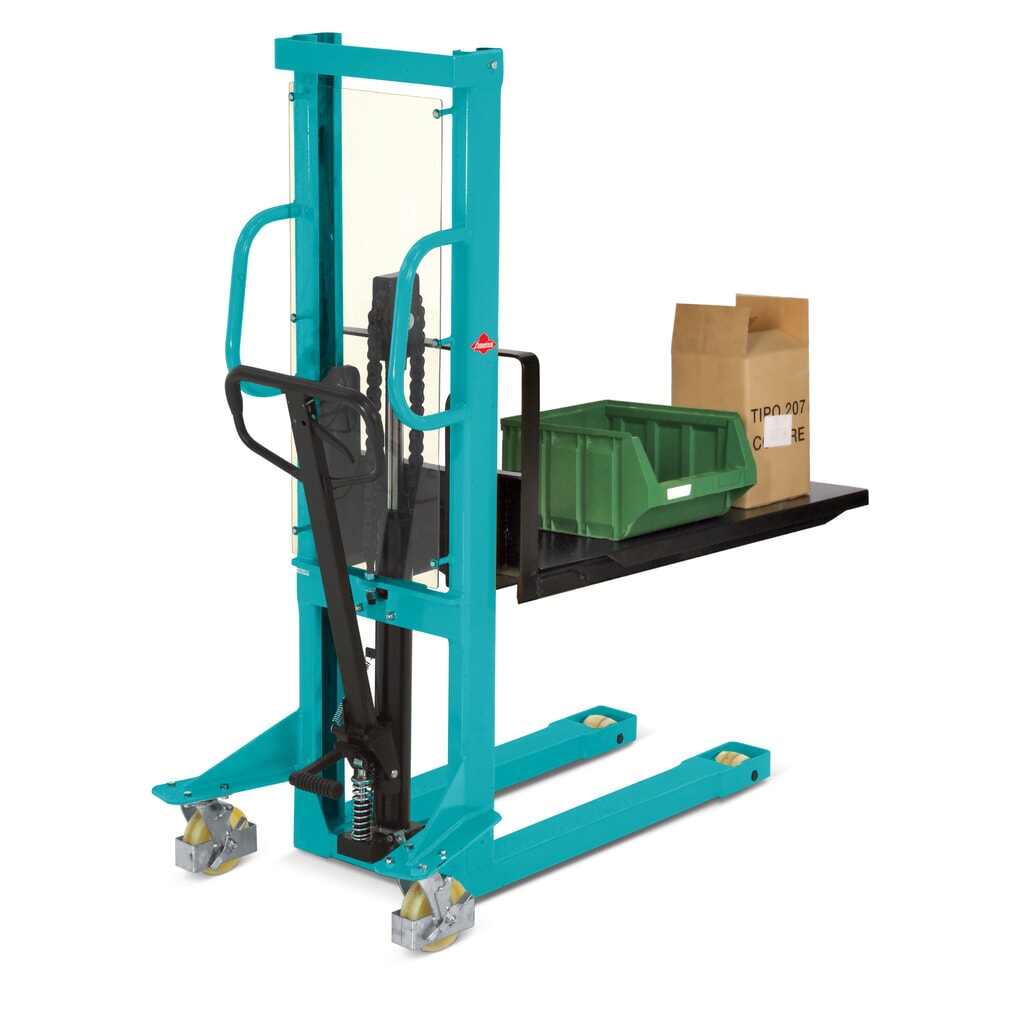

Ameise® PSM 1.5 hydraulic stacker truck with single mast, lift height 1,600 mm, capacity 1,500 kg
The practical all-rounder for your lifting and transport tasks
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
Ameise® PSM 1.5 hydraulic stacker truck with single mast, lift height 1,600 mm, capacity 1,500 kg
Article number: 197352 | EAN/GTIN: 4055091194684
| Aisle width | 1945 mm |
| Brake | Parking brakes |
| Brand | Ameise® |
| Capacity | 1500 kg |
| Chassis RAL colour | RAL 5018 turquoise blue |
| Chassis surface | powder-coated |
| Control panel | right-handed |
| Drive | manual |
| Drive wheel diameter front | 147 mm |
| Drive wheel material | Nylon |
| Drive wheel width front | 40 mm |
| Face of forks length | 555 mm |
| Fork height | 61 mm |
| Fork length | 1100 mm |
| Fork roller diameter | 83 mm |
| Fork roller equipment | Tandem |
| Fork roller material | Nylon |
| Fork roller width | 60 mm |
| Fork support width | 550 mm |
| Fork width | 170 mm |
| Ground clearance | 25 mm |
| Hydraulic oil quantity | 1.5 l |
| Hydraulic oil type | Synthetic oil |
| Hydraulic oil viscosity acc. to ISO-VG | 32 |
| Lift | 1600 mm |
| Lift height per pump stroke | 20 mm |
| Lift range | 90 - 1600 mm |
| Load centre | 400 mm |
| Mast | Single-stage mast |
| Mast height | 2080 mm |
| Model | Ameise® SDJ |
| Net weight | 245 kg |
| Operator type | Manual |
| Overall length | 1655 mm |
| Overall width | 755 mm |
| Section | Performance |
| Support arm height | 55 mm |
| Support arm length | 1290 mm |
| Support arms inside clearance | 215 mm |
| Support arms outer distance | 560 mm |
| Swivel castor diameter | 147 mm |
| Swivel castor width | 40 mm |
| Temperature range | 5 - 40 °C |
| Tiller RAL colour | RAL 7016 anthracite grey |
| Tiller height | 1250 mm |
| Tiller surface | powder-coated |
| Turning radius | 1380 mm |
Item description
Ameise® PSM 1.5 hydraulic stacker truck with single mast, lift height 1,600 mm, capacity 1,500 kg
Article number: 197352 | EAN/GTIN: 4055091194684
The Ameise® hydraulic stacker truck with single mast is a versatile aid that is ideal for transport tasks and occasional stacking of palletised loads.
- Hydraulic lifting via tiller or foot pedal
- High-performance hydraulic pump made from high-strength steel
- Overload valve for long service life
- Robust construction with welded sectional steel
- High stability even under full load
The hydraulic stacker truck with single mast is a quality Ameise® product offering the ultimate in robustness and durability
You can easily raise your pallets to the required height via the hydraulic foot pump or by pumping the reinforced tiller. A lowering valve in the tiller head enables fully variable, precision lowering of the load. The Ameise® hydraulic stacker truck consists of a robust, welded frame with central support and load forks made from torsion-resistant sectional steel. This design prevents the truck from buckling even under the heaviest loads.
The ergonomic, rubberised tiller handle ensures utmost comfort when lifting, moving and lowering your loads. Some models feature a transparent Plexiglas panel within the steel frame, while others are equipped with a mesh panel. Both versions offer protection against falling objects while providing a clear view in travel direction.
The large tubular push handles ensure excellent manoeuvrability. The wheel stops on the two large steering castors prevent the hydraulic stacker truck from rolling away and guarantee utmost stability. The steering castors and tandem fork rollers are made from nylon and are thus very smooth-running and wear-resistant.
The Ameise® hydraulic stacker truck with single mast is a versatile option that is ideal for occasional stacking and retrieval tasks in warehouses and production facilities.
Save yourself expensive procurement and maintenance costs with this effective alternative to an electric forklift truck. We offer the Ameise® hydraulic stacker truck with a range of capacities and lift heights. Purchase the hydraulic stacker truck from our shop in your required configuration.
You can easily raise your pallets to the required height via the hydraulic foot pump or by pumping the reinforced tiller. A lowering valve in the tiller head enables fully variable, precision lowering of the load. The Ameise® hydraulic stacker truck consists of a robust, welded frame with central support and load forks made from torsion-resistant sectional steel. This design prevents the truck from buckling even under the heaviest loads.
The ergonomic, rubberised tiller handle ensures utmost comfort when lifting, moving and lowering your loads. Some models feature a transparent Plexiglas panel within the steel frame, while others are equipped with a mesh panel. Both versions offer protection against falling objects while providing a clear view in travel direction.
The large tubular push handles ensure excellent manoeuvrability. The wheel stops on the two large steering castors prevent the hydraulic stacker truck from rolling away and guarantee utmost stability. The steering castors and tandem fork rollers are made from nylon and are thus very smooth-running and wear-resistant.
The Ameise® hydraulic stacker truck with single mast is a versatile option that is ideal for occasional stacking and retrieval tasks in warehouses and production facilities.
Save yourself expensive procurement and maintenance costs with this effective alternative to an electric forklift truck. We offer the Ameise® hydraulic stacker truck with a range of capacities and lift heights. Purchase the hydraulic stacker truck from our shop in your required configuration.
