Technical details

Ameise® PTE 1.5 electric pallet truck, load capacity 1,500 kg, fork length 1,000 mm

Article number: 365560 | EAN/GTIN: 4055091293561

Access system PIN-Code
Aisle width 1783 mm
Battery capacity 36 Ah/per unit
Battery charging time 5 h
Battery type Lithium-ion
Battery voltage 24 V/per unit
Battery weight 7 kg
Brake electromagnetic
Brand Ameise®
Capacity 1500 kg
Charger external
Chassis RAL colour RAL 5018 turquoise blue
Creep speed button Yes
Drive electric
Drive control type DC Speed Control
Drive motor power 0.65 kW
Face of forks length 380 mm
Fork height 47 mm
Fork length 1000 mm
Fork roller diameter 80 mm
Fork roller equipment Tandem
Fork roller material Polyurethane (PU)
Fork roller width 70 mm
Fork support width 540 mm
Fork width 160 mm
Ground clearance 33 mm
Hour meter Yes
Infeed rollers Yes
Lift 115 mm
Lift range 80 - 195 mm
Load centre 600 mm
Lowering speed with/without load 0.05 / 0.04 m/s
Net weight 123 kg
Net weight incl. battery 122 kg
Noise level as per EN 12053 (operator's ear) 70 dB(A)
Operating hours per year 800 h
Operator type Pedestrian
Overall length 1380 mm
Overall width 540 mm
Route Short distance
Scope Indoor use, Outdoor use
Section Starter
Steering wheel diameter 210 mm
Steering wheel material Polyurethane (PU)
Steering wheel width 70 mm
Steigfähigkeit mit/ohne Last 4 / 16 %
Temperature range 5 - 40 °C
Tiller height 1160 mm
Travel speed, laden/unladen 4.6 / 4.8 km/h
Turning radius 1180 mm
quality seal LI-ION technology

Item description

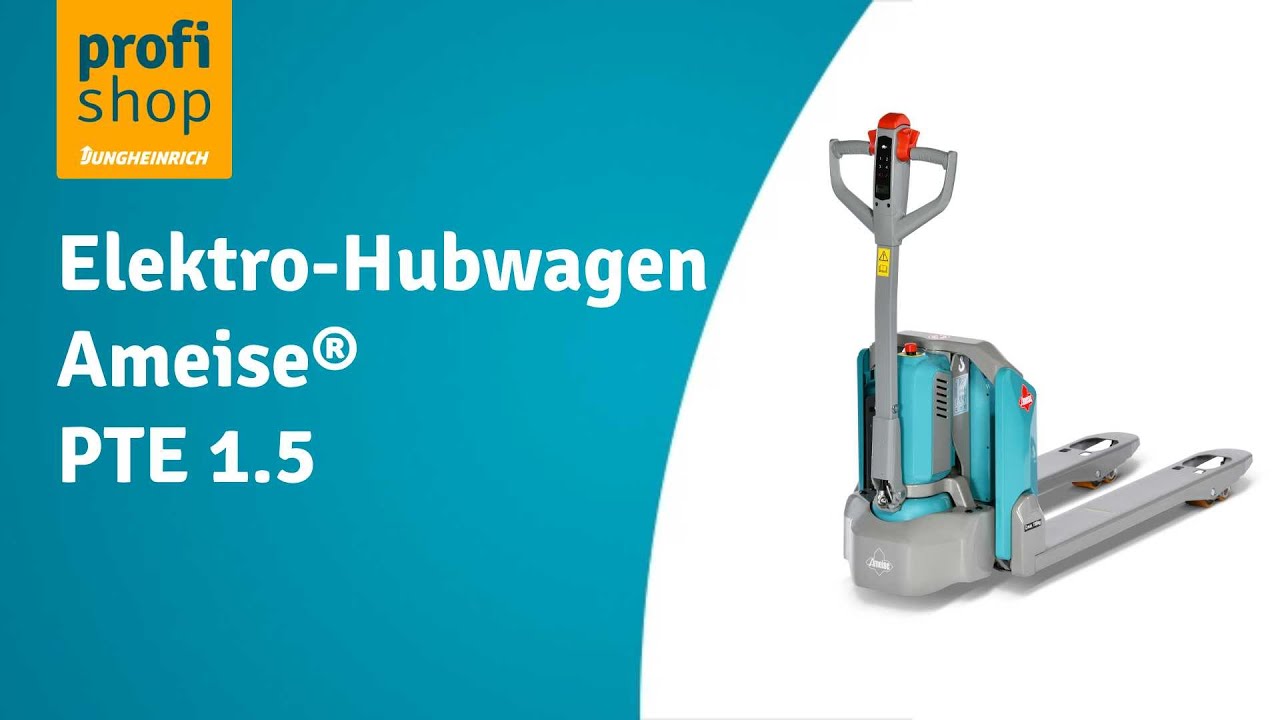

Ameise® PTE 1.5 electric pallet truck, load capacity 1,500 kg, fork length 1,000 mm

Article number: 365560 | EAN/GTIN: 4055091293561

The Ameise® electric hand pallet truck with lithium-ion technology makes your manual hand pallet truck look positively antiquated

The benefits of fully electric pallet handling are obvious: you save time and effort, while also boosting your productivity. The PTE 1.5 is an affordable entry-level truck in the world of electric pallet trucks. Very flexible, it enables the fully electric transport, lifting and lowering of loads weighing up to 1,500 kg. This ensures optimum working conditions along with improved ergonomics and long-term physical relief at the workplace – something for which your employees will be eternally grateful!

The Ameise® PTE 1.5 electric pallet truck was specially developed for light duties over short distances, both indoors and outdoors. It proves itself in the warehouse, in the store and when loading and unloading HGVs. Its low weight also makes the PTE 1.5 suitable for transport on an HGV.
The compact design and very short front end length, small turning radius and low service weight ensure a high degree of manoeuvrability and offer benefits which prove invaluable in confined spaces and weight-sensitive areas. The slow travel button enables safe and convenient operation of the pallet truck even when the tiller is raised – be it on HGVs or in lifts.

All travel and lift functions are controlled via the multifunctional tiller handle. Control instruments such as the battery discharge indicator, operating hour counter, slow travel mode symbol and the integrated diagnostic system are clearly arranged on the LCD display, thereby keeping you fully up-to-date on the truck status at all times. PIN code access provides reliable protection against unauthorised use. The problem of misplaced or lost keys is now a thing of the past.

The electric pallet truck boasts robust and durable Ameise® quality. The sturdy steel housing protects the drive unit while also offering protection against foot injuries. The reinforced fork frame retains its shape even under the heaviest loads. All components are maintenance-free and require no lubrication. The electromagnetic brake with energy recovery increases the performance and service life of the brake system and automatically charges the battery. Thanks to the intelligent automatic shut-off, the truck switches off after 30 minutes without use, protecting the battery.

A safe and pleasant driving experience is ensured by the curveCONTROL function, which automatically reduces the travel speed when cornering. Rounded fork tips and entry rollers make insertion and retraction from the pallet particularly easy. Polyurethane tandem rollers ensure comfortable, low-noise travel as well as smooth running over thresholds and uneven floors. The permanent fork marking at 800 mm guarantees maximum safety when lifting Euro pallets from the side.

The maintenance-free 24-V lithium-ion battery is characterised by its impressive performance, quick charging times and long service life. The battery can be replaced in a matter of seconds, without using tools or disconnecting any cables. The external battery charger (included) enables rapid intermediate charging of the pallet truck and ensures maximum availability. Flexibility is further enhanced by an optional replacement battery, which can be charged via the external charger while the pallet truck remains in use.

All Ameise® electric pallet trucks are supported by Jungheinrich Service. With more than 3000 service engineers worldwide, we guarantee a partner in your vicinity at all times along with an optimum spare parts supply.

The Ameise® PTE 1.5 electric pallet truck with lithium-ion battery and 1,500 kg capacity is part of the new generation of fully electric pallet trucks. Experience the benefits for yourself by purchasing the versatile pallet truck with innovative lithium-ion technology from our shop.
