Ameise® PTM 1.0 Scissor pallet truck with scissor function and quick lift, load capacity 1,000 kg, fork length 1,150 mm
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
Ameise® PTM 1.0 Scissor pallet truck with scissor function and quick lift, load capacity 1,000 kg, fork length 1,150 mm
Article number: 197360 | EAN/GTIN: 4055091194769
| Aisle width | 1907 mm |
| Brand | Ameise® |
| Capacity | 1000 kg |
| Chassis RAL colour | RAL 5018 turquoise blue |
| Chassis surface | painted |
| Control panel | right-handed |
| Drive | manual |
| Face of forks length | 275 mm |
| Fork height | 49 mm |
| Fork length | 1150 mm |
| Fork roller diameter | 75 mm |
| Fork roller equipment | Single |
| Fork roller material | Nylon |
| Fork roller width | 50 mm |
| Fork support width | 540 mm |
| Fork width | 162 mm |
| Grease nipple | Yes |
| Ground clearance | 20 mm |
| Handle fittings | Steel |
| Hydraulic oil quantity | 0.9 l |
| Hydraulic oil type | Mineral oil |
| Hydraulic oil viscosity acc. to ISO-VG | 22 |
| Lift | 715 mm |
| Lift height per pump stroke | 28,5/9 mm |
| Lift range | 85 - 800 mm |
| Lift type | manual |
| Load centre | 430 mm |
| Lowering speed with/without load | 0,1 m/s / 40s |
| Model | Ameise® HLT 10 |
| Movable to height | 400 mm |
| Net weight | 108 kg |
| Operator type | Manual |
| Overall length | 1527 mm |
| Overall width | 540 mm |
| Pallet truck material | Steel |
| Pump strokes to max. lift height | 26/83 |
| Rapid lift | Yes |
| Route | Short distance |
| Section | Performance |
| Steering wheel diameter | 180 mm |
| Steering wheel material | Polyurethane (PU) |
| Steering wheel width | 50 mm |
| Temperature range | -10 - 40 °C |
| Tiller RAL colour | RAL 7016 anthracite grey |
| Tiller height | 1337 mm |
| Tiller surface | painted |
| Turning radius | 1415 mm |
Item description
Ameise® PTM 1.0 Scissor pallet truck with scissor function and quick lift, load capacity 1,000 kg, fork length 1,150 mm
Article number: 197360 | EAN/GTIN: 4055091194769

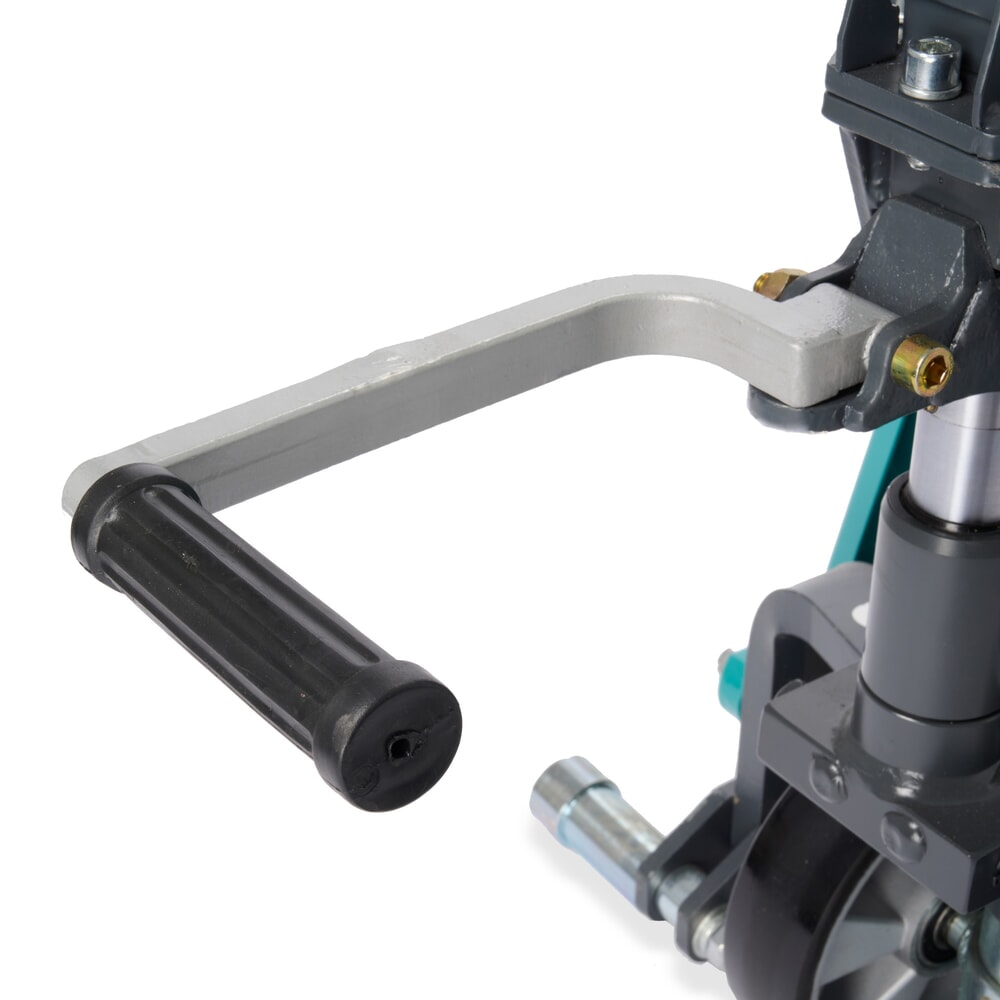

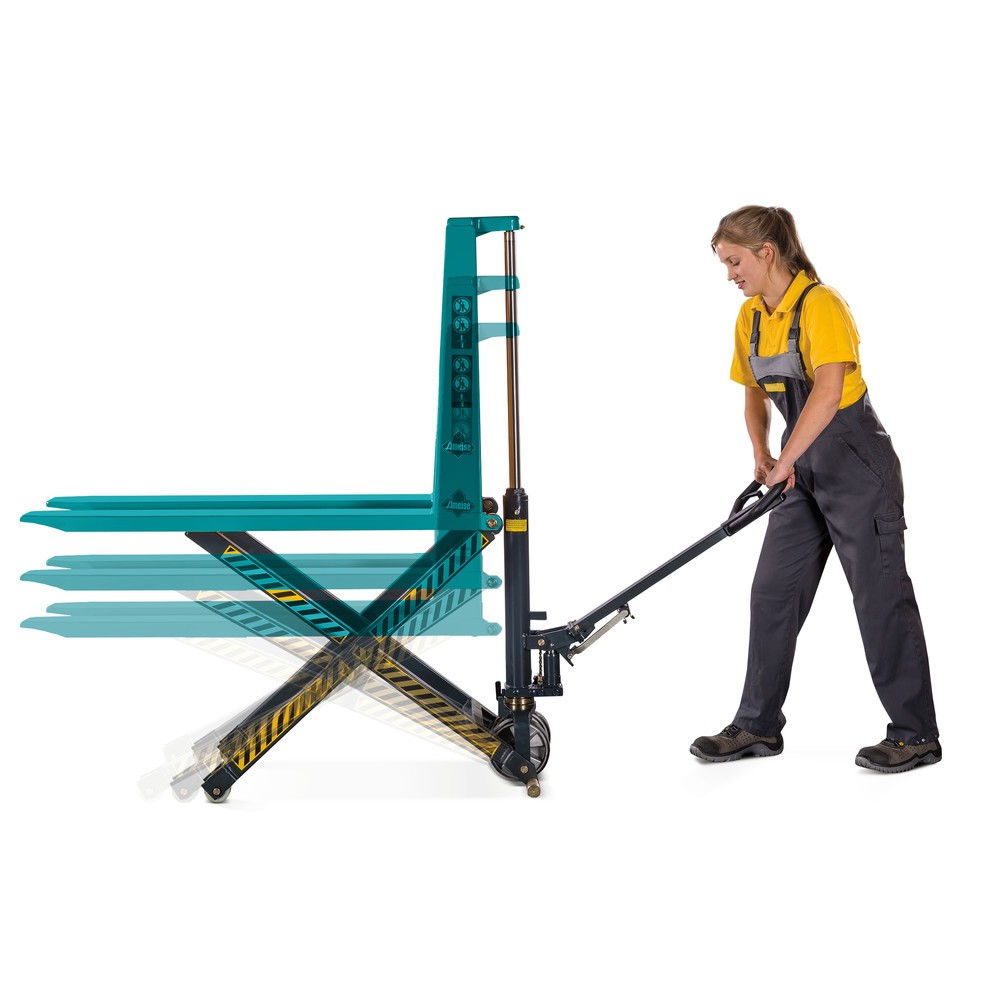

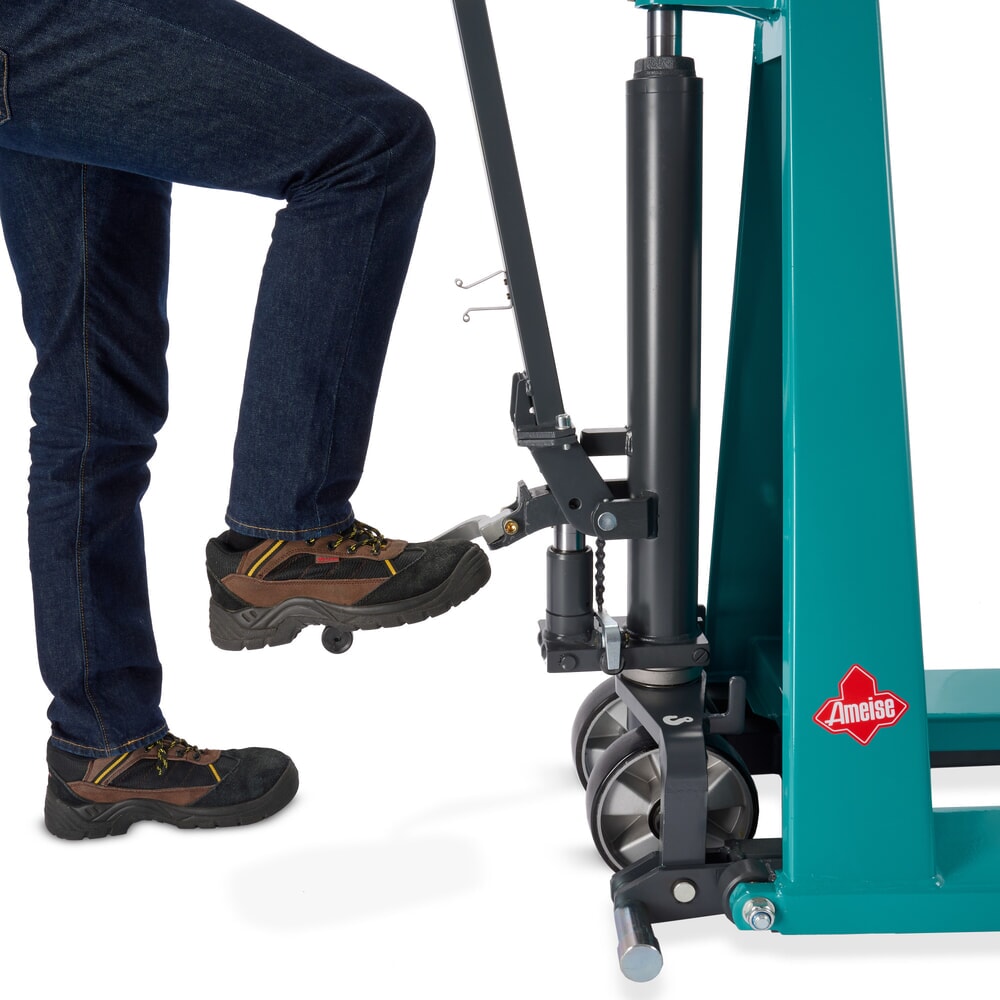

Raise loads to an ergonomic height via the tiller or foot pedal

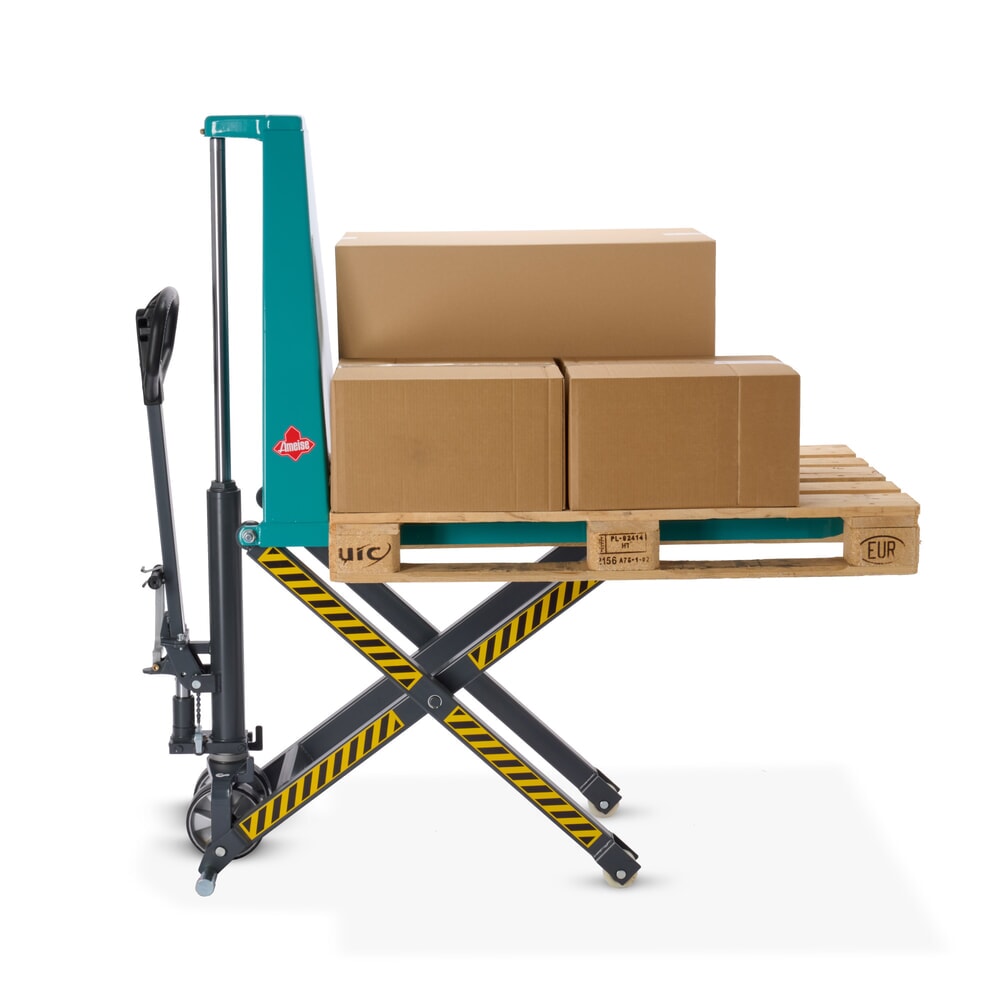

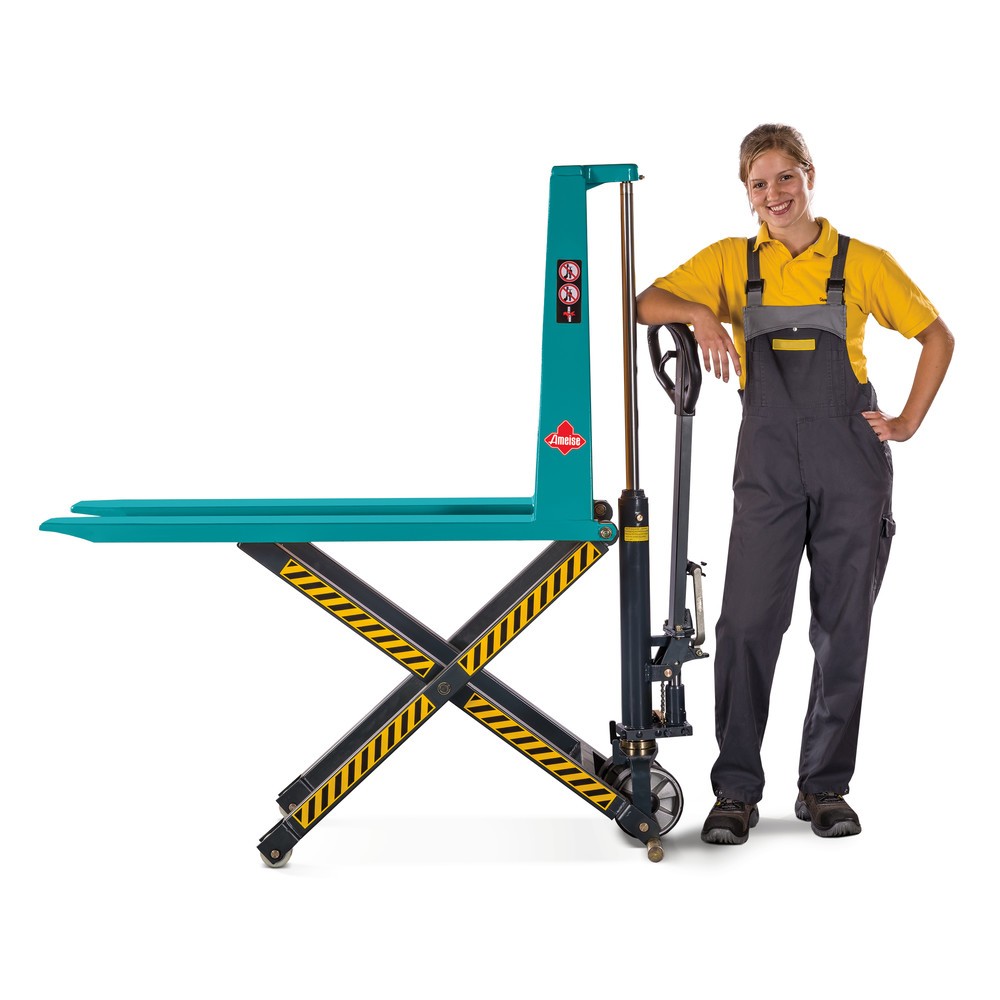

This scissor lift pallet truck offers robust Ameise® quality for daily use in a wide range of applications. As a combination between a pallet truck and lift table, it can be used as a tool for lifting, moving and provisioning your transported goods. You can raise loads to a comfortable, ergonomic height with just a few strokes of the tiller or using the foot pedal. This then allows you to replenish machines or stack and retrieve stored materials. The scissor lift pallet truck thus eliminates the need for bending and heavy lifting, thereby protecting the health of your employees.
Depending on your requirements, you can choose between two lift speeds. A manual quick lift function for light loads (up to approx. 200 kg) can be activated on the tiller handle. The normal lift is ideal for raising heavier loads with reduced effort.

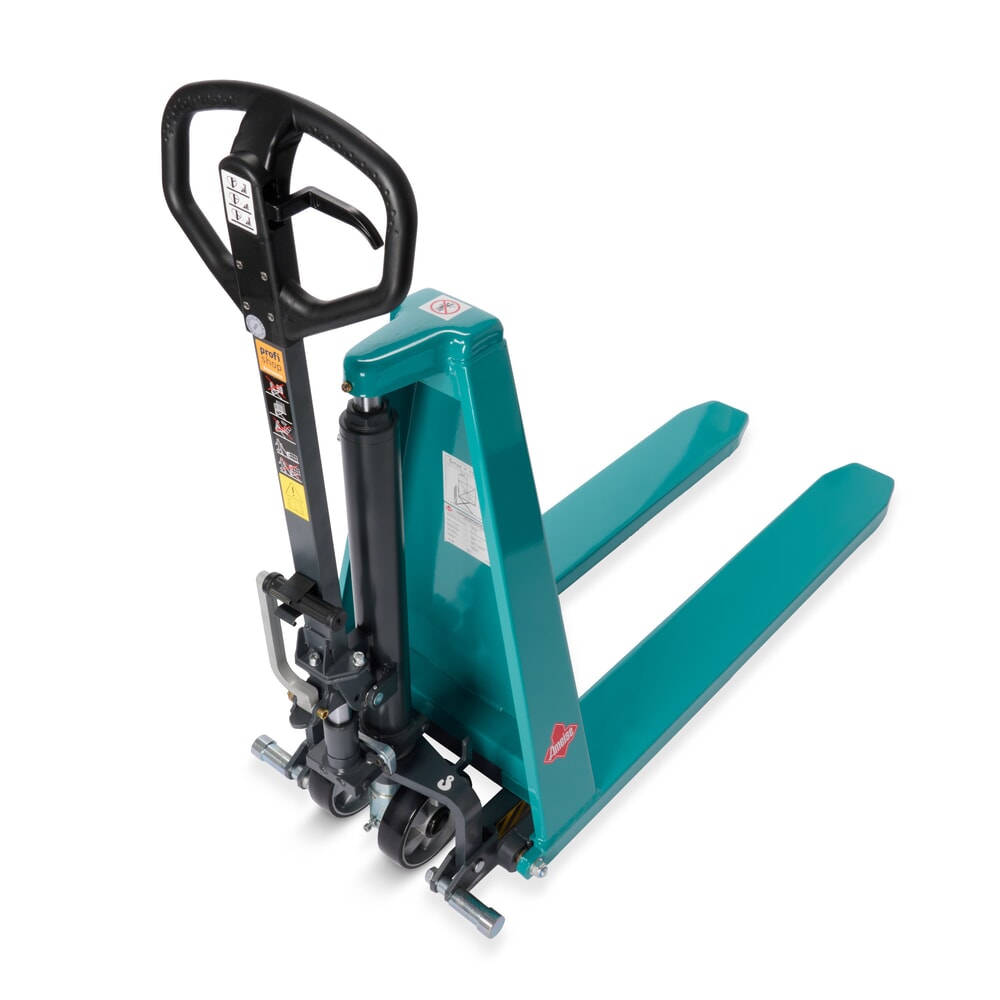

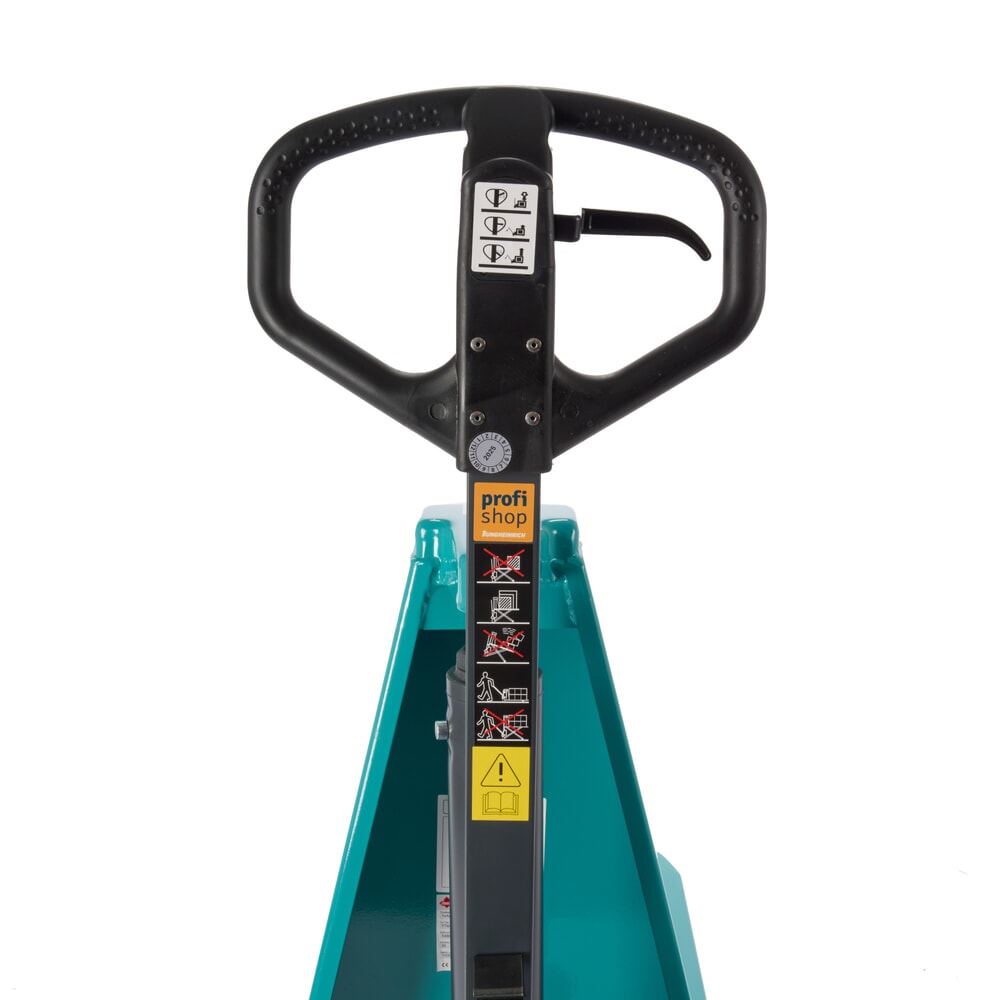

All functions are easily operated via the control lever or the ergonomic plastic tiller handle. The load is lowered at an adjustable speed, allowing you to deposit sensitive goods with utmost control and precision.

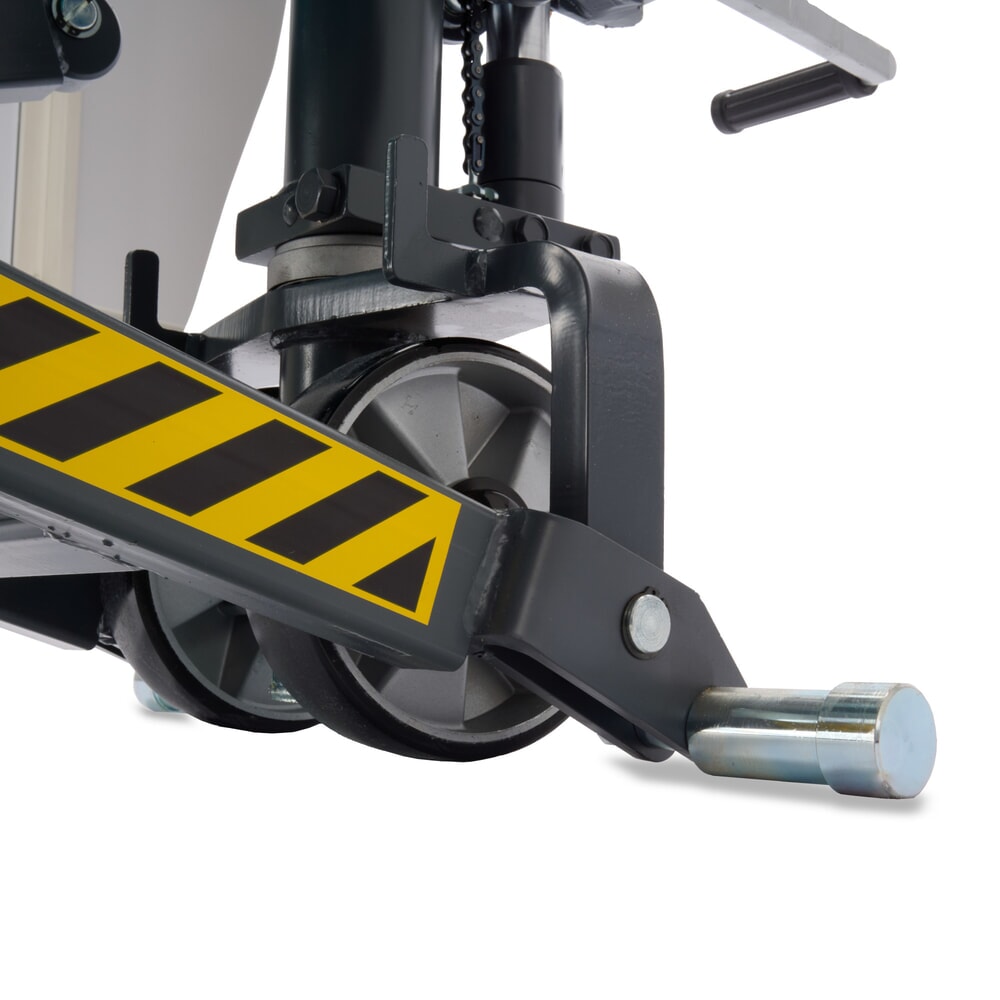

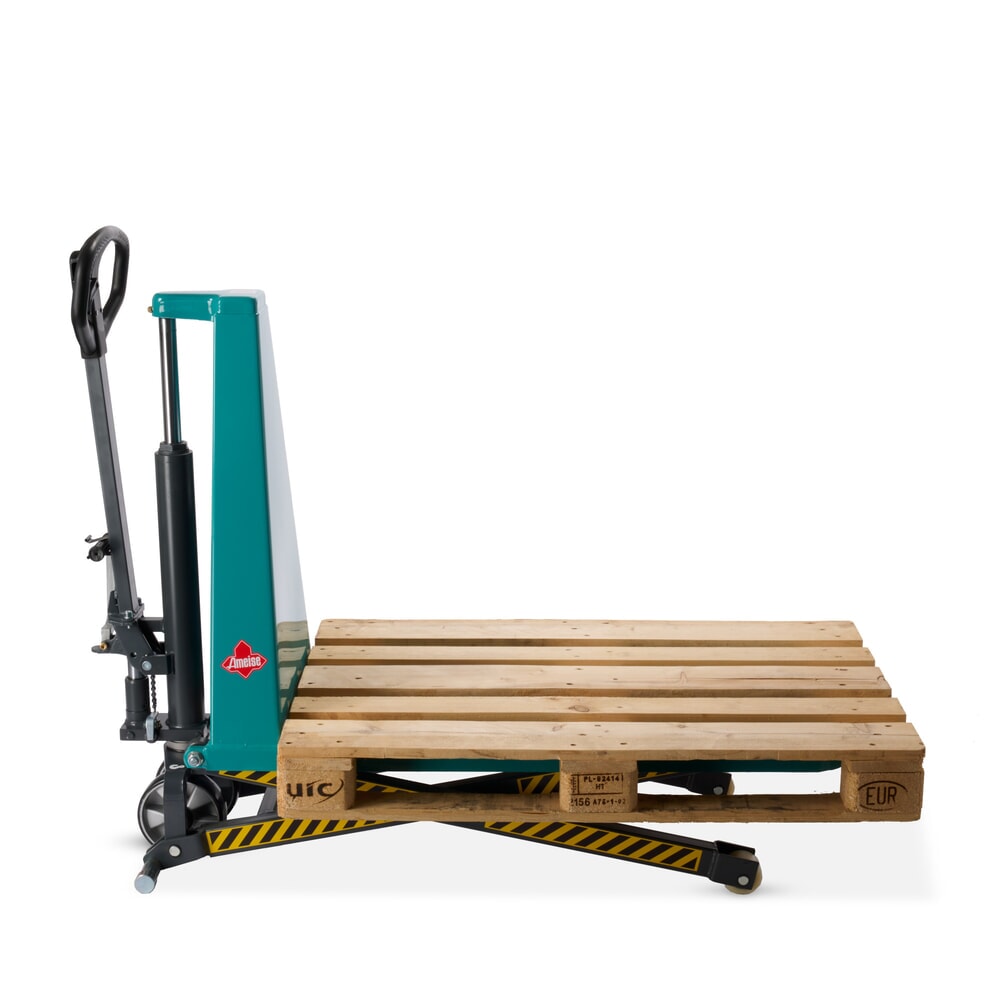

As of a lift height of 400 mm, side-mounted support feet secure the scissor lift pallet truck to ensure maximum stability and safety.

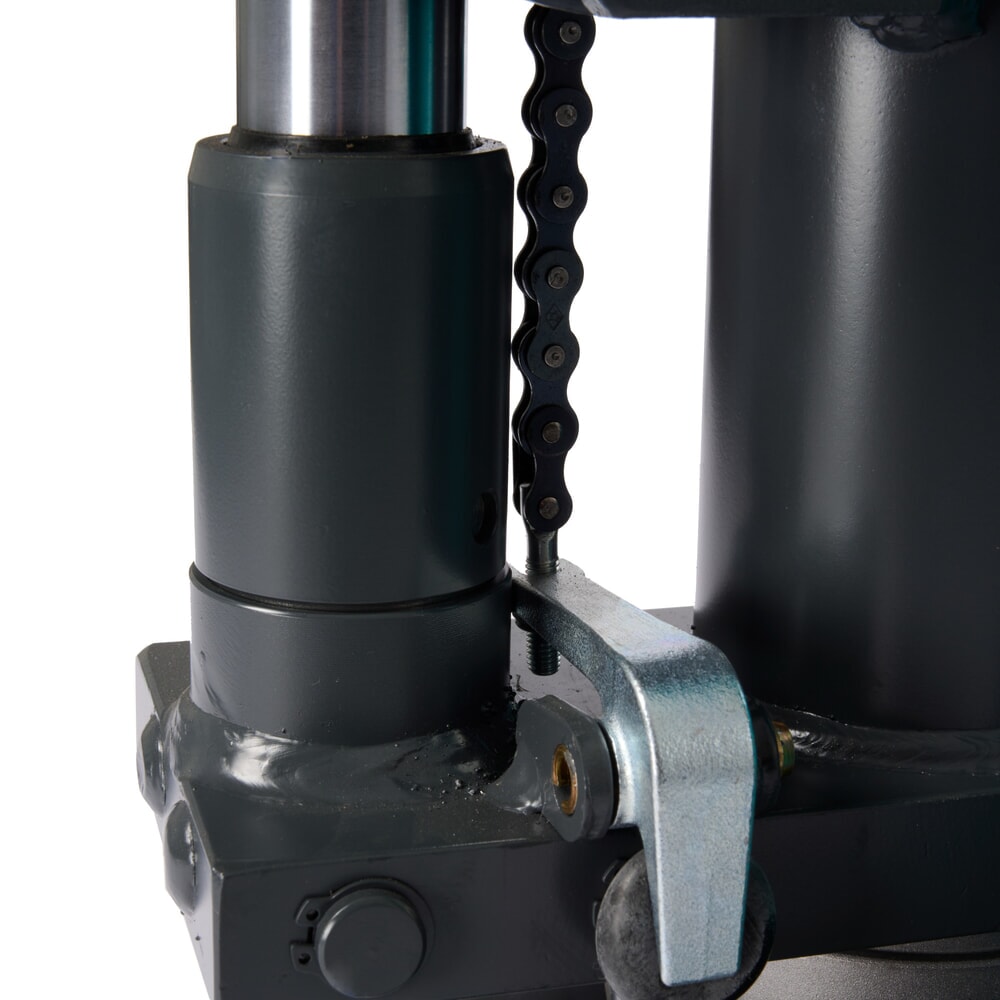

The welded sectional steel frame and forks are torsion-free and extremely hard-wearing. As a result, the scissor lift pallet truck retains its shape even when carrying loads of up to 1000 kg. The single-cylinder telescopic hydraulic system is particularly durable and maintenance-free. The overload valve protects the hydraulic system against excess loads.
The truck features polyurethane steering castors for high-quality, comfortable and low-noise travel, while also offering maximum capacity and a long service life. The single fork rollers are made from nylon and are thus very smooth running and wear-resistant.
Order the versatile Ameise® scissor lift pallet truck with quick lift from our shop.
