Item number:
197328
Ameise® PTM 1.0 scissor lift pallet truck, electro-hydraulic, capacity 1,000 kg, fork length 1,150 mm, polyurethane/nylon
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
Ameise® PTM 1.0 scissor lift pallet truck, electro-hydraulic, capacity 1,000 kg, fork length 1,150 mm, polyurethane/nylon
Article number: 197328 | EAN/GTIN: 4055091293387
| Aisle width | 2021 mm |
| Battery capacity | 60 Ah/per unit |
| Battery type | Lead-gel battery |
| Battery voltage | 12 V/per unit |
| Brand | Ameise® |
| Capacity | 1000 kg |
| Charger | integrated |
| Chassis RAL colour | RAL 5018 turquoise blue |
| Chassis surface | painted |
| Control panel | right-handed |
| Drive | manual |
| Face of forks length | 492 mm |
| Fork height | 51 mm |
| Fork length | 1170 mm |
| Fork roller diameter | 75 mm |
| Fork roller equipment | Single |
| Fork roller material | Nylon |
| Fork roller width | 50 mm |
| Fork support width | 540 mm |
| Fork width | 160 mm |
| Ground clearance | 20 mm |
| Handle fittings | Rubber sheath |
| Hydraulic oil quantity | 0.9 l |
| Hydraulic oil type | Mineral oil |
| Hydraulic oil viscosity acc. to ISO-VG | 22 |
| Lift | 715 mm |
| Lift height per pump stroke | 9,5 mm |
| Lift motor output | 0.58 kW |
| Lift range | 85 - 800 mm |
| Lift speed with/without load | 22s / 15s |
| Lift type | electric |
| Load centre | 600 mm |
| Lowering speed with/without load | 0,1 m/s / 40s |
| Model | Ameise® ACX10E |
| Movable to height | 400 mm |
| Net weight | 152 kg |
| Operator type | Manual |
| Overall length | 1662 mm |
| Overall width | 540 mm |
| Pallet truck material | Steel |
| Pump strokes to max. lift height | 78 |
| Route | Short distance |
| Section | Performance |
| Steering wheel diameter | 180 mm |
| Steering wheel material | Polyurethane (PU) |
| Steering wheel width | 50 mm |
| Temperature range | 5 - 40 °C |
| Tiller RAL colour | RAL 7016 anthracite grey |
| Tiller height | 1254 mm |
| Tiller surface | painted |
| Turning radius | 1564 mm |
Item description

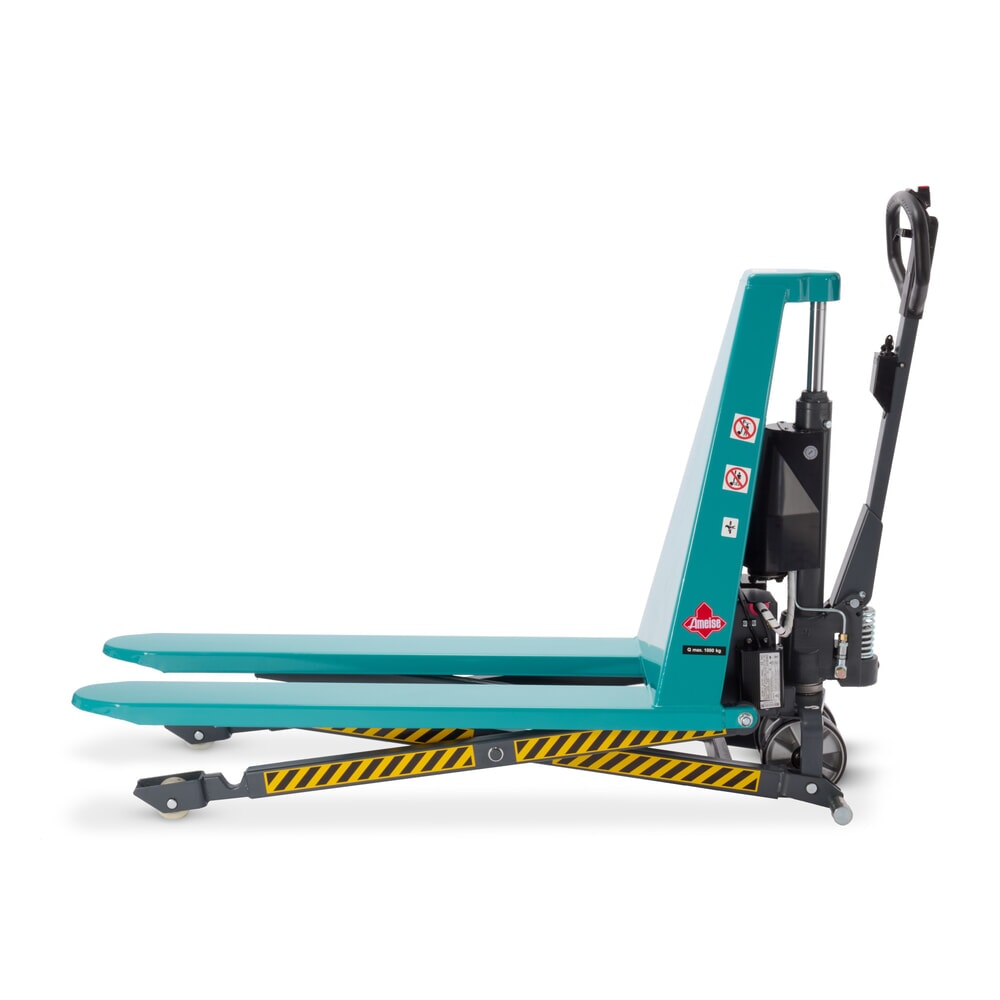

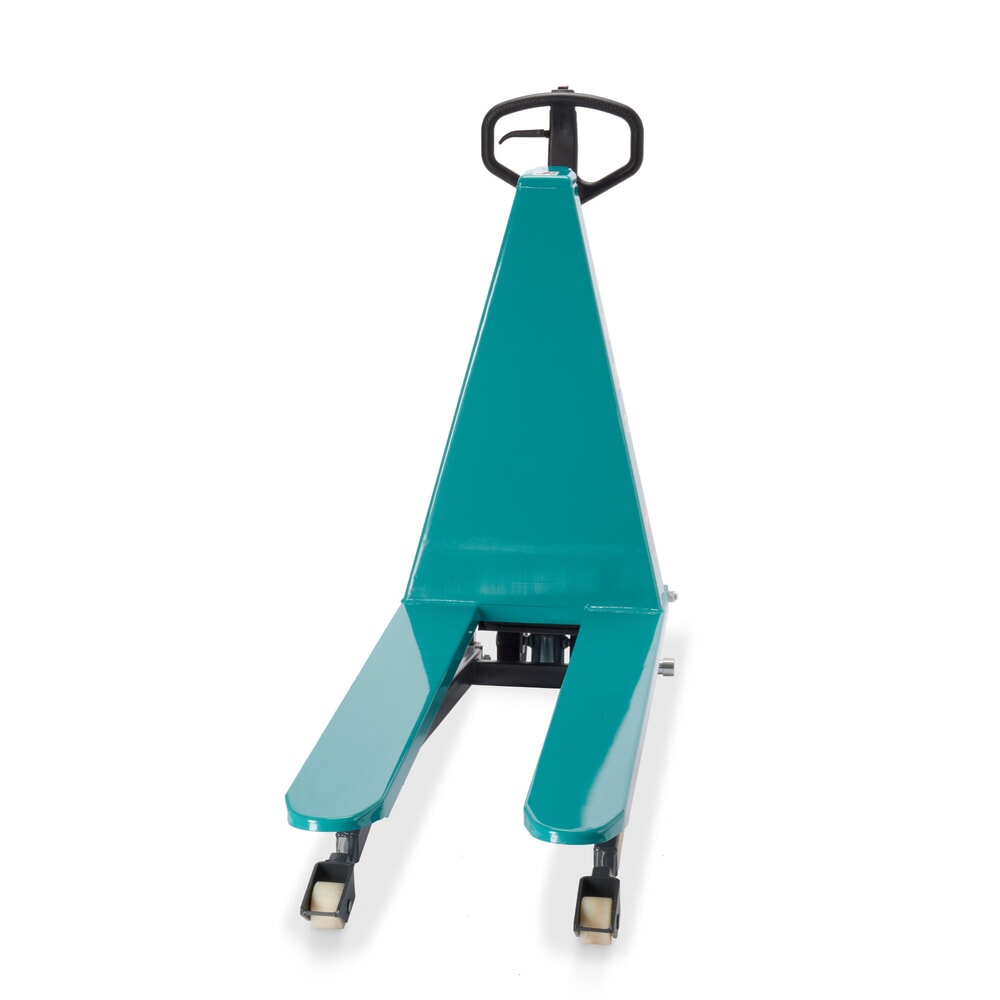

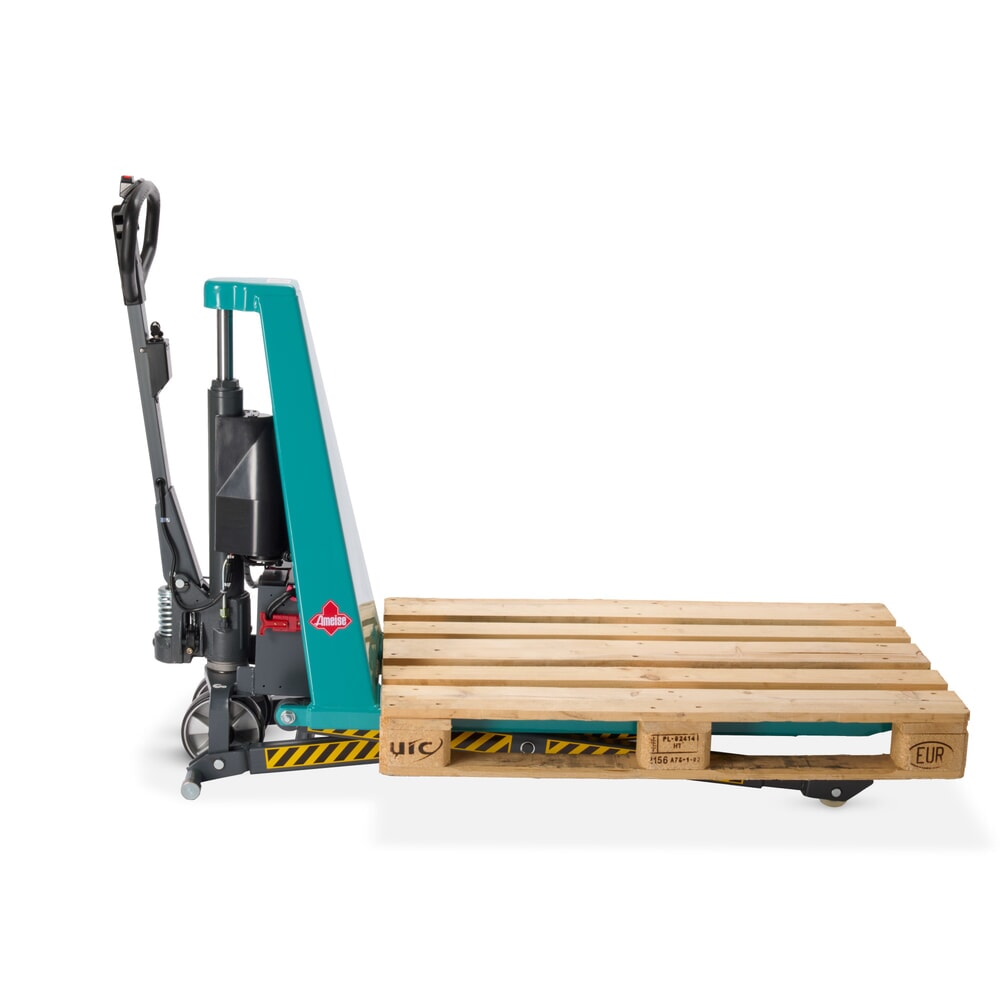

Ameise® PTM 1.0 scissor lift pallet truck, electro-hydraulic, capacity 1,000 kg, fork length 1,150 mm, polyurethane/nylon
Article number: 197328 | EAN/GTIN: 4055091293387
Switch working heights at the touch of button

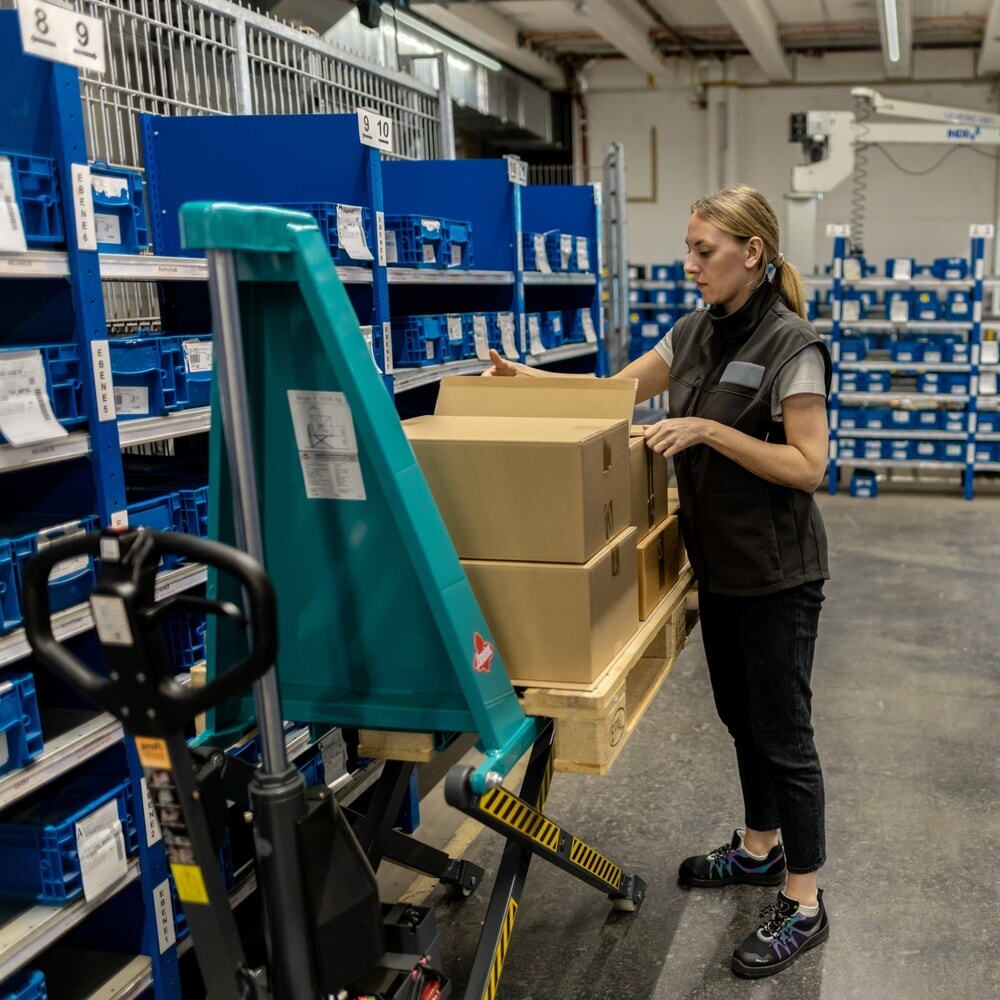

This scissor lift pallet truck offers robust Ameise® quality for daily use in a wide range of applications. As a combination between a pallet truck and lift table, it can be used as a tool for lifting, moving and provisioning your transported goods. With the electric lift, you can easily raise loads weighing up to 1000 kg to an optimum height, allowing you to work in an ergonomic, fatigue-free manner. You can adjust your perfect working height up to a maximum of 800 mm.

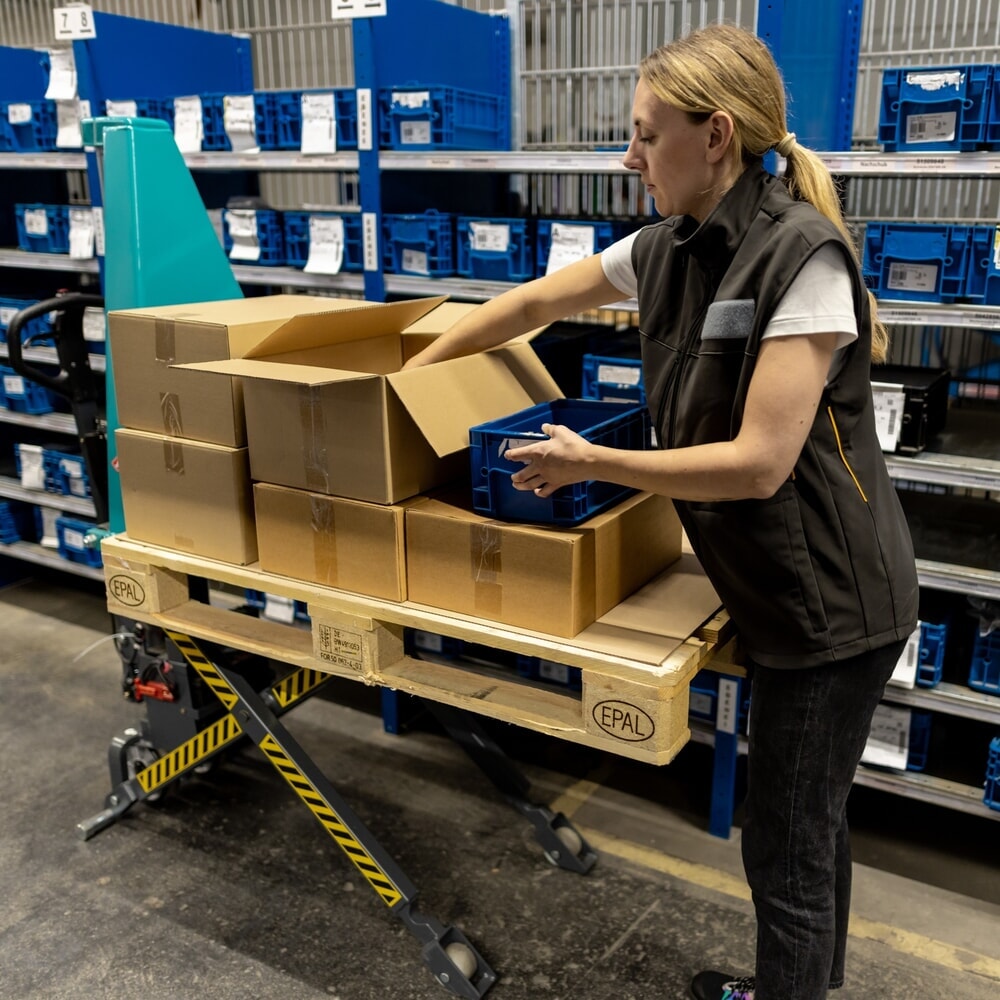

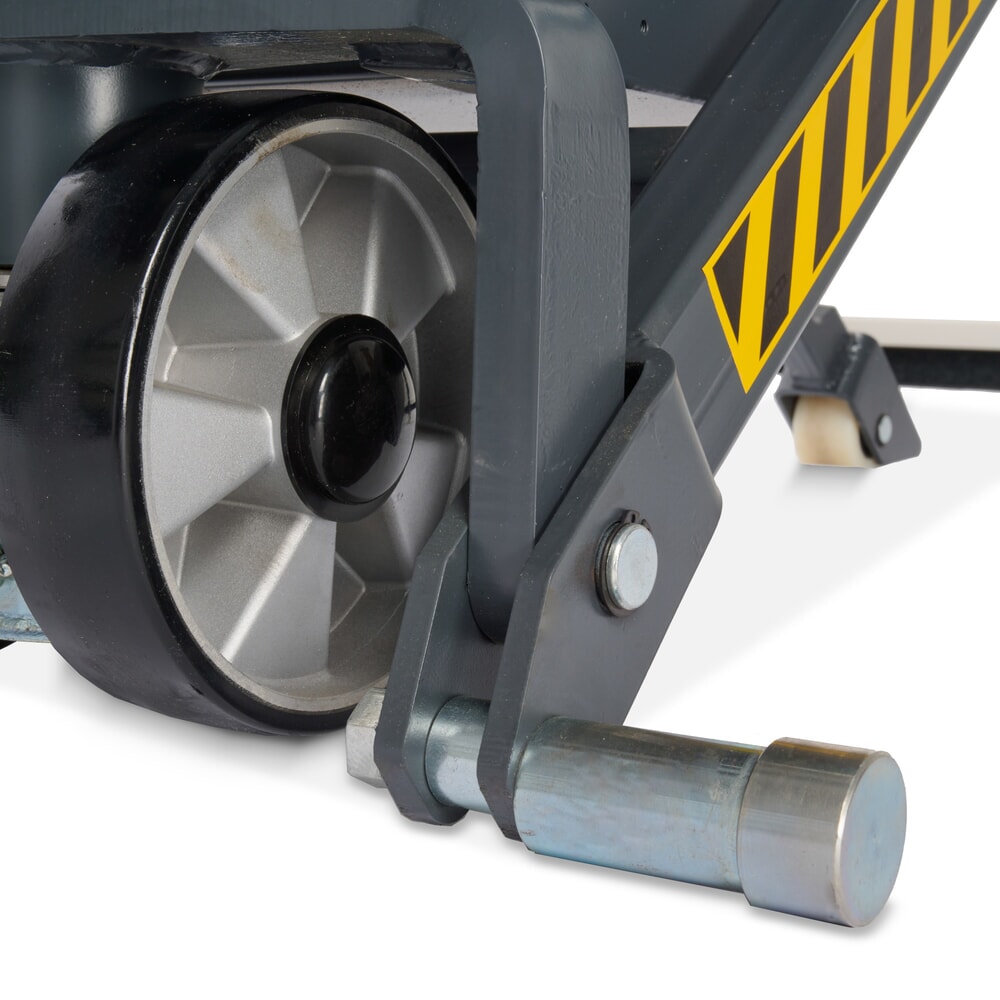

The truck can be moved up to a lift height of 400 mm. At greater heights, side-mounted support feet secure the scissor lift pallet truck to ensure maximum stability and safety. You can then use the scissor lift pallet truck as a workbench to replenish machines or stack and retrieve stored materials.

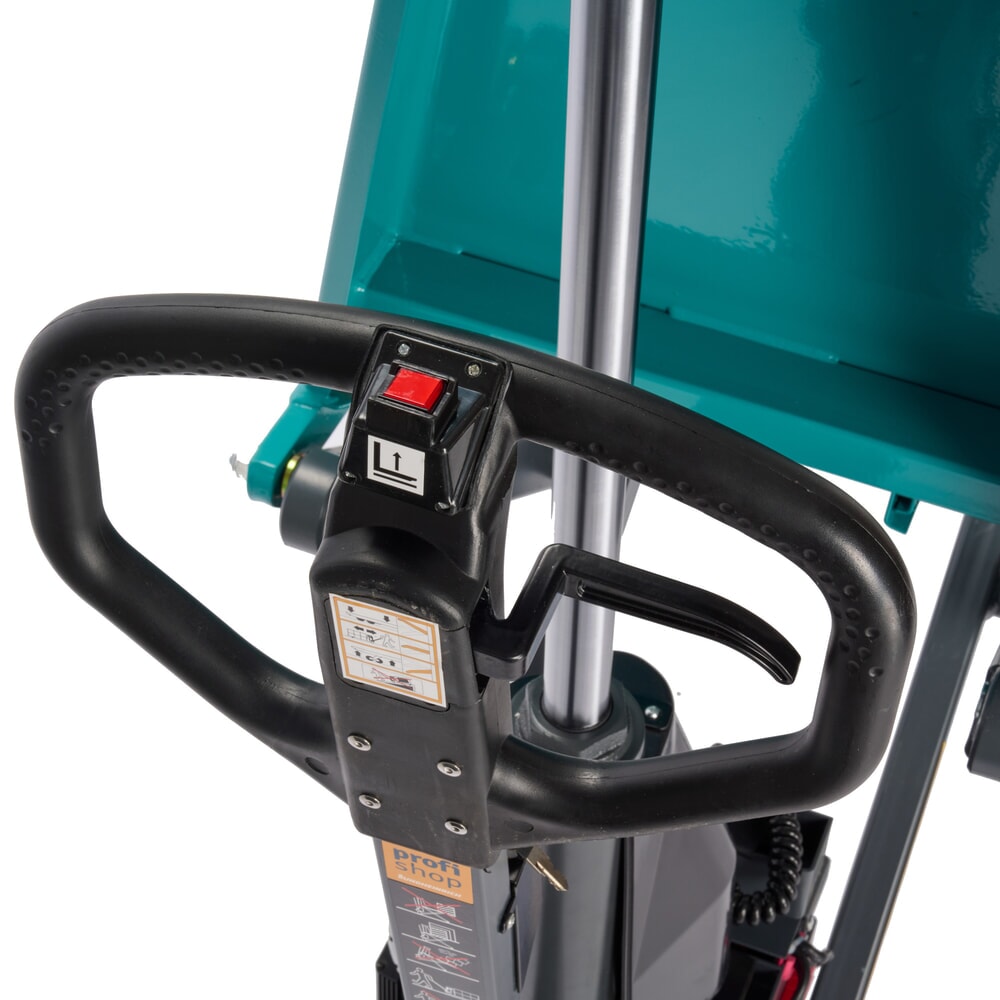

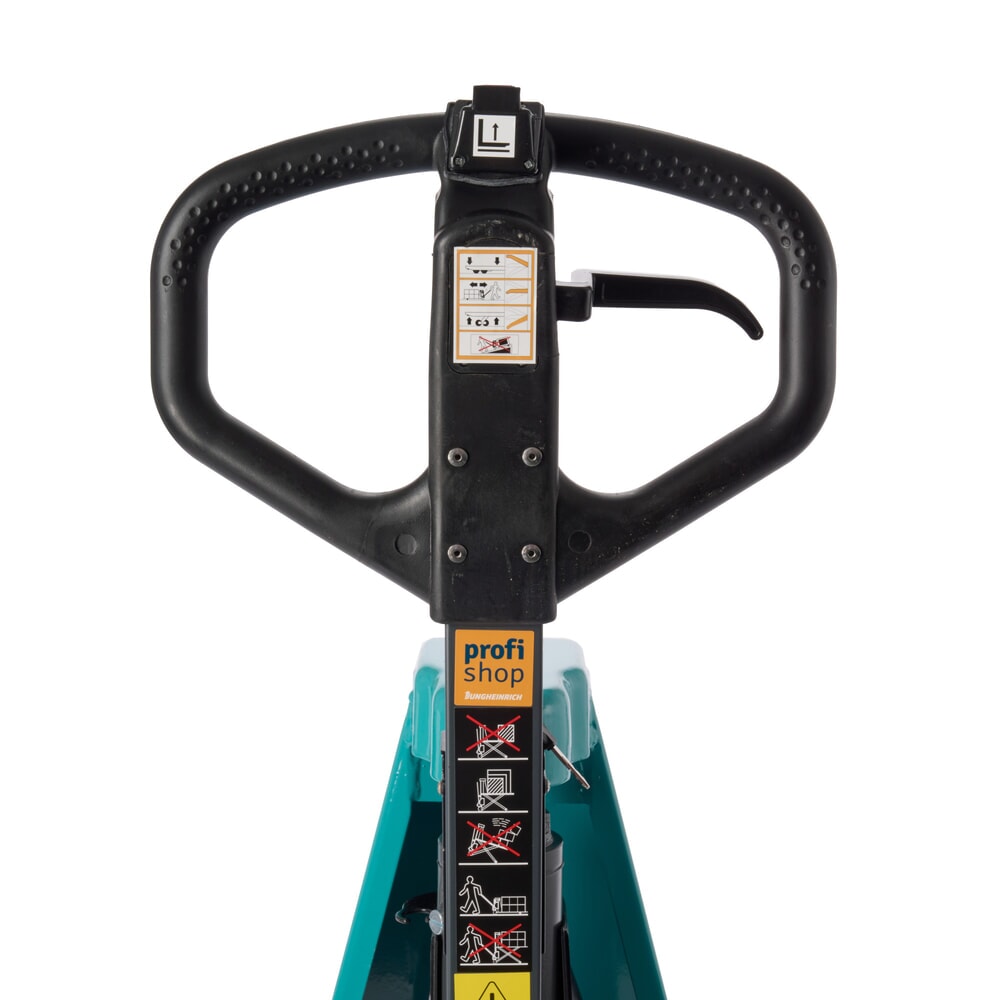

All functions are easily operated via the control lever or the ergonomic plastic tiller handle. The load is lowered at an adjustable speed, allowing you to deposit sensitive goods with utmost control and precision.
The welded sectional steel frame and forks are torsion-free and extremely hard-wearing. As a result, the scissor lift pallet truck retains its shape even when carrying loads of up to 1000 kg. The single-cylinder telescopic hydraulic system is particularly durable and maintenance-free. The overload valve protects the hydraulic system against excess loads.

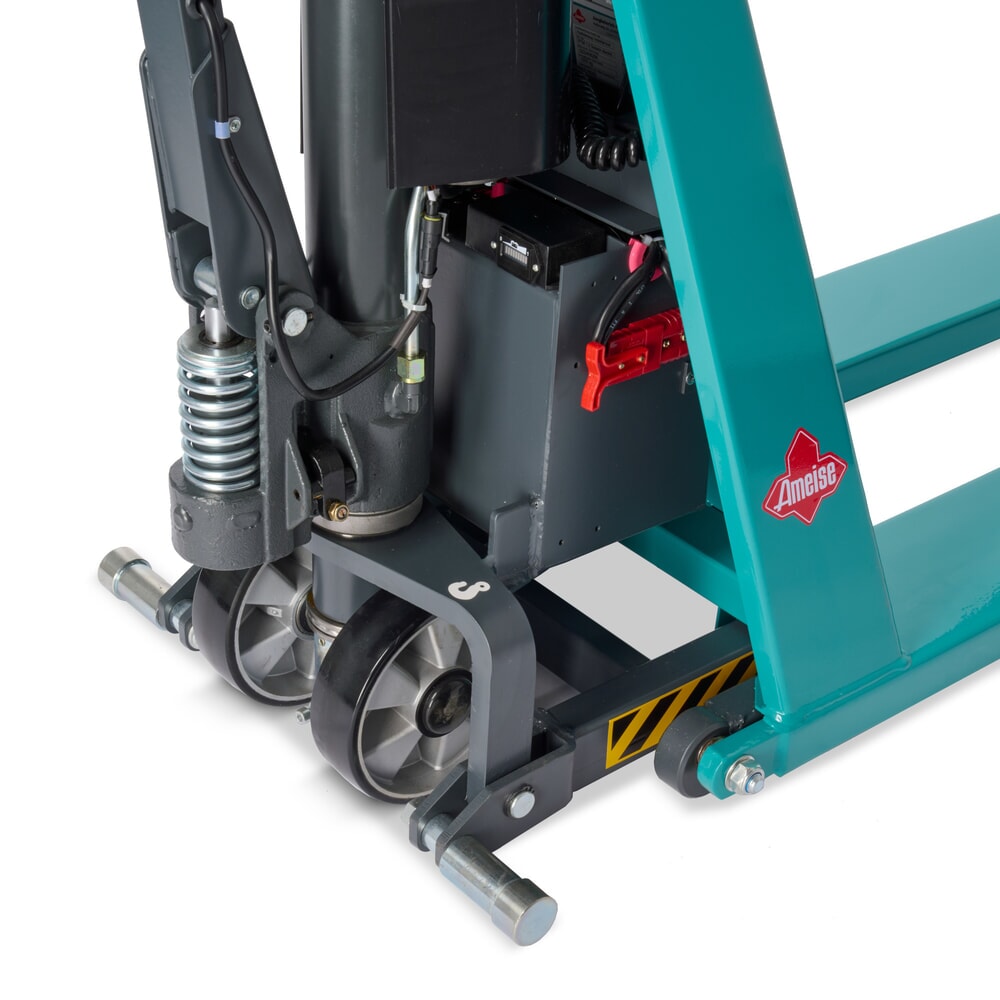

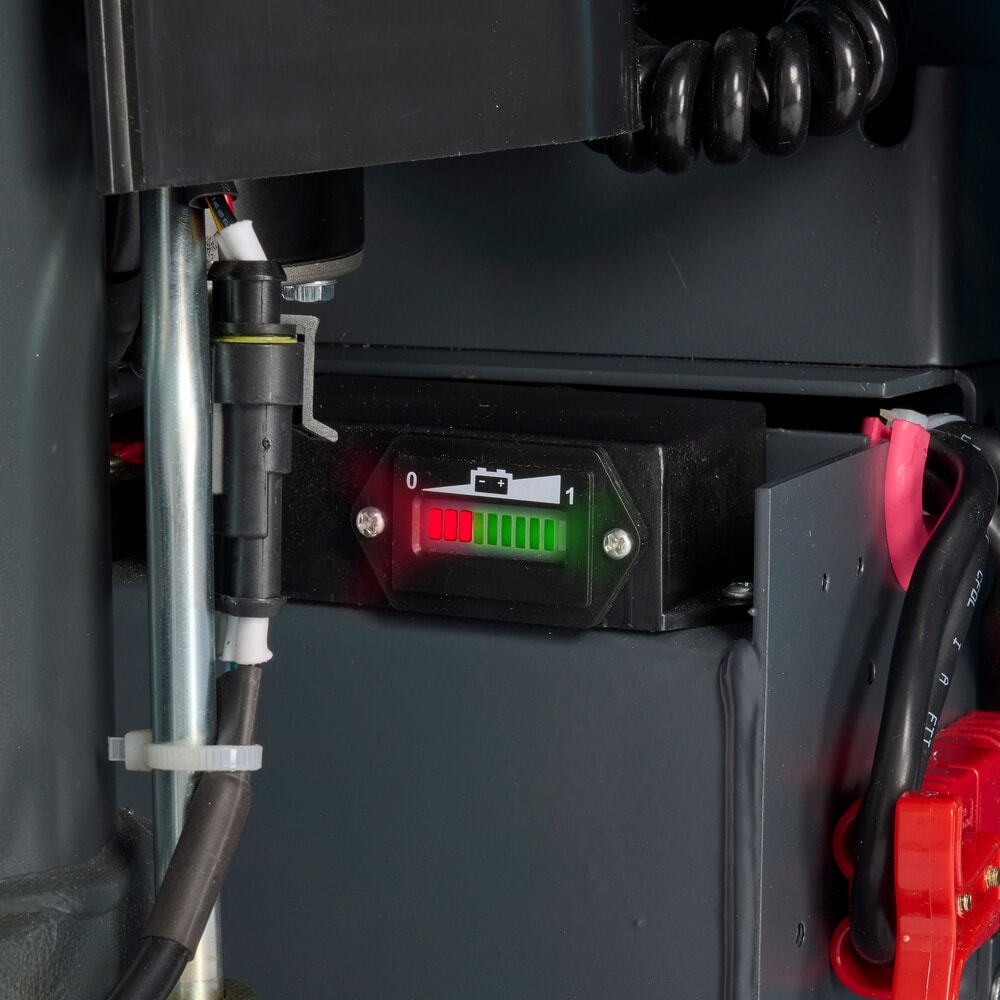

Thanks to the on-board charger, you can charge the maintenance-free 12 V / 60 Ah battery at any 230 V socket. And if you do not have access to a power source, you can still use the manual lift function with separate quick lift facility.
The truck features polyurethane steering castors for high-quality, comfortable and low-noise travel, while also offering maximum capacity and a long service life. The single fork rollers are made from nylon and are thus very smooth running and wear-resistant.
Enjoy ergonomic working by ordering the versatile Ameise® scissor lift pallet truck with electro-hydraulic lift from our shop.
