Sale
Item number:
193674

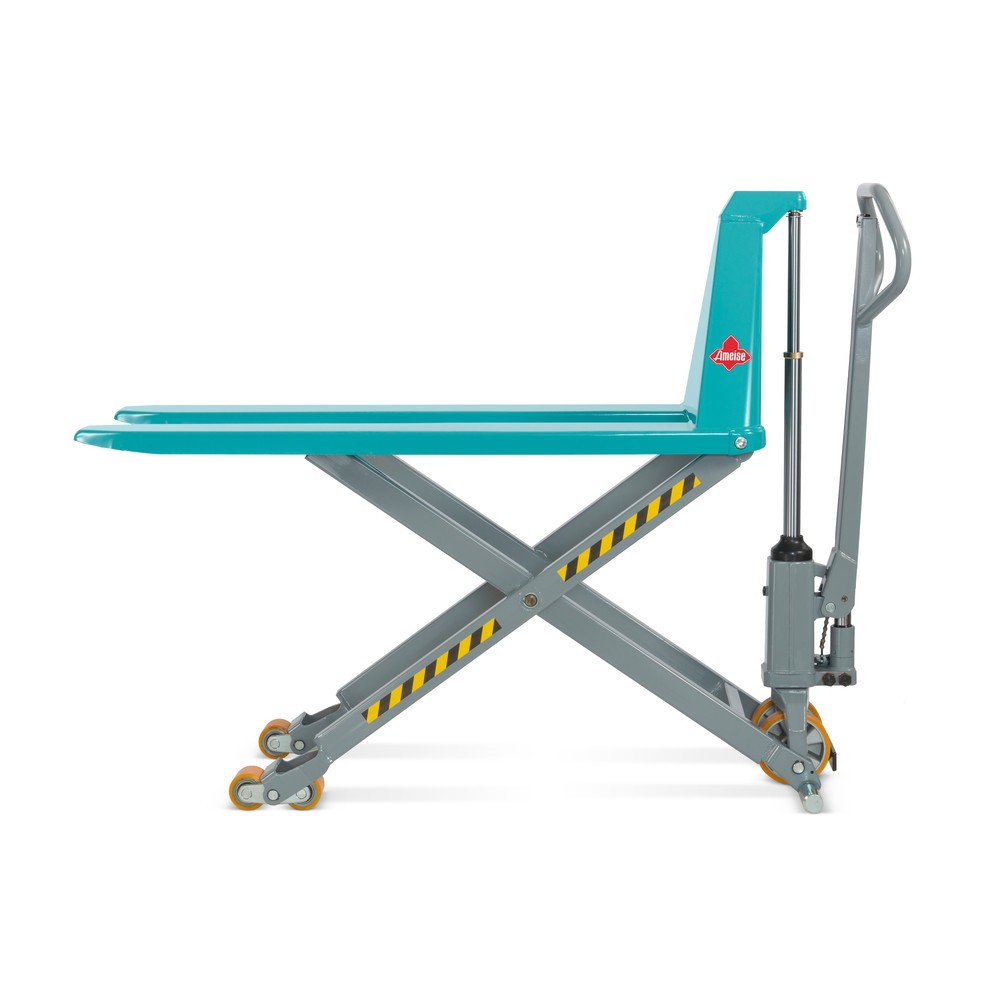

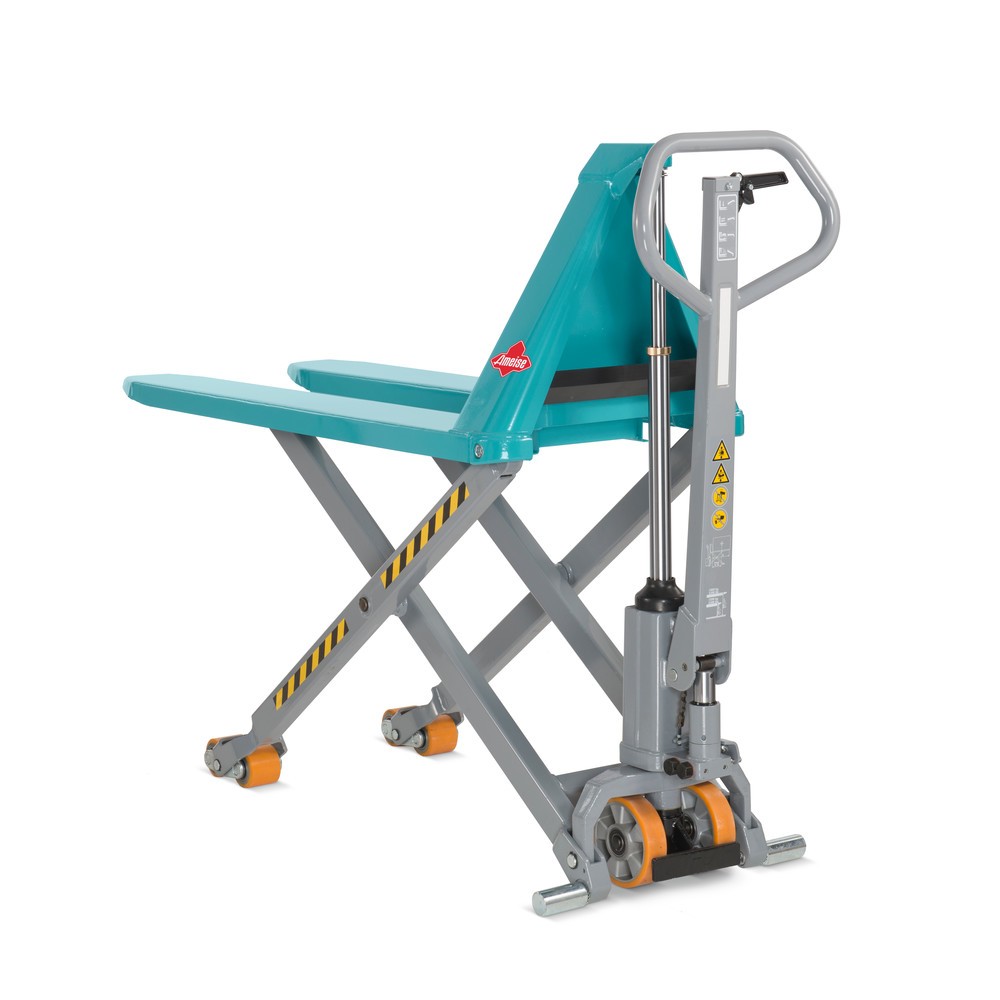

Ameise® PTM 1.5 Scissor pallet truck with scissor function and quick lift, load capacity 1,500 kg, fork length 1,200 mm
Ideal for raising loads to an ergonomic working height
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
Ameise® PTM 1.5 Scissor pallet truck with scissor function and quick lift, load capacity 1,500 kg, fork length 1,200 mm
Article number: 193674 | EAN/GTIN: 4055091196169
| Aisle width | 1830 mm |
| Brand | Ameise® |
| Capacity | 1500 kg |
| Chassis RAL colour | RAL 5018 turquoise blue |
| Chassis surface | powder-coated |
| Control panel | right-handed |
| Drive | manual |
| Fork height | 45 mm |
| Fork length | 1200 mm |
| Fork roller diameter | 75 mm |
| Fork roller equipment | Tandem |
| Fork roller material | Polyurethane (PU) |
| Fork roller width | 68 mm |
| Fork width | 163 mm |
| Ground clearance | 15 mm |
| Handle fittings | Steel |
| Hydraulic oil quantity | 0.75 l |
| Hydraulic oil type | Mineral oil |
| Lift | 715 mm |
| Lift height per pump stroke | 10 / 35 mm |
| Lift range | 85 - 800 mm |
| Lift type | manual |
| Load centre | 600 mm |
| Lowering speed with/without load | - / 0,1 m/s |
| Model | Ameise® HXT (A) 15 |
| Net weight | 104 kg |
| Operator type | Manual |
| Overall length | 1556 mm |
| Overall width | 540 mm |
| Pallet truck material | Steel |
| Pump strokes to lift pallet | 3 / 1 |
| Pump strokes to max. lift height | 65 / 22 |
| Rapid lift | Yes |
| Section | Performance |
| Steering radius | 230 ° |
| Steering wheel diameter | 150 mm |
| Steering wheel material | Polyurethane (PU) |
| Steering wheel width | 40 mm |
| Temperature range | 5 - 40 °C |
| Tiller RAL colour | RAL 7046 telegrey 2 |
| Tiller height | 750 mm |
| Tiller surface | powder-coated |
Item description
Ameise® PTM 1.5 Scissor pallet truck with scissor function and quick lift, load capacity 1,500 kg, fork length 1,200 mm
Article number: 193674 | EAN/GTIN: 4055091196169

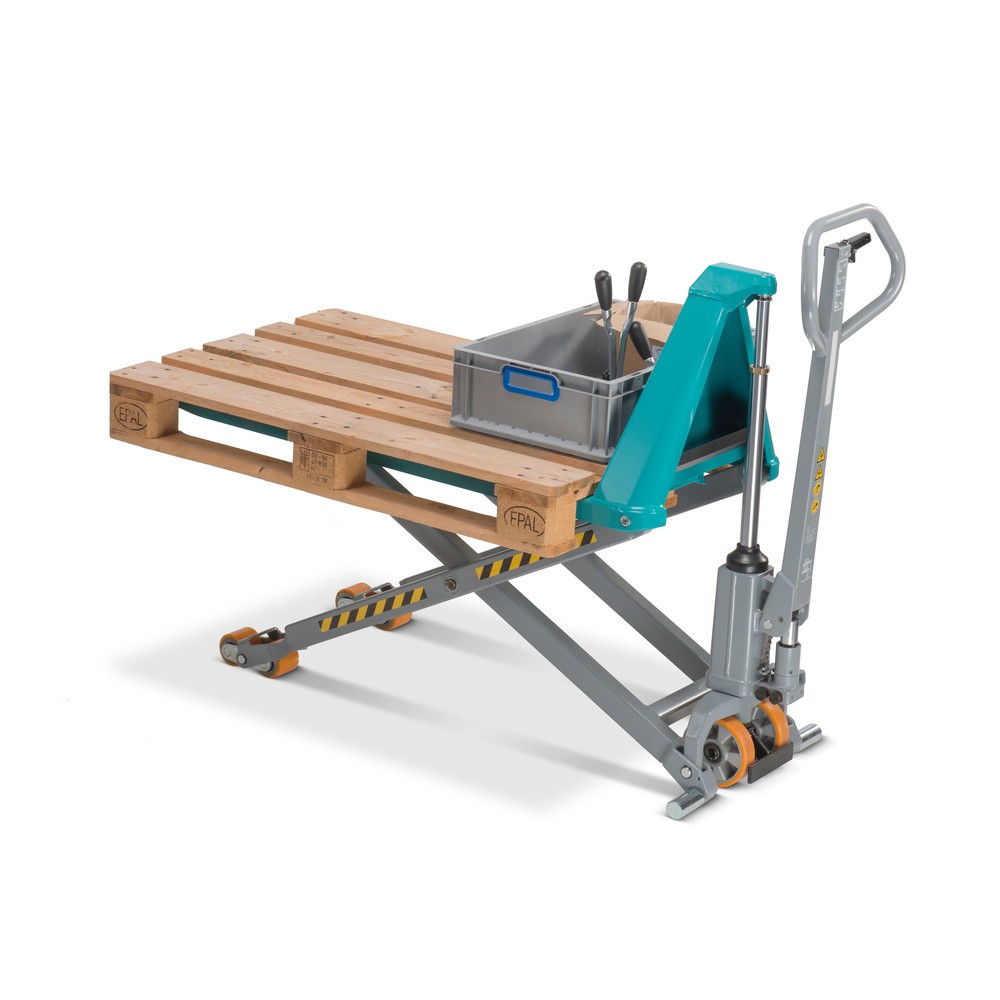

The manual-hydraulic Ameise® scissor lift pallet truck is a versatile device for a wide range of applications. You can use it as a hand pallet truck, lift table, provisioning table or workbench. The tiller allows you to lift loads and pallets to a height of up to 800 mm. As of a lift height of 400 mm, side-mounted stabilisers secure the scissor lift table, which can then be used as a robust work table.
- Manual quick lift up to 300 kg
- 700, 900, 1200, 1520 or 2000 mm fork length

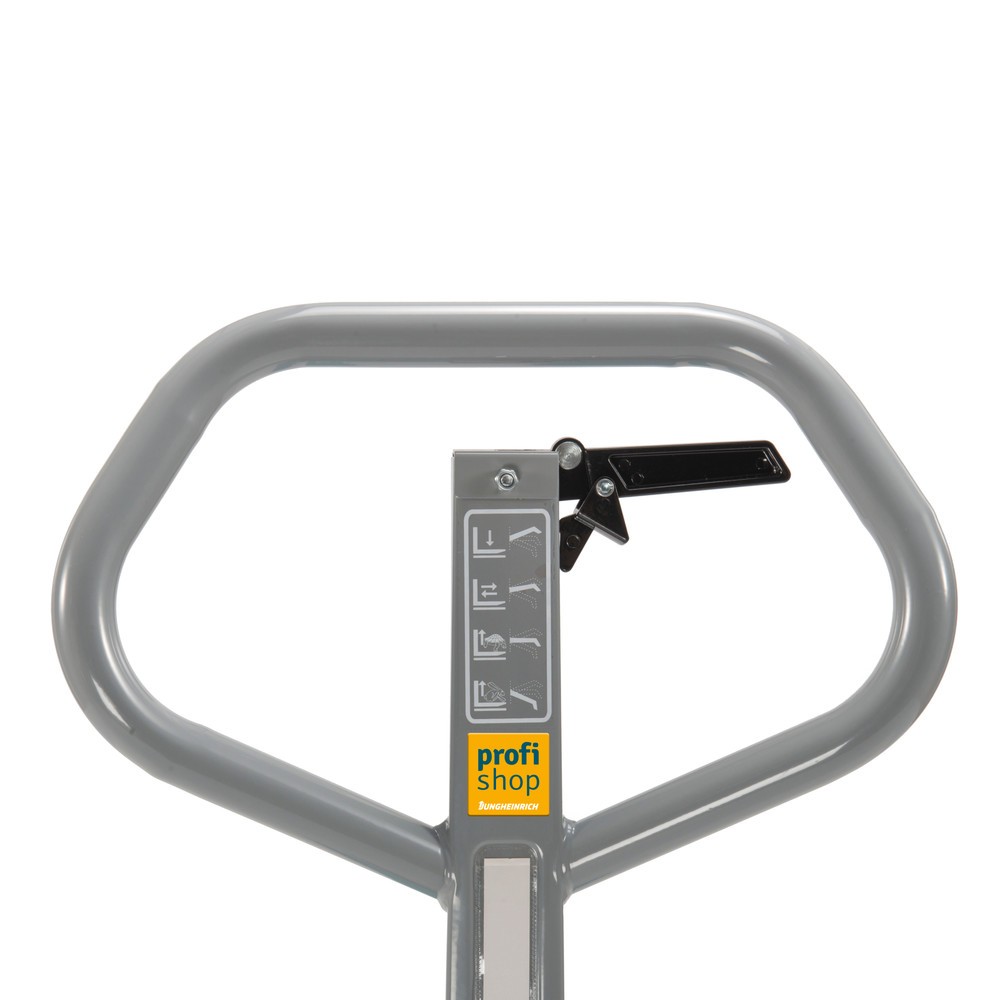

- User-friendly manual tiller
- Compact design thanks to telescopic cylinder
- Lateral stabilisers for security

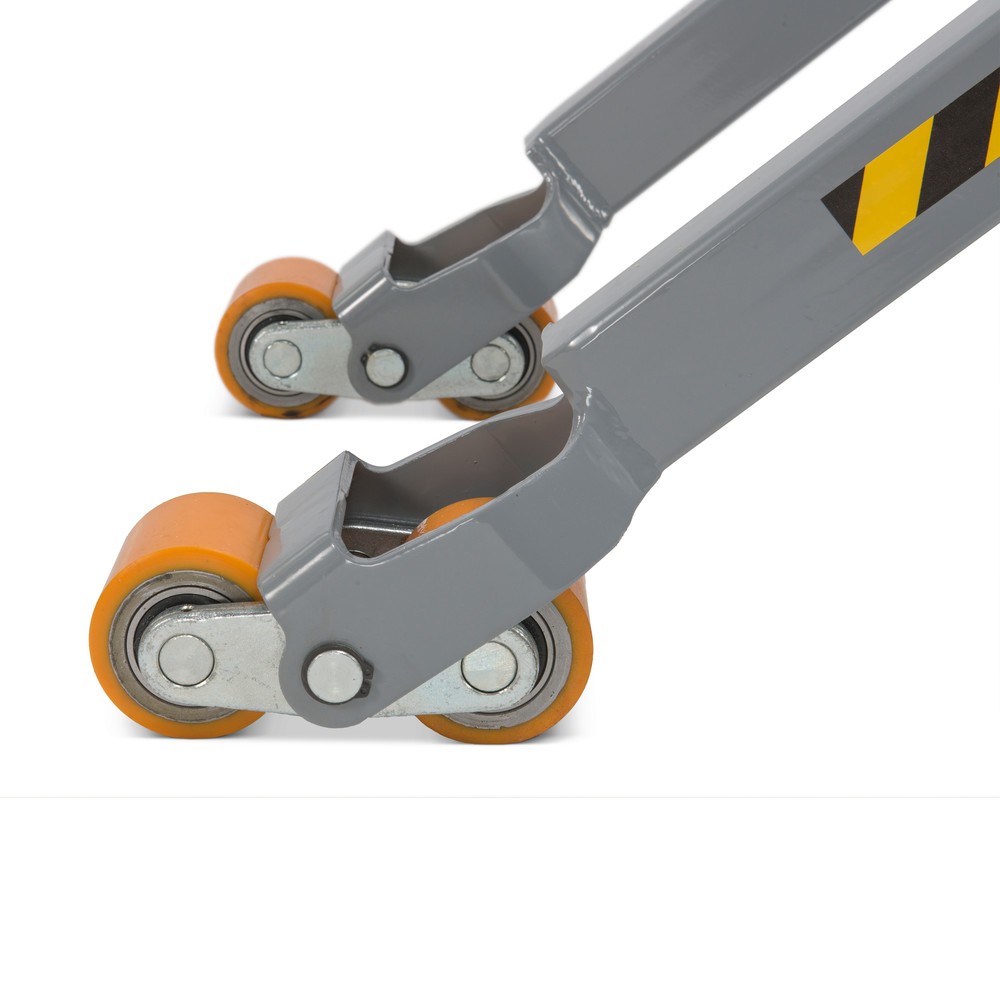

- Tandem fork rollers

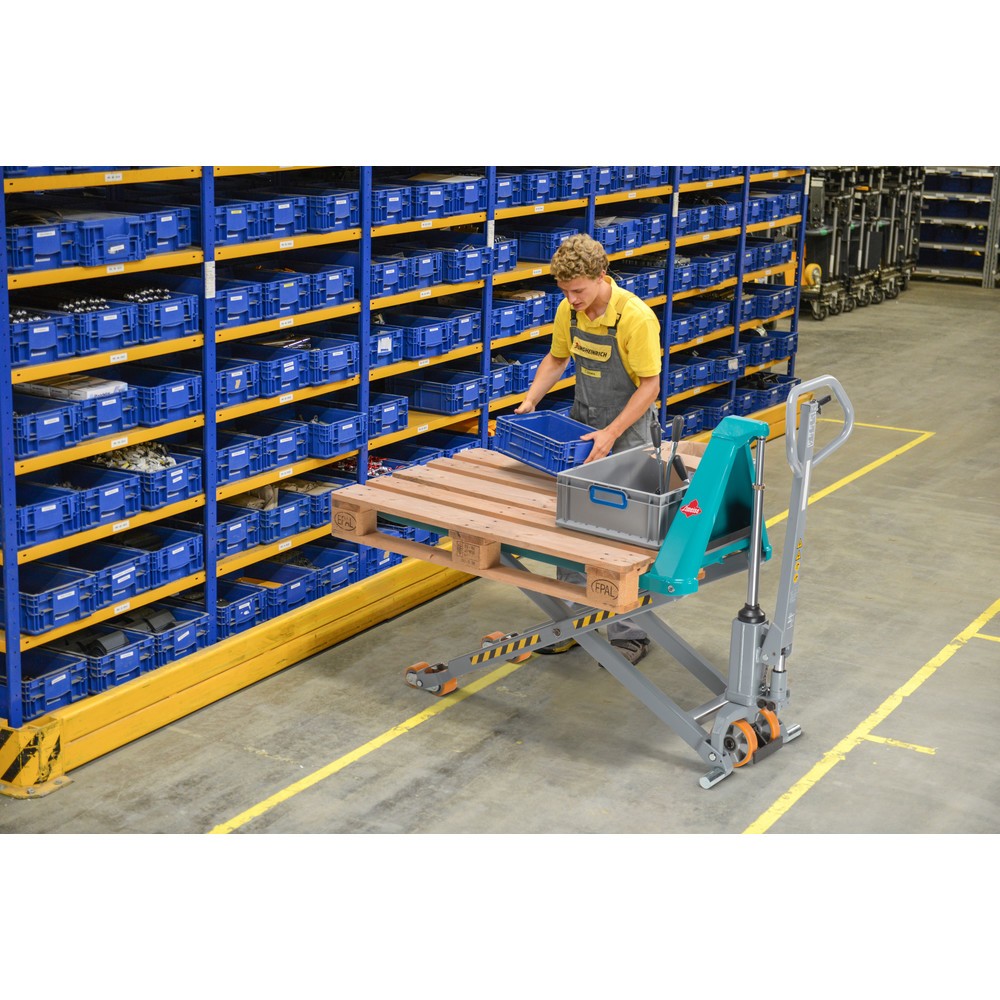

Ergonomic working at a comfortable height
The manual-hydraulic Ameise® scissor lift pallet truck is a real all-rounder for lifting, moving and provisioning of a wide range of goods. You can use it for transport tasks, for stacking and retrieving goods, filling assembly lines, as a mobile work table and much more besides. With the scissor lift pallet truck, you can transport loads weighing up to 1500 kg and raise them to an ergonomic working height via the tiller. This makes it much easier to stack and retrieve pallets and containers, while also eliminating the need for frequent bending and heavy lifting. As of a lift height of 470 mm, the capacity is reduced to 1000 kg. The manual-hydraulic version features a manual quick lift function.

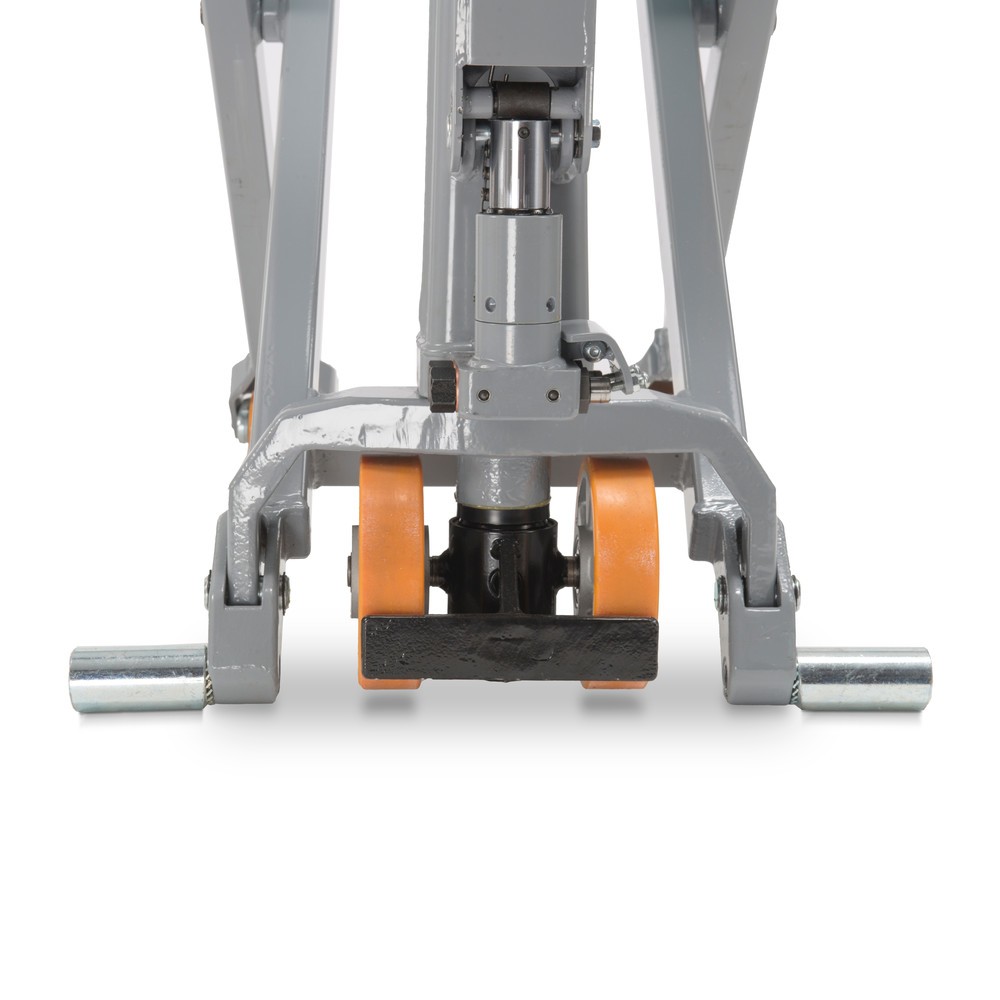

The Ameise® scissor lift pallet truck is characterised by its user-friendliness and safe design. You operate the device via the ergonomic manual tiller, with all functions controlled by a single lever. The scissor lift pallet truck can be moved up to a lift height of 400 mm. As of a lift height of 400 mm, side-mounted stabilisers secure the pallet truck and provide additional stability. The tandem fork rollers in the scissor legs are secured with brakes. This prevents the truck from rolling away under heavy loads and eliminates the risk of tipping. The sophisticated safety concept is completed by the foot protection on the steering castors.
The Ameise® scissor lift pallet truck is designed for continuous daily use. The robust construction and reliable telescopic cylinder ensure a long service life and low maintenance costs. All movable parts are maintenance-free thanks to the Teflon-coated metal bushings. Polyurethane steering castors and fork rollers ensure high-quality, comfortable and low-noise travel.
The Ameise® scissor lift pallet truck provides you with a versatile device for ergonomic use in your operation. The manual-hydraulic version is available from our shop with different fork lengths.
The manual-hydraulic Ameise® scissor lift pallet truck is a real all-rounder for lifting, moving and provisioning of a wide range of goods. You can use it for transport tasks, for stacking and retrieving goods, filling assembly lines, as a mobile work table and much more besides. With the scissor lift pallet truck, you can transport loads weighing up to 1500 kg and raise them to an ergonomic working height via the tiller. This makes it much easier to stack and retrieve pallets and containers, while also eliminating the need for frequent bending and heavy lifting. As of a lift height of 470 mm, the capacity is reduced to 1000 kg. The manual-hydraulic version features a manual quick lift function.
The Ameise® scissor lift pallet truck is characterised by its user-friendliness and safe design. You operate the device via the ergonomic manual tiller, with all functions controlled by a single lever. The scissor lift pallet truck can be moved up to a lift height of 400 mm. As of a lift height of 400 mm, side-mounted stabilisers secure the pallet truck and provide additional stability. The tandem fork rollers in the scissor legs are secured with brakes. This prevents the truck from rolling away under heavy loads and eliminates the risk of tipping. The sophisticated safety concept is completed by the foot protection on the steering castors.
The Ameise® scissor lift pallet truck is designed for continuous daily use. The robust construction and reliable telescopic cylinder ensure a long service life and low maintenance costs. All movable parts are maintenance-free thanks to the Teflon-coated metal bushings. Polyurethane steering castors and fork rollers ensure high-quality, comfortable and low-noise travel.
The Ameise® scissor lift pallet truck provides you with a versatile device for ergonomic use in your operation. The manual-hydraulic version is available from our shop with different fork lengths.
Product Notes
As of a lift height of 470 mm, the capacity is reduced to 1000 kg.
