Item number:
197342

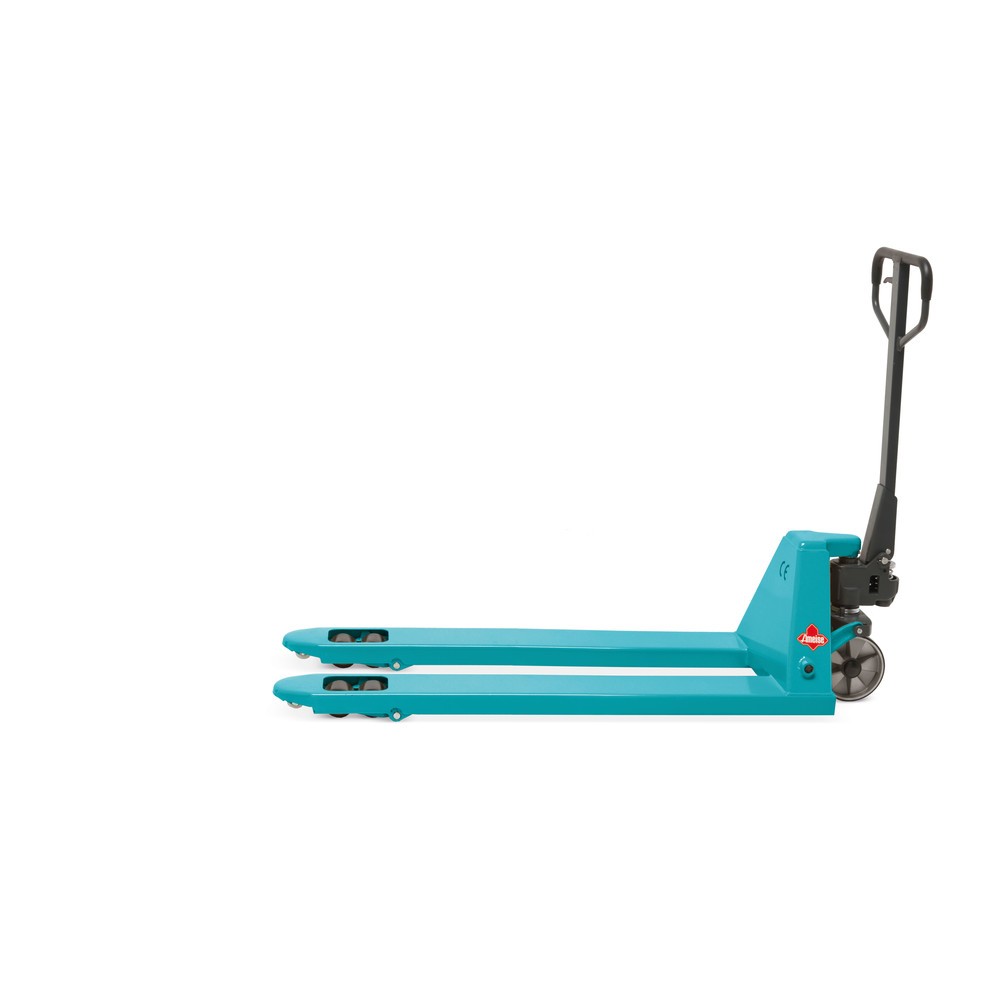

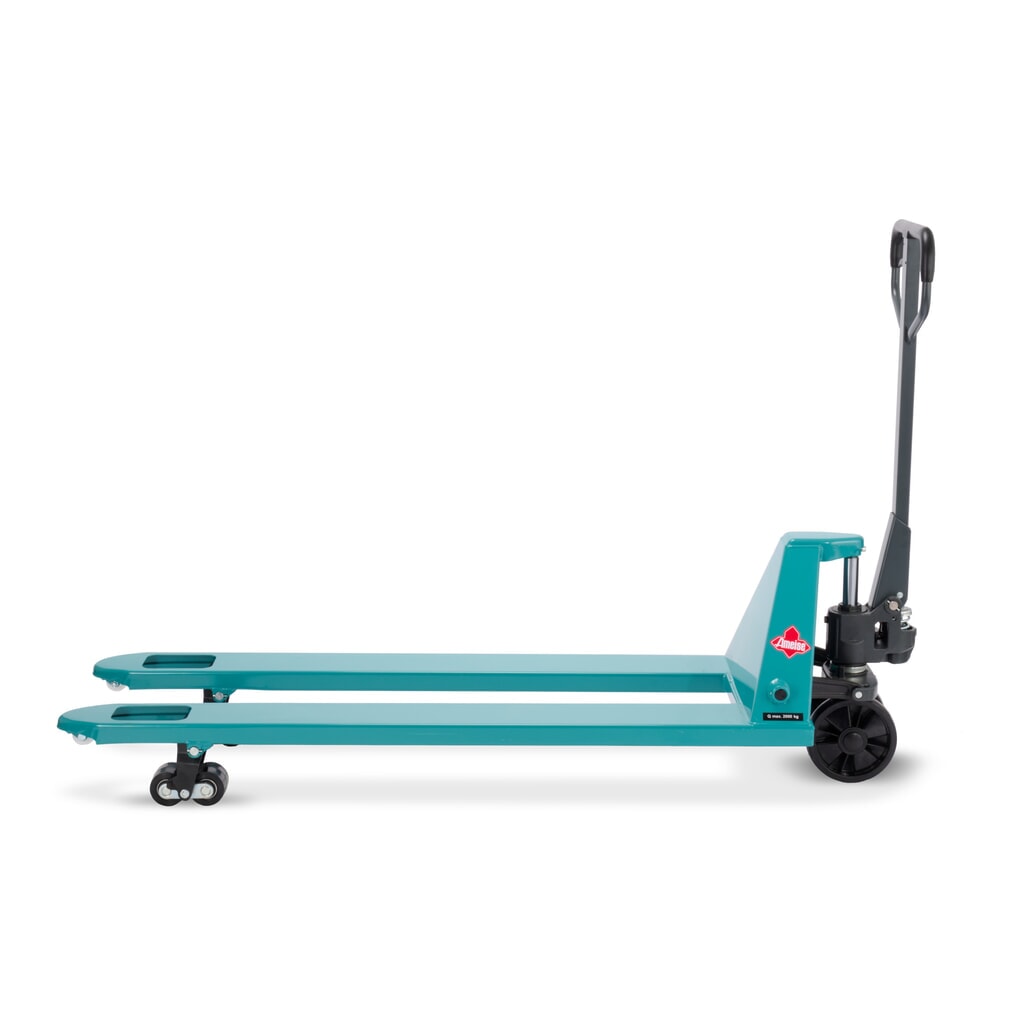

Ameise® PTM 2.0 hand pallet truck, capacity 2,000 kg, fork length 1,500 mm, polyurethane, tandem rollers
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
Ameise® PTM 2.0 hand pallet truck, capacity 2,000 kg, fork length 1,500 mm, polyurethane, tandem rollers
Article number: 197342 | EAN/GTIN: 4055091300184
| Aisle width | 2065 mm |
| Brand | Ameise® |
| Capacity | 2000 kg |
| Chassis RAL colour | RAL 5018 turquoise blue |
| Chassis surface | powder-coated |
| Control panel | right-handed |
| Drive | manual |
| Face of forks length | 390 mm |
| Fork height | 60 mm |
| Fork length | 1500 mm |

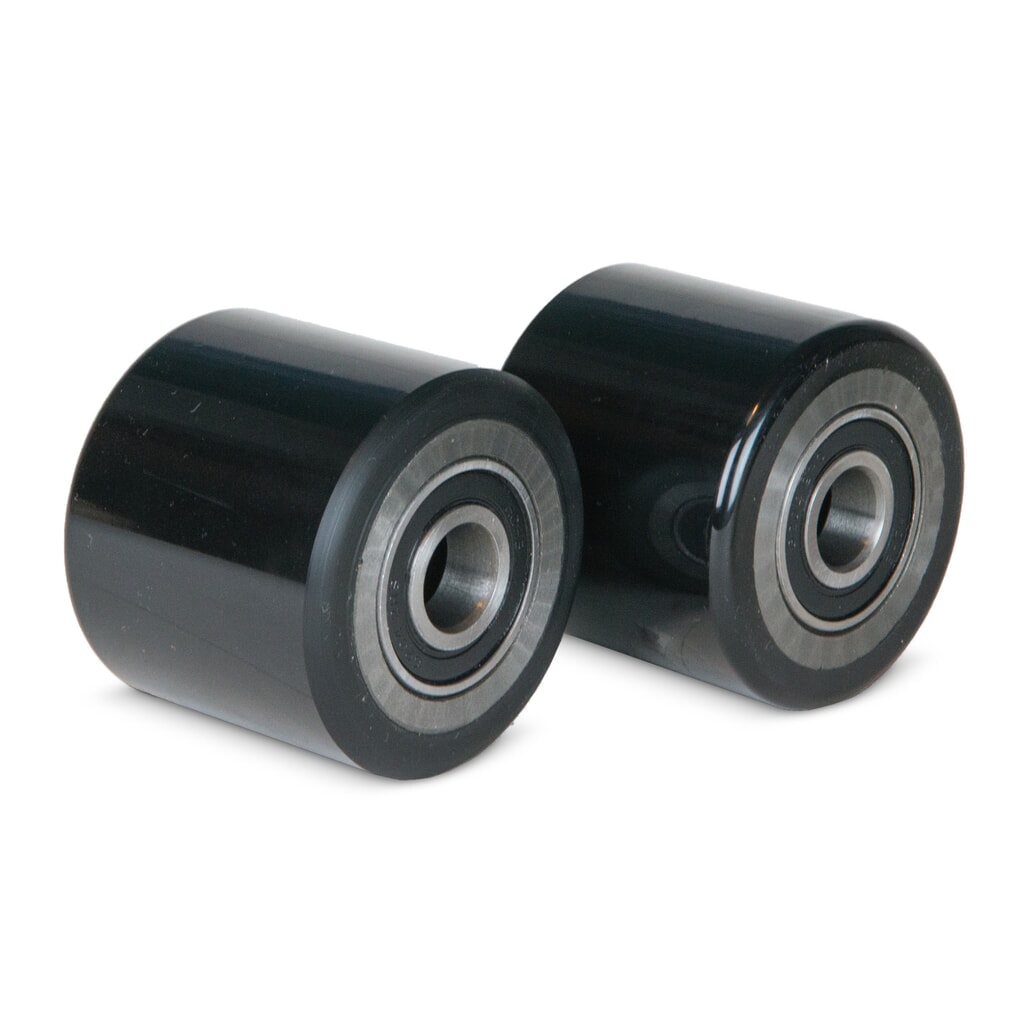

| Fork roller diameter | 80 mm |
| Fork roller equipment | Tandem |
| Fork roller material | Polyurethane (PU) |
| Fork roller width | 70 mm |
| Fork support width | 540 mm |
| Fork width | 160 mm |
| Grease nipple | Yes |
| Ground clearance | 25 mm |
| Handle fittings | Rubber sheath |
| Hydraulic oil quantity | 0.3 l |
| Hydraulic oil type | Mineral oil |
| Hydraulic oil viscosity acc. to ISO-VG | 32 |
| Infeed rollers | Yes |
| Lift | 115 mm |
| Lift height per pump stroke | 7,5 mm |
| Lift range | 85 - 200 mm |
| Load centre | 800 mm |
| Model | Ameise® ACY |
| Net weight | 100 kg |
| Operator type | Manual |
| Overall length | 1895 mm |
| Overall width | 540 mm |
| Pallet truck material | Steel |
| Route | Short distance |
| Section | Performance |

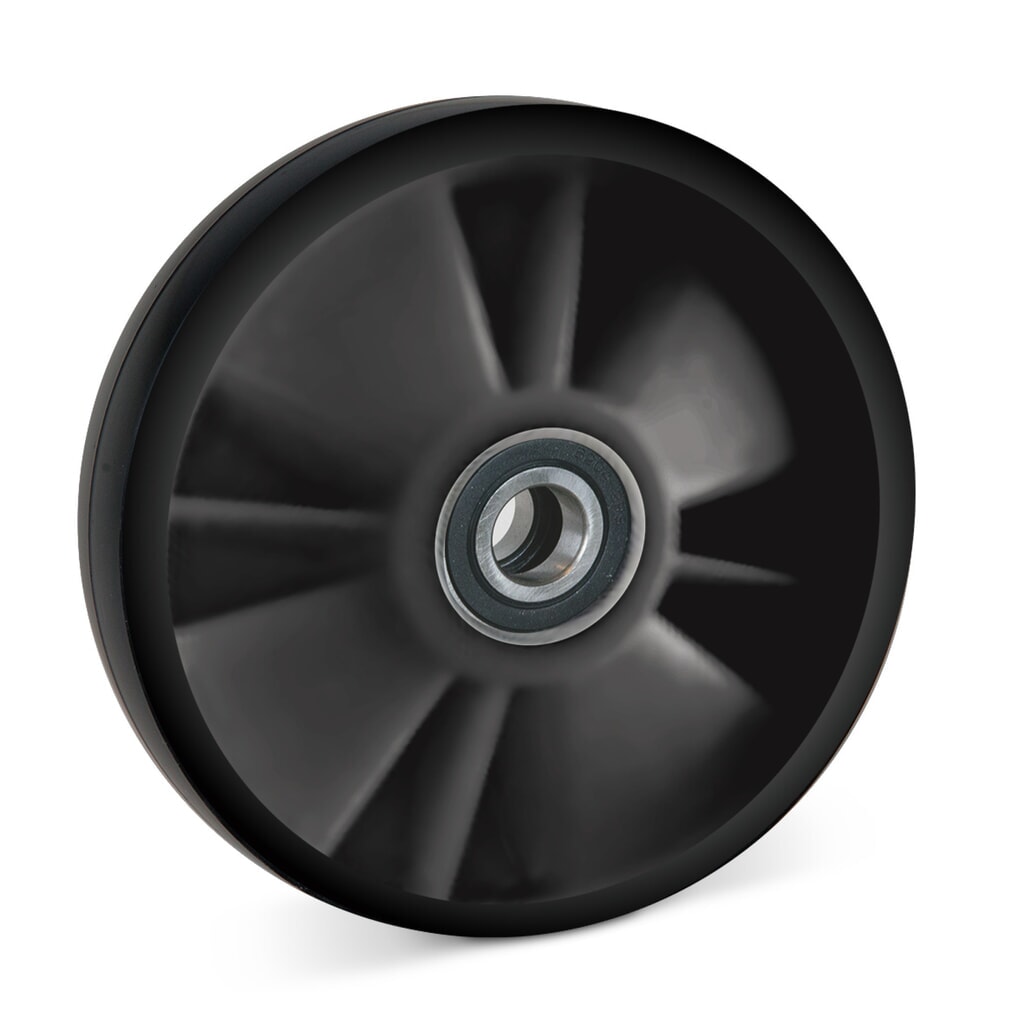

| Steering wheel diameter | 200 mm |
| Steering wheel material | Polyurethane (PU) |
| Steering wheel width | 50 mm |
| Temperature range | 5 - 40 °C |
| Tiller RAL colour | RAL 7016 anthracite grey |
| Tiller height | 1230 mm |
| Tiller surface | powder-coated |
| Turning radius | 1625 mm |
Item description
Ameise® PTM 2.0 hand pallet truck, capacity 2,000 kg, fork length 1,500 mm, polyurethane, tandem rollers
Article number: 197342 | EAN/GTIN: 4055091300184

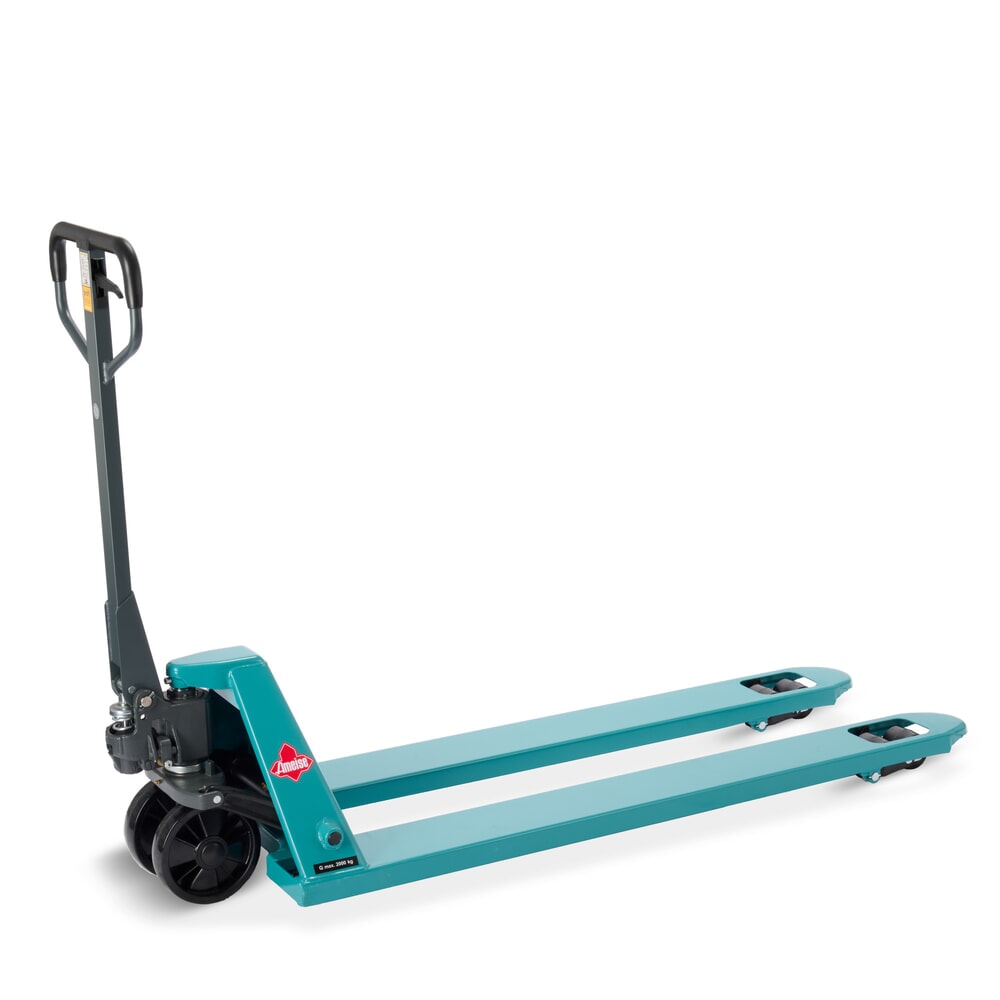

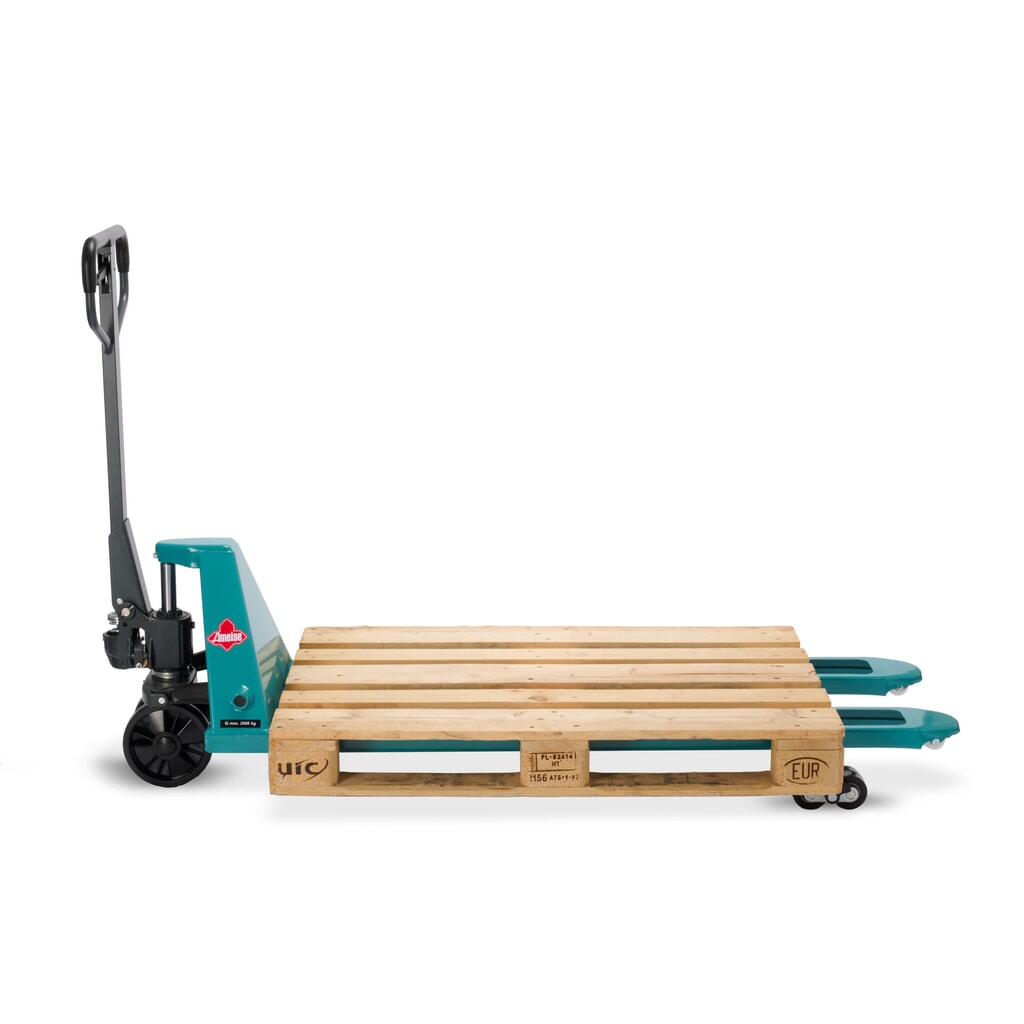

Proven Ameise® quality for transporting long goods or multiple pallets

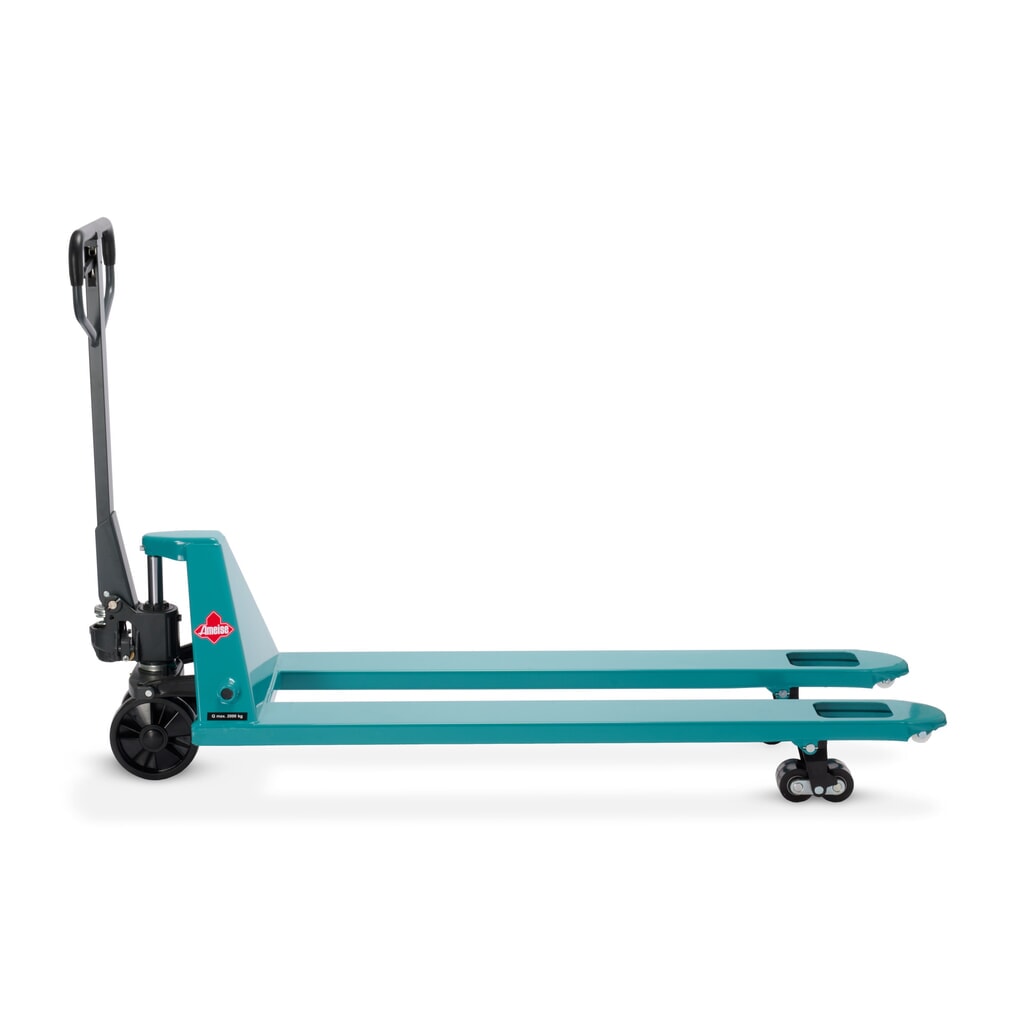

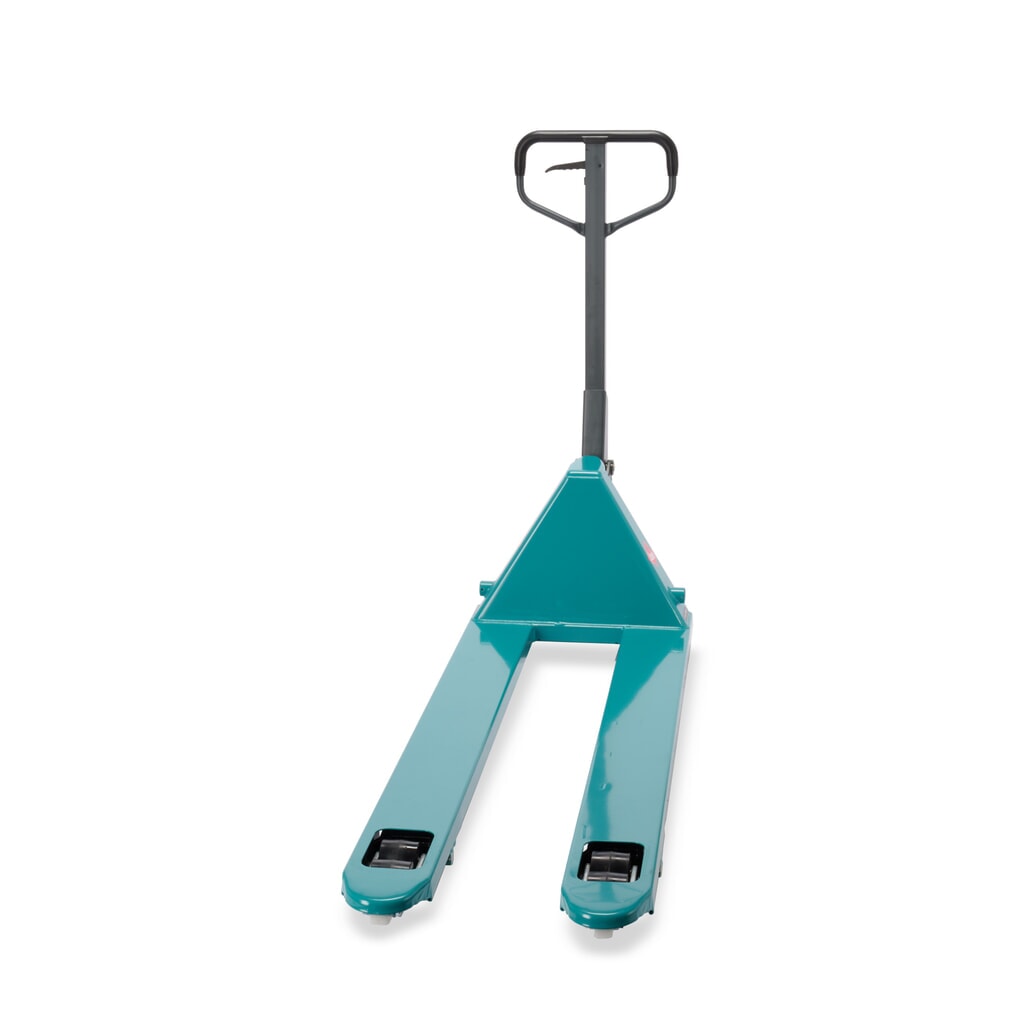

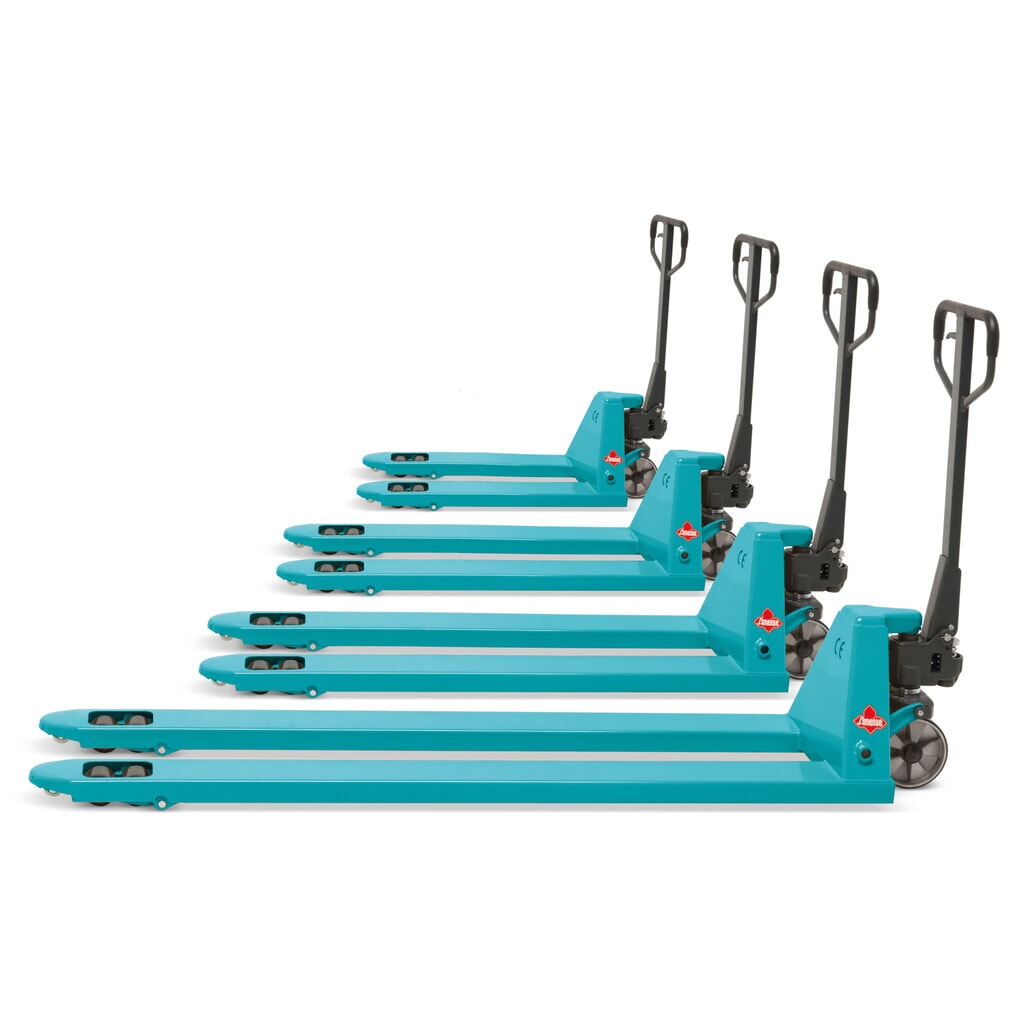

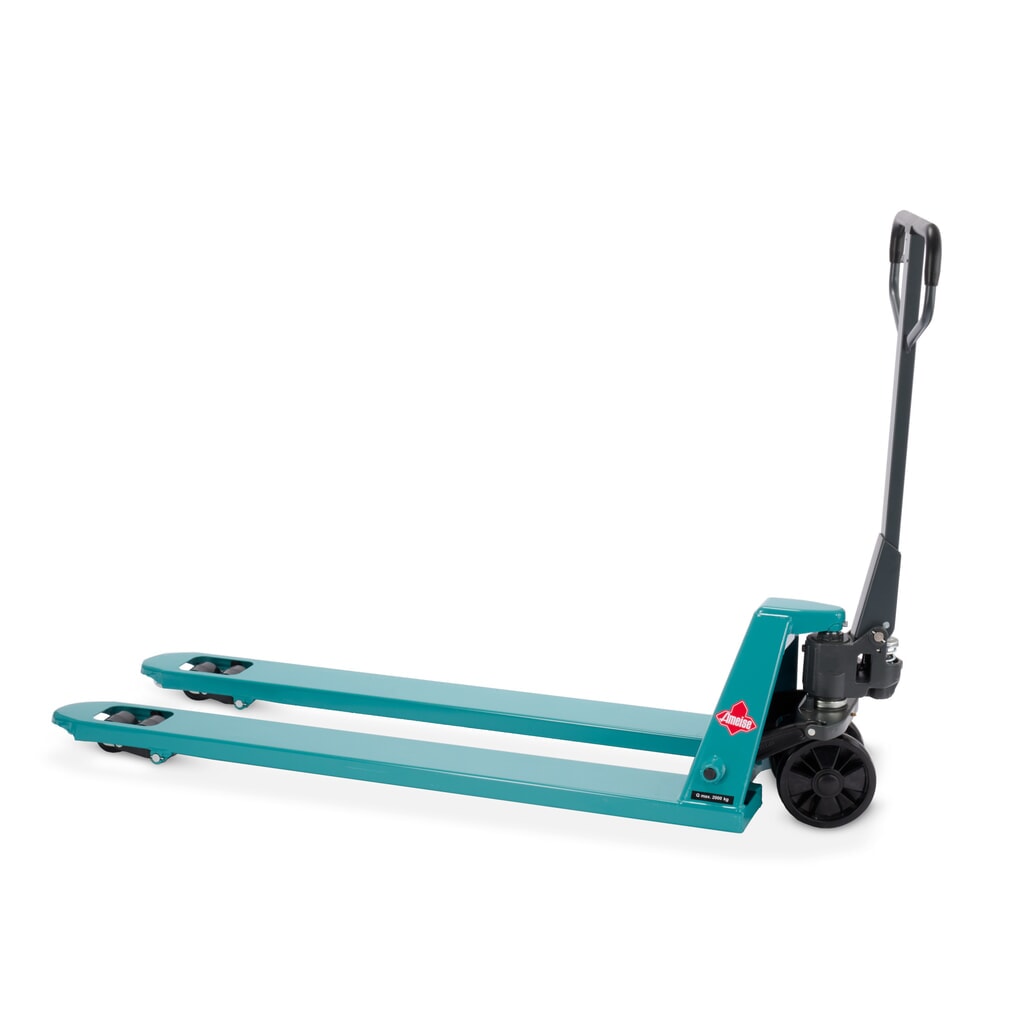

This tough industrial truck offers robust and reliable Ameise® quality for demanding applications with higher throughput performance. Our industry standard model with extra long forks in different fork lengths is ideal for transporting overlong load carriers. The pallet truck can also be used to pick up multiple pallets simultaneously.
The capacity remains the same for all fork lengths, provided that the load is evenly distributed around load centre. Despite the long forks, the hand pallet truck is extremely agile and easy to manoeuvre thanks to the 205° steering radius. Entry and exit rollers ensure easy pallet insertion and smooth running on uneven floors.

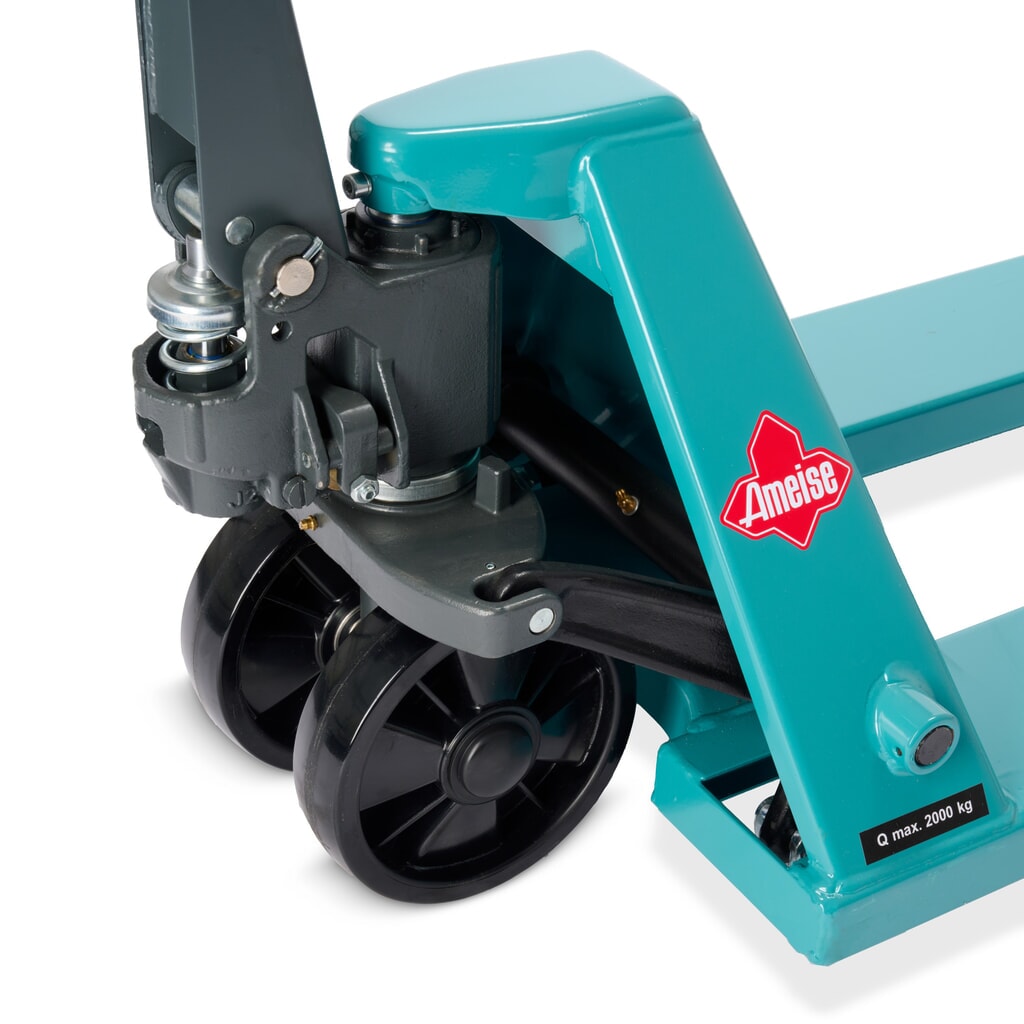

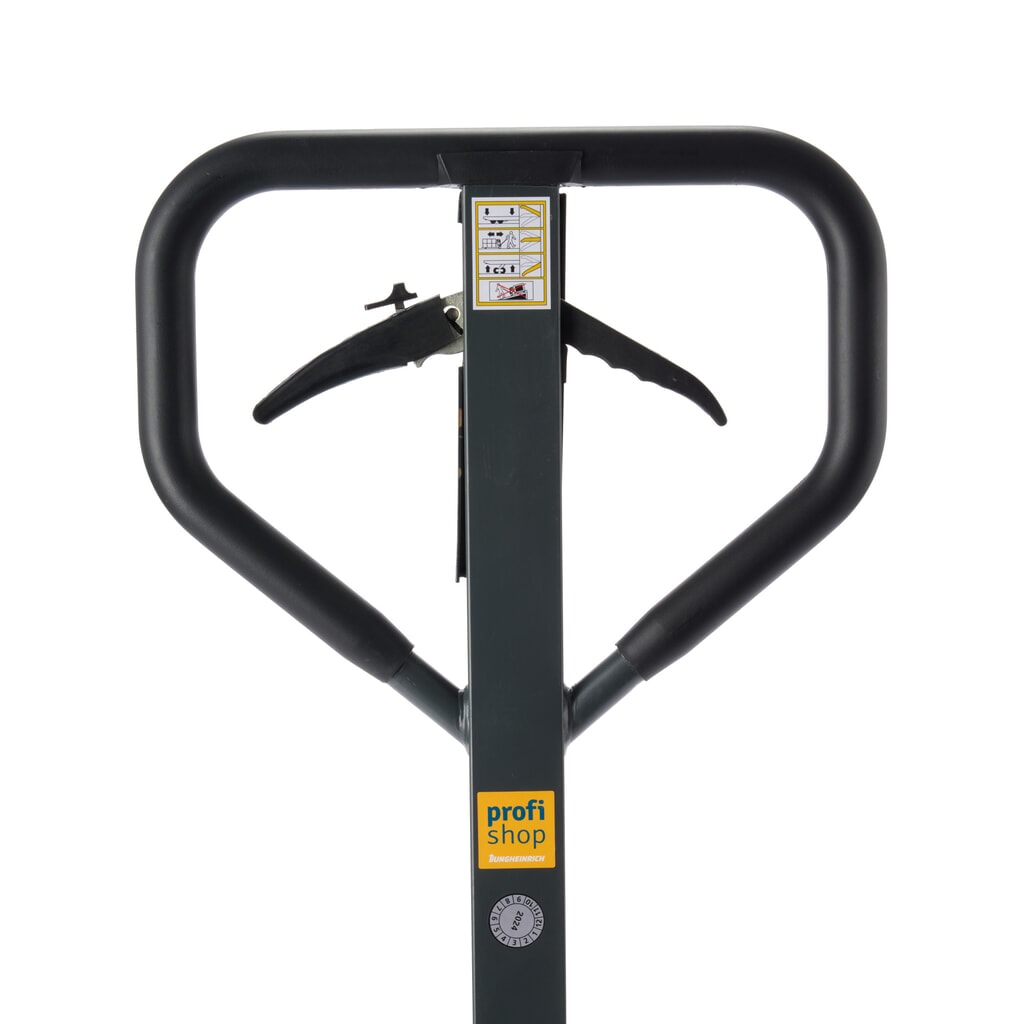

The large, ergonomic handle allows you to control all functions with utmost ease and comfort. The rubberised handle is very comfortable to use and offers effective cold protection when the temperature drops.

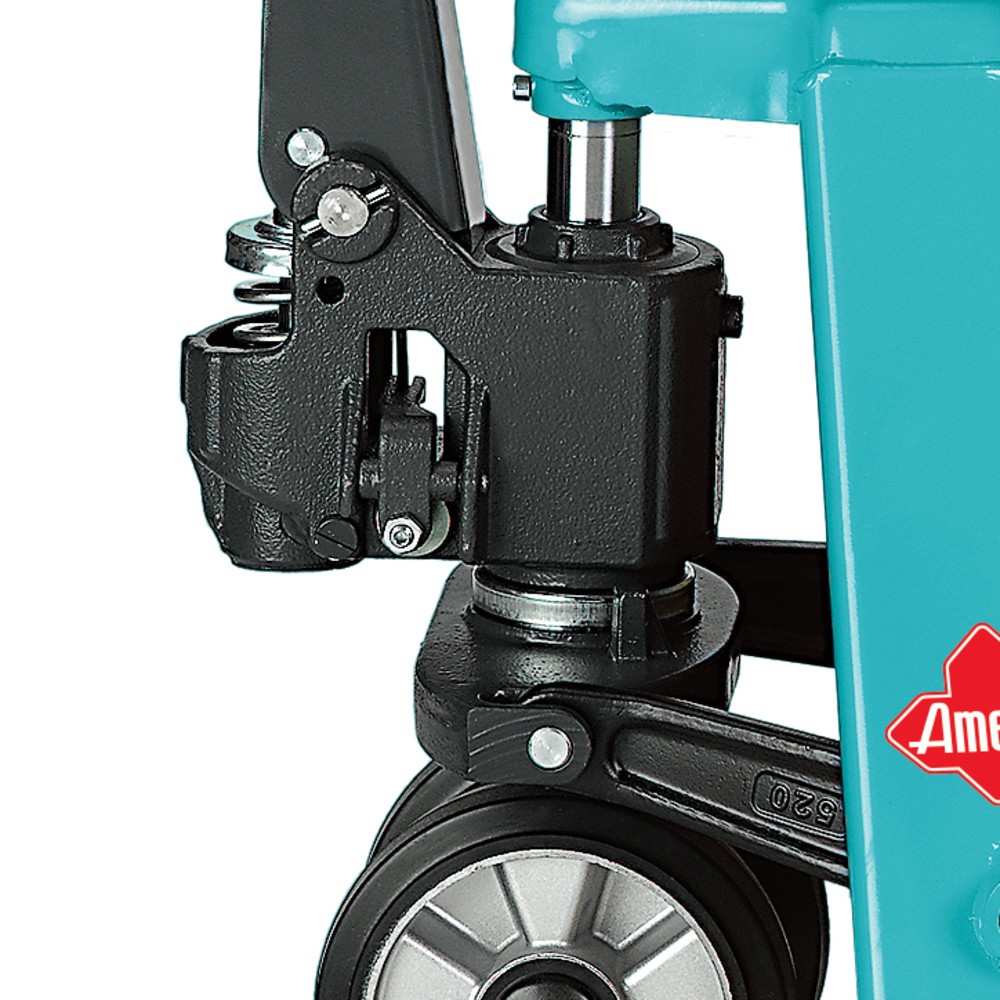

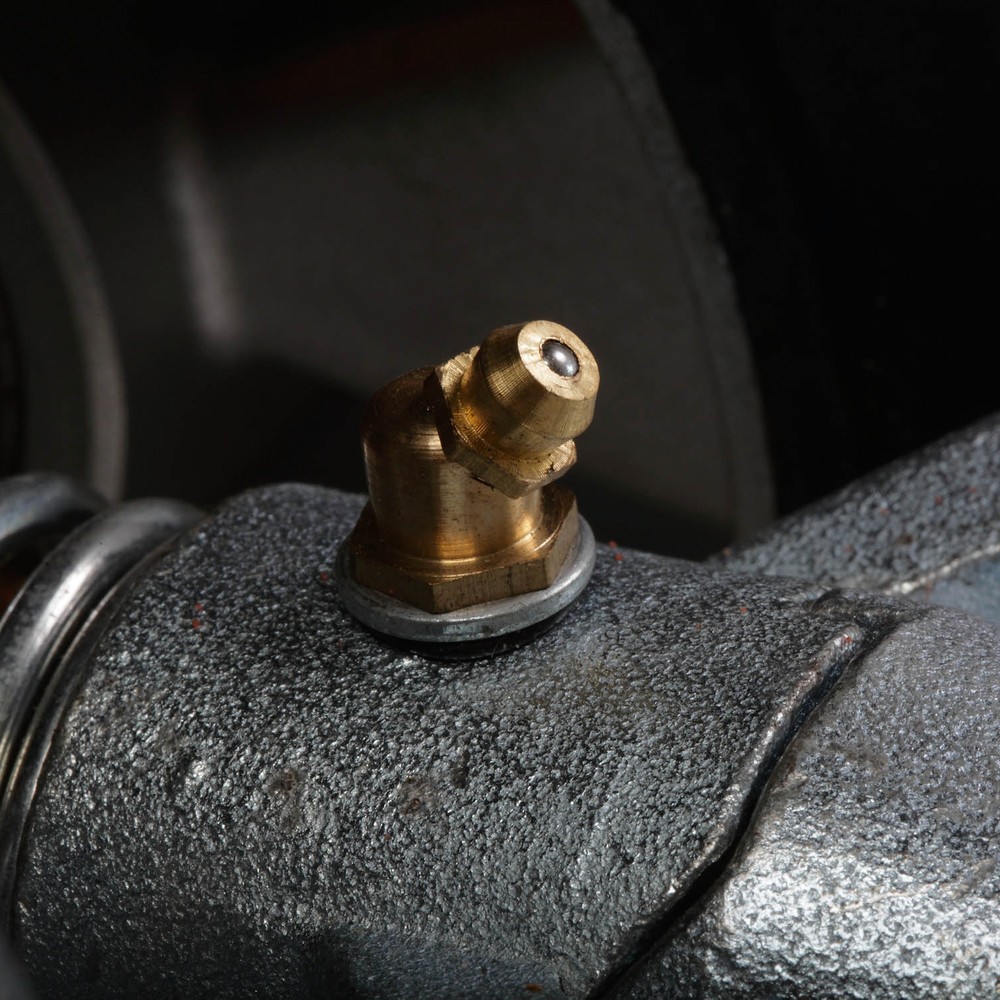

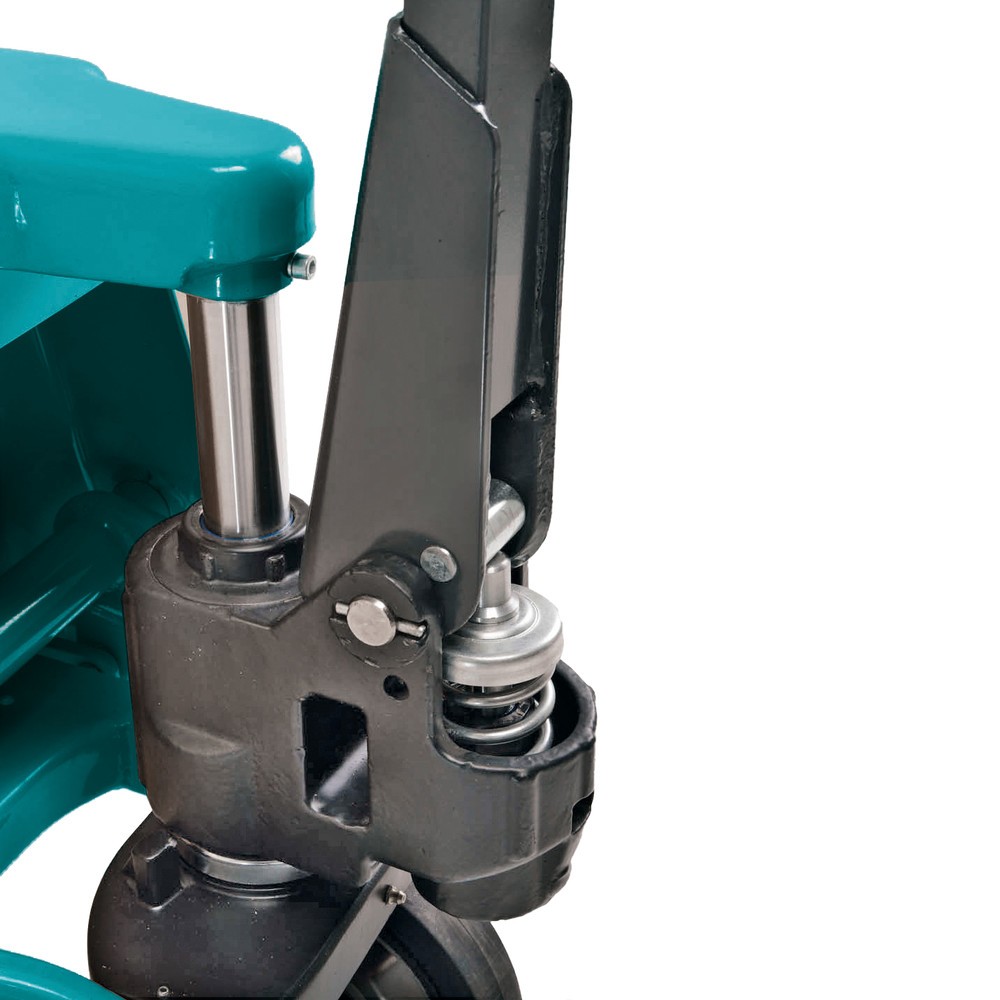

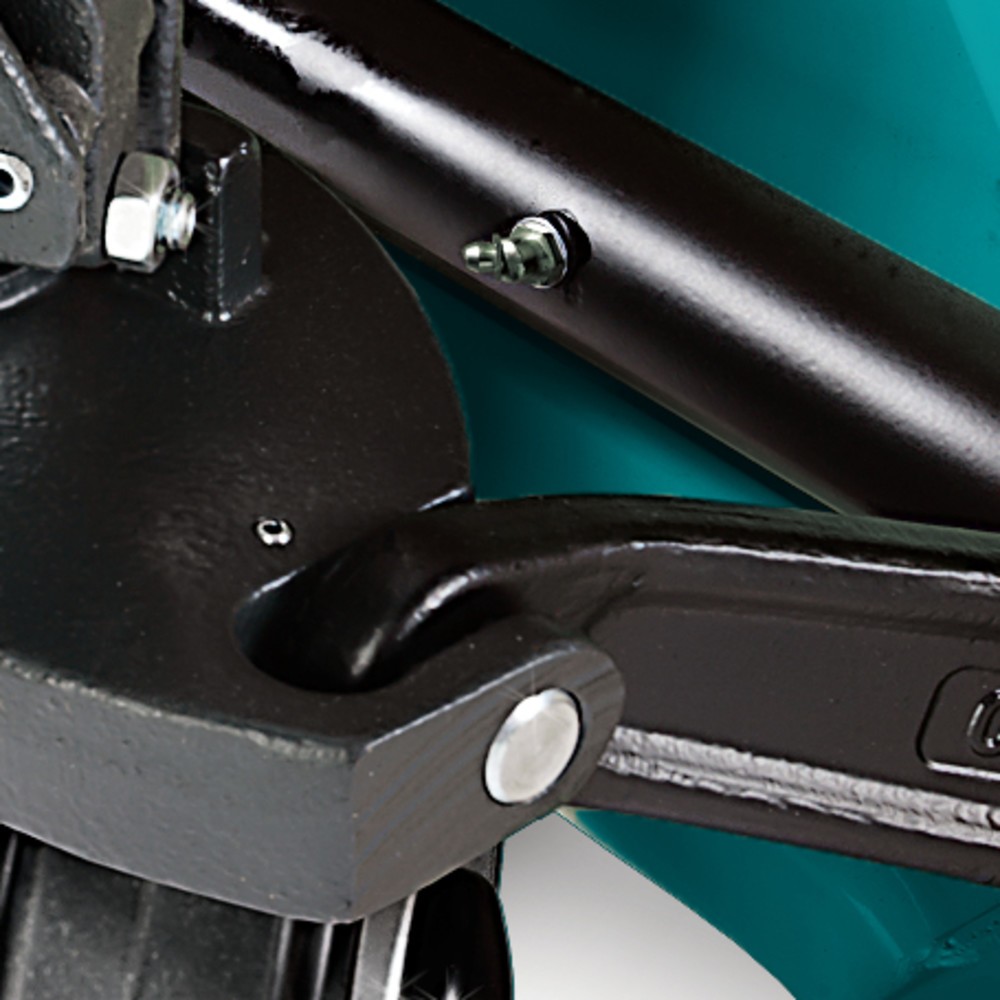

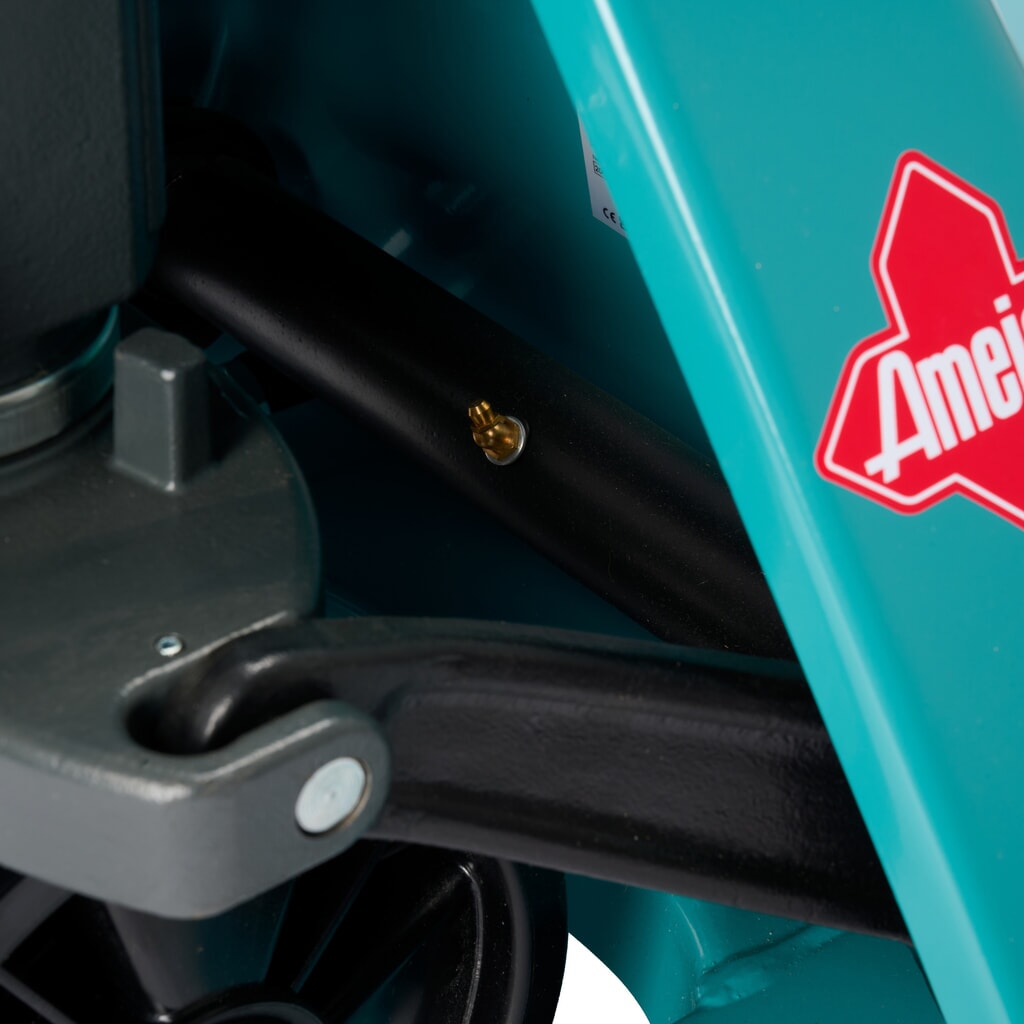

The maintenance-free, manual hydraulics are equipped with a reliable, oil-tight and waterproof hydraulic system. The high-performance pump is made from high-quality steel with chrome-plated pressure pistons, making it extremely durable in continuous daily use. This in turn saves you time, effort and costs. The welded sectional steel frame is torsion-free and very hard wearing, allowing the pallet truck to retain its shape even under maximum load. Grease nipples are fitted for ease of maintenance and utmost durability.

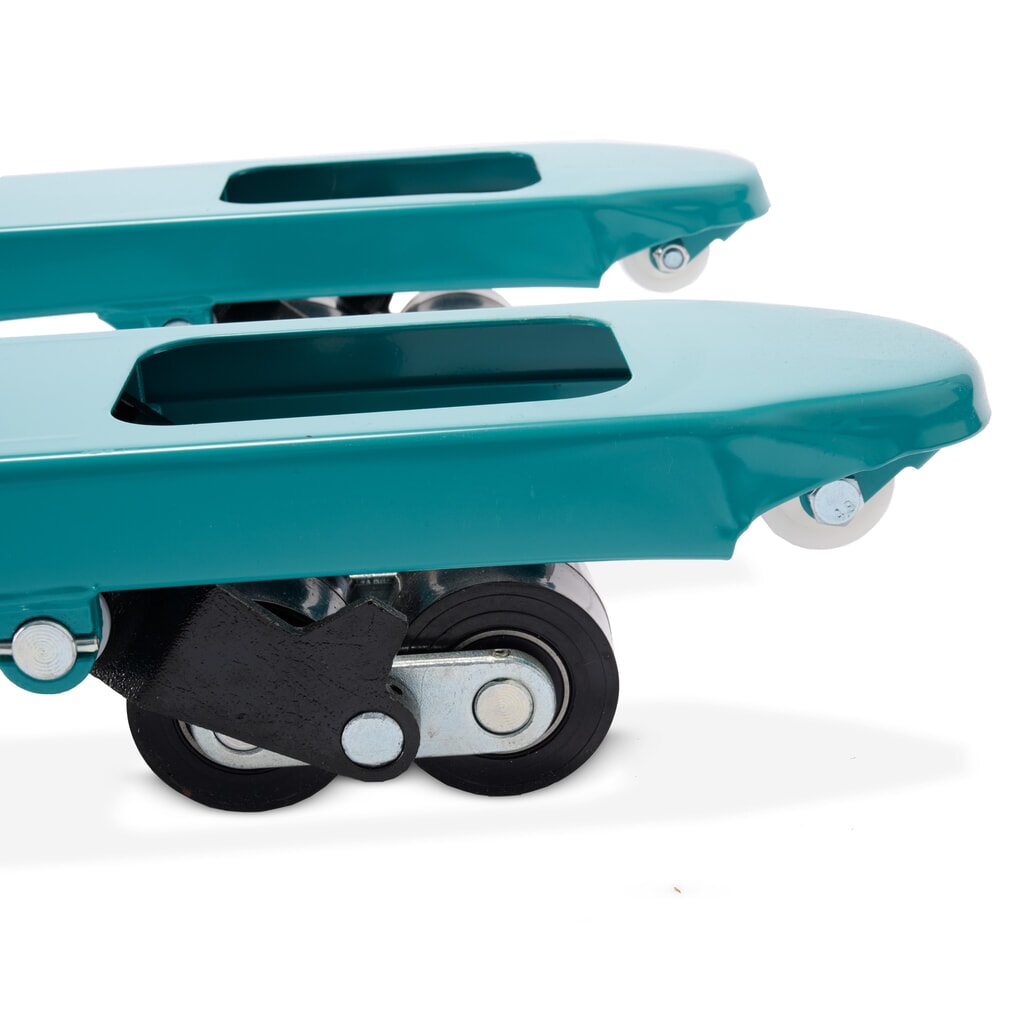

Depending on the ground conditions and specific application, you can opt for steering castors and fork rollers made from polyurethane or nylon. Tandem rollers ensure easier handling and reduce point loading, especially in the case of uneven floors or when picking up pallets from the side.
Order the Ameise® hand pallet truck with long forks from our shop in your chosen configuration.
This tough industrial truck offers robust and reliable Ameise® quality for demanding applications with higher throughput performance. Our industry standard model with extra long forks in different fork lengths is ideal for transporting overlong load carriers. The pallet truck can also be used to pick up multiple pallets simultaneously.
The capacity remains the same for all fork lengths, provided that the load is evenly distributed around load centre. Despite the long forks, the hand pallet truck is extremely agile and easy to manoeuvre thanks to the 205° steering radius. Entry and exit rollers ensure easy pallet insertion and smooth running on uneven floors.
The large, ergonomic handle allows you to control all functions with utmost ease and comfort. The rubberised handle is very comfortable to use and offers effective cold protection when the temperature drops.
The maintenance-free, manual hydraulics are equipped with a reliable, oil-tight and waterproof hydraulic system. The high-performance pump is made from high-quality steel with chrome-plated pressure pistons, making it extremely durable in continuous daily use. This in turn saves you time, effort and costs. The welded sectional steel frame is torsion-free and very hard wearing, allowing the pallet truck to retain its shape even under maximum load. Grease nipples are fitted for ease of maintenance and utmost durability.
Depending on the ground conditions and specific application, you can opt for steering castors and fork rollers made from polyurethane or nylon. Tandem rollers ensure easier handling and reduce point loading, especially in the case of uneven floors or when picking up pallets from the side.
Order the Ameise® hand pallet truck with long forks from our shop in your chosen configuration.
