Sale
Item number:
197347

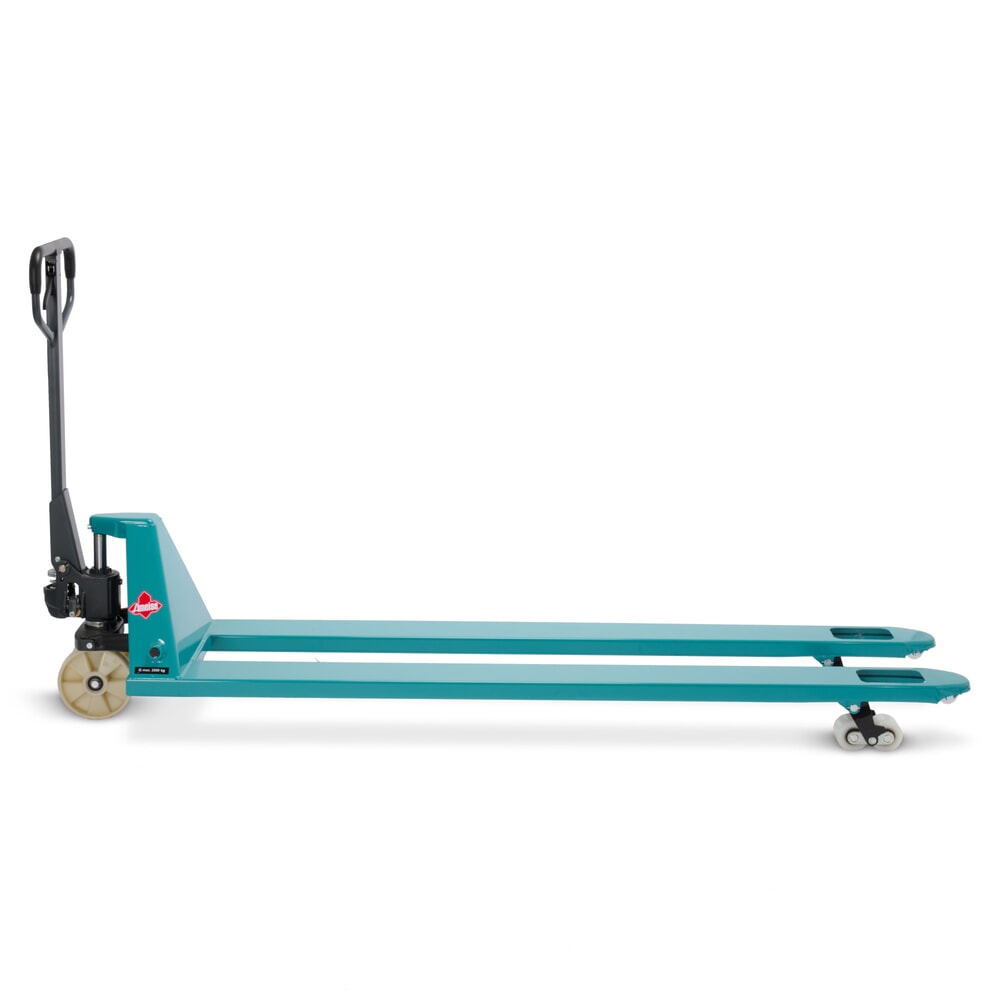

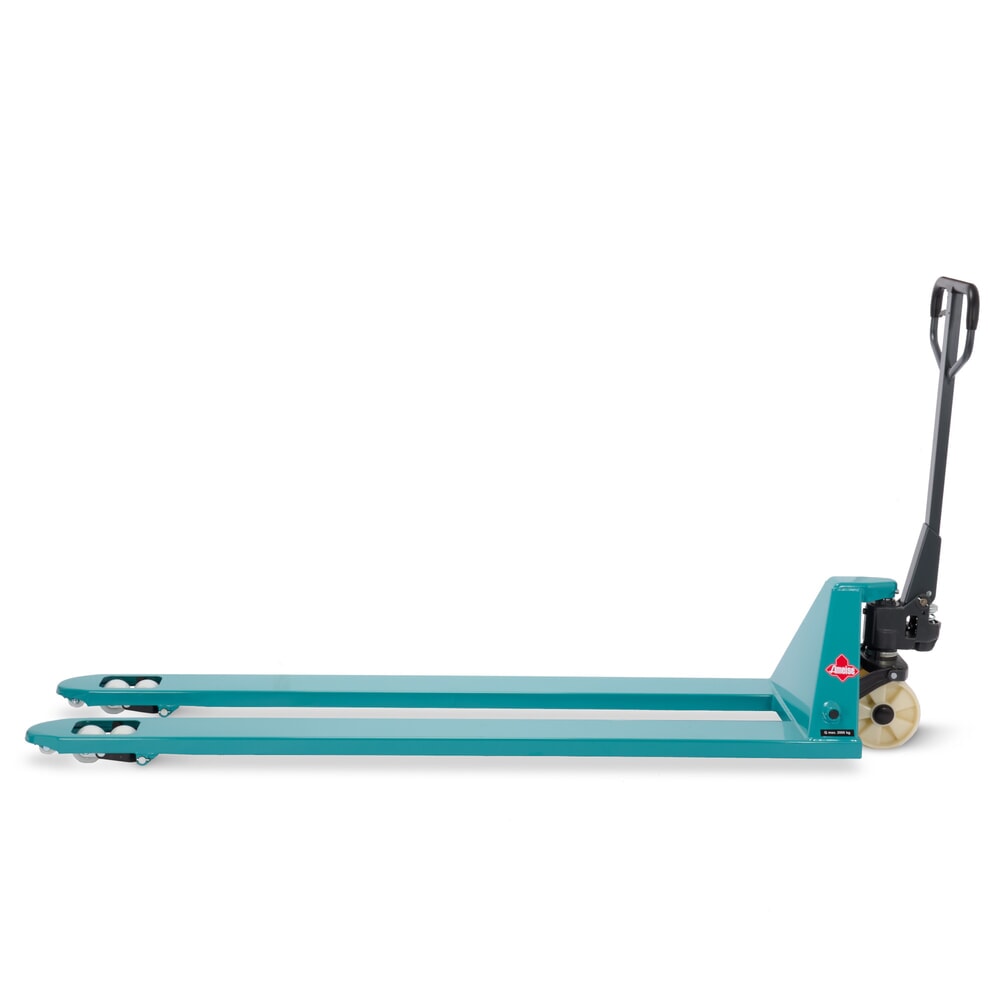

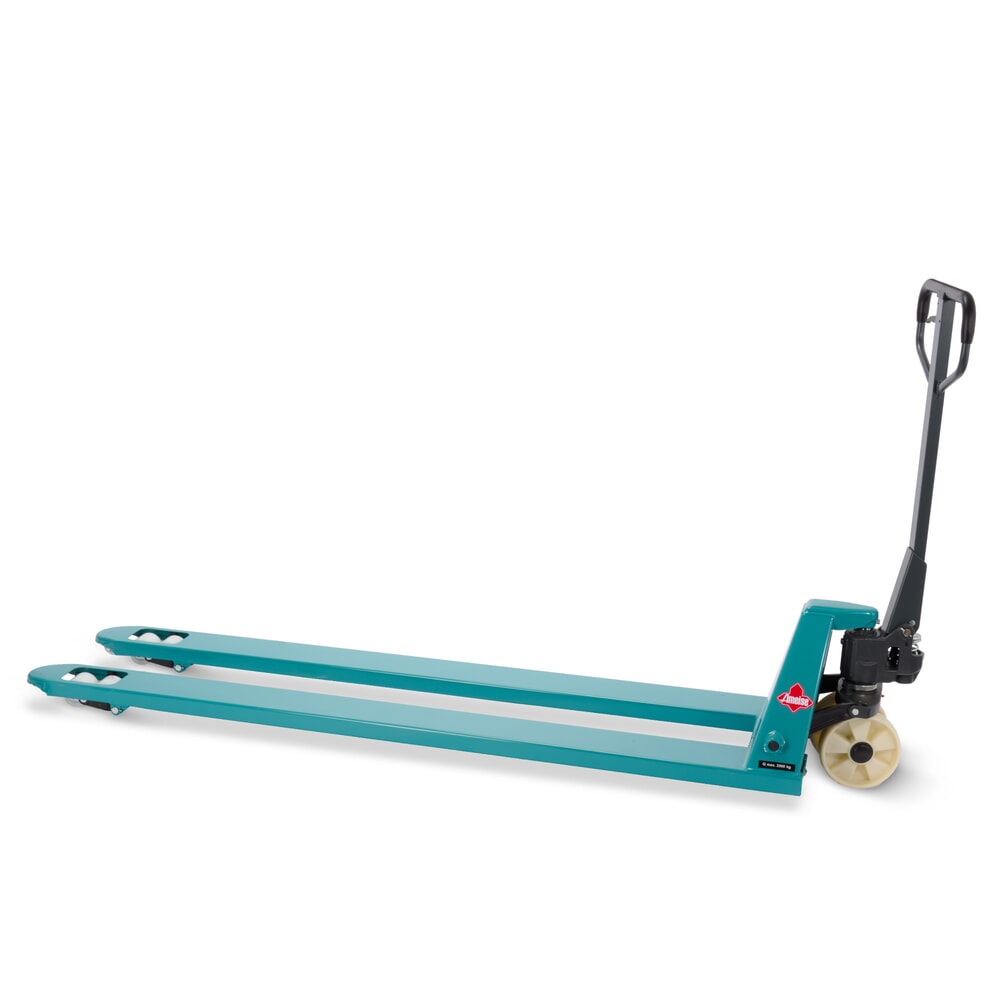

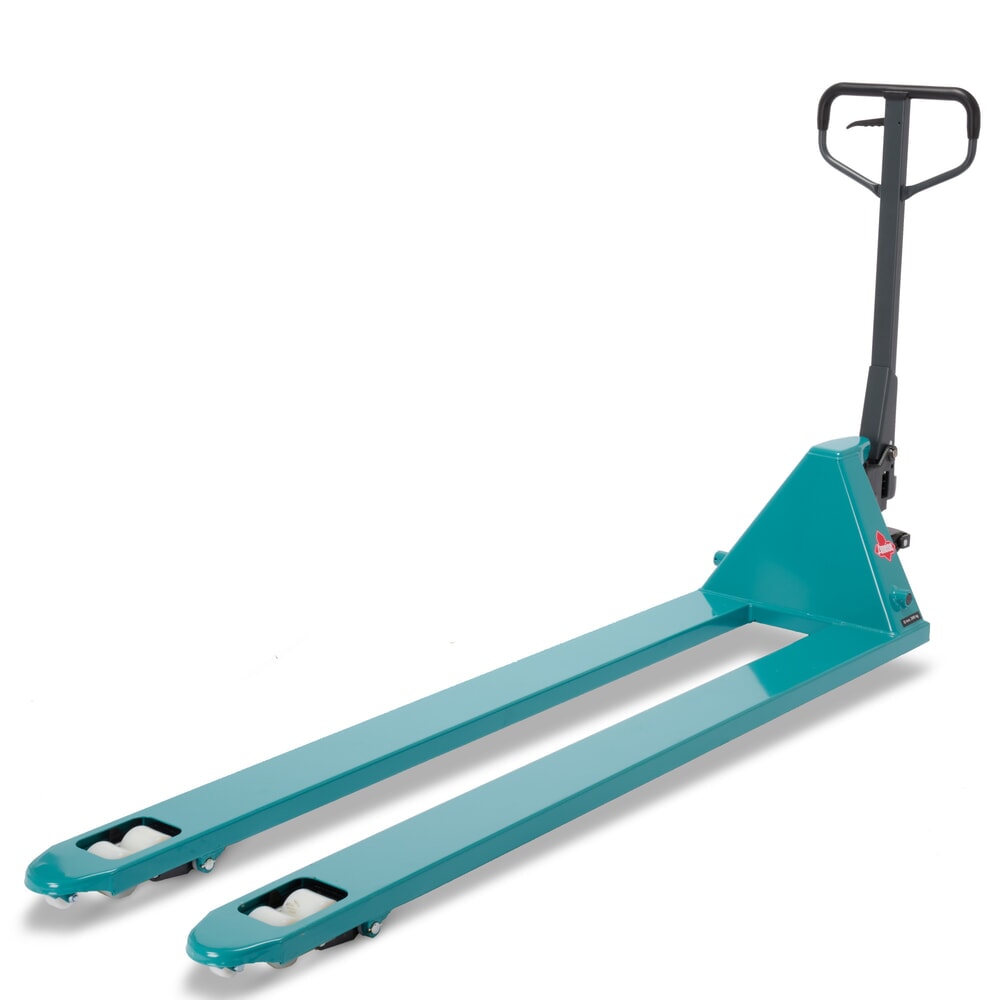

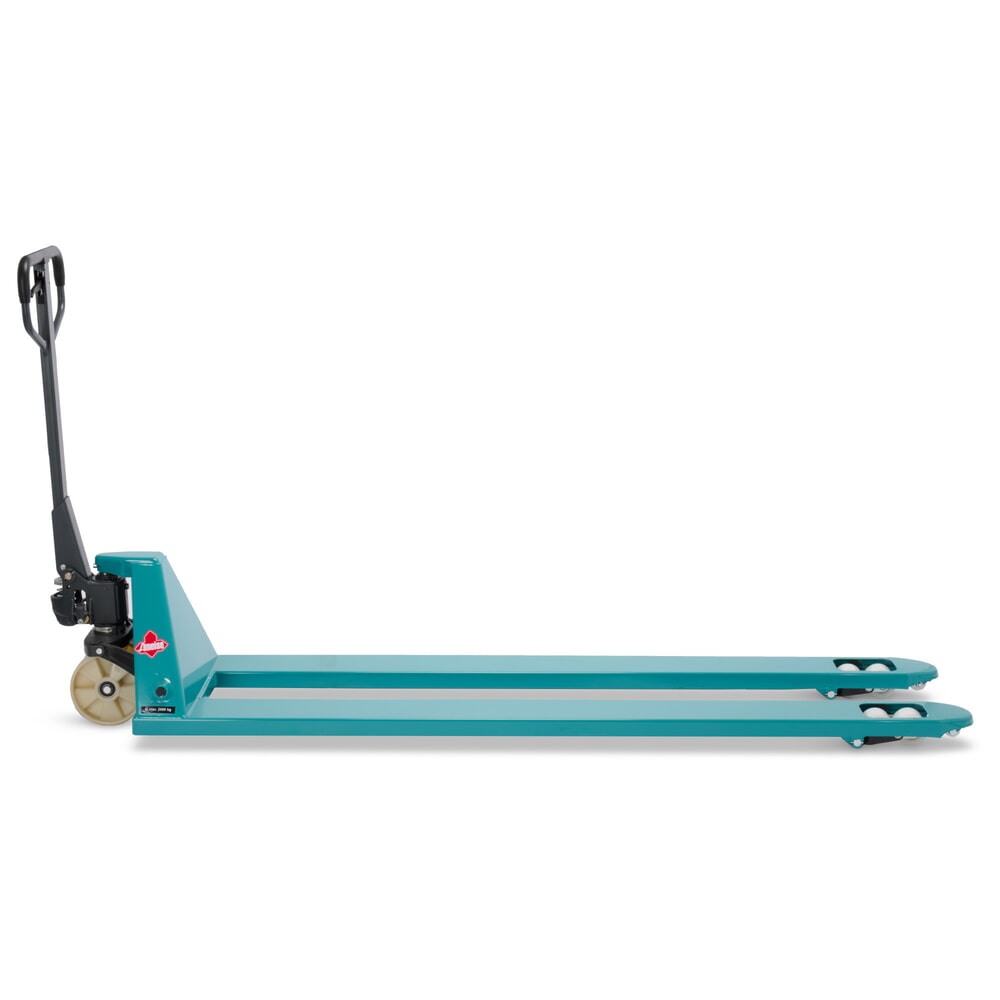

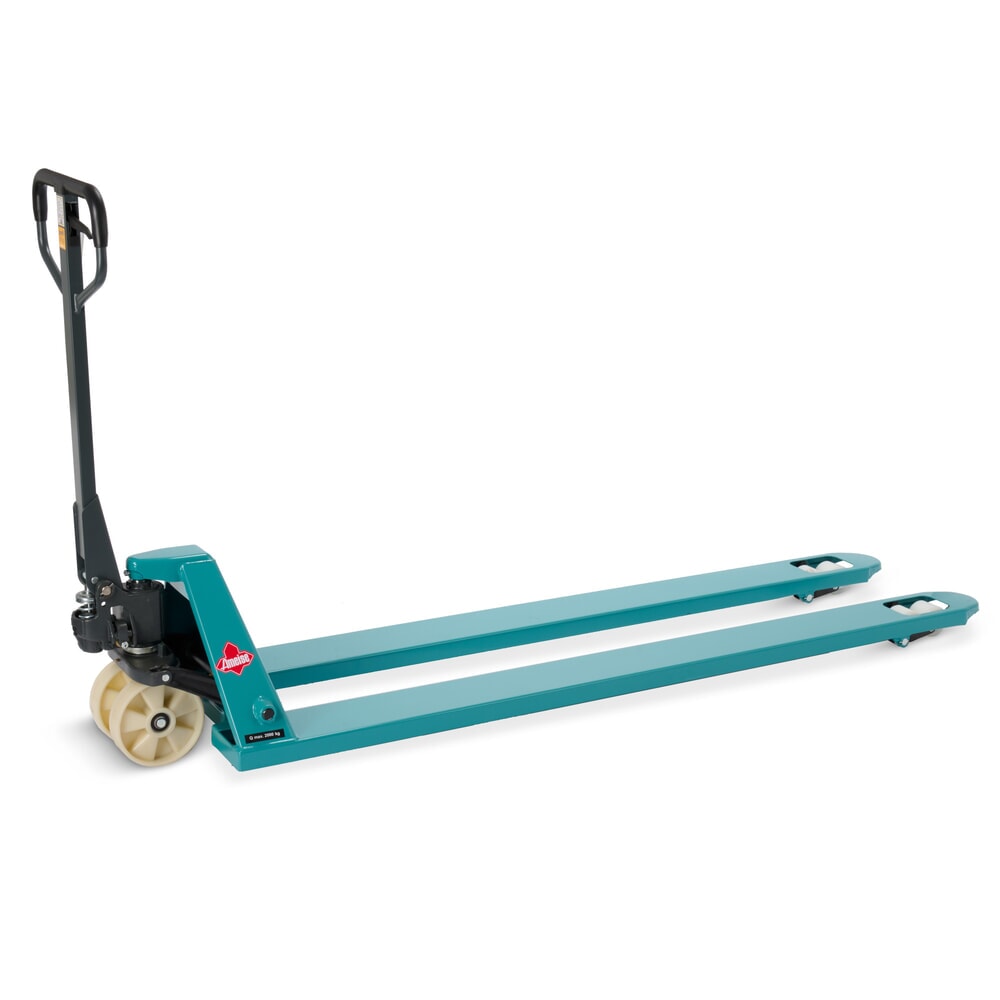

Ameise® PTM 2.0 hand pallet truck, capacity 2,000 kg, fork length 2,000 mm, nylon, tandem rollers
For overlong load carriers or simultaneous transport of multiple pallets
Technical details
Ameise® PTM 2.0 hand pallet truck, capacity 2,000 kg, fork length 2,000 mm, nylon, tandem rollers
-
Aisle width2365 mm
-
BrandAmeise®
-
Capacity2000 kg
-
Chassis RAL colourRAL 5018 turquoise blue
-
Chassis surfacepowder-coated
-
Control panelright-handed
-
Drivemanual
-
Face of forks length390 mm
-
Fork height60 mm
-
Fork length2.000 mm
-
Fork roller diameter80 mm
-
Fork roller equipmentTandem
-
Fork roller materialNylon
-
Fork roller width70 mm
-
Fork support width540 mm
-
Fork width160 mm
-
Grease nippleYes
-
Ground clearance25 mm
-
Handle fittingsRubber sheath
-
Hydraulic oil quantity0.3 l
-
Hydraulic oil typeMineral oil
-
Hydraulic oil viscosity acc. to ISO-VG32
-
Infeed rollersYes
-
Lift115 mm
-
Lift height per pump stroke7,5 mm
-
Lift range85 - 200 mm
-
Load centre1000 mm
-
ModelAmeise® ACY
-
Net weight115 kg
-
Operator typeManual
-
Overall length2395 mm
-
Overall width540 mm
-
Pallet truck materialSteel
-
RouteShort distance
-
SectionPerformance
-
Steering wheel diameter200 mm
-
Steering wheel materialNylon
-
Steering wheel width50 mm
-
Temperature range5 - 40 °C
-
Tiller RAL colourRAL 7016 anthracite grey
-
Tiller height1230 mm
-
Tiller surfacepowder-coated
-
Turning radius2125 mm
Item description
Ameise® PTM 2.0 hand pallet truck, capacity 2,000 kg, fork length 2,000 mm, nylon, tandem rollers
The Ameise® hand pallet truck has established itself as the industry standard for continuous daily use in industrial, production and trade environments. We also supply this robust and reliable all-rounder with extra long forks for transporting especially long goods or multiple pallets simultaneously. The Ameise® long fork pallet trucks are available with different fork lengths.
- 4 fork lengths available (1500, 1800, 2000, 2500 mm)
- 2000 kg capacity
- Rubberised comfort handle protects against cold
- Durable high-performance hydraulic pump
- Robust, torsion-free sectional steel frame
- Maintenance-friendly thanks to grease nipples
Proven Ameise® quality for transporting long goods or multiple pallets

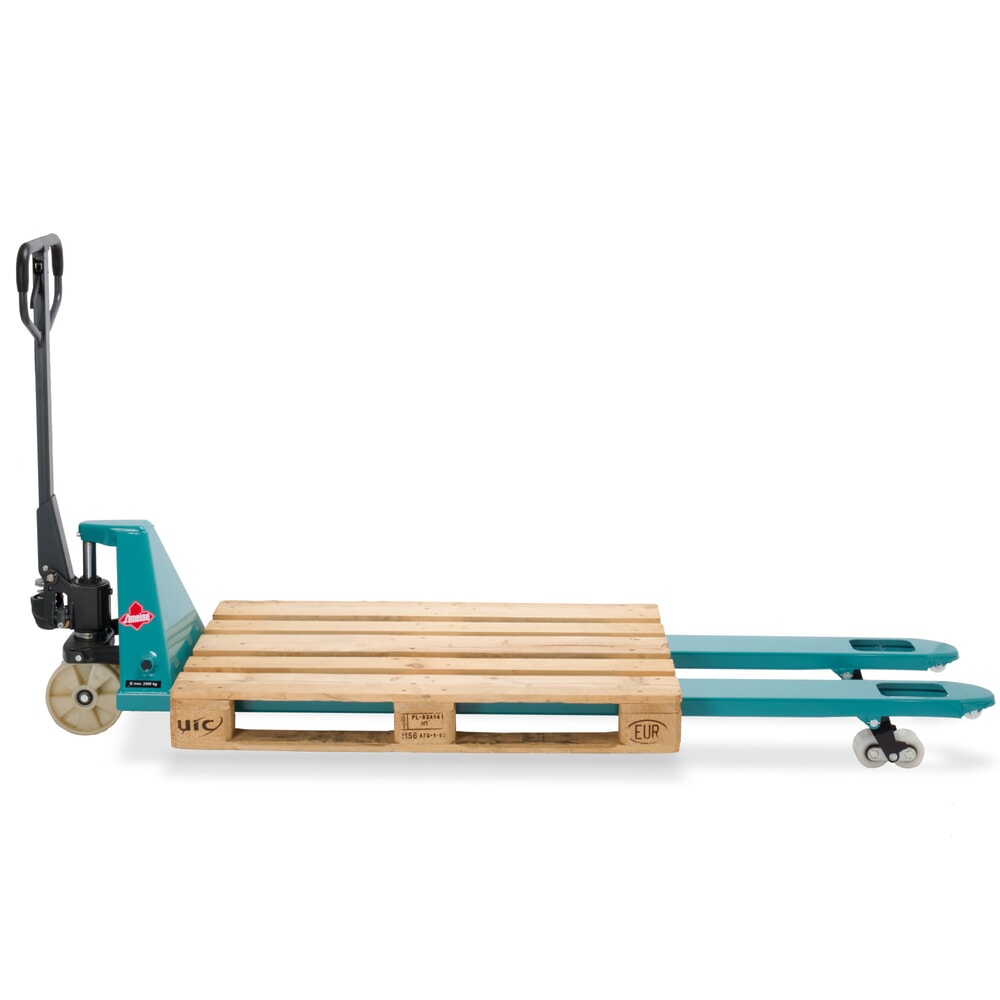

This tough industrial truck offers robust and reliable Ameise® quality for demanding applications with higher throughput performance. Our industry standard model with extra long forks in different fork lengths is ideal for transporting overlong load carriers. The pallet truck can also be used to pick up multiple pallets simultaneously.
The capacity remains the same for all fork lengths, provided that the load is evenly distributed around load centre. Despite the long forks, the hand pallet truck is extremely agile and easy to manoeuvre thanks to the 205° steering radius. Entry and exit rollers ensure easy pallet insertion and smooth running on uneven floors.
The large, ergonomic handle allows you to control all functions with utmost ease and comfort. The rubberised handle is very comfortable to use and offers effective cold protection when the temperature drops.

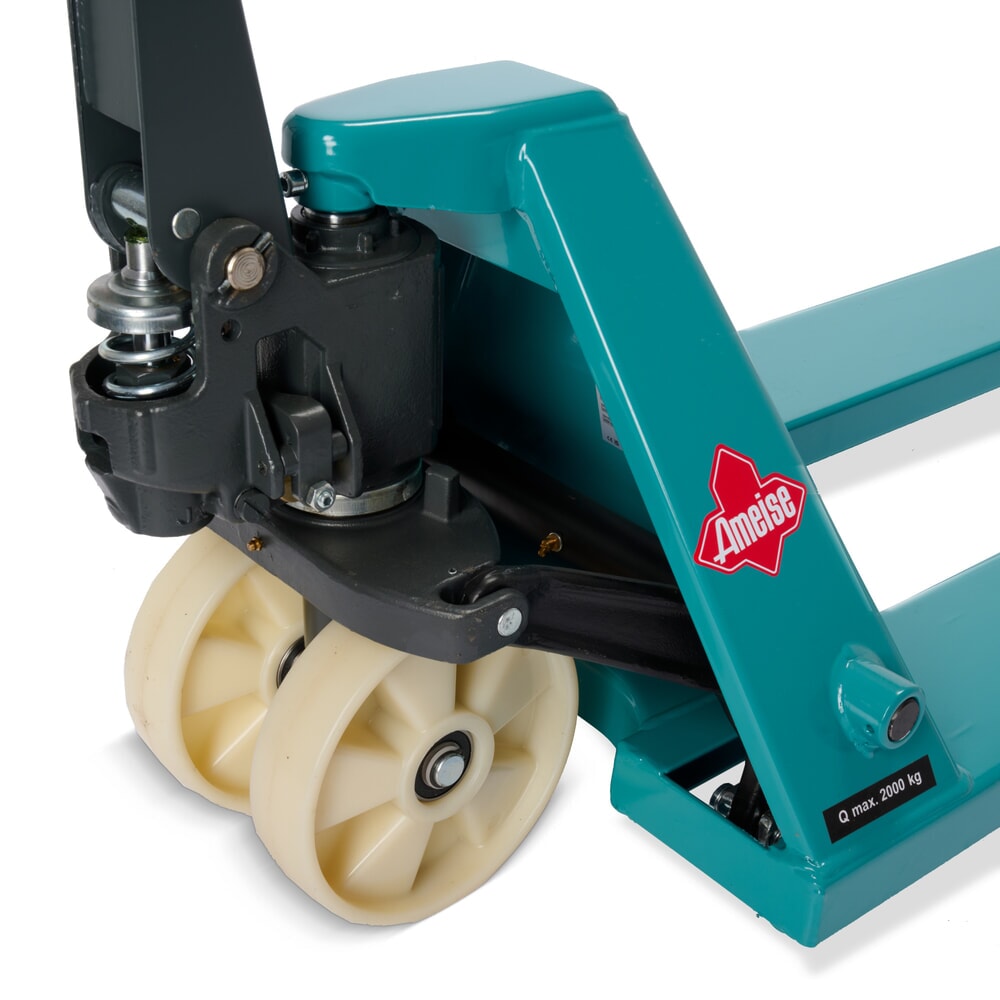

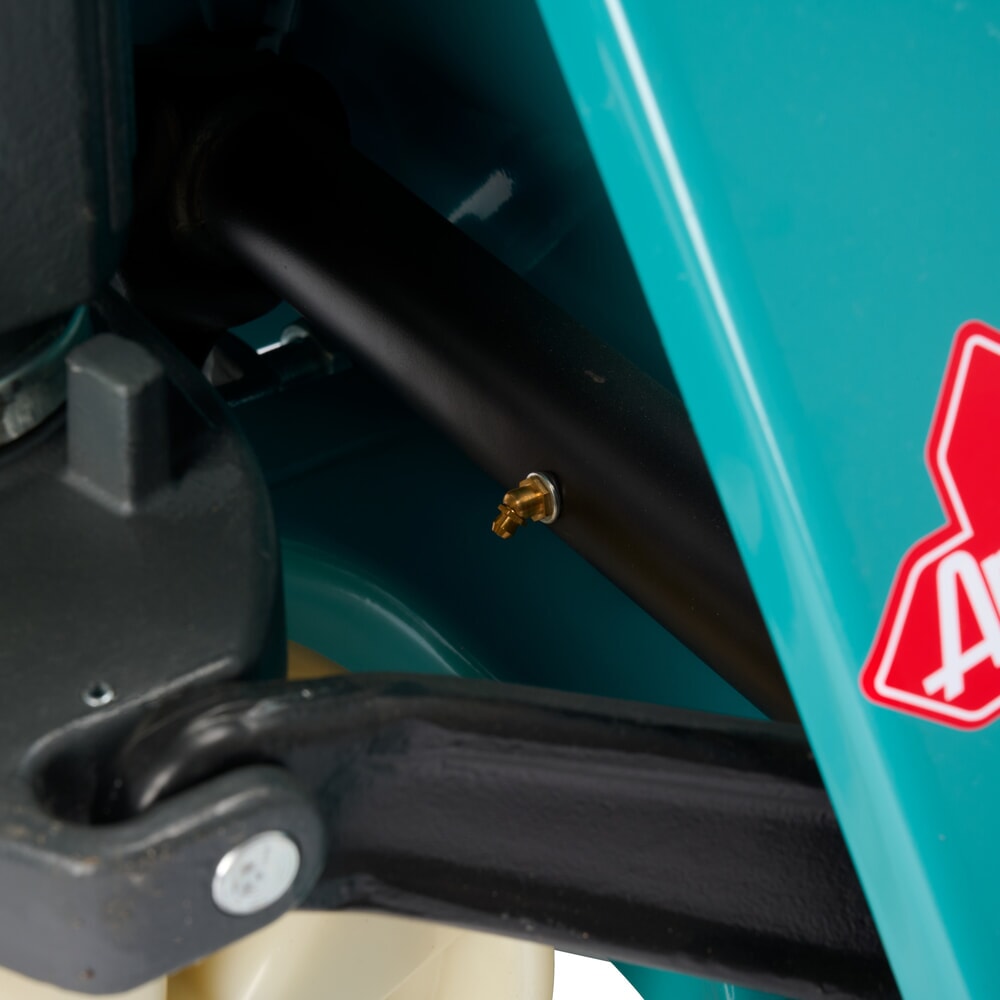

The maintenance-free, manual hydraulics are equipped with a reliable, oil-tight and waterproof hydraulic system. The high-performance pump is made from high-quality steel with chrome-plated pressure pistons, making it extremely durable in continuous daily use. This in turn saves you time, effort and costs. The welded sectional steel frame is torsion-free and very hard wearing, allowing the pallet truck to retain its shape even under maximum load. Grease nipples are fitted for ease of maintenance and utmost durability.

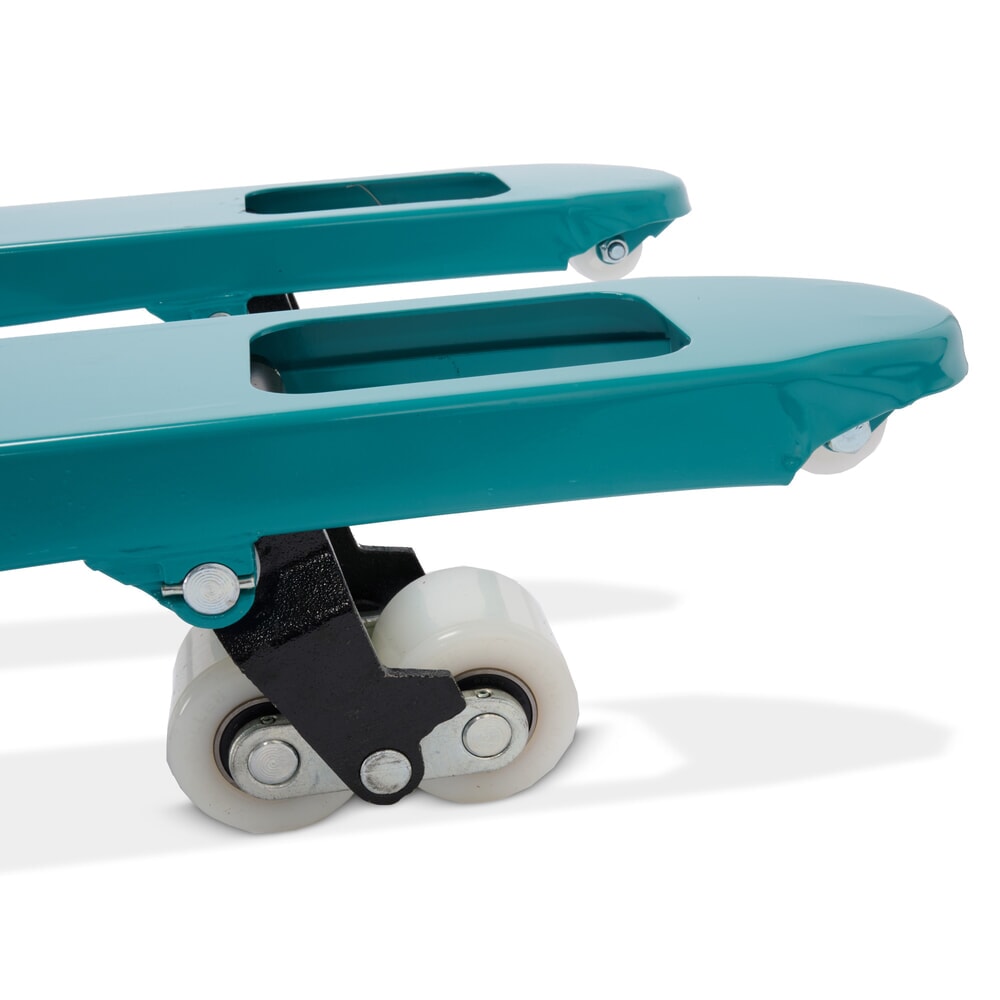

Depending on the ground conditions and specific application, you can opt for steering castors and fork rollers made from polyurethane or nylon. Tandem rollers ensure easier handling and reduce point loading, especially in the case of uneven floors or when picking up pallets from the side.
Order the Ameise® hand pallet truck with long forks from our shop in your chosen configuration.
This tough industrial truck offers robust and reliable Ameise® quality for demanding applications with higher throughput performance. Our industry standard model with extra long forks in different fork lengths is ideal for transporting overlong load carriers. The pallet truck can also be used to pick up multiple pallets simultaneously.
The capacity remains the same for all fork lengths, provided that the load is evenly distributed around load centre. Despite the long forks, the hand pallet truck is extremely agile and easy to manoeuvre thanks to the 205° steering radius. Entry and exit rollers ensure easy pallet insertion and smooth running on uneven floors.
The large, ergonomic handle allows you to control all functions with utmost ease and comfort. The rubberised handle is very comfortable to use and offers effective cold protection when the temperature drops.
The maintenance-free, manual hydraulics are equipped with a reliable, oil-tight and waterproof hydraulic system. The high-performance pump is made from high-quality steel with chrome-plated pressure pistons, making it extremely durable in continuous daily use. This in turn saves you time, effort and costs. The welded sectional steel frame is torsion-free and very hard wearing, allowing the pallet truck to retain its shape even under maximum load. Grease nipples are fitted for ease of maintenance and utmost durability.
Depending on the ground conditions and specific application, you can opt for steering castors and fork rollers made from polyurethane or nylon. Tandem rollers ensure easier handling and reduce point loading, especially in the case of uneven floors or when picking up pallets from the side.
Order the Ameise® hand pallet truck with long forks from our shop in your chosen configuration.
