Technical details

Ameise® PTM 2.0 hand pallet truck with quick lift, capacity 2,000 kg, fork length 1,150 mm, nylon

  1. Aisle width
    1792 mm
  2. Brand
    Ameise®
  3. Capacity
    2000 kg
  4. Chassis RAL colour
    RAL 5018 turquoise blue
  5. Chassis surface
    powder-coated
  6. Control panel
    right-handed
  7. Drive
    manual
  8. Face of forks length
    390 mm
  9. Fork height
    48 mm
  10. Fork length
    1.150 mm
  11. Fork roller diameter
    80 mm

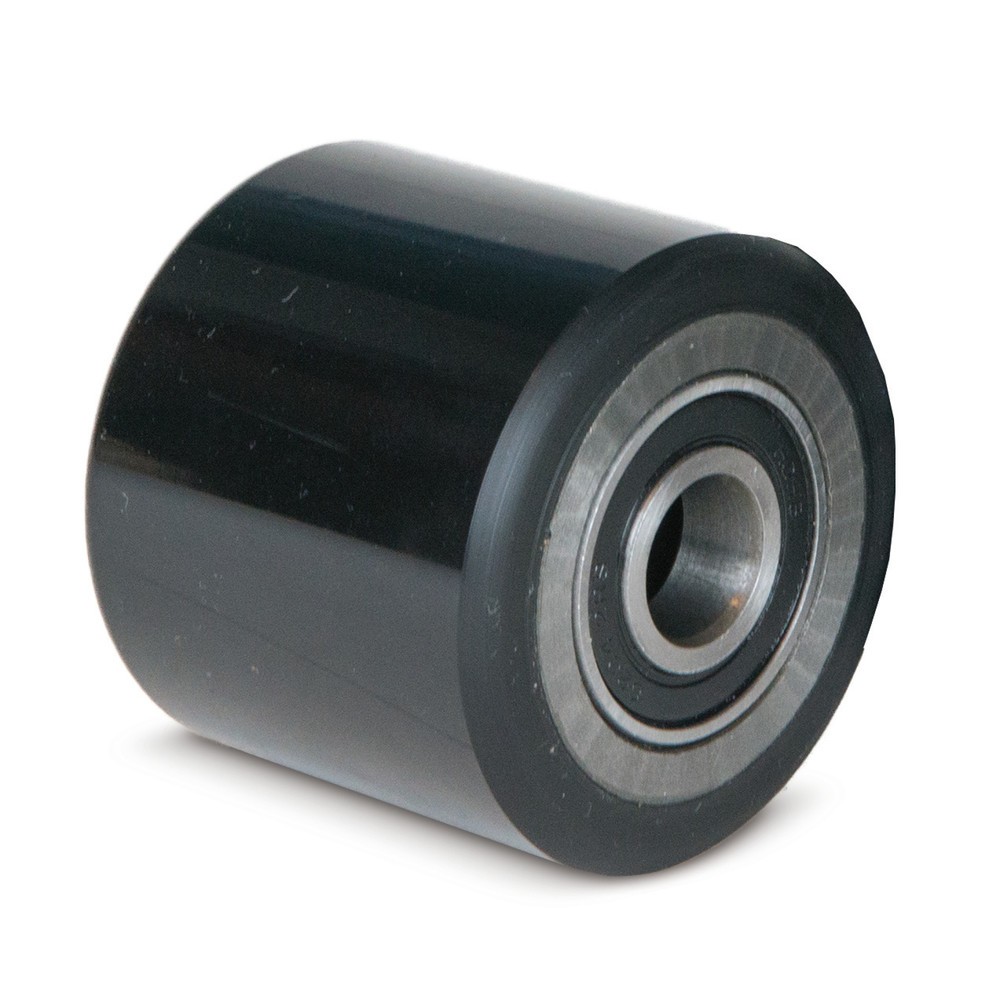

  12. Fork roller equipment
    Single
  13. Fork roller material
    Nylon
  14. Fork roller width
    93 mm
  15. Fork support width
    540 mm
  16. Fork width
    160 mm
  17. Grease nipple
    Yes
  18. Ground clearance
    37 mm
  19. Handle fittings
    Steel
  20. Hydraulic oil quantity
    0.3 l
  21. Hydraulic oil type
    Mineral oil
  22. Hydraulic oil viscosity acc. to ISO-VG
    32
  23. Infeed rollers
    Yes
  24. Lift
    115 mm
  25. Lift height per pump stroke
    23 mm
  26. Lift range
    85 - 200 mm
  27. Load centre
    600 mm
  28. Lowering speed with/without load
    0,09 / 0,02 m/s
  29. Model
    Ameise® HPT A20
  30. Net weight
    67 kg
  31. Operator type
    Manual
  32. Overall length
    1540 mm
  33. Overall width
    540 mm
  34. Pallet truck material
    Steel
  35. Pump strokes to max. lift height
    5
  36. Rapid lift
    Yes
  37. Route
    Short distance
  38. Section
    Performance
  39. Steering wheel diameter
    200 mm
  40. Steering wheel material
    Nylon
  41. Steering wheel width
    50 mm
  42. Temperature range
    5 - 40 °C
  43. Tiller RAL colour
    RAL 7016 anthracite grey
  44. Tiller height
    1250 mm
  45. Tiller surface
    powder-coated
  46. Turning radius
    1275 mm
  1. Aisle width
    1792 mm
  2. Brand
    Ameise®
  3. Capacity
    2000 kg
  4. Chassis RAL colour
    RAL 5018 turquoise blue
  5. Chassis surface
    powder-coated
  6. Control panel
    right-handed
  1. Lift
    115 mm
  2. Lift height per pump stroke
    23 mm
  3. Lift range
    85 - 200 mm
  4. Load centre
    600 mm
  5. Lowering speed with/without load
    0,09 / 0,02 m/s
  6. Model
    Ameise® HPT A20

Item description

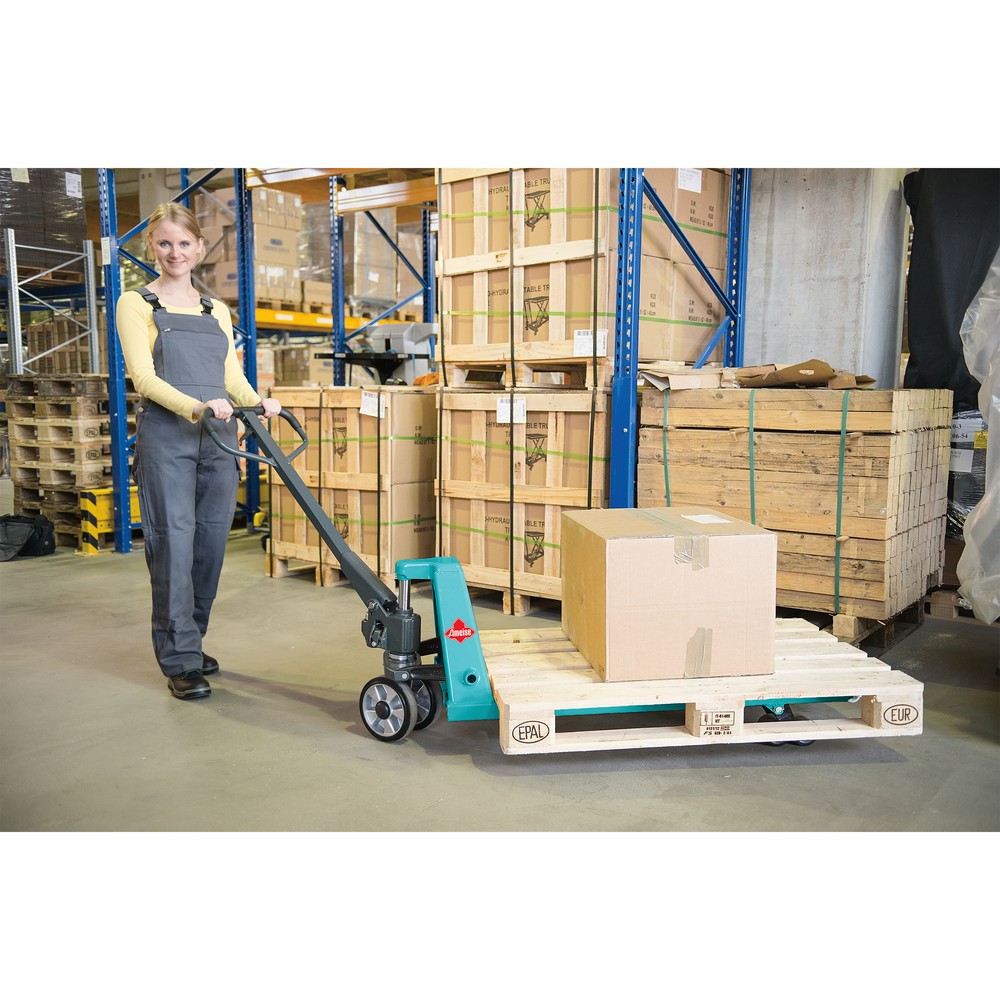

Ameise® PTM 2.0 hand pallet truck with quick lift, capacity 2,000 kg, fork length 1,150 mm, nylon

The Ameise® hand pallet truck with 1150 mm fork length and 2000 kg capacity has established itself as the industry standard for continuous daily use in industrial, production and trade environments. We also offer this robust and reliable all-rounder with a quick lift function up to 120 kg, which saves you both time and effort in your daily pallet handling.
  • Quick lift (up to 120 kg)
  • 2000 kg capacity
  • Durable high-performance hydraulic pump
  • Welded and reinforced sectional steel frame
  • Easy pallet insertion thanks to entry and exit rollers

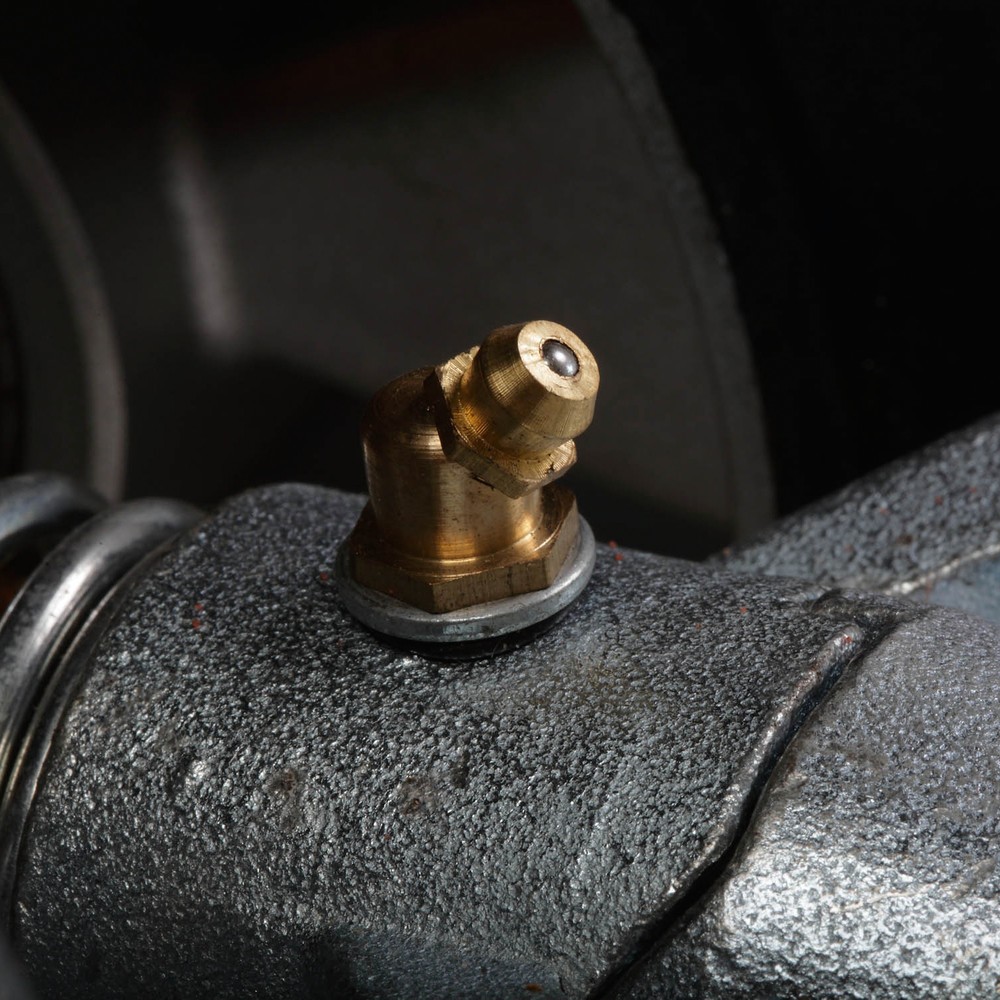

  • Maintenance-friendly thanks to grease nipples
Save time and effort during pallet handling with proven Ameise® quality

This pallet truck offers robust Ameise® quality for daily use in a wide range of applications. Our industry standard model for your pallet transport needs is also available with a quick lift function up to 120 kg. Thanks to the quick lift, the Ameise® pallet truck makes contact with the bottom of the pallet after just one pump stroke. After the third pump stroke, the pallet has been lifted off the ground and is ready for transport. The maximum lift height of 200 mm is reached after five strokes.

The large user-friendly handle allows you to control all functions with utmost ease and comfort. Loads can be lowered with fully variable precision via the hand lever.

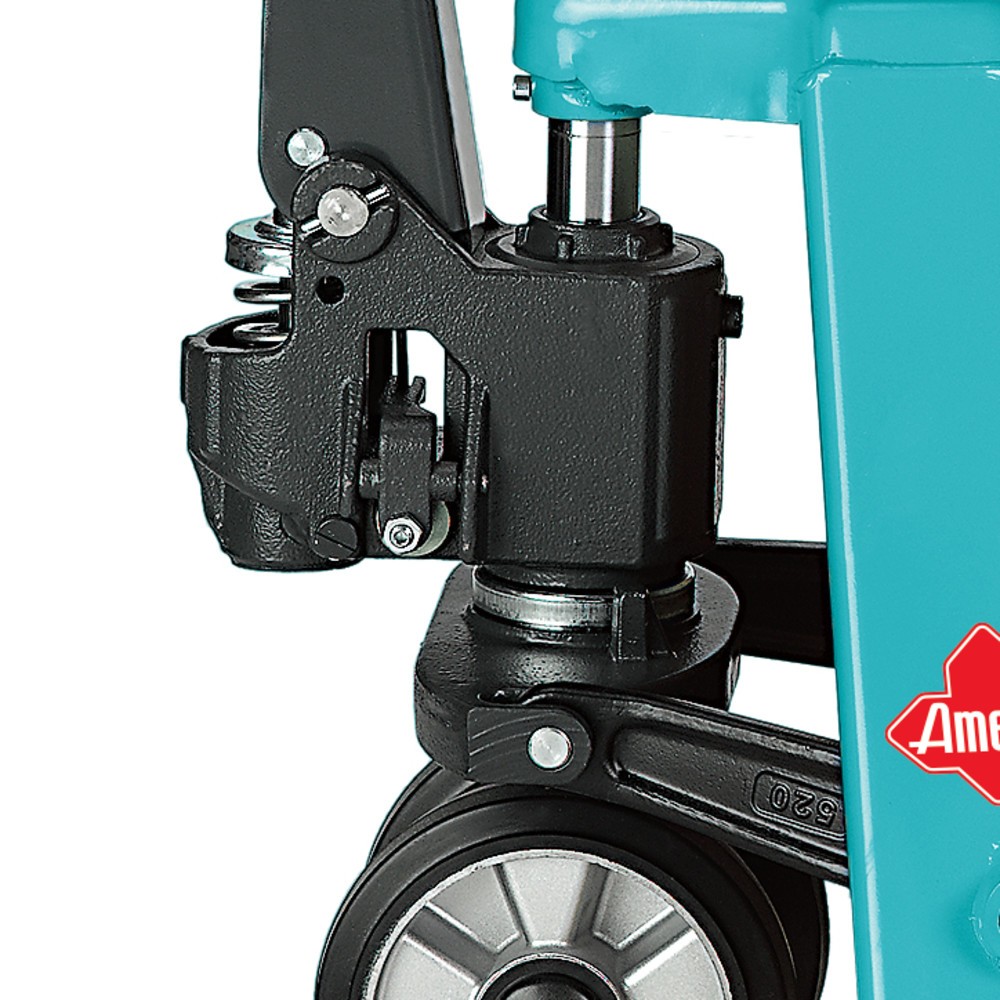

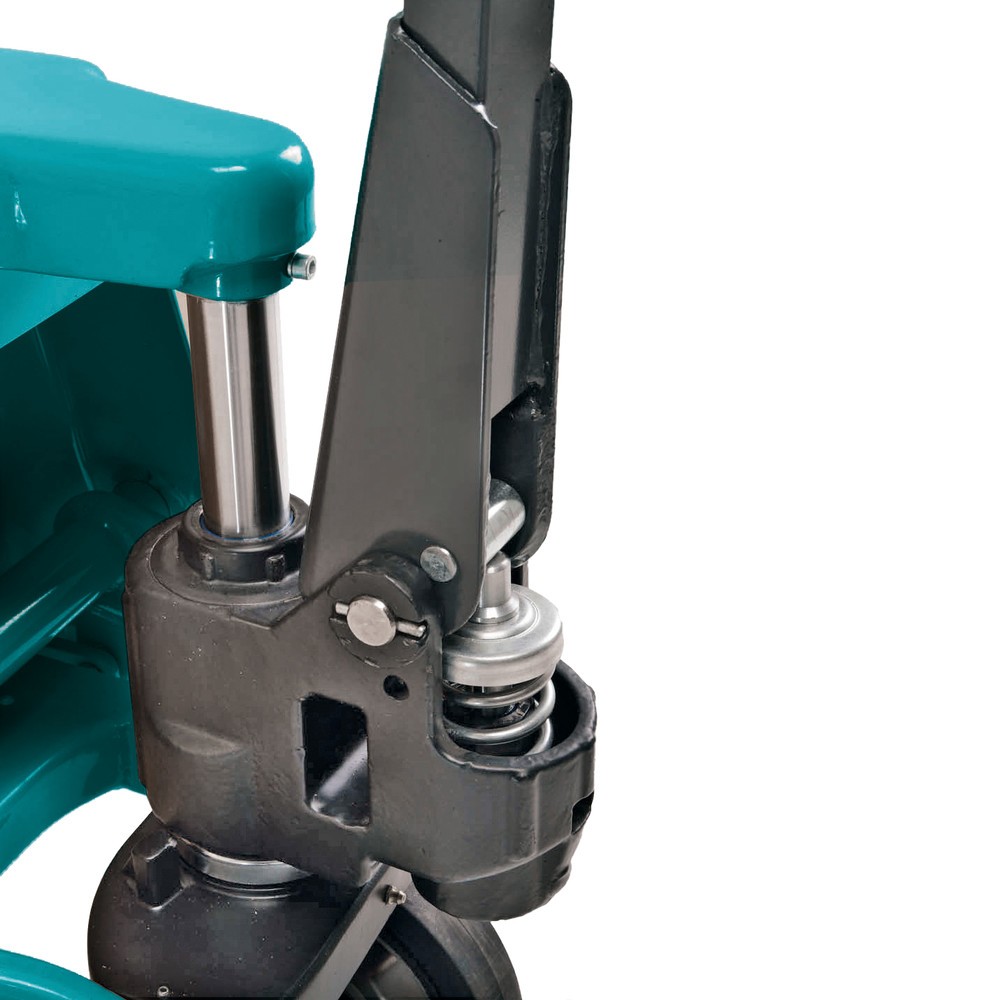

The maintenance-free, manual hydraulics are equipped with a reliable, oil-tight and waterproof hydraulic system. The high-performance pump is made from high-quality steel with chrome-plated pressure pistons, making it extremely durable in continuous daily use. This in turn saves you time, effort and costs.

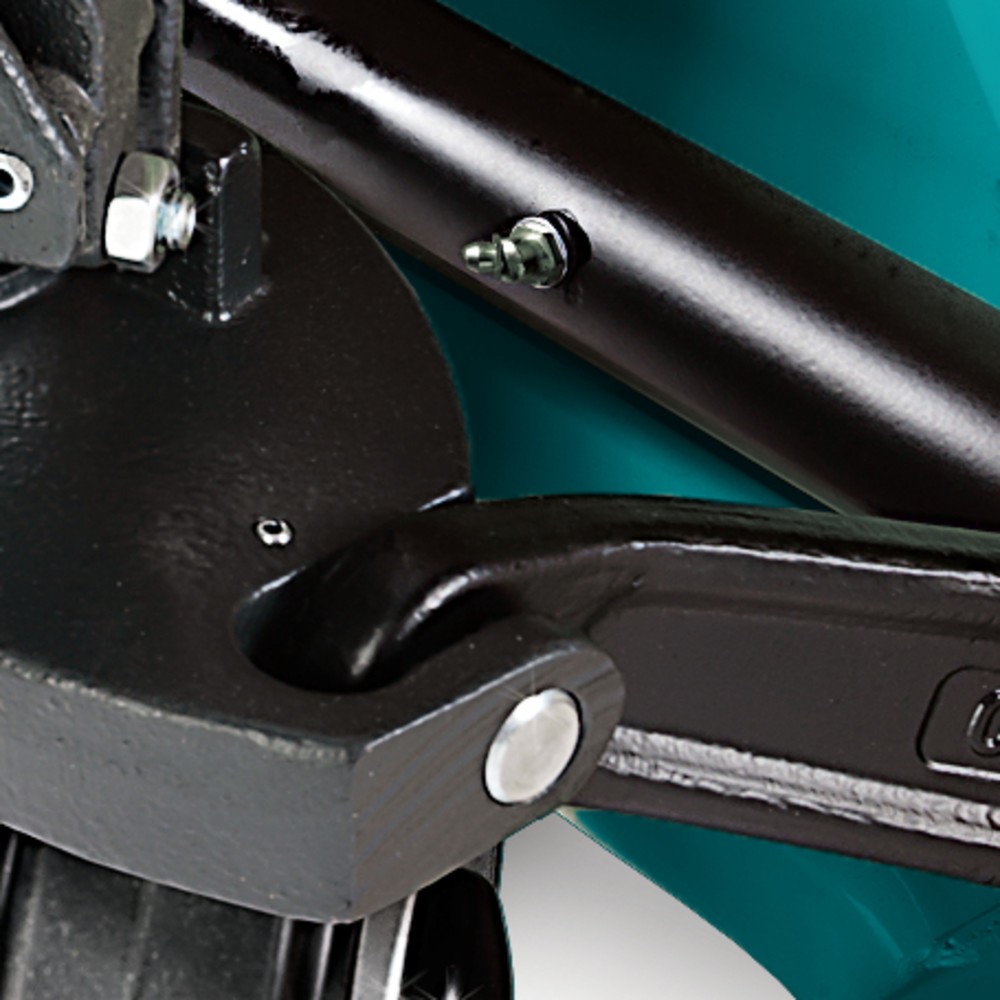

The tiller features a 210° steering angle, allowing the Ameise® pallet truck with quick lift to be manoeuvred with ease in even the tightest of spaces. Entry and exit rollers ensure easy pallet insertion and smooth running on uneven floors. The welded sectional steel frame is torsion-free and very hard wearing, allowing the pallet truck to retain its shape even under maximum load. Grease nipples are fitted for ease of maintenance and utmost durability.

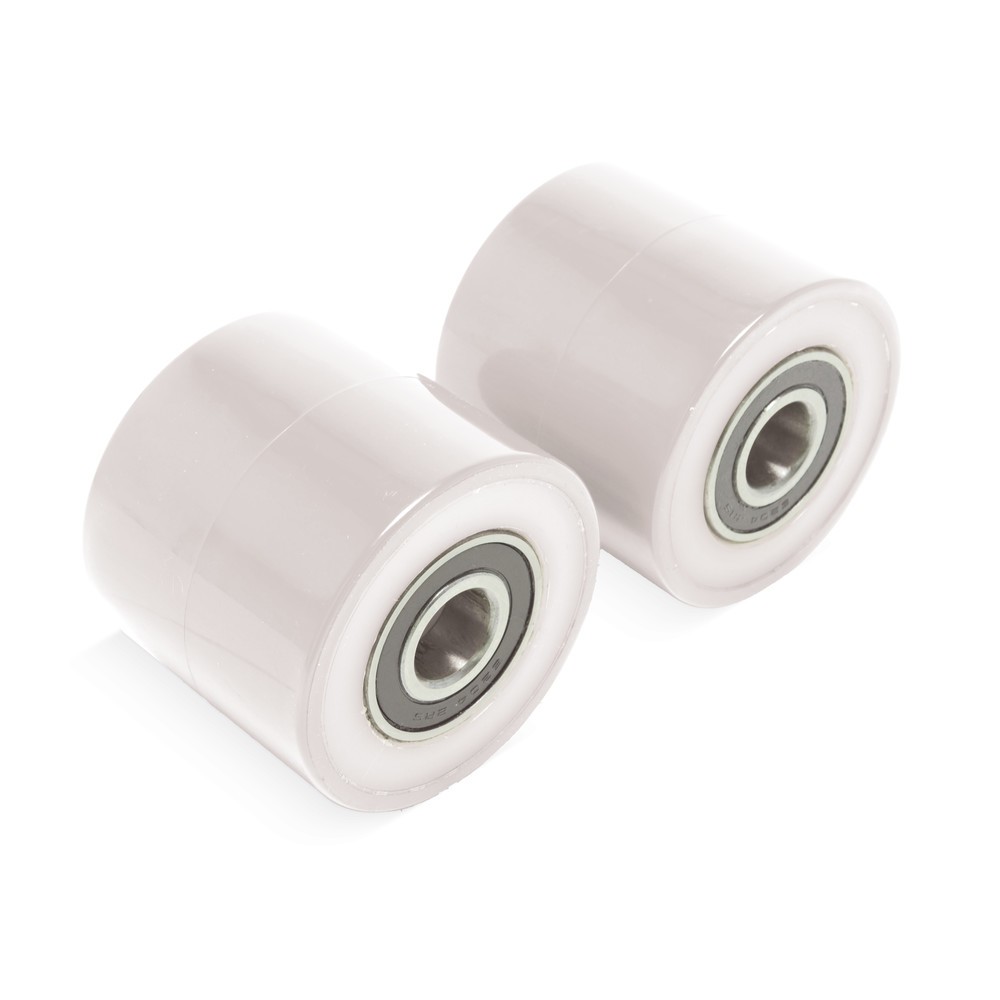

The solid steel parking brake is available as an optional accessory. This allows you to park the truck securely on sloping surfaces. Depending on the ground conditions and your specific application, you can choose between a range of tyre materials. You can also opt for single or tandem fork rollers.

Benefit from efficient pallet handling by ordering the Ameise® hand pallet truck with quick lift from our shop in your chosen configuration.
