Topseller
Item number:
197370
Ameise® PTM 2.0 hand pallet truck, capacity 2,000 kg, fork length 800 mm, solid rubber / polyurethane, tandem rollers
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
Ameise® PTM 2.0 hand pallet truck, capacity 2,000 kg, fork length 800 mm, solid rubber / polyurethane, tandem rollers
Article number: 197370 | EAN/GTIN: 4055091194868
| Aisle width | 1442 mm |
| Brand | Ameise® |
| Capacity | 2000 kg |
| Chassis RAL colour | RAL 5018 turquoise blue |
| Chassis surface | powder-coated |
| Control panel | right-handed |
| Drive | manual |
| Face of forks length | 390 mm |
| Fork height | 48 mm |
| Fork length | 800 mm |
| Fork roller diameter | 80 mm |
| Fork roller equipment | Tandem |
| Fork roller material | Polyurethane (PU) |
| Fork roller width | 70 mm |
| Fork support width | 540 mm |
| Fork width | 160 mm |
| Grease nipple | Yes |
| Ground clearance | 37 mm |
| Handle fittings | Steel |
| Hydraulic oil quantity | 0.3 l |
| Hydraulic oil type | Mineral oil |
| Hydraulic oil viscosity acc. to ISO-VG | 32 |
| Infeed rollers | Yes |
| Lift | 115 mm |
| Lift height per pump stroke | 7,5 mm |
| Lift range | 85 - 200 mm |
| Load centre | 400 mm |
| Lowering speed with/without load | 0,09 / 0,02 m/s |
| Model | Ameise® HPT A20 |
| Net weight | 61 kg |
| Operator type | Manual |
| Overall length | 1190 mm |
| Overall width | 540 mm |
| Pallet truck material | Steel |
| Pump strokes to max. lift height | 15 |
| Route | Short distance |
| Section | Performance |
| Steering wheel diameter | 200 mm |
| Steering wheel material | Solid rubber |
| Steering wheel width | 50 mm |
| Temperature range | 5 - 40 °C |
| Tiller RAL colour | RAL 7016 anthracite grey |
| Tiller height | 1250 mm |
| Tiller surface | powder-coated |
| Turning radius | 925 mm |
Item description
Ameise® PTM 2.0 hand pallet truck, capacity 2,000 kg, fork length 800 mm, solid rubber / polyurethane, tandem rollers
Article number: 197370 | EAN/GTIN: 4055091194868
Reliable all-rounder with short fork length for special applications

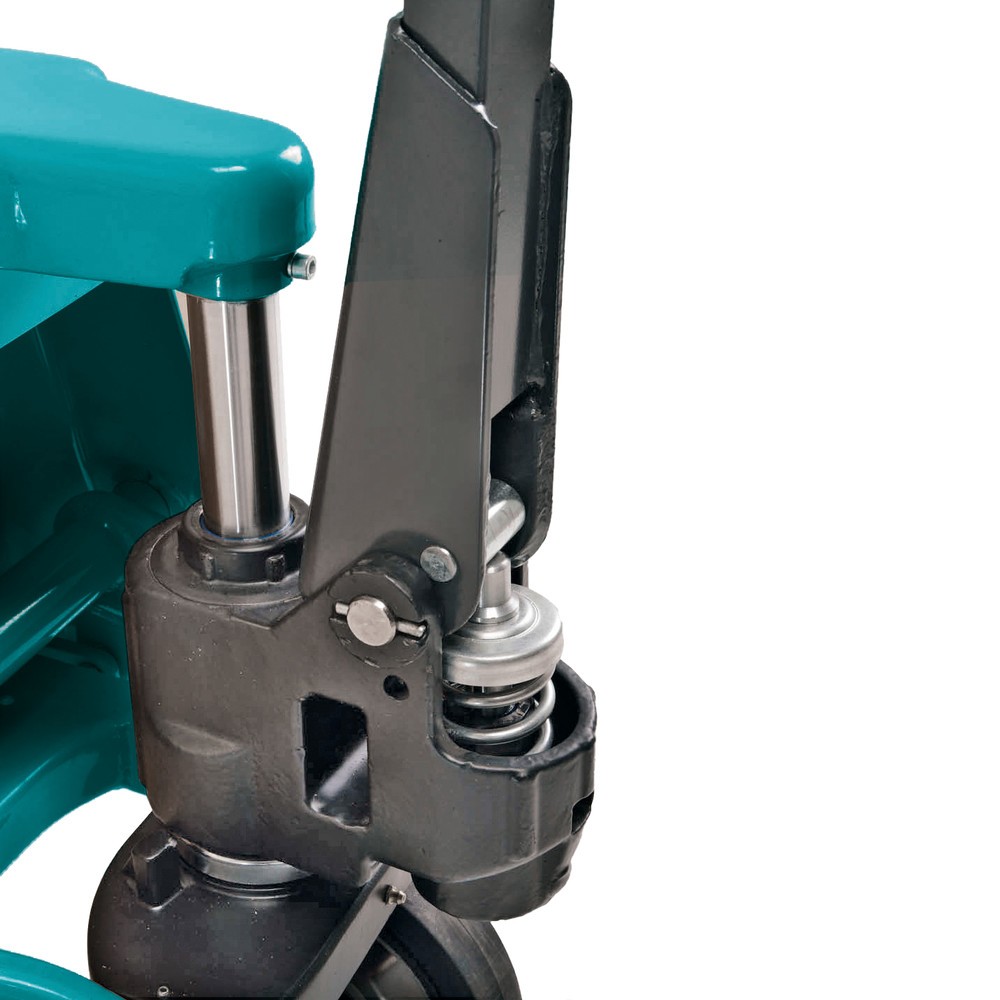

The Ameise® hand pallet truck with short forks and a capacity of 2000 kg is perfect for use in tight spaces. It is an ideal tool for transporting Euro, display, half and quarter pallets. Thanks to the small turning circle and short headlength, the pallet truck offers maximum agility and manoeuvrability in narrow aisles. It is also ideal for use on trucks. In terms of robustness and reliability, it is on a par with the standard length model. This is ensured by the durable high-performance hydraulic pump made from high-quality steel with chrome-plated pressure pistons.
The sectional steel frame with its welded construction is torsion-free and extremely hard-wearing, thus allowing the pallet truck to retain its shape even under the heaviest loads. A reinforced tiller ensures utmost stability and durability when turning and manoeuvring the truck. The ergonomic handle allows you to raise, move and lower your pallets with ease. The lowering speed of the load can be adjusted with fully variable precision via the hand lever.
Entry and exit rollers make for easy insertion and retraction from the pallet. The tandem fork rollers ensure smooth running on uneven floors and over thresholds. The Ameise® pallet truck with short forks is available with different fork lengths and tyre materials.
Even in its short-fork configuration, the Ameise® hand pallet truck represents a reliable product that is tried-and-tested in continuous daily use. Order the agile pallet truck with 2000 kg capacity from our shop in your chosen configuration.
The Ameise® hand pallet truck with short forks and a capacity of 2000 kg is perfect for use in tight spaces. It is an ideal tool for transporting Euro, display, half and quarter pallets. Thanks to the small turning circle and short headlength, the pallet truck offers maximum agility and manoeuvrability in narrow aisles. It is also ideal for use on trucks. In terms of robustness and reliability, it is on a par with the standard length model. This is ensured by the durable high-performance hydraulic pump made from high-quality steel with chrome-plated pressure pistons.
The sectional steel frame with its welded construction is torsion-free and extremely hard-wearing, thus allowing the pallet truck to retain its shape even under the heaviest loads. A reinforced tiller ensures utmost stability and durability when turning and manoeuvring the truck. The ergonomic handle allows you to raise, move and lower your pallets with ease. The lowering speed of the load can be adjusted with fully variable precision via the hand lever.
Entry and exit rollers make for easy insertion and retraction from the pallet. The tandem fork rollers ensure smooth running on uneven floors and over thresholds. The Ameise® pallet truck with short forks is available with different fork lengths and tyre materials.
Even in its short-fork configuration, the Ameise® hand pallet truck represents a reliable product that is tried-and-tested in continuous daily use. Order the agile pallet truck with 2000 kg capacity from our shop in your chosen configuration.
