Topseller
Item number:
197371
Ameise® PTM 2.0 hand pallet truck, capacity 2,000 kg, fork length 800 mm, polyurethane, tandem rollers
Tried-and-tested quality for optimum handling in tight spaces
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Buyer protection – Trusted Shops
Technical details
Ameise® PTM 2.0 hand pallet truck, capacity 2,000 kg, fork length 800 mm, polyurethane, tandem rollers
-
Aisle width1442 mm
-
BrandAmeise®
-
Capacity2000 kg
-
Chassis RAL colourRAL 5018 turquoise blue
-
Chassis surfacepowder-coated
-
Control panelright-handed
-
Drivemanual
-
Face of forks length390 mm
-
Fork height48 mm
-
Fork length800 mm
-
Fork roller diameter80 mm
-
Fork roller equipmentTandem
-
Fork roller materialPolyurethane (PU)
-
Fork roller width70 mm
-
Fork support width540 mm
-
Fork width160 mm
-
Grease nippleYes
-
Ground clearance37 mm
-
Handle fittingsSteel
-
Hydraulic oil quantity0.3 l
-
Hydraulic oil typeMineral oil
-
Hydraulic oil viscosity acc. to ISO-VG32
-
Infeed rollersYes
-
Lift115 mm
-
Lift height per pump stroke7,5 mm
-
Lift range85 - 200 mm
-
Load centre400 mm
-
Lowering speed with/without load0,09 / 0,02 m/s
-
ModelAmeise® HPT A20
-
Net weight61 kg
-
Operator typeManual
-
Overall length1190 mm
-
Overall width540 mm
-
Pallet truck materialSteel
-
Pump strokes to max. lift height15
-
RouteShort distance
-
SectionPerformance
-
Steering wheel diameter200 mm
-
Steering wheel materialPolyurethane (PU)
-
Steering wheel width50 mm
-
Temperature range5 - 40 °C
-
Tiller RAL colourRAL 7016 anthracite grey
-
Tiller height1250 mm
-
Tiller surfacepowder-coated
-
Turning radius925 mm
Item description

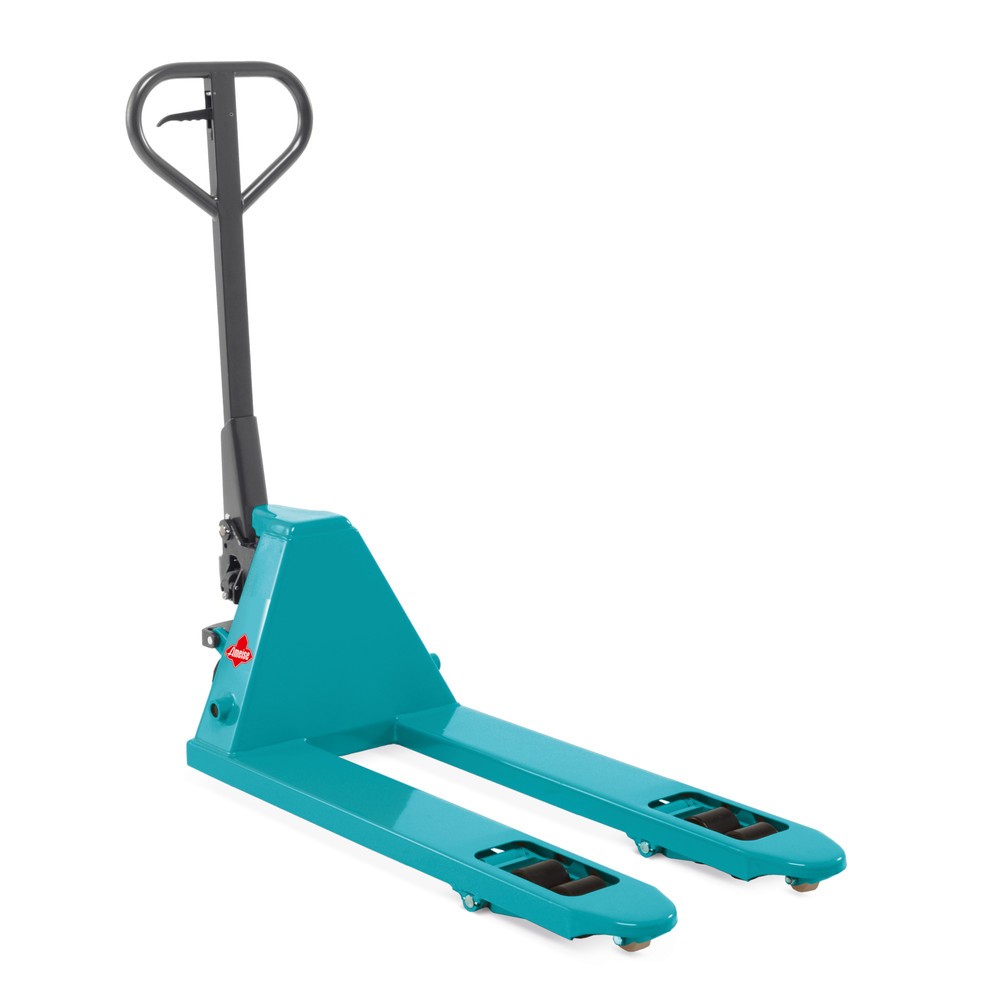

Ameise® PTM 2.0 hand pallet truck, capacity 2,000 kg, fork length 800 mm, polyurethane, tandem rollers
The Ameise® hand pallet truck with short fork length and a capacity of 2000 kg is perfect in tight spaces and designed for continuous use in industrial, production and trade environments. This all-rounder can also carry special pallets or be used on trucks.
- Durable high-performance hydraulic pump
- Reinforced sectional steel frame for maximum robustness
- Low maintenance thanks to grease nipples
- Easy pallet insertion thanks to entry and exit rollers
- Tandem fork rollers for uneven floors
Reliable all-rounder with short fork length for special applications

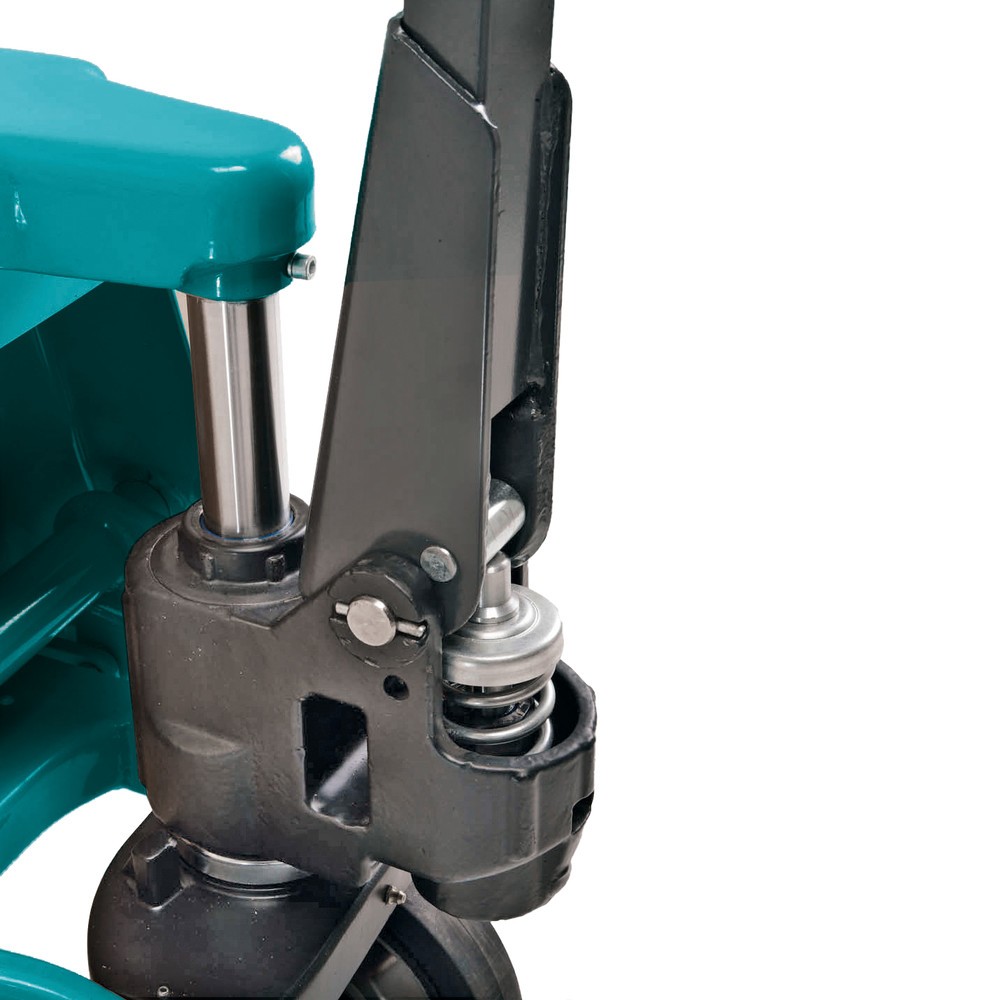

The Ameise® hand pallet truck with short forks and a capacity of 2000 kg is perfect for use in tight spaces. It is an ideal tool for transporting Euro, display, half and quarter pallets. Thanks to the small turning circle and short headlength, the pallet truck offers maximum agility and manoeuvrability in narrow aisles. It is also ideal for use on trucks. In terms of robustness and reliability, it is on a par with the standard length model. This is ensured by the durable high-performance hydraulic pump made from high-quality steel with chrome-plated pressure pistons.
The sectional steel frame with its welded construction is torsion-free and extremely hard-wearing, thus allowing the pallet truck to retain its shape even under the heaviest loads. A reinforced tiller ensures utmost stability and durability when turning and manoeuvring the truck. The ergonomic handle allows you to raise, move and lower your pallets with ease. The lowering speed of the load can be adjusted with fully variable precision via the hand lever.

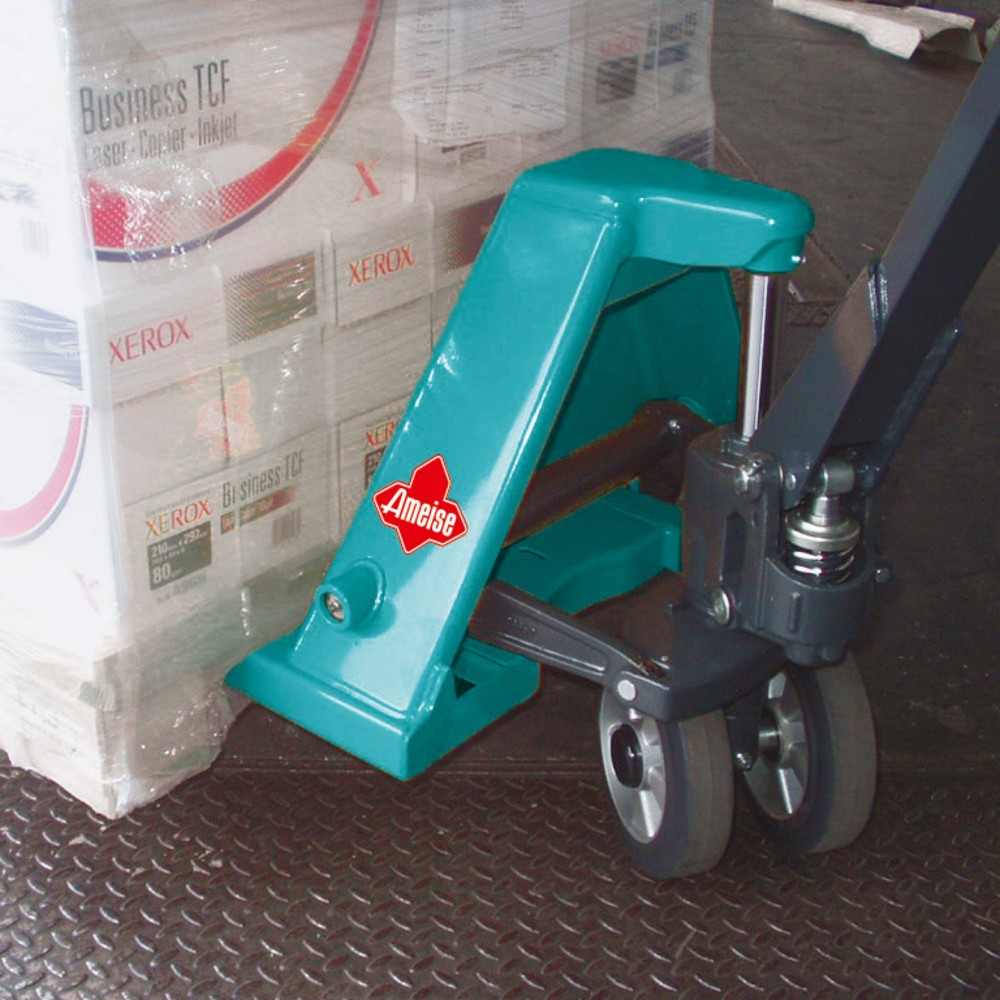

Entry and exit rollers make for easy insertion and retraction from the pallet. The tandem fork rollers ensure smooth running on uneven floors and over thresholds. The Ameise® pallet truck with short forks is available with different fork lengths and tyre materials.
Even in its short-fork configuration, the Ameise® hand pallet truck represents a reliable product that is tried-and-tested in continuous daily use. Order the agile pallet truck with 2000 kg capacity from our shop in your chosen configuration.
The Ameise® hand pallet truck with short forks and a capacity of 2000 kg is perfect for use in tight spaces. It is an ideal tool for transporting Euro, display, half and quarter pallets. Thanks to the small turning circle and short headlength, the pallet truck offers maximum agility and manoeuvrability in narrow aisles. It is also ideal for use on trucks. In terms of robustness and reliability, it is on a par with the standard length model. This is ensured by the durable high-performance hydraulic pump made from high-quality steel with chrome-plated pressure pistons.
The sectional steel frame with its welded construction is torsion-free and extremely hard-wearing, thus allowing the pallet truck to retain its shape even under the heaviest loads. A reinforced tiller ensures utmost stability and durability when turning and manoeuvring the truck. The ergonomic handle allows you to raise, move and lower your pallets with ease. The lowering speed of the load can be adjusted with fully variable precision via the hand lever.
Entry and exit rollers make for easy insertion and retraction from the pallet. The tandem fork rollers ensure smooth running on uneven floors and over thresholds. The Ameise® pallet truck with short forks is available with different fork lengths and tyre materials.
Even in its short-fork configuration, the Ameise® hand pallet truck represents a reliable product that is tried-and-tested in continuous daily use. Order the agile pallet truck with 2000 kg capacity from our shop in your chosen configuration.
