Ameise® PTM 2.0 Scale weighing pallet truck featuring display on tiller head, load capacity 2,000 kg, tandem rollers
For industrial use with ergonomically positioned weighing display
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
Ameise® PTM 2.0 Scale weighing pallet truck featuring display on tiller head, load capacity 2,000 kg, tandem rollers
Article number: 484564 | EAN/GTIN: 4055091316512
| Battery capacity | 5,2 Ah/per unit |
| Battery voltage | 3.7 V/per unit |
| Brand | Ameise® |
| Capacity | 2000 kg |
| Charger | external |
| Chassis RAL colour | RAL 5018 turquoise blue |
| Chassis surface | powder-coated |
| Control panel | right-handed |
| Digit unit | bis 500 kg in 500 g-Schritten bis 2.000 kg in 1.000 g-Schritten |
| Drive | manual |
| Fork length | 1150 mm |
| Fork roller diameter | 74 mm |
| Fork roller equipment | Tandem |
| Fork roller material | Polyurethane (PU) |
| Fork roller width | 70 mm |
| Fork support width | 170 mm |
| Fork width | 180 mm |
| Ground clearance | 22 mm |
| Handle fittings | Rubber sheath |
| Hydraulic oil quantity | 0.3 l |
| Hydraulic oil type | Mineral oil |
| Hydraulic oil viscosity acc. to ISO-VG | 32 |
| IP protection type display | IP 65 |
| IP protection type measuring cells | IP 65 |
| Lift | 110 mm |
| Lift height per pump stroke | 18 mm |
| Lift range | 90 - 200 mm |
| Load centre | 600 mm |
| Measuring tolerance | 0.1 % |
| Net weight | 104 kg |
| No. of batteries | 2 |
| Operator type | Manual |
| Overall length | 1560 mm |
| Overall width | 555 mm |
| Pallet truck material | Steel |
| Power supply scale | Lithium-ion |
| Pump strokes to lift pallet | 2 |
| Pump strokes to max. lift height | 6 |
| Rapid lift | Yes |
| Route | Short distance |
| Scale type | digital |
| Section | Performance |
| Steering radius | 110 ° |
| Steering wheel diameter | 180 mm |
| Steering wheel material | Solid rubber |
| Temperature range | -10 - 40 °C |
| Tiller RAL colour | RAL 9005 deep black |
| Tiller height | 1210 mm |
| Tiller surface | powder-coated |
| Turning radius | 1350 mm |
| Weighing range | 500 / 2.000 kg |
| Zero adjustment via keyboard | Yes |
Item description
Ameise® PTM 2.0 Scale weighing pallet truck featuring display on tiller head, load capacity 2,000 kg, tandem rollers
Article number: 484564 | EAN/GTIN: 4055091316512
The PTM 2.0 Scale weighing pallet truck is extremely ergonomic and user friendly, as the innovative, easy-to-operate weighing display is mounted directly on the tiller handle. The weighing pallet truck assists you with transporting and weighing loads of up to 2,000 kg. The precise weight determination with max. 0.1% deviation from the measured weight and the multi-range display with 0.5 and 1 kg display increments make this mobile weighing station ideal for industrial use.

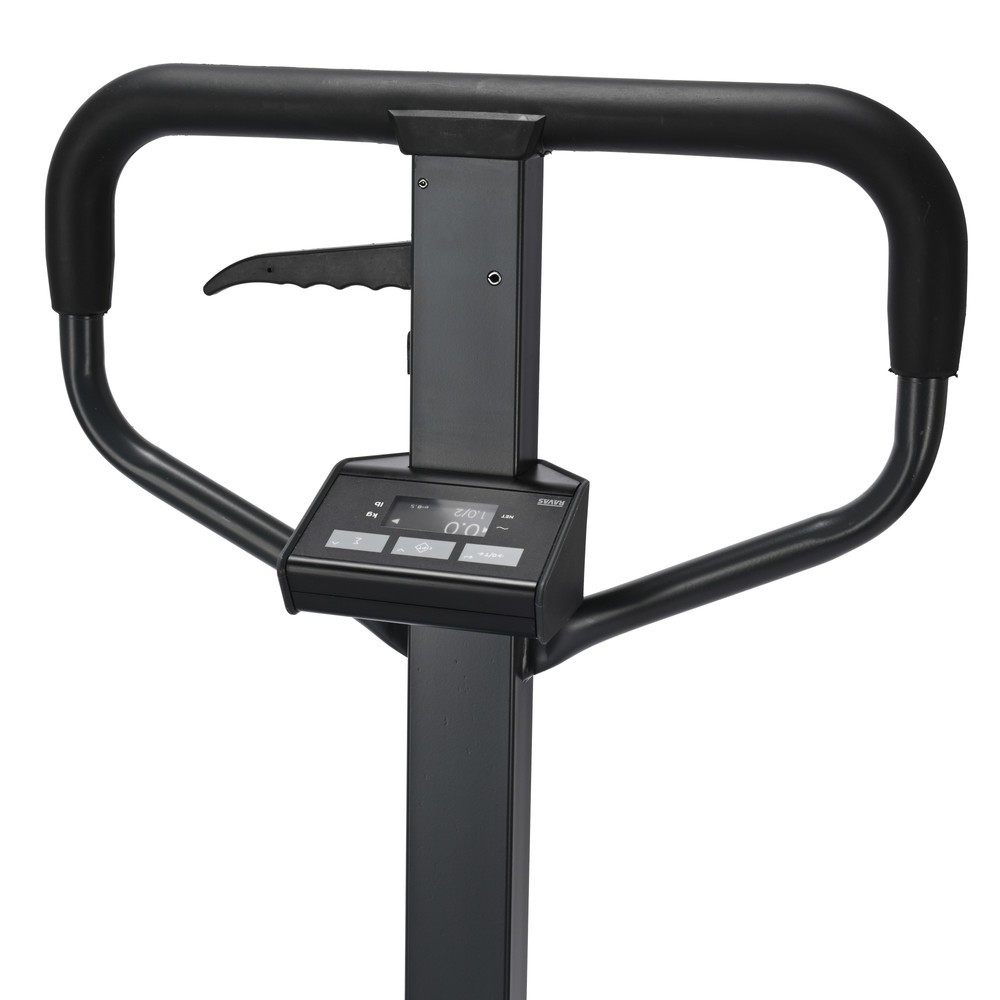

- Ergonomic weighing display mounted on the tiller handle
- Multi-range display (0 to 500 kg in 0.5 kg increments, 500 to 2,000 kg in 1 kg increments)
- Max. 0.1% deviation from measured weight
- Automatic and manual zero correction
- Automatic tare and manual tare entry
- Totals memory with sequential numbering
- 4 weighing cells connected to the display via Bluetooth
- Integrated inclination compensation
- E-Paper display with low power consumption (2 AA batteries)
- Sleep mode with automatic startup on movement
- Waterproof for outdoor use in accordance with IP 65
- Quick lift function up to 120 kg
The mobile, ergonomic weighing solution for industrial use
With the Ameise® PTM 2.0 Scale weighing pallet truck, you are opting for a mobile weighing system that assists you when transporting and weighing loads of up to 2,000 kg. User-friendliness and reliability are the focus of this weighing pallet truck. Whether you are checking incoming goods, determining shipping weights or avoiding HGV overloads – this mobile weighing station will optimise your logistics. Positioned directly on the tiller head, the weighing display ensures an ergonomic working position and is easy to operate with its symbol-based display.
The precise measurement results with max. 0.1% deviation from the measured weight and the multi-range display with 0.5 and 1 kg display increments make the PTM 2.0 Scale ideal for industrial use. The weighing unit features include automatic and manual zero correction, gross / net weight display, automatic tare and tare preset as well as a totals memory with sequential numbering.

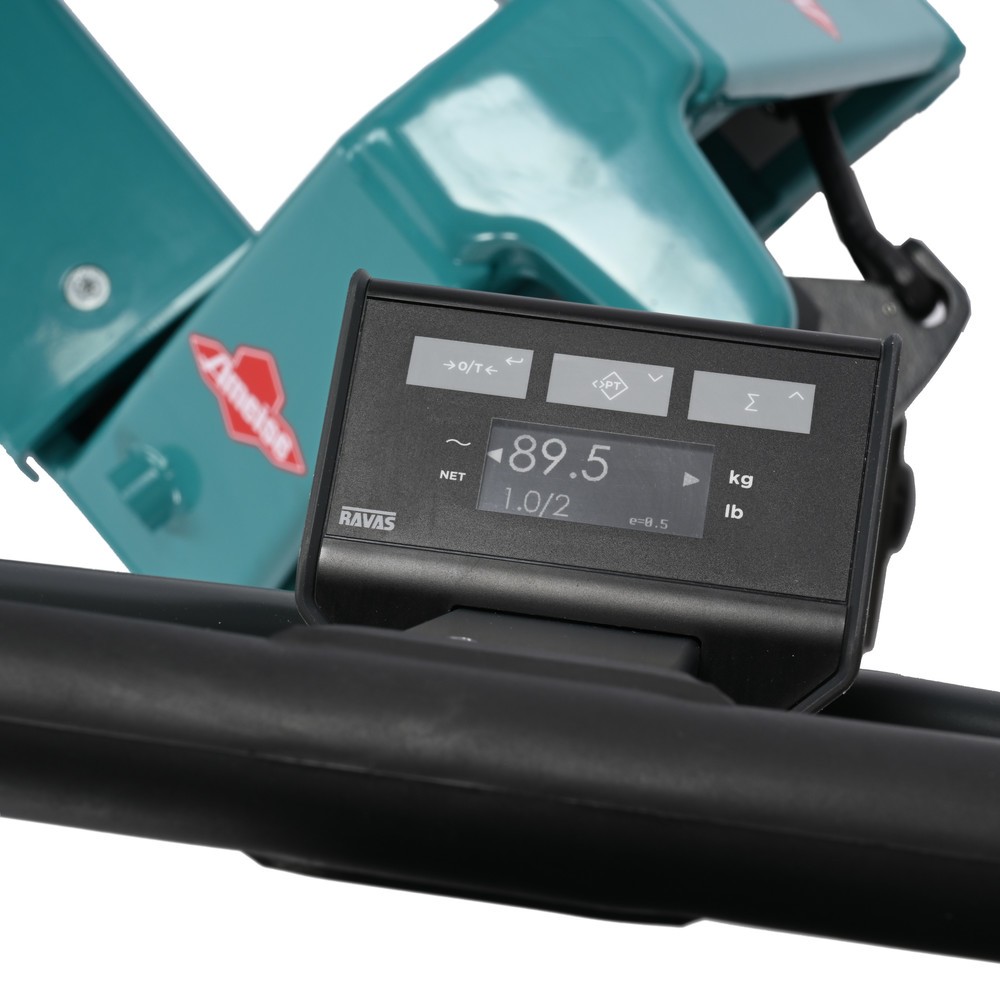

The innovative E-Paper display optimises readability and reduces eye strain. It does not emit the light itself; it reflects it like ordinary paper. As a result, the display offers impressively low power consumption with the 2 AA batteries lasting over a year. The weighing system is powered by an internal rechargeable Li-ion battery, which ensures a long operating time. A magnetic USB-C charger is included in the scope of delivery. The pallet truck with integrated scale wakes automatically from energy-saving sleep mode when it is in motion and the transition to transport mode also serves to reduce power consumption. The long-life lithium-ion battery also powers the integrated System Care package, which boasts innovative functions such as an overload warning, a warning in the event of a weighing-cell malfunction and integrated inclination compensation. The IP 65 protection rating of the weighing system allows you to use the weighing pallet truck safely outdoors, even in the rain.

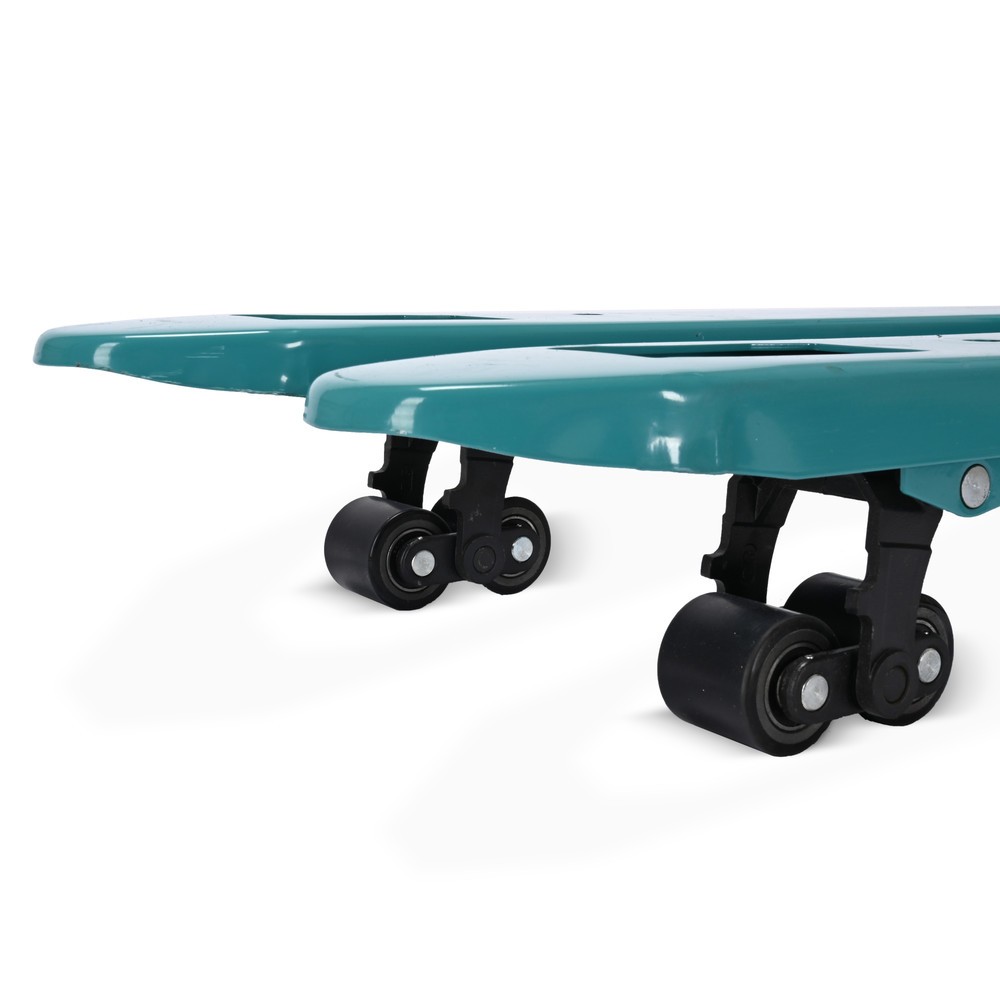

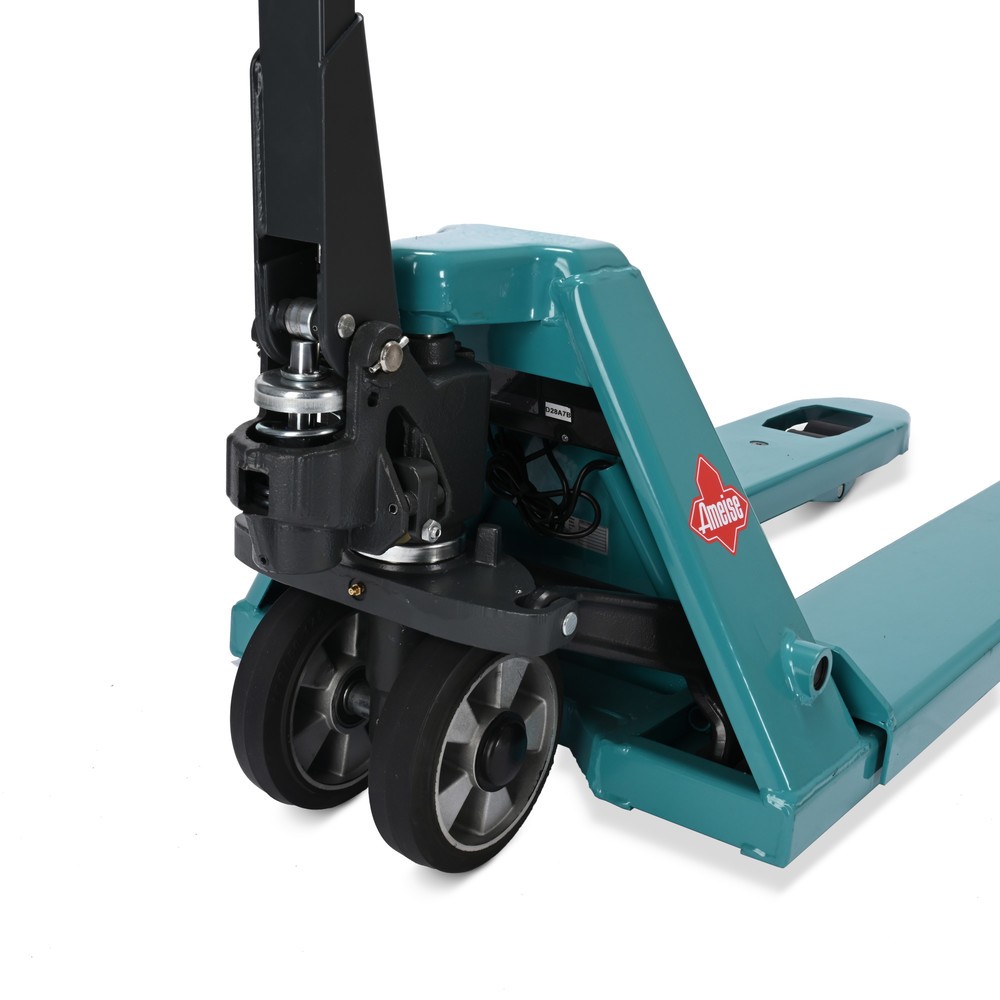

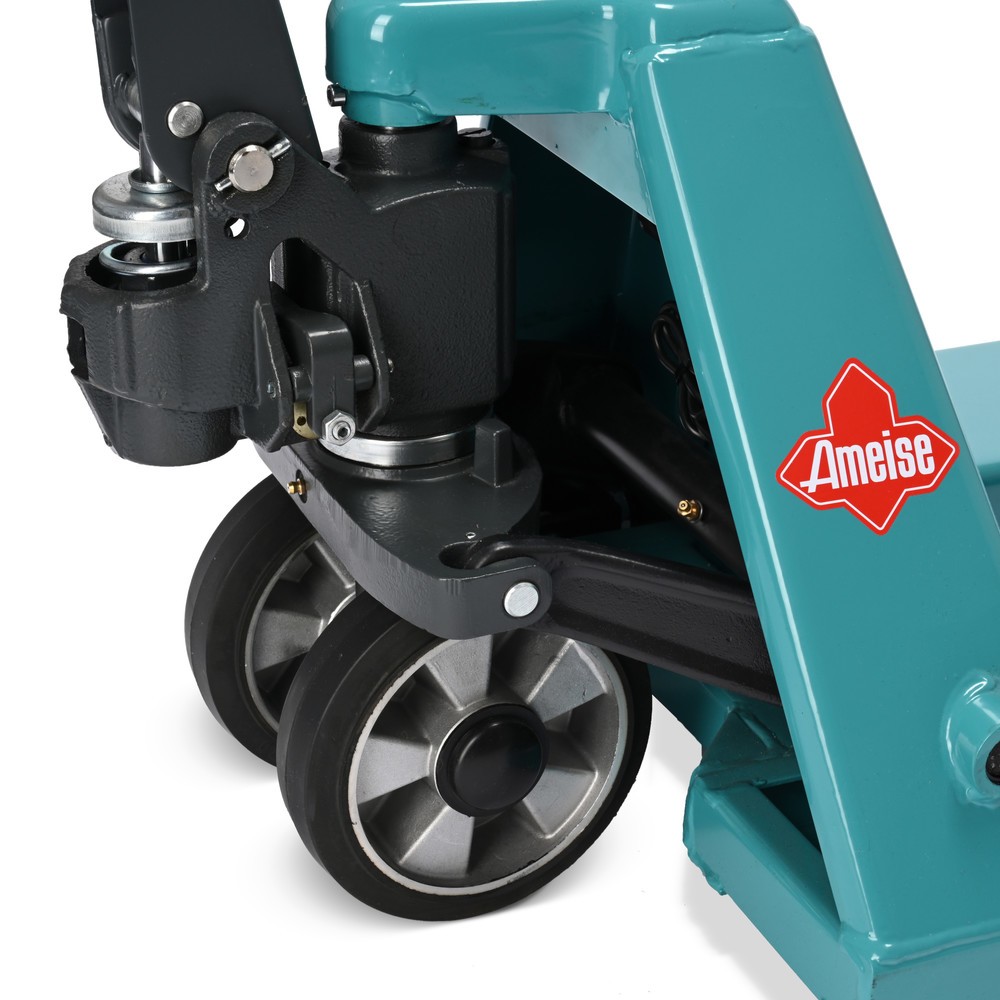

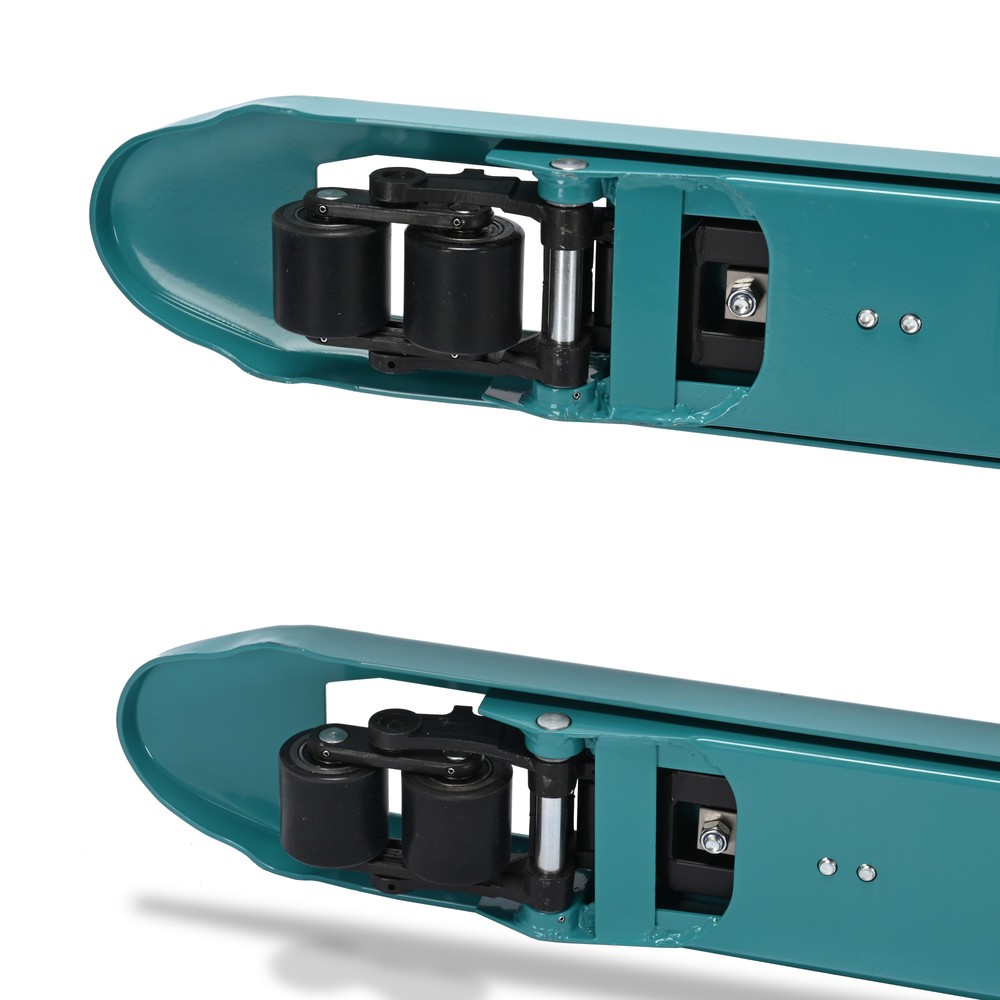

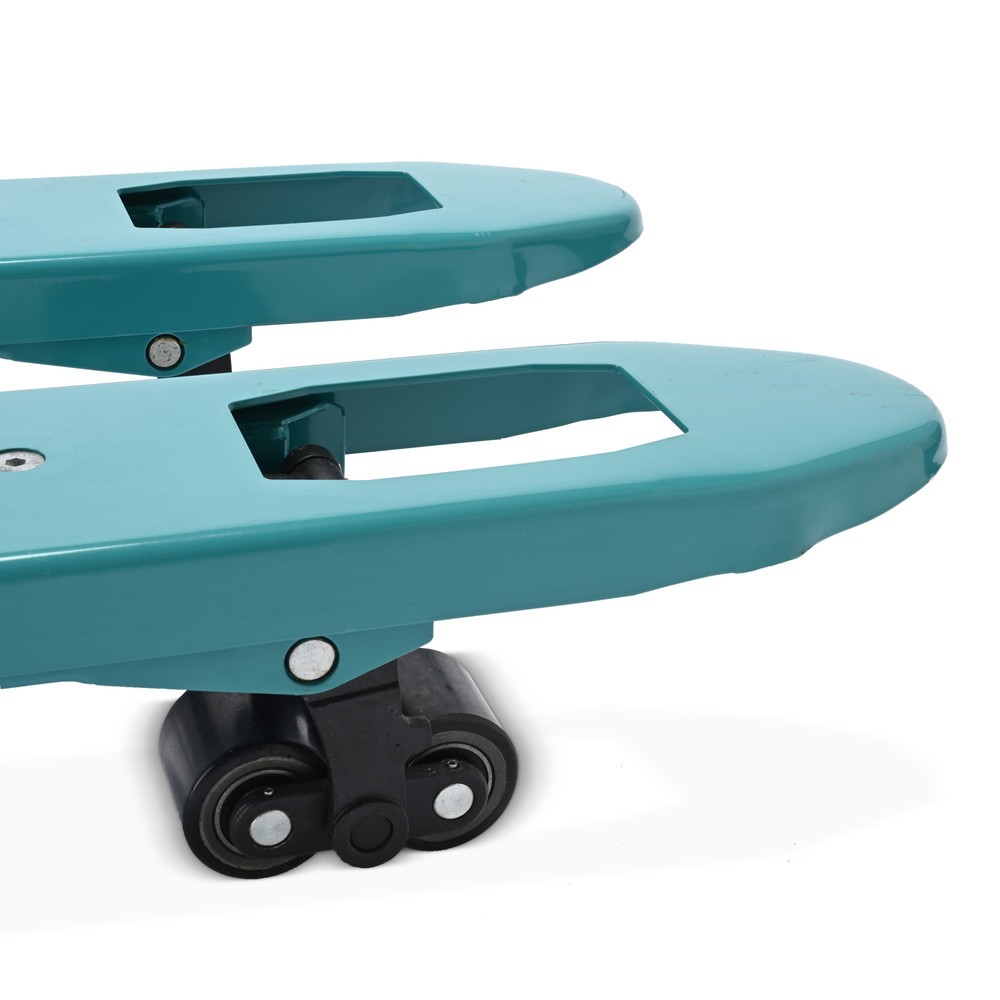

The robust pallet truck offers tried and tested Ameise® quality. The durable high-performance hydraulic pump is made from high-quality steel with hard chrome-plated pressure pistons to cope with the rigours of continuous daily use. The quick lift function up to 120 kg saves you time and energy during everyday pallet handling. The steering castors with solid rubber tyres combined with the polyurethane fork rollers ensure comfortable, low-noise travel with perfect grip. Depending on the ground conditions, you can choose between single or tandem rollers.
See the benefits of a mobile and ergonomic weighing system for yourself. Order the intelligent Ameise® PTM 2.0 Scale weighing pallet truck with display on the tiller head in the fork roller variant that you require right here in the shop.
