Item number: 197378

Ameise® PTM 2.5 hand pallet truck, capacity 2,500 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers

Tried-and-tested industry standard with high capacity
Go to product description
  • Ameise®
  • Performance

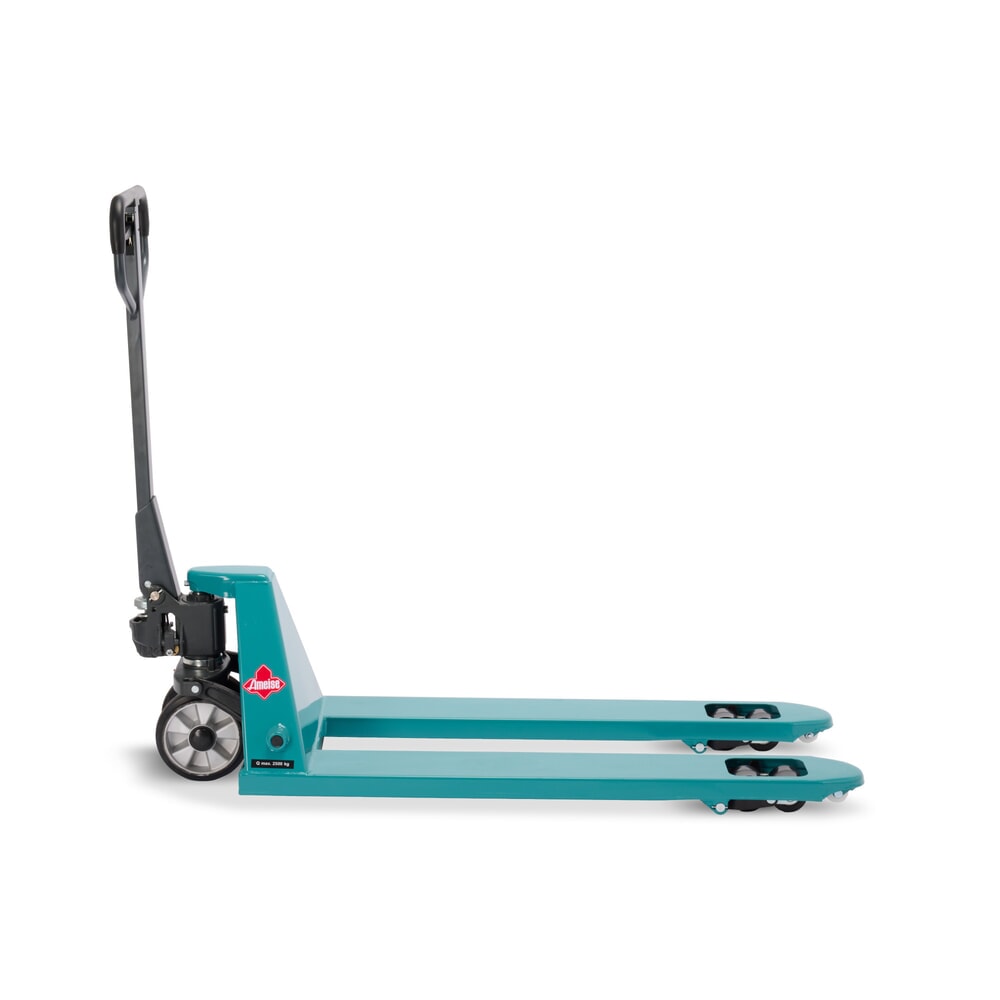

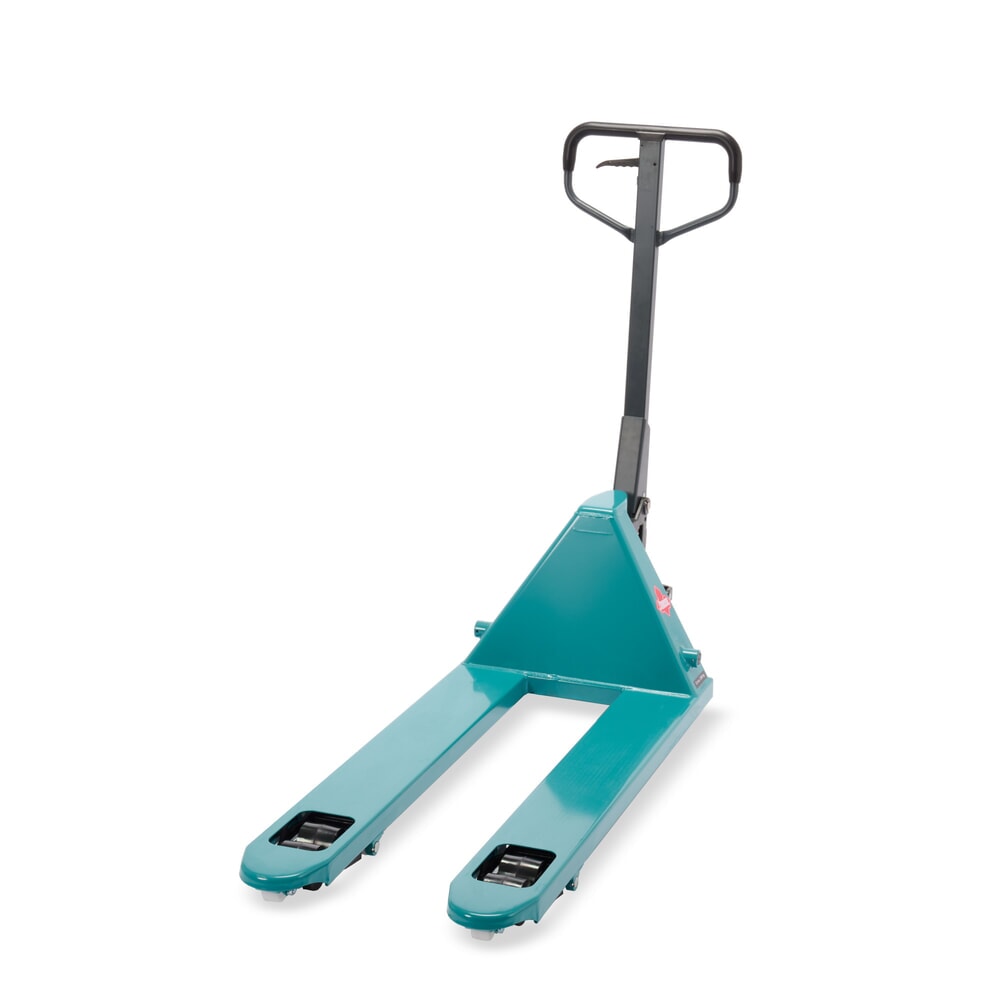

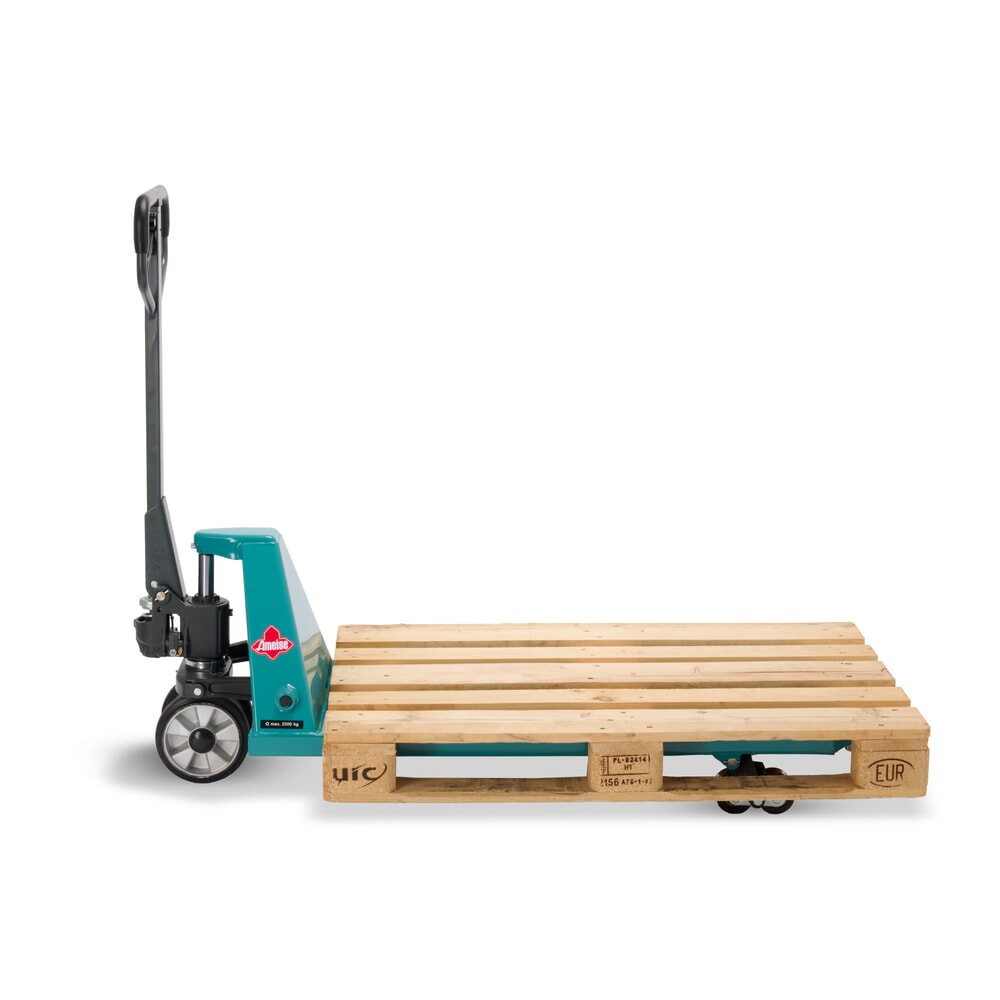

Produktabbildung Nr. 1: Ameise® PTM 2.5 hand pallet truck, capacity 2,500 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers
Produktabbildung Nr. 2: Ameise® PTM 2.5 hand pallet truck, capacity 2,500 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers
Produktabbildung Nr. 3: Ameise® PTM 2.5 hand pallet truck, capacity 2,500 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers
Produktabbildung Nr. 4: Ameise® PTM 2.5 hand pallet truck, capacity 2,500 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers
Produktabbildung Nr. 5: Ameise® PTM 2.5 hand pallet truck, capacity 2,500 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers
Produktabbildung Nr. 6: Ameise® PTM 2.5 hand pallet truck, capacity 2,500 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers
Produktabbildung Nr. 7: Ameise® PTM 2.5 hand pallet truck, capacity 2,500 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers
Produktabbildung Nr. 8: Ameise® PTM 2.5 hand pallet truck, capacity 2,500 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers
Produktabbildung Nr. 9: Ameise® PTM 2.5 hand pallet truck, capacity 2,500 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers
Produktabbildung Nr. 10: Ameise® PTM 2.5 hand pallet truck, capacity 2,500 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers
Produktabbildung Nr. 11: Ameise® PTM 2.5 hand pallet truck, capacity 2,500 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers
Produktabbildung Nr. 12: Ameise® PTM 2.5 hand pallet truck, capacity 2,500 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers
Produktabbildung Nr. 13: Ameise® PTM 2.5 hand pallet truck, capacity 2,500 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers
Anzeige von Produktabbildung Nr. 1
Anzeige von Produktabbildung Nr. 2
Anzeige von Produktabbildung Nr. 3
Anzeige von Produktabbildung Nr. 4
Anzeige von Produktabbildung Nr. 5
Anzeige von Produktabbildung Nr. 6
Anzeige von Produktabbildung Nr. 7
Anzeige von Produktabbildung Nr. 8
Anzeige von Produktabbildung Nr. 9
Anzeige von Produktabbildung Nr. 10
Anzeige von Produktabbildung Nr. 11
Anzeige von Produktabbildung Nr. 12
Anzeige von Produktabbildung Nr. 13
Select variant:
Capacity:
Fork length:
Fork roller equipment:

8 Working days

£420.00

per pcs excl. VAT plus shipping

Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice

Technical details

Ameise® PTM 2.5 hand pallet truck, capacity 2,500 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers

  1. Aisle width
    1792 mm
  2. Brand
    Ameise®
  3. Capacity
    2500 kg
  4. Chassis RAL colour
    RAL 5018 turquoise blue
  5. Chassis surface
    powder-coated
  6. Control panel
    right-handed
  7. Drive
    manual
  8. Face of forks length
    390 mm
  9. Fork height
    85 mm
  10. Fork length
    1150 mm
  11. Fork roller diameter
    80 mm
  12. Fork roller equipment
    Tandem
  13. Fork roller material
    Polyurethane (PU)
  14. Fork roller width
    70 mm
  15. Fork support width
    540 mm
  16. Fork width
    160 mm
  17. Grease nipple
    Yes
  18. Ground clearance
    37 mm
  19. Handle fittings
    Rubber sheath
  20. Hydraulic oil quantity
    0.3 l
  21. Hydraulic oil type
    Mineral oil
  22. Hydraulic oil viscosity acc. to ISO-VG
    32
  23. Infeed rollers
    Yes
  24. Lift
    115 mm
  25. Lift height per pump stroke
    7,5 mm
  26. Lift range
    85 - 200 mm
  27. Load centre
    600 mm
  28. Lowering speed with/without load
    0,09 / 0,02 m/s
  29. Model
    Ameise® HPT A25
  30. Net weight
    67 kg
  31. Operator type
    Manual
  32. Overall length
    1540 mm
  33. Overall width
    540 mm
  34. Pallet truck material
    Steel
  35. Pump strokes to max. lift height
    15
  36. Route
    Short distance
  37. Section
    Performance
  38. Steering radius
    210 °
  39. Steering wheel diameter
    200 mm
  40. Steering wheel material
    Solid rubber
  41. Steering wheel width
    50 mm
  42. Temperature range
    5 - 40 °C
  43. Tiller RAL colour
    RAL 7016 anthracite grey
  44. Tiller height
    1230 mm
  45. Tiller surface
    powder-coated
  46. Turning radius
    1275 mm

Item description

Ameise® PTM 2.5 hand pallet truck, capacity 2,500 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers

The robust and reliable Ameise® hand pallet truck is a real all-rounder that has proven its worth in continuous daily use. With a capacity of 2500 kg or 3000 kg and fork length of 1150, the Ameise® pallet truck has established itself as the industry standard for transporting Euro pallets in industrial, production and trade environments.
  • Durable high-performance hydraulic pump
  • Low maintenance thanks to grease nipples
  • Durable, torsion-free sectional steel frame
  • Compact and agile in even the tightest of spaces
  • Easy pallet insertion thanks to entry and exit rollers
Ameise® quality for continuous daily use - now with 2500 kg or 3000 kg capacity

The Ameise® hand pallet truck with standard fork length and 2500/3000 kg capacity impresses with its robust quality. This makes it ideal for all your daily pallet transport tasks.

The all-rounder boasts a durable, high-performance hydraulic pump made from high-quality steel with chrome-plated pressure pistons. The maintenance-free manual hydraulics are characterised by their oil-tight and waterproof hydraulic system. The welded, sectional steel frame is torsion-free and extremely hard-wearing. As a result, the pallet truck retains its shape even when carrying heavy loads. The reinforced tiller ensures maximum stability and durability when turning and manoeuvring the truck.

The ergonomic handle allows you to raise, move and lower your pallets with ease. The lowering speed of the load can be adjusted with fully variable precision via the hand lever. The tiller features a 210° steering angle, allowing the Ameise® pallet truck to be manoeuvred with ease in even the tightest of spaces.

The fork tips are equipped with additional entry and exit rollers for smooth running over thresholds and easy insertion into pallets. The Ameise® hand pallet truck with 2500 kg or 3000 kg capacity is available with a range of different tyres and roller types. Tandem rollers ensure easier handling and reduce point loading, especially in the case of uneven floors or when picking up pallets from the side.

The Ameise® hand pallet truck with 2500/3000 kg capacity is designed for continuous daily use. Purchase the hand pallet truck from our shop in your chosen configuration.
