Ameise® PTM 2.5 Cross 4-way hand pallet truck, load capacity 2,500/1,500 kg, fork length 1,150 mm, polyurethane
Mobility in all 4 directions - load capacity up to 2,500 kg or 1,500 kg for lateral movement
Technical details
Ameise® PTM 2.5 Cross 4-way hand pallet truck, load capacity 2,500/1,500 kg, fork length 1,150 mm, polyurethane
Article number: 197333 | EAN/GTIN: 4055091194509
| 4 ways | Yes |
| Aisle width | 1792 mm |
| Brand | Ameise® |
| Capacity | 2500 kg |
| Capacity with sideways motion | 1500 kg |
| Chassis RAL colour | RAL 5018 turquoise blue |
| Chassis surface | powder-coated |
| Control panel | right-handed |
| Drive | manual |
| Face of forks length | 390 mm |
| Fork height | 48 mm |
| Fork length | 1150 mm |
| Fork roller diameter | 65 mm |
| Fork roller equipment | Single |
| Fork roller material | Polyurethane (PU) |
| Fork roller width | 60 mm |
| Fork support width | 540 mm |
| Fork width | 160 mm |

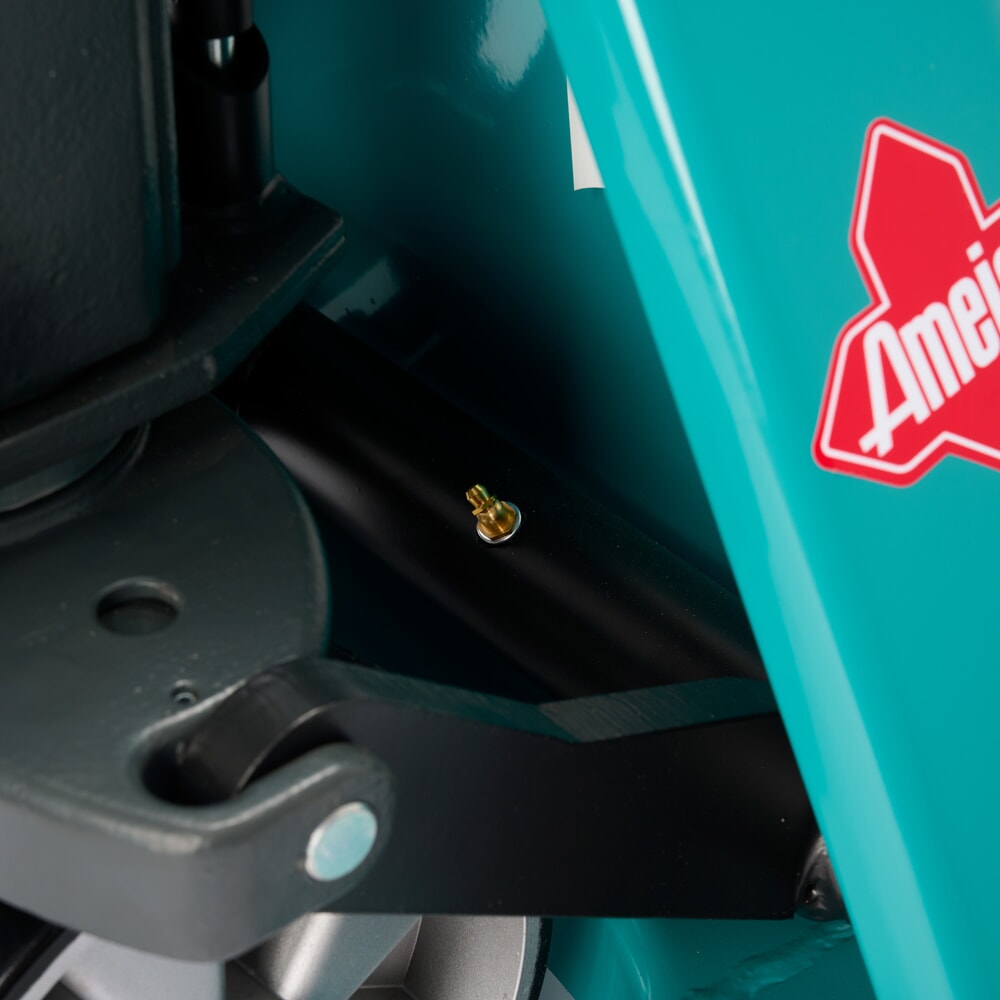

| Grease nipple | Yes |
| Ground clearance | 37 mm |
| Handle fittings | Rubber sheath |
| Hydraulic oil quantity | 0.3 l |
| Hydraulic oil type | Mineral oil |
| Hydraulic oil viscosity acc. to ISO-VG | 32 |
| Infeed rollers | Yes |
| Lift | 125 mm |
| Lift height per pump stroke | 7,5 mm |
| Lift range | 85 - 210 mm |
| Load centre | 600 mm |
| Model | Ameise® AC Two |
| Net weight | 73 kg |
| Operator type | Manual |
| Overall length | 1545 mm |
| Overall width | 540 mm |
| Pallet truck material | Steel |
| Route | Short distance |
| Section | Performance |
| Steering wheel diameter | 200 mm |
| Steering wheel material | Polyurethane (PU) |
| Steering wheel width | 50 mm |
| Temperature range | 5 - 40 °C |
| Tiller RAL colour | RAL 7016 anthracite grey |
| Tiller height | 1230 mm |
| Tiller surface | powder-coated |
| Turning radius | 1275 mm |
Item description
Ameise® PTM 2.5 Cross 4-way hand pallet truck, load capacity 2,500/1,500 kg, fork length 1,150 mm, polyurethane
Article number: 197333 | EAN/GTIN: 4055091194509

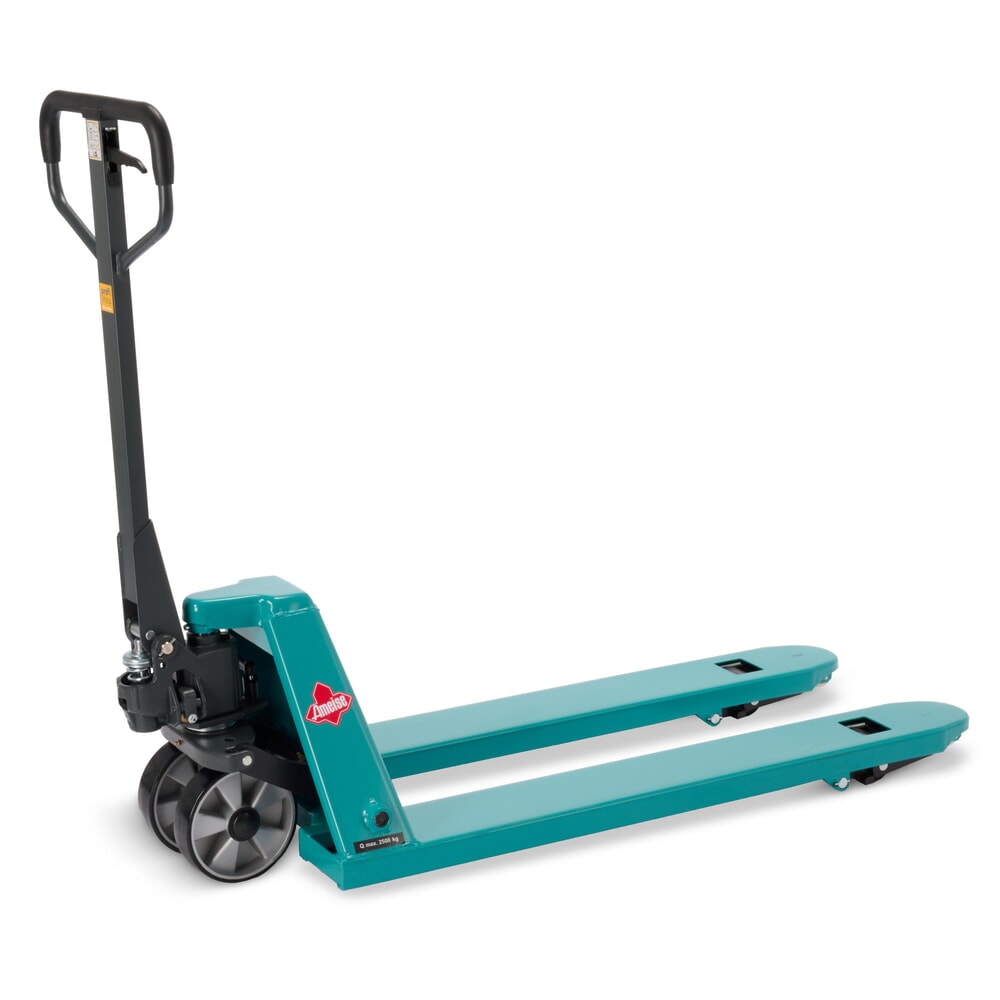

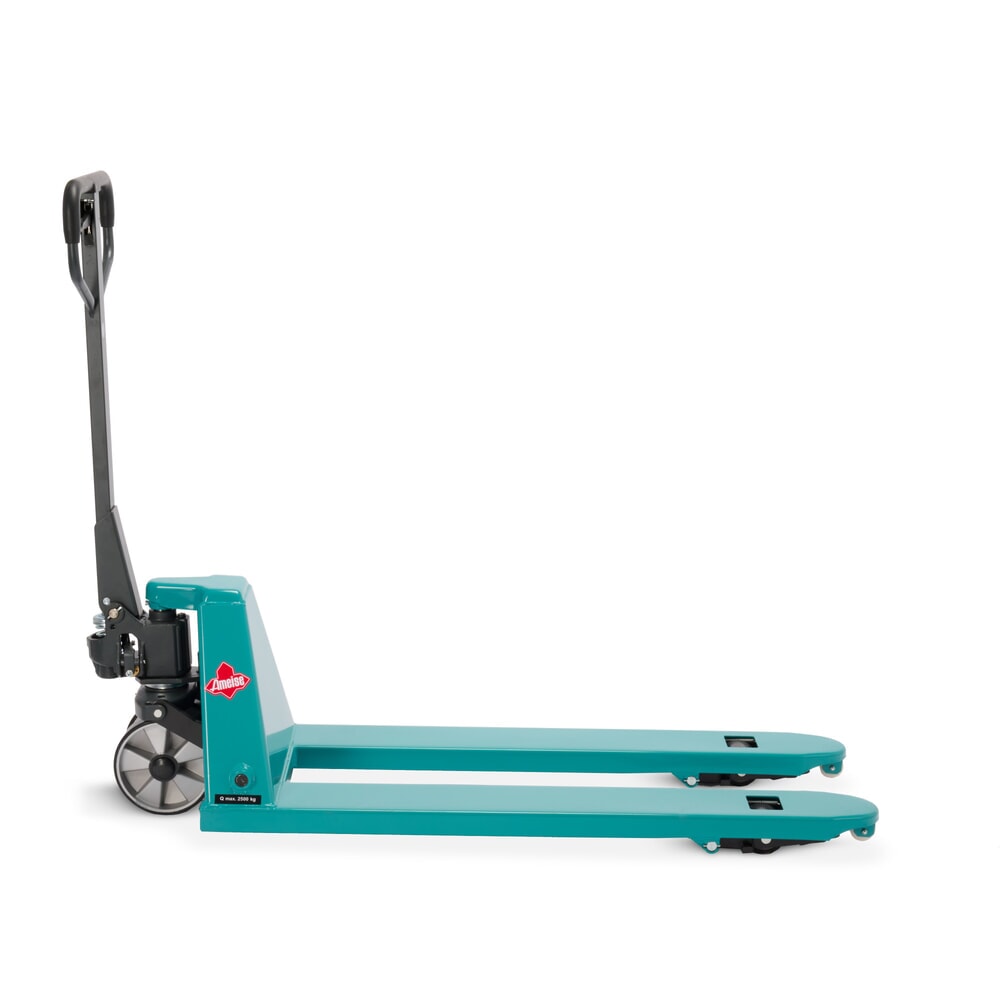

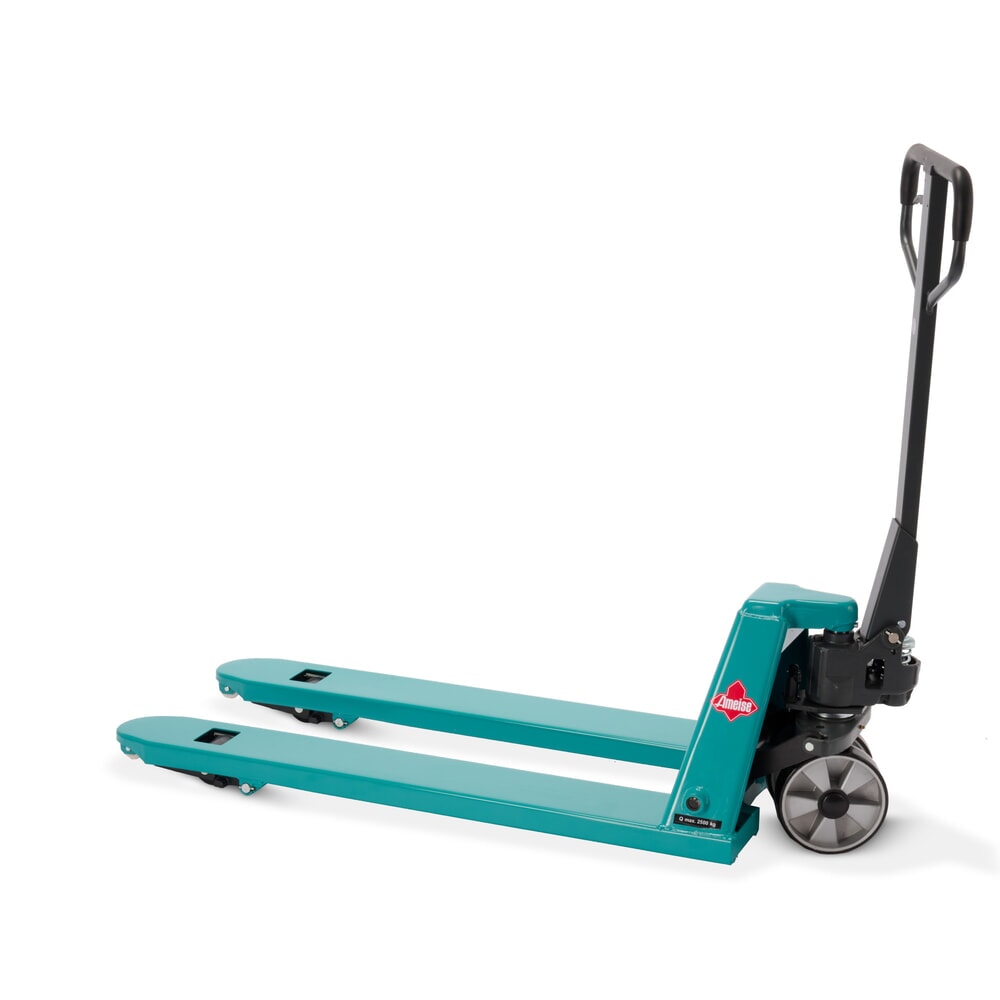

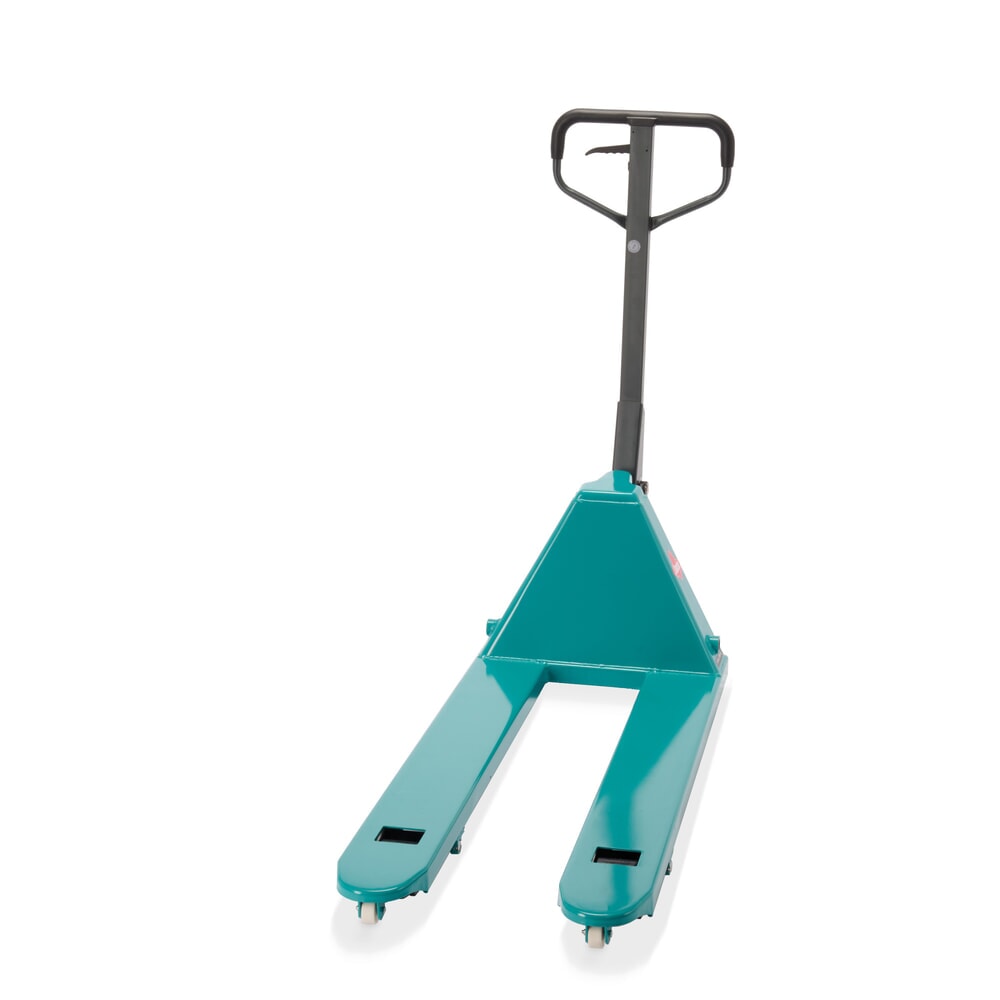

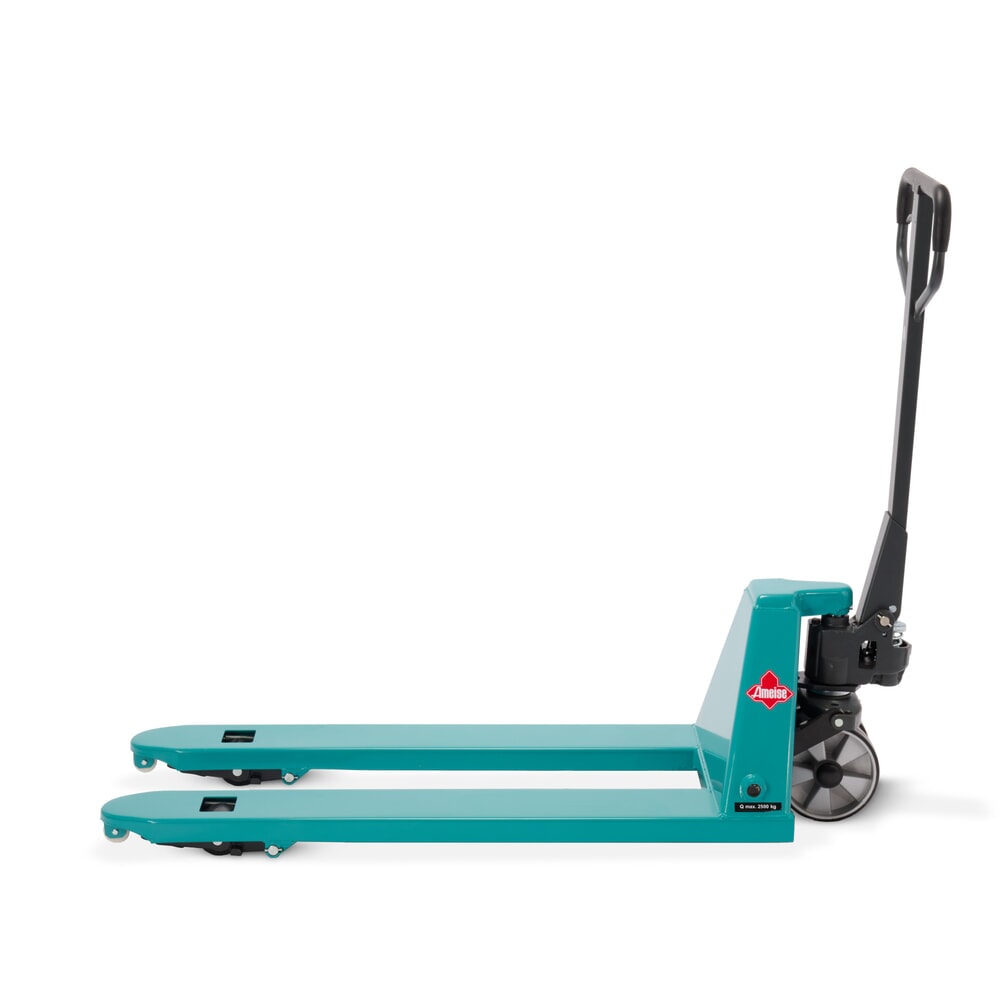

This hand pallet truck can be moved in all four directions, making it extremely mobile and thus ideal for use in narrow aisles. Thanks to its easy handling, the Ameise® truck can also be used to transport extra wide goods.
- Sideways movement for enhanced mobility in tight spaces
- Robust quality thanks to welded sectional steel frame and reinforced tiller
- Durable, high-performance hydraulic pump with overload valve

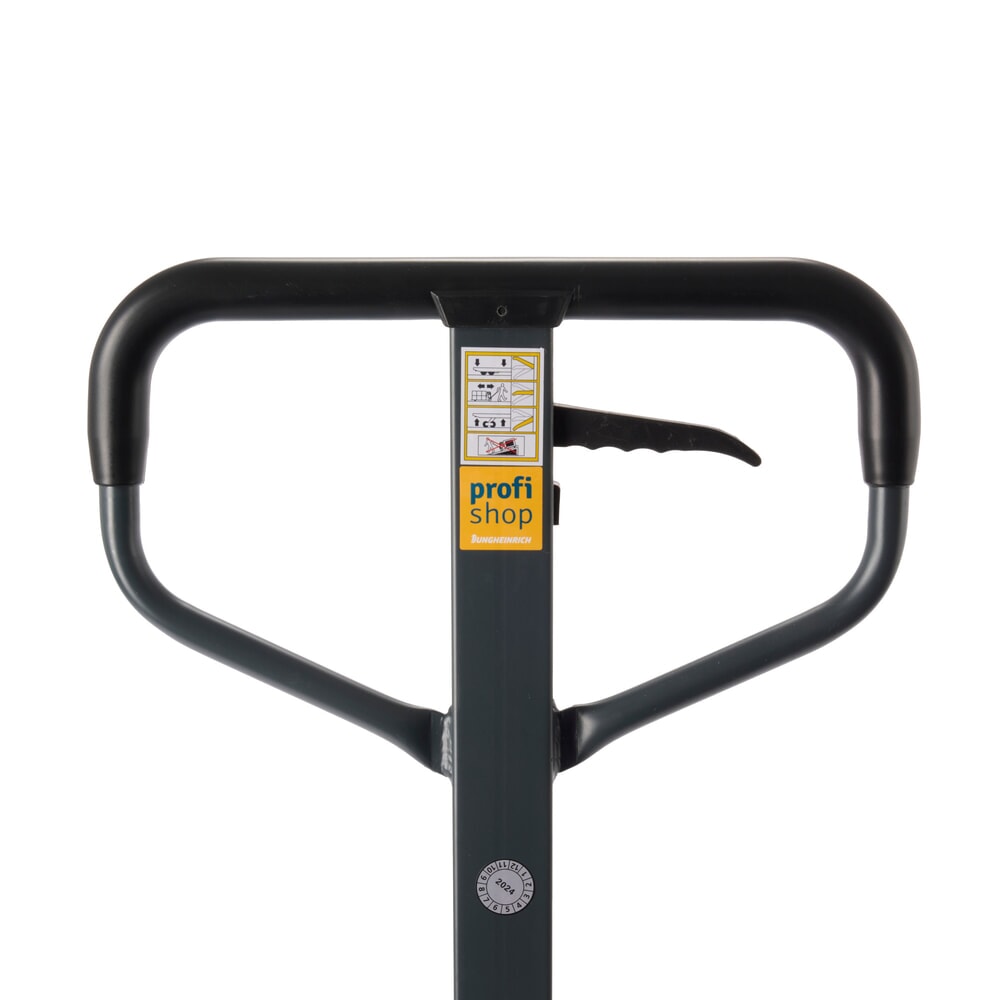

- Rubberised tiller handle for comfort
- Easy pallet insertion thanks to entry and exit rollers
The Ameise® four-way hand pallet truck - for extra mobility in all four travel directions

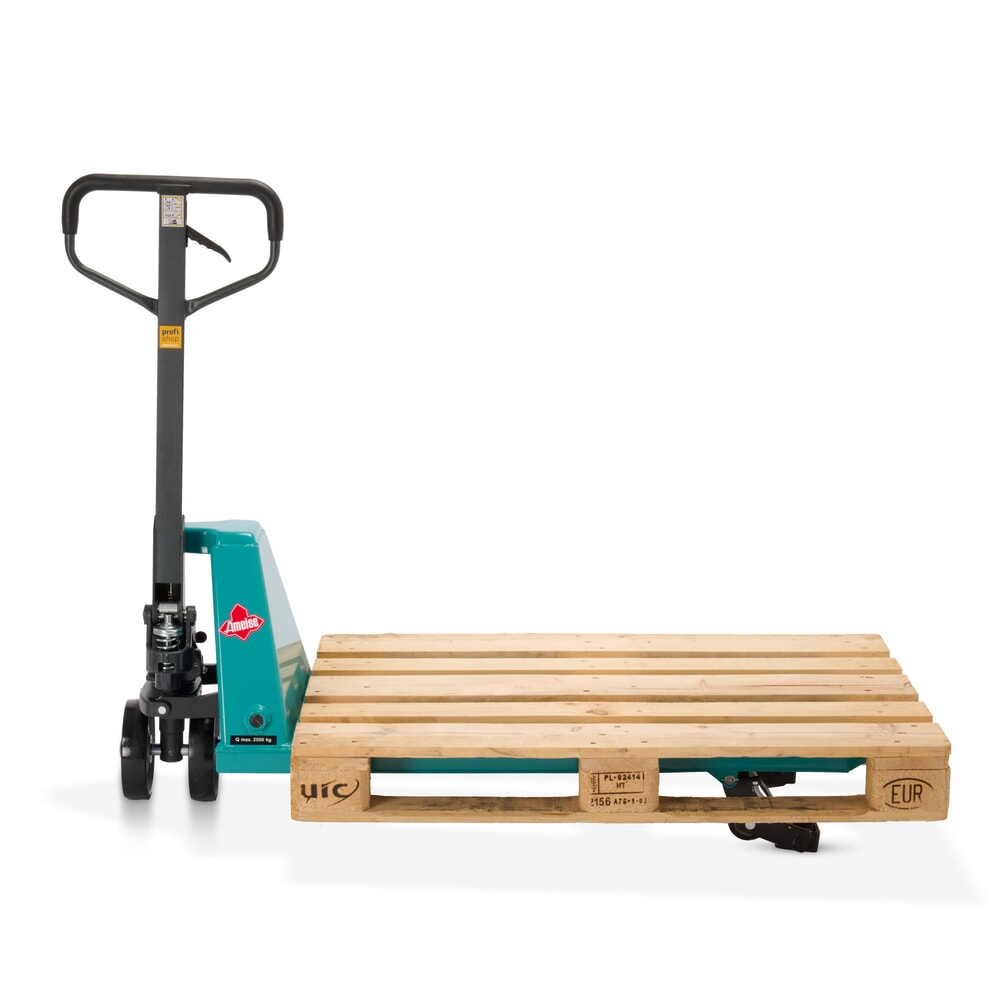

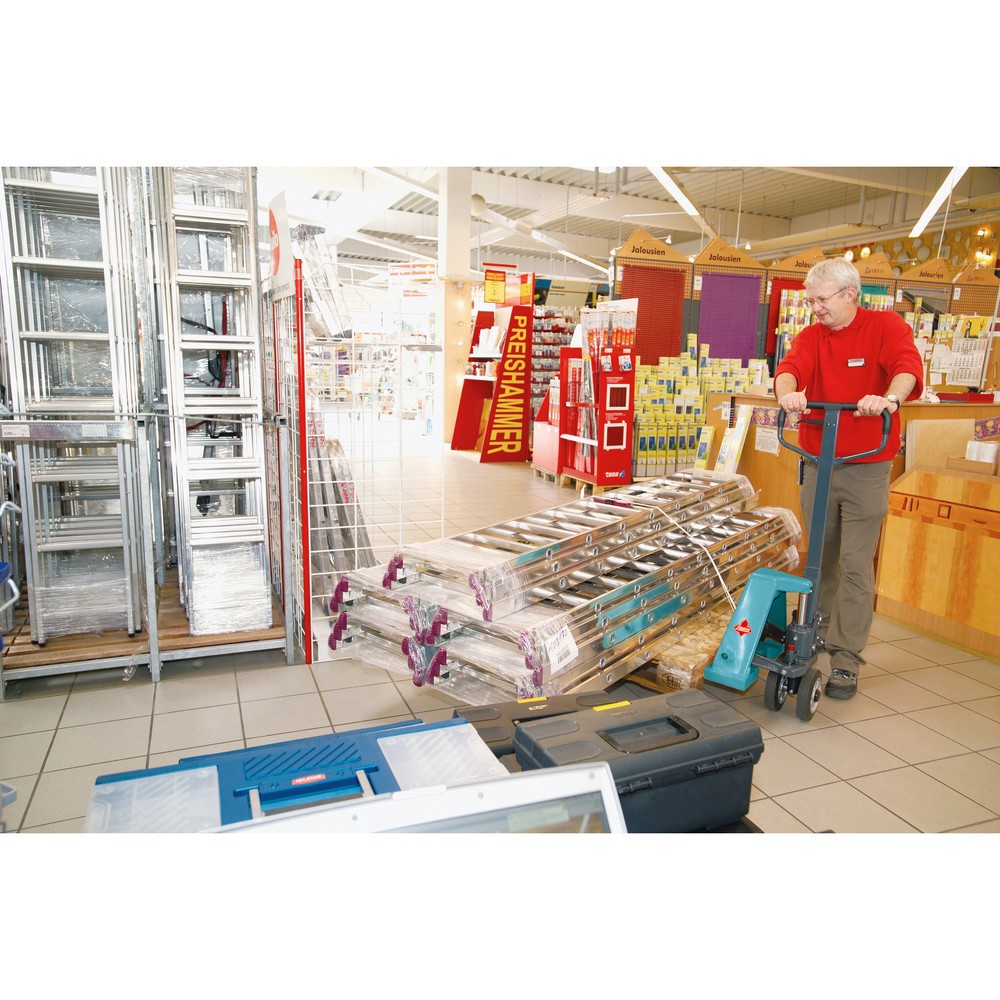

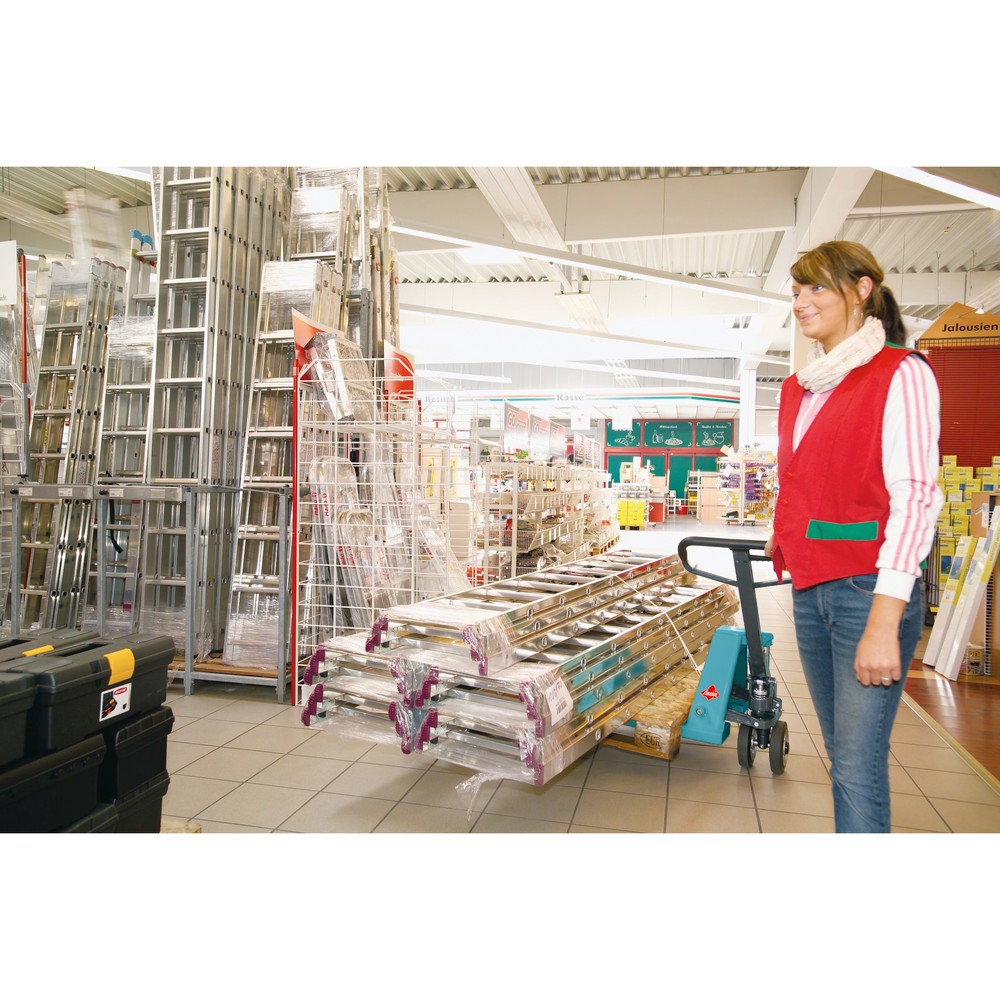

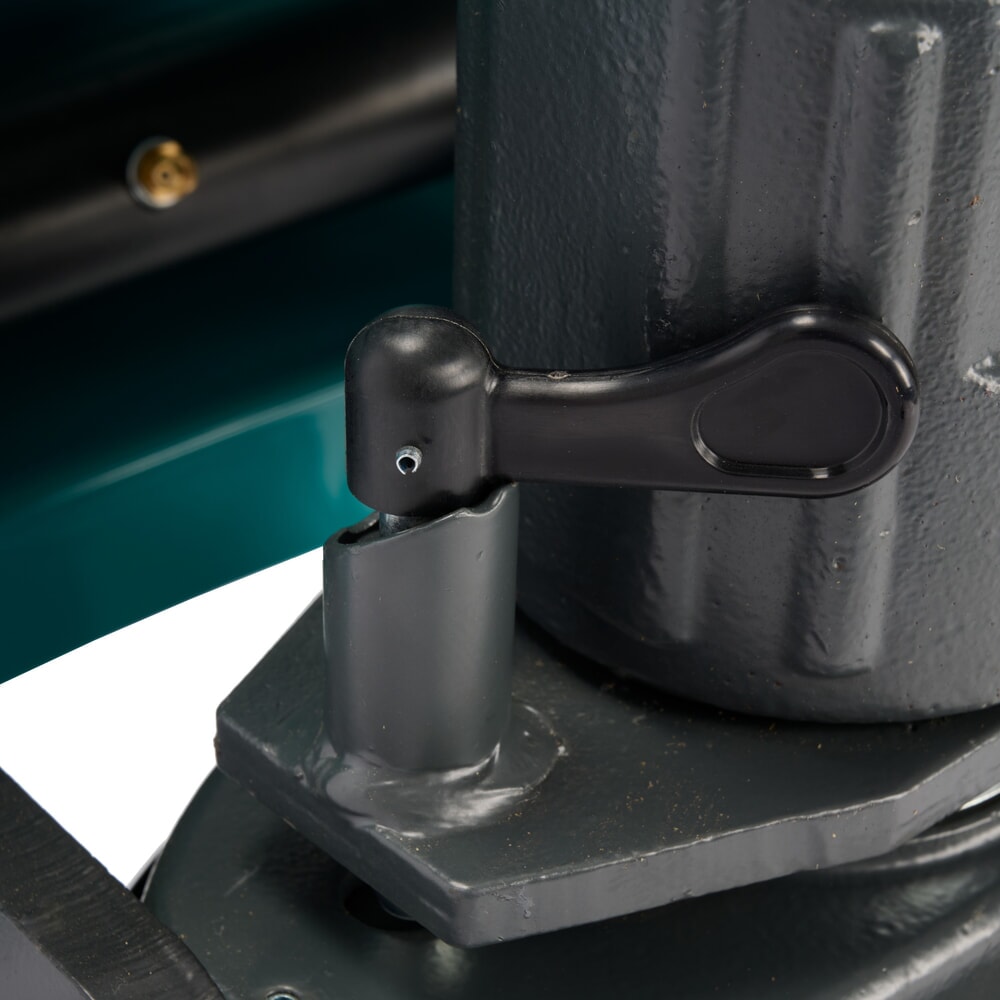

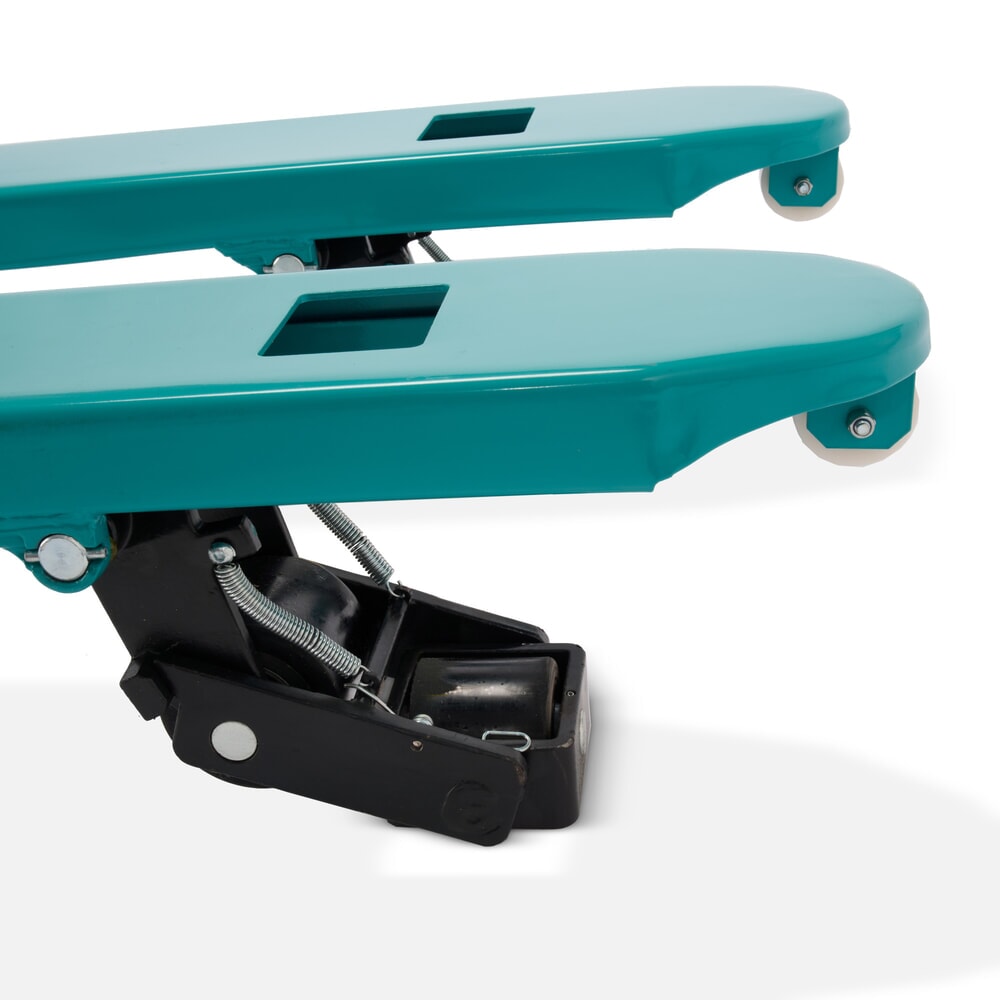

The four-way hand pallet truck delivers reliable Ameise® quality to enhance the flexibility of your operation in all applications. The four-way Ameise® impresses with its ease of use when transporting extra wide or overlong loads, especially in confined spaces. To move the pallet truck in a sideways direction, it is raised to a lift height of approx. 180 mm (around 8 pumps) so that the transverse rollers drop down from the fork tip. The hand pallet truck can then be easily pushed or pulled to the side by rotating the tiller by 90° and locking it in place via a small lever. When using the pallet truck for lateral movement, the capacity is reduced from 2500 kg to a maximum of 1500 kg.
The sectional steel frame with its welded construction is torsion-free and extremely hard-wearing, thus allowing the pallet truck to retain its shape and deliver utmost stability even under the heaviest loads (up to 2500 kg). The reinforced tiller with a maximum steering angle of 205° makes the four-way mini pallet truck extremely easy to operate and manoeuvre.
The durable high-performance hydraulic pump is made from high-quality steel with hard chrome-plated pressure pistons to cope with the rigours of continuous daily use. It is equipped with an overload valve to protect against excess loads.
The steering castors and fork rollers are made from polyurethane for comfortable, low-noise travel, particularly on smooth and sensitive surfaces. They are also characterised by their high load-bearing capacity and long service life.
Enjoy flexible travel in all directions with the Ameise® four-way hand pallet truck. Order this mobile pallet truck from our shop today.
