Sale
Item number:
197334

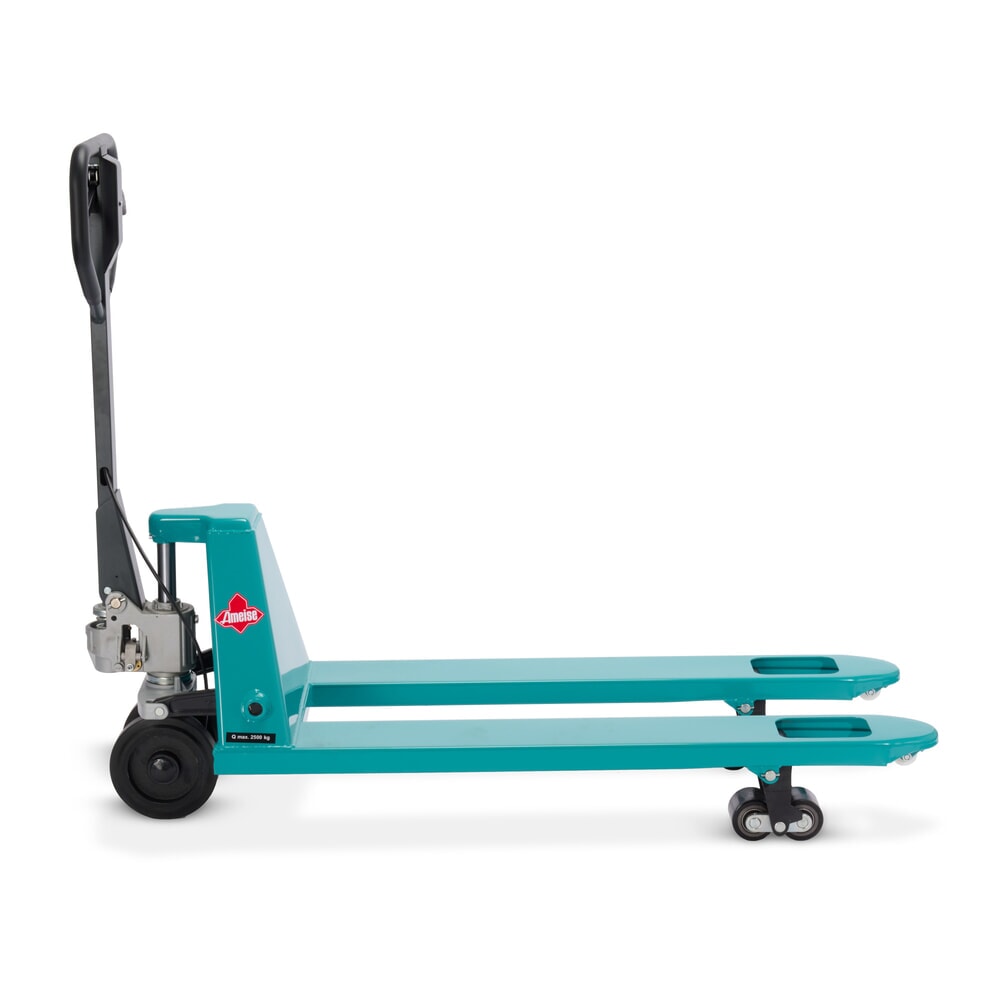

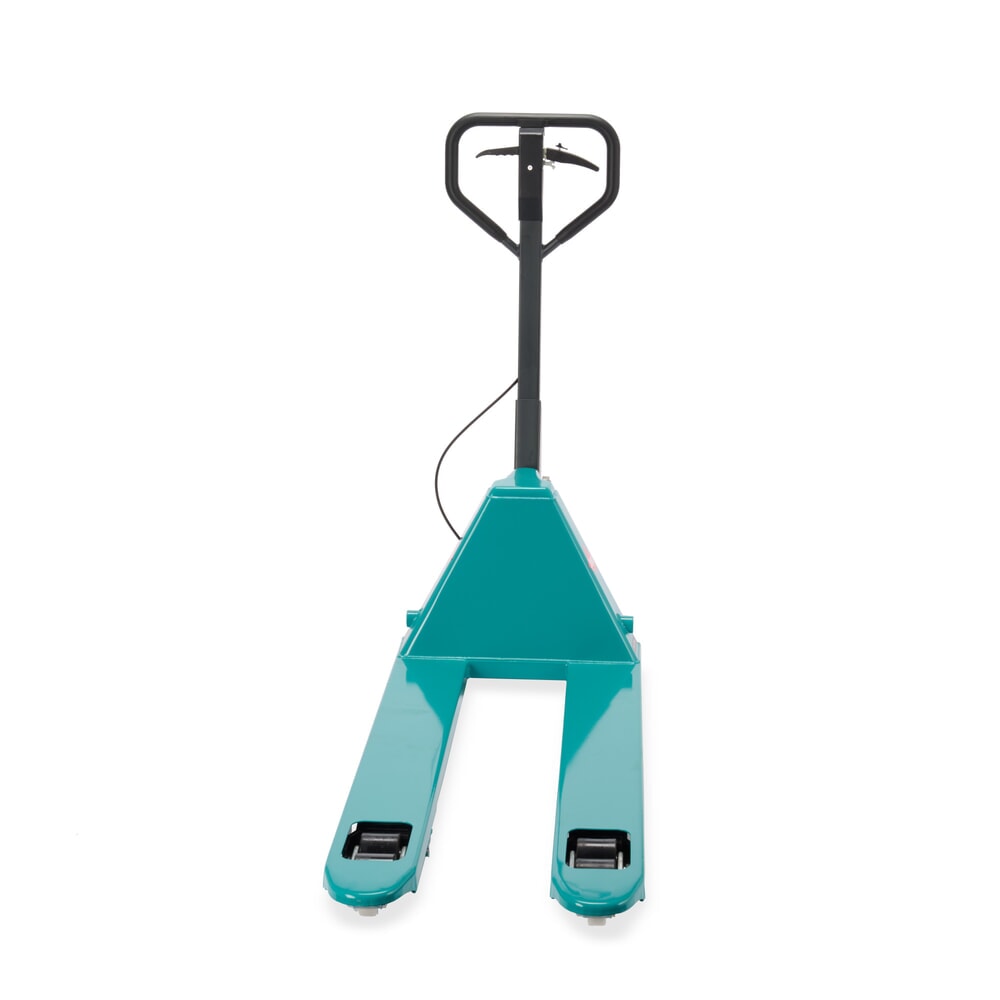

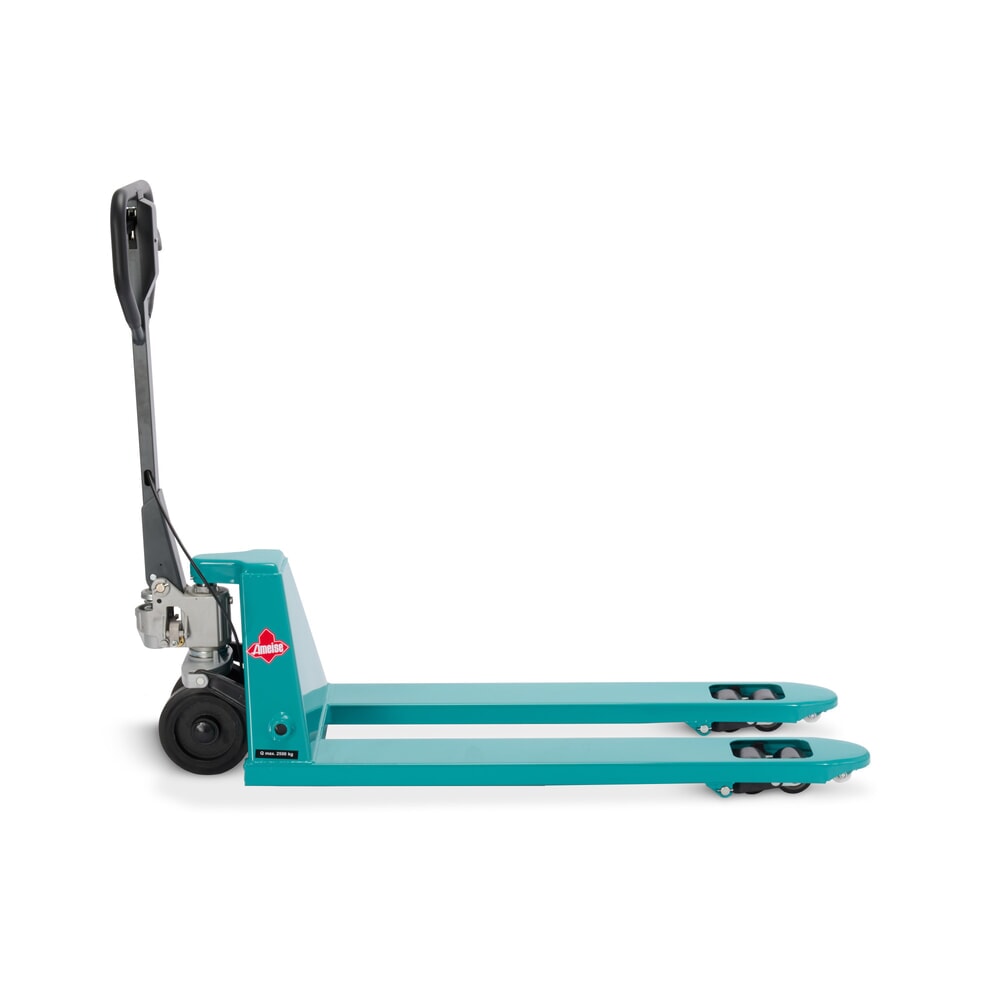

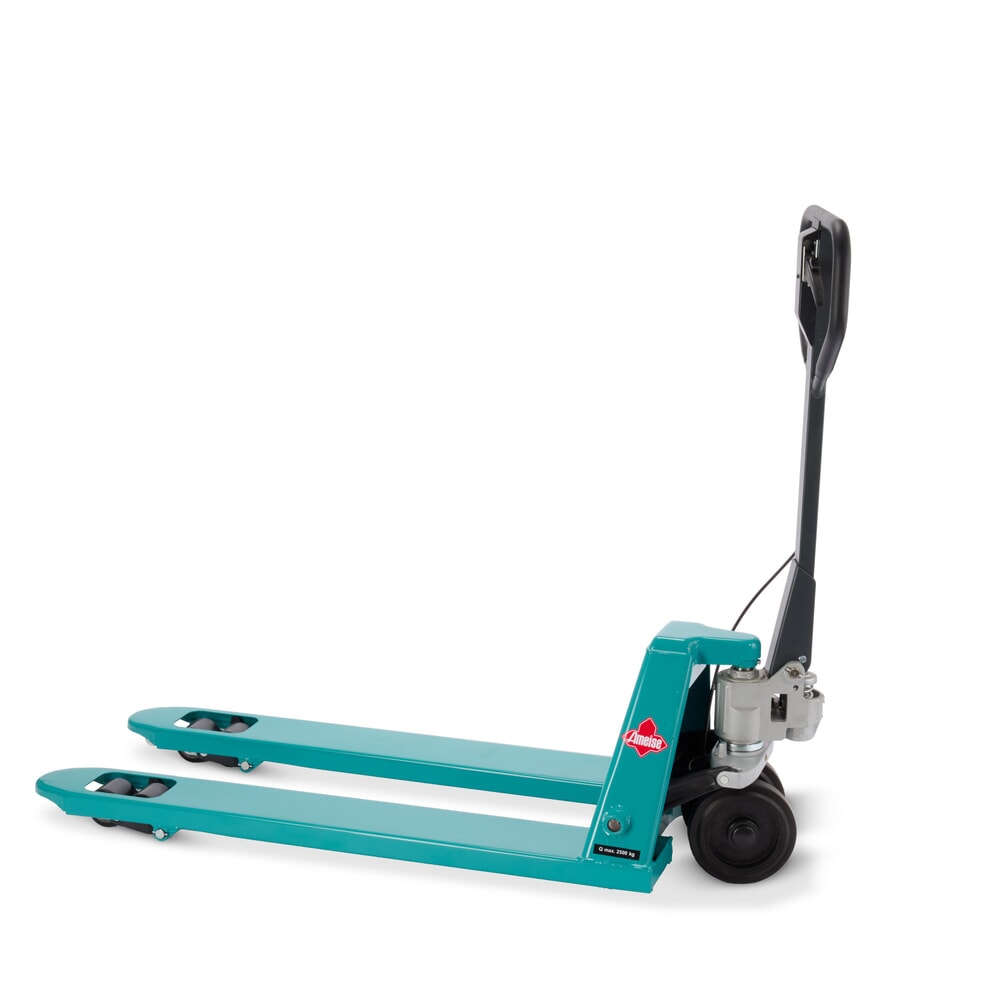

Ameise® PTM 2.5 hand pallet truck with handbrake, load capacity 2,500 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers
Integrated brake for maximum safety on ramps and inclines
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
Ameise® PTM 2.5 hand pallet truck with handbrake, load capacity 2,500 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers
Article number: 197334 | EAN/GTIN: 4055091293394
| Aisle width | 1792 mm |
| Brake | front |
| Brand | Ameise® |
| Capacity | 2500 kg |
| Chassis RAL colour | RAL 5018 turquoise blue |
| Chassis surface | powder-coated |
| Control panel | right-handed |
| Drive | manual |
| Face of forks length | 390 mm |
| Fork height | 48 mm |
| Fork length | 1150 mm |
| Fork roller diameter | 80 mm |
| Fork roller equipment | Tandem |
| Fork roller material | Polyurethane (PU) |
| Fork roller width | 70 mm |
| Fork support width | 540 mm |
| Fork width | 160 mm |
| Grease nipple | Yes |
| Ground clearance | 37 mm |
| Handle fittings | Rubber sheath |
| Hydraulic oil quantity | 0.3 l |
| Hydraulic oil type | Mineral oil |
| Hydraulic oil viscosity acc. to ISO-VG | 32 |
| Infeed rollers | Yes |
| Lift | 115 mm |
| Lift height per pump stroke | 7,5 mm |
| Lift range | 85 - 200 mm |
| Load centre | 600 mm |
| Model | Ameise® ACY 25 |
| Net weight | 77 kg |
| Operator type | Manual |
| Overall length | 1545 mm |
| Overall width | 540 mm |
| Pallet truck material | Steel |
| Route | Short distance |
| Section | Performance |
| Steering wheel diameter | 200 mm |
| Steering wheel material | Solid rubber |
| Steering wheel width | 50 mm |
| Temperature range | 5 - 40 °C |
| Tiller RAL colour | RAL 7016 anthracite grey |
| Tiller height | 1230 mm |
| Tiller surface | powder-coated |
| Turning radius | 1275 mm |
Item description
Ameise® PTM 2.5 hand pallet truck with handbrake, load capacity 2,500 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers
Article number: 197334 | EAN/GTIN: 4055091293394
The Ameise® hand pallet truck features an integrated drum brake, which can be used as a service or parking brake via the control lever. This ensures safe use on sloping floors and ramps.
- Robust quality thanks to welded sectional steel frame and reinforced tiller
- High-quality hydraulic pump for long service life
- Fully rubberised for grip and cold protection
- Maintenance-friendly thanks to grease nipples
- Entry rollers for straightforward travel over thresholds and uneven floors
- Parking brake approved for gradients of up to 3%

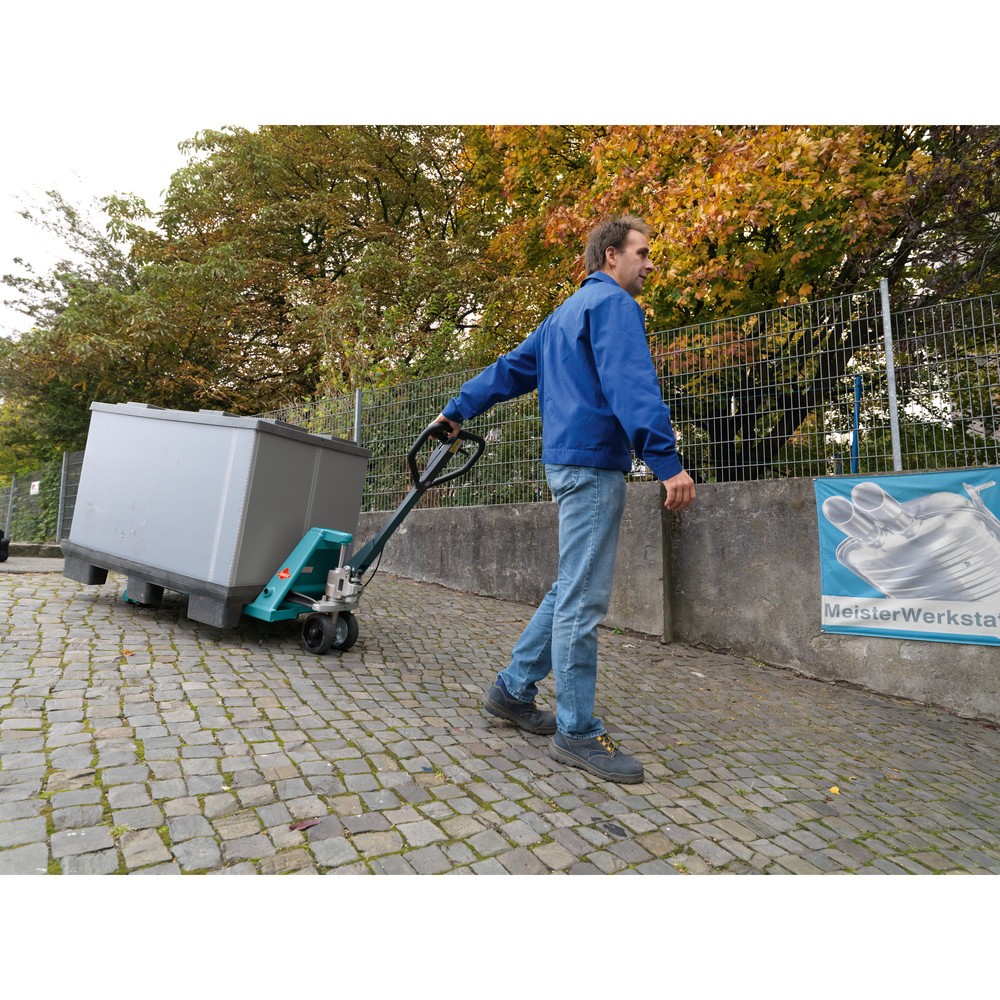

The Ameise® hand pallet truck with brake ensures safe travel on ramps and inclines

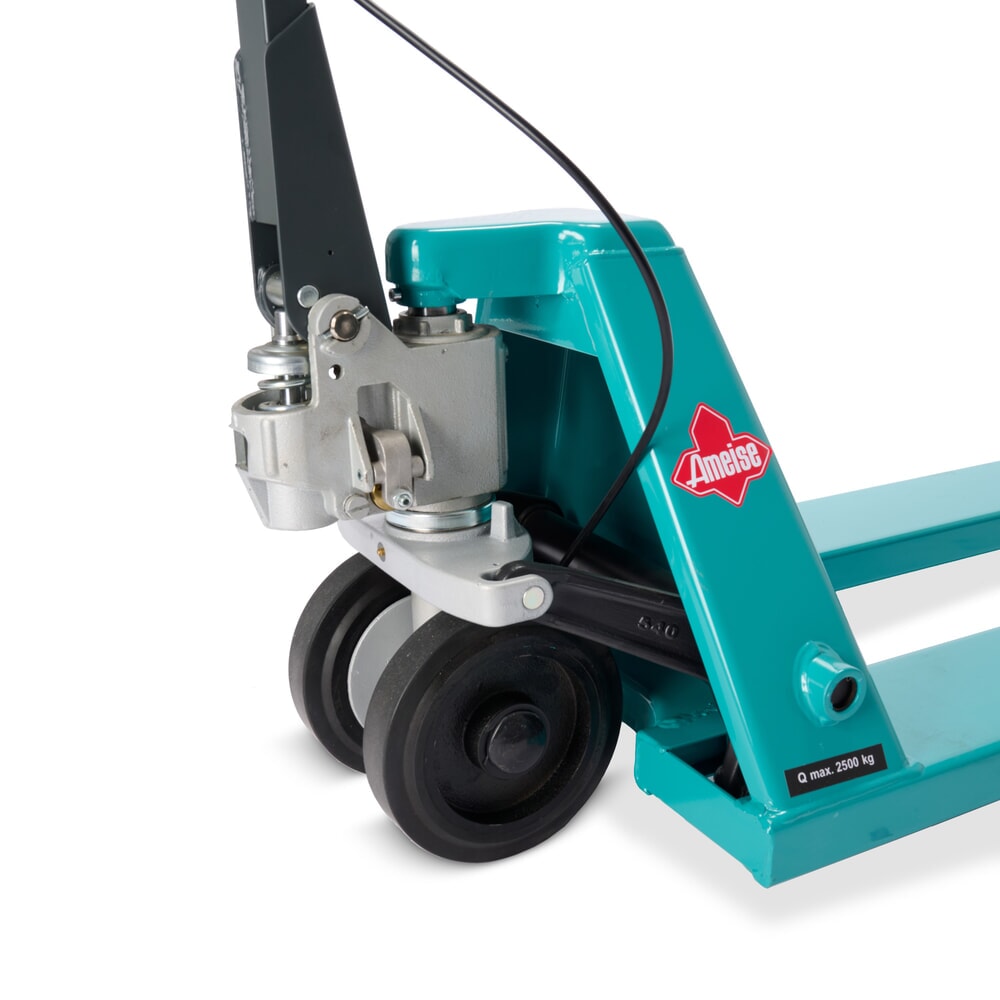

This high-quality Ameise® hand pallet truck with a capacity of 2500 kg is a robust and powerful product for flexible daily use. The progressive drum brake is fitted between the steering castors and is applied as a service and/or parking brake via the control lever. Thanks to the fully variable brake, you can adapt the travel speed to each individual incline. The wheel stop function allows you to park the hand pallet truck safely without any risk of it rolling away.

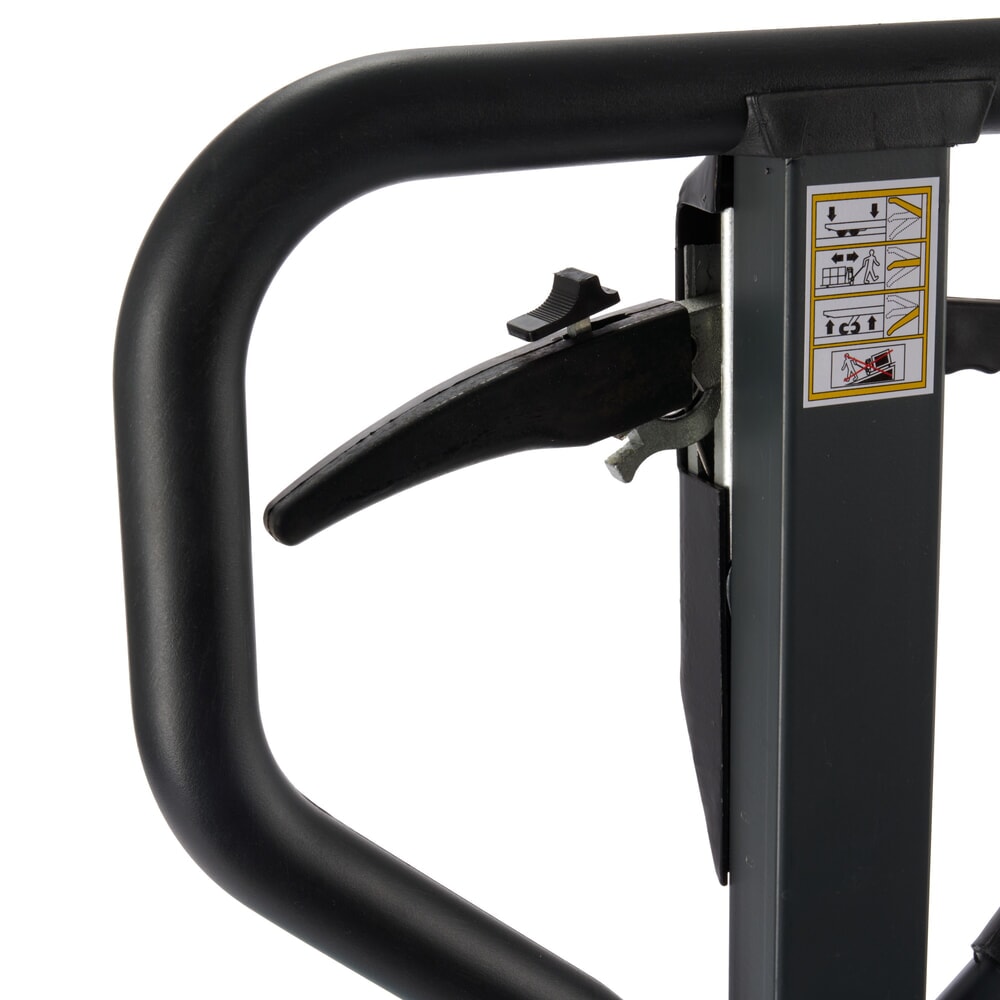

The comfort tiller handle features an ergonomic design and is fully rubberised for effective cold protection. The control levers for the drum brake and the lift/travel/lower functions are in an ergonomic position. Lifting and lowering can be performed with minimal effort. Just 15 pumps of the tiller are enough to lift the pallet off the ground and to the maximum lift height of 200 mm.

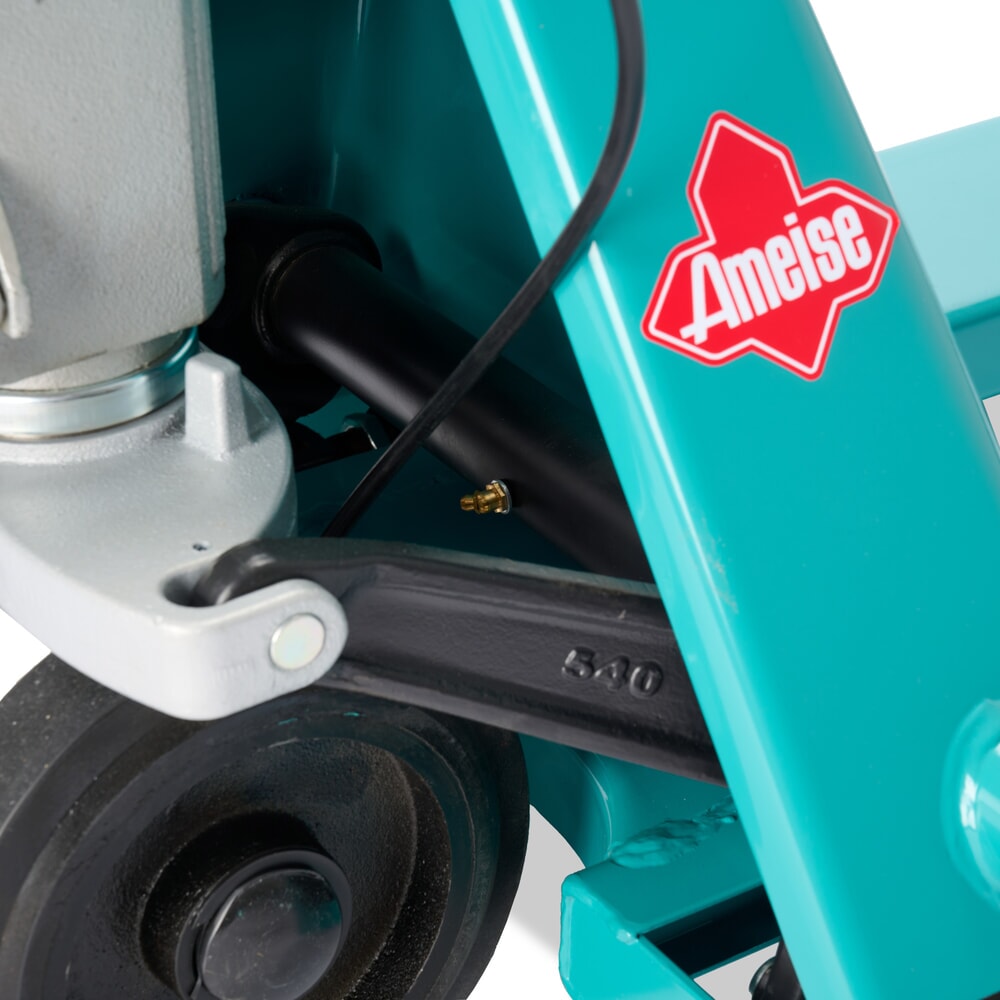

The sectional steel frame with its welded construction is torsion-free and extremely hard-wearing, thus allowing the pallet truck to retain its shape even under the heaviest loads (up to 2500 kg). The reinforced tiller ensures maximum stability and durability when turning and manoeuvring the truck. The fork tips feature additional entry rollers for smooth travel over thresholds or ledges. Grease nipples on all movable parts ensure sufficient lubrication and keep maintenance to a minimum. The reliable manual hydraulics are maintenance-free and encased in a robust, non-breakable steel housing.

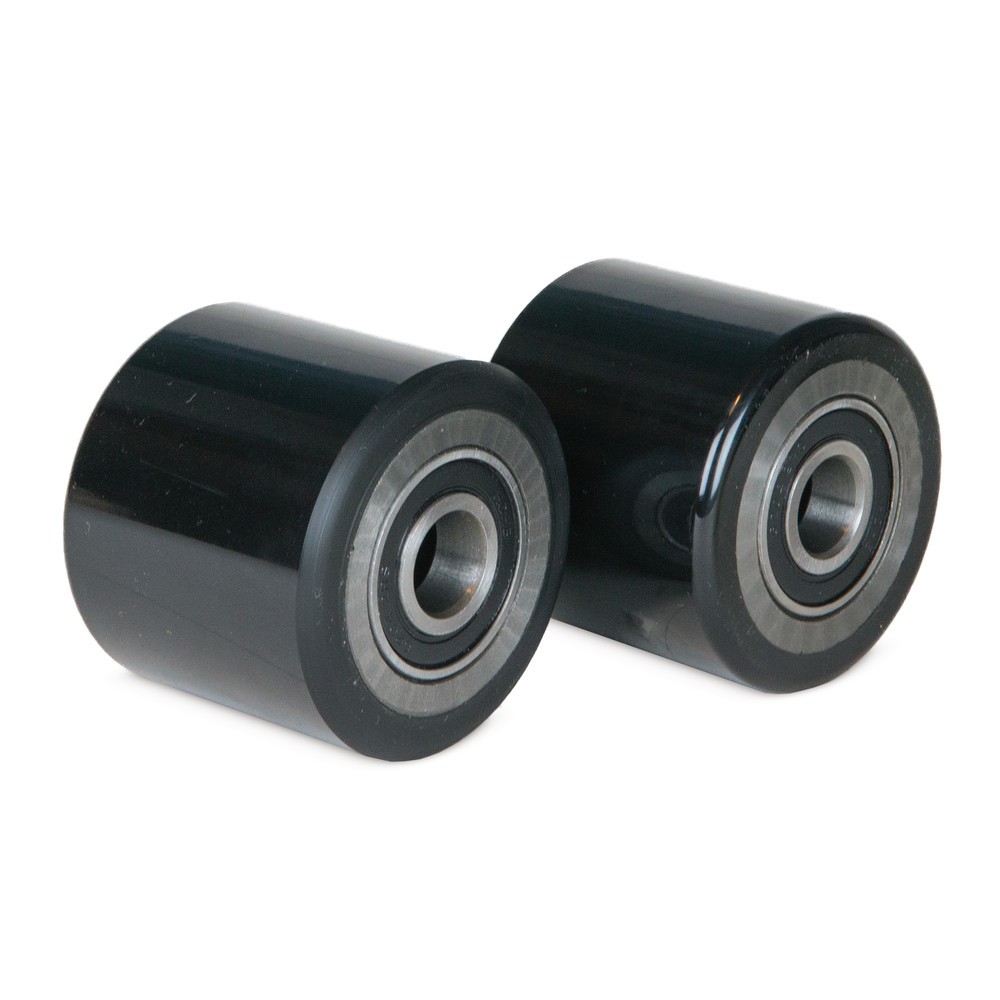

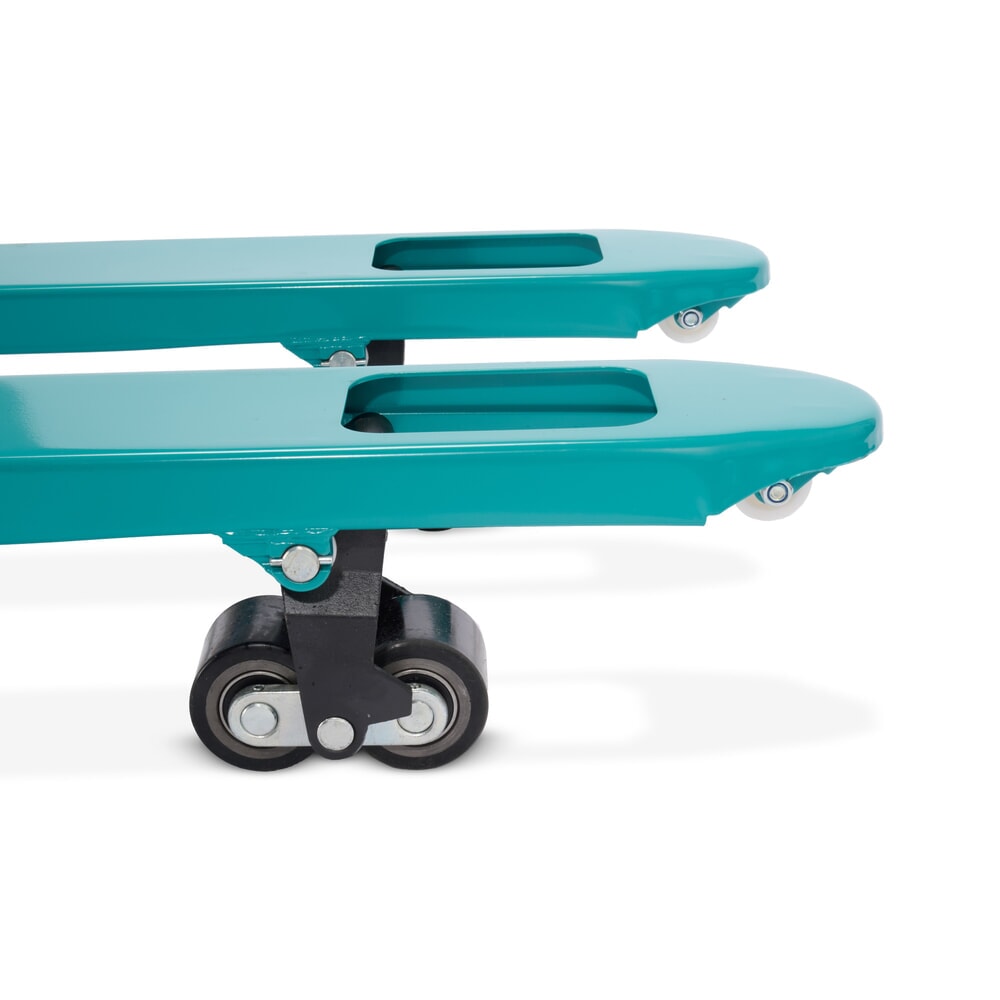

The two steering castors feature solid rubber tyres for maximum grip and low travel noise. They are also puncture-proof and offer effective shock absorption. The polyurethane fork rollers deliver comfortable, low-noise travel, high load-bearing capacity and a long service life.
Order the Ameise® hand pallet truck with brake and a capacity of 2500 kg from our shop today.
This high-quality Ameise® hand pallet truck with a capacity of 2500 kg is a robust and powerful product for flexible daily use. The progressive drum brake is fitted between the steering castors and is applied as a service and/or parking brake via the control lever. Thanks to the fully variable brake, you can adapt the travel speed to each individual incline. The wheel stop function allows you to park the hand pallet truck safely without any risk of it rolling away.
The comfort tiller handle features an ergonomic design and is fully rubberised for effective cold protection. The control levers for the drum brake and the lift/travel/lower functions are in an ergonomic position. Lifting and lowering can be performed with minimal effort. Just 15 pumps of the tiller are enough to lift the pallet off the ground and to the maximum lift height of 200 mm.
The sectional steel frame with its welded construction is torsion-free and extremely hard-wearing, thus allowing the pallet truck to retain its shape even under the heaviest loads (up to 2500 kg). The reinforced tiller ensures maximum stability and durability when turning and manoeuvring the truck. The fork tips feature additional entry rollers for smooth travel over thresholds or ledges. Grease nipples on all movable parts ensure sufficient lubrication and keep maintenance to a minimum. The reliable manual hydraulics are maintenance-free and encased in a robust, non-breakable steel housing.
The two steering castors feature solid rubber tyres for maximum grip and low travel noise. They are also puncture-proof and offer effective shock absorption. The polyurethane fork rollers deliver comfortable, low-noise travel, high load-bearing capacity and a long service life.
Order the Ameise® hand pallet truck with brake and a capacity of 2500 kg from our shop today.
