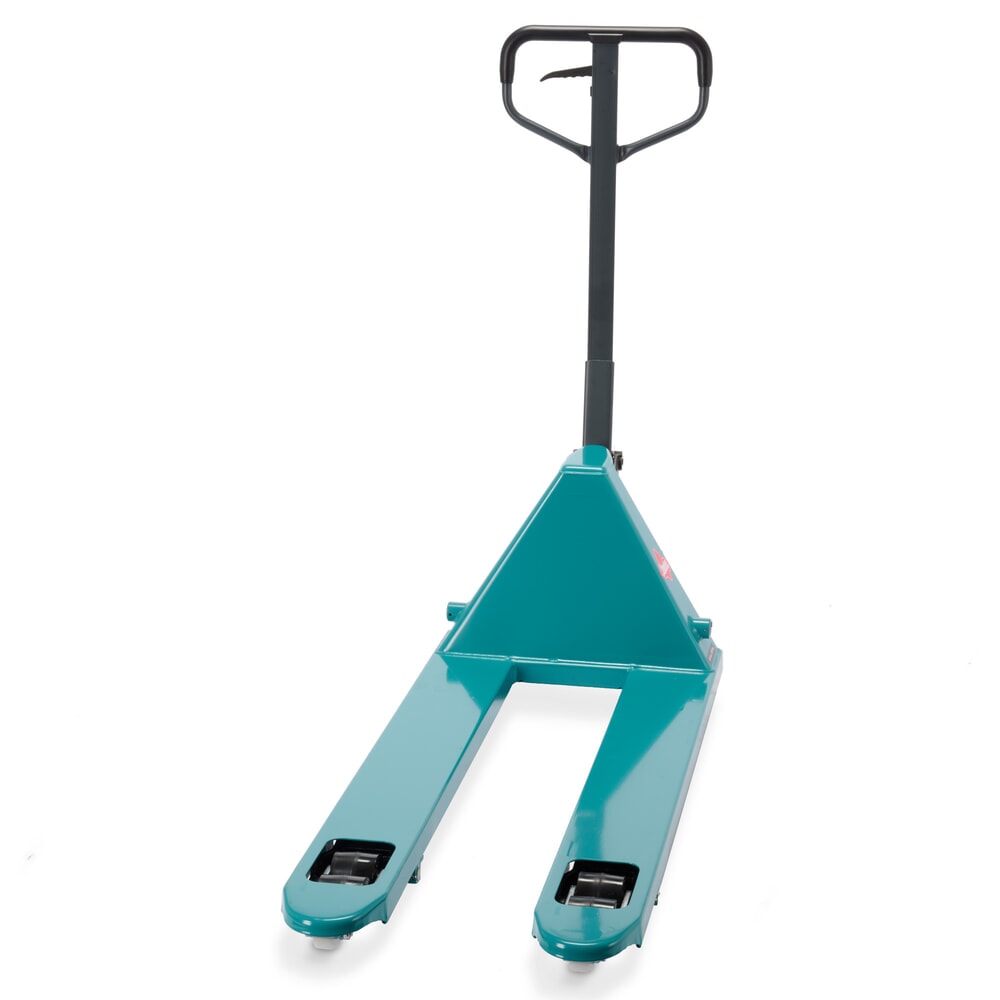

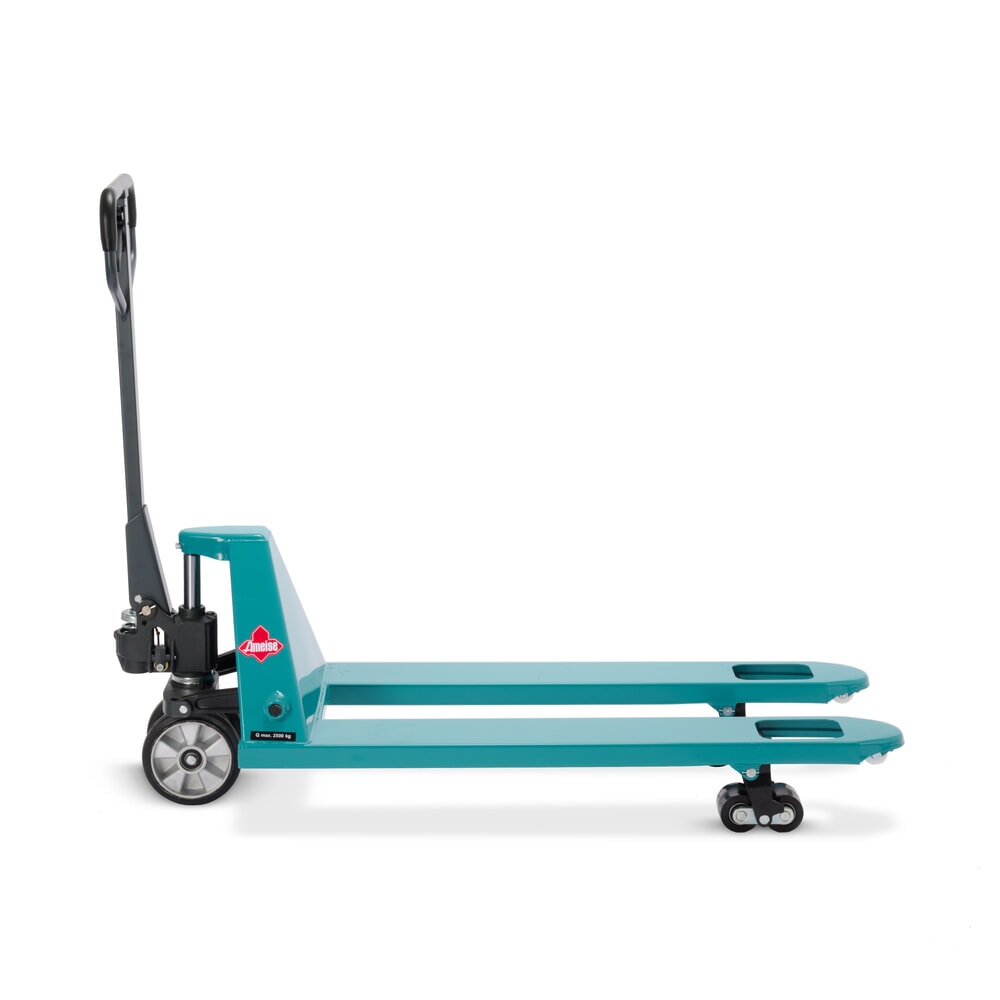

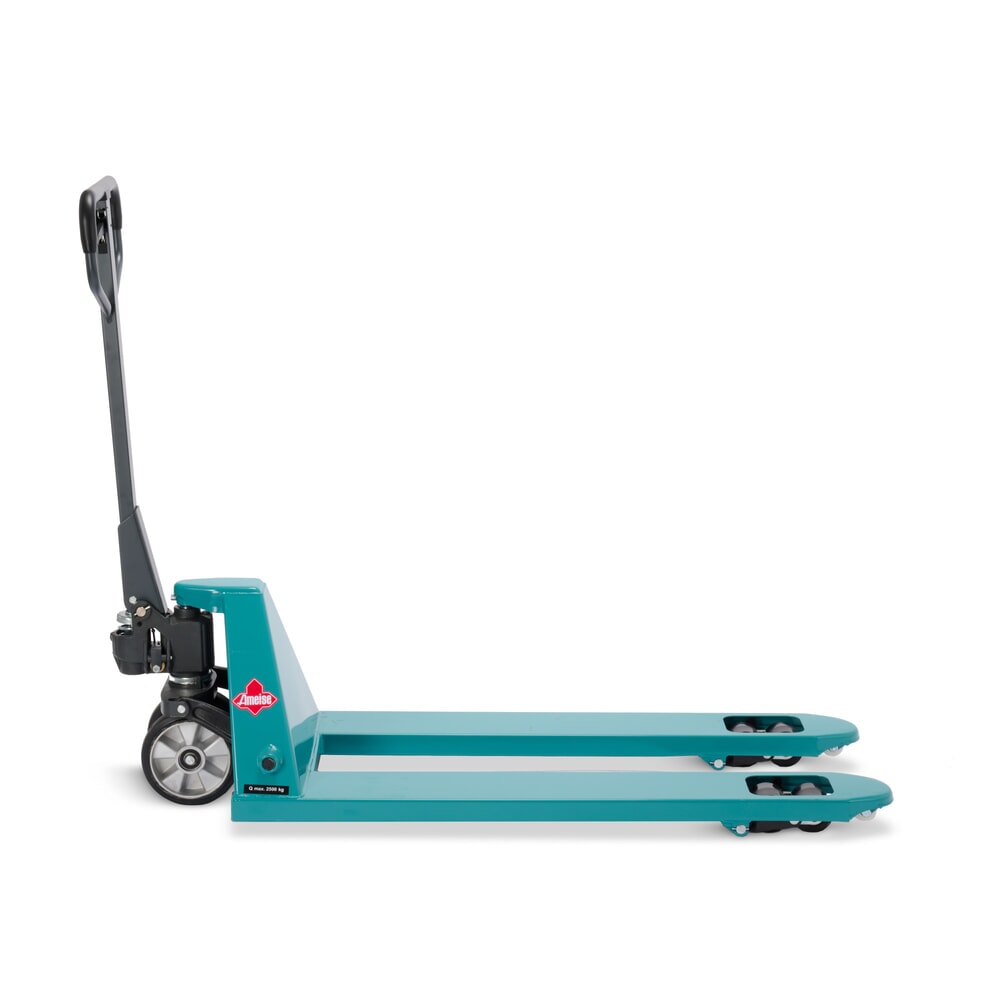

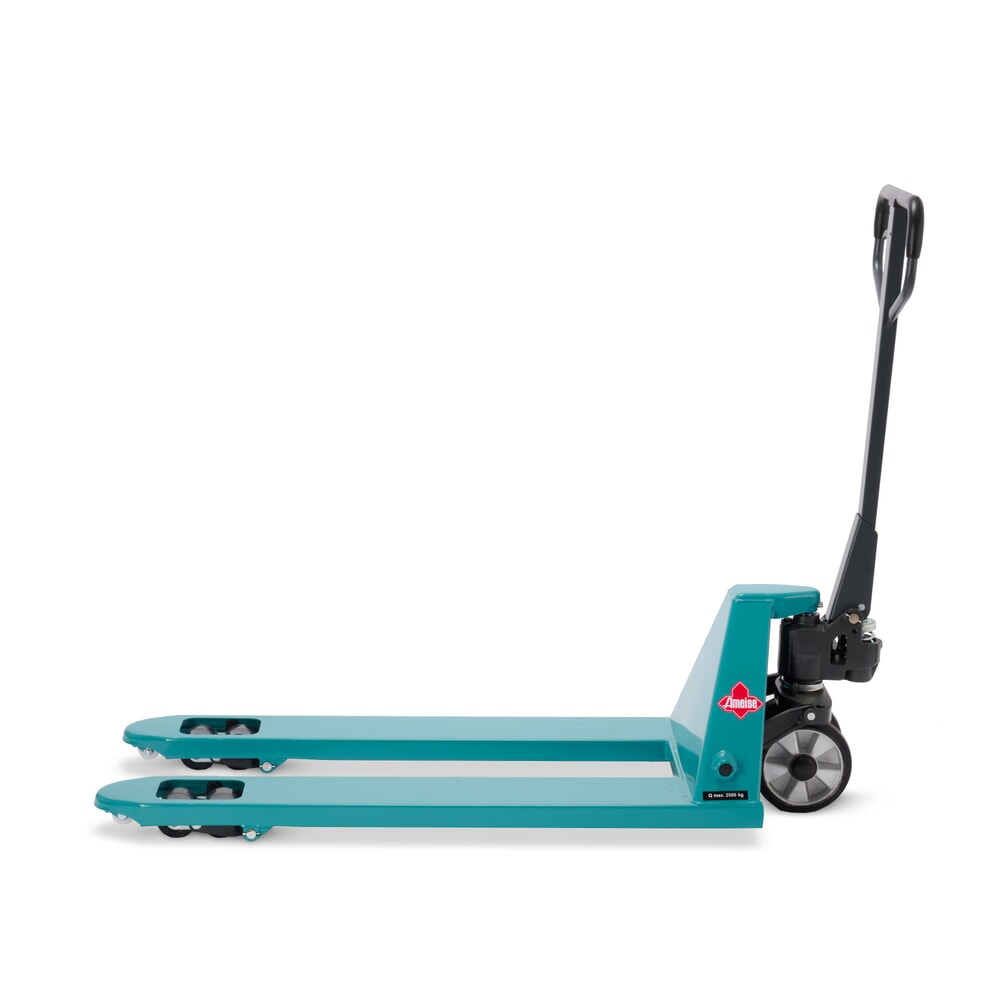

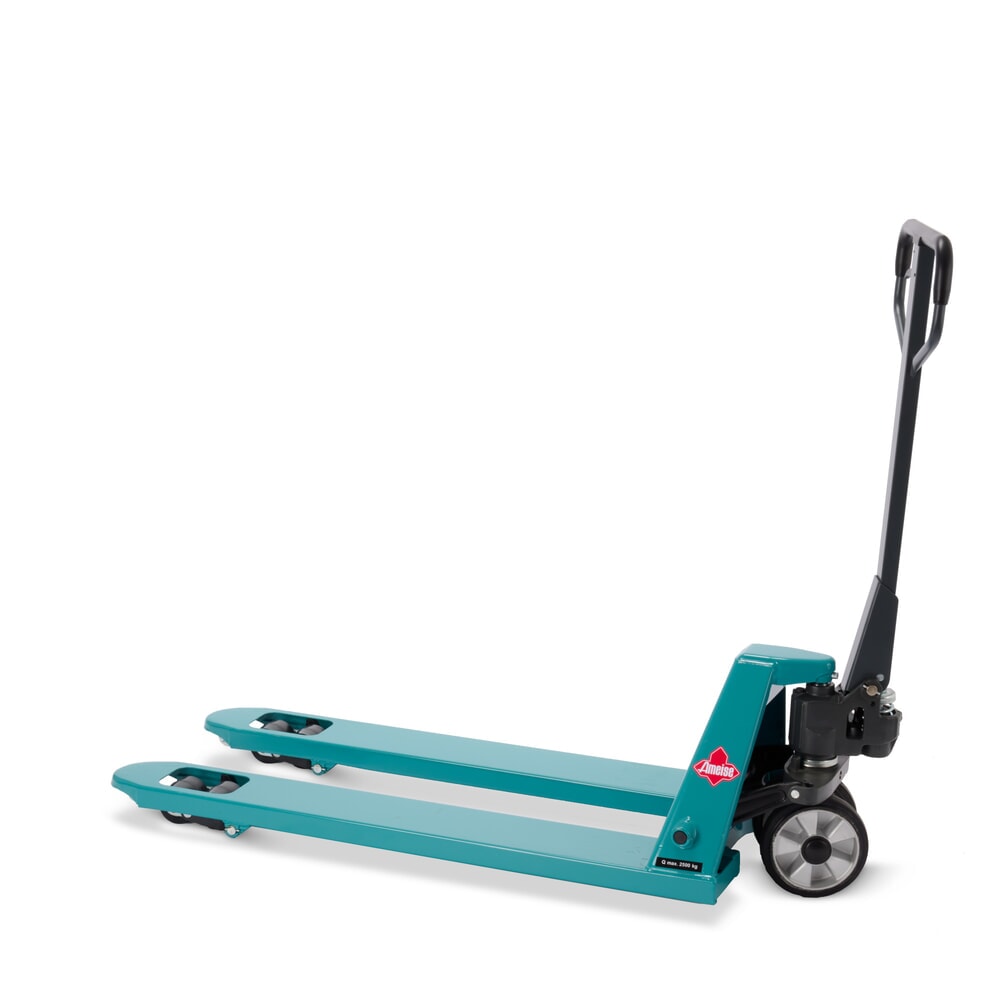

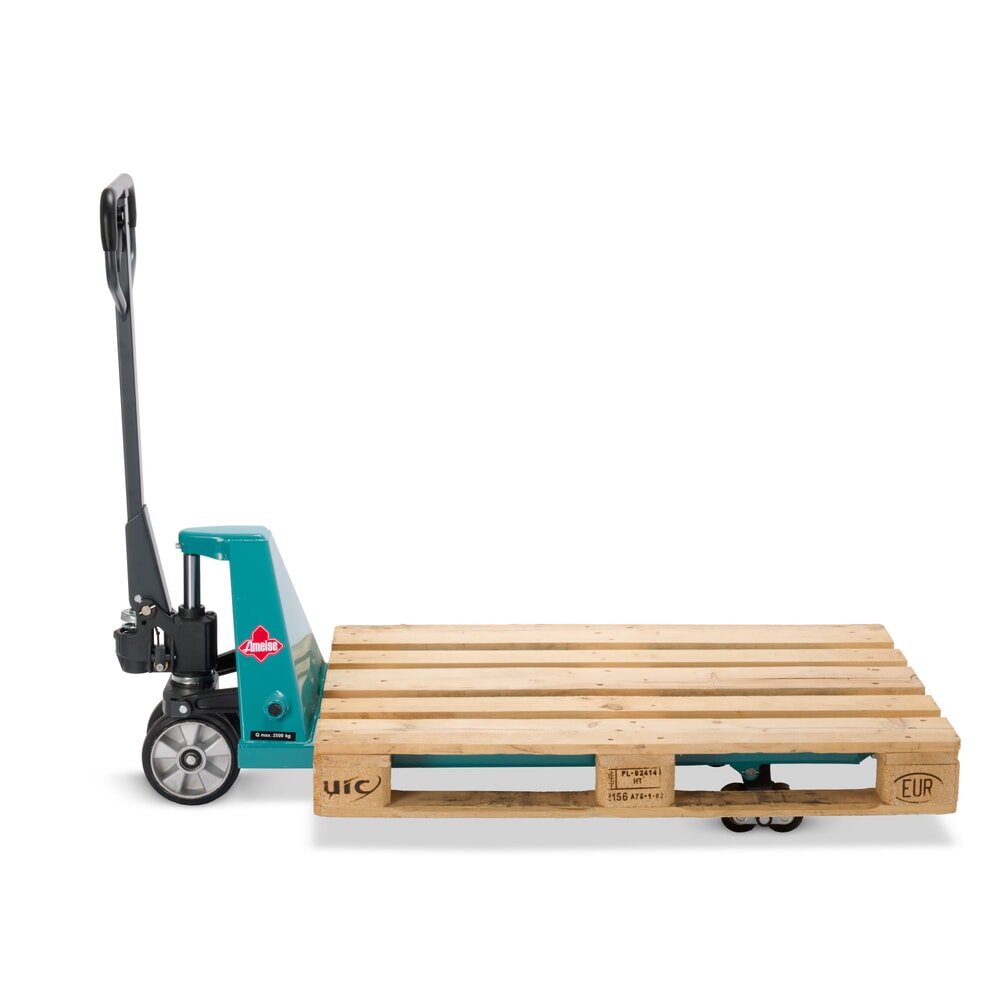

Ameise® PTM 2.5 hand pallet truck with quick lift, capacity 2,500 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers

Name: Ameise® PTM 2.5 hand pallet truck with quick lift, capacity 2,500 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers
Brand: Ameise®
SKU: 197365
Price: 387.0 GBP
Availability: InStock

Just three pumps of the tiller to lift the pallet clear of the ground

Go to product description

Fork length:

Fork roller equipment:

Fork roller material:

Steering wheel material:

9 Working days

£430.00

£387.00

per Stk excl. VAT plus shipping

You save £43.00 on the range discount (only valid online).
Only valid until 22.12.2024

Technical details

Ameise® PTM 2.5 hand pallet truck with quick lift, capacity 2,500 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers

Aisle width

1792 mm
Brand

Ameise®
Capacity

2500 kg
Chassis RAL colour

RAL 5018 turquoise blue
Chassis surface

powder-coated
Control panel

right-handed
Drive

manual
Face of forks length

390 mm
Fork height

48 mm
Fork length

1.150 mm
Fork roller diameter

80 mm
Fork roller equipment

Tandem
Fork roller material

Polyurethane (PU)
Fork roller width

70 mm
Fork support width

540 mm
Fork width

160 mm
Grease nipple

Yes
Ground clearance

37 mm
Handle fittings

Rubber sheath
Hydraulic oil quantity

0.3 l
Hydraulic oil type

Mineral oil
Hydraulic oil viscosity acc. to ISO-VG

32
Infeed rollers

Yes
Lift

115 mm
Lift height per pump stroke

23 mm
Lift range

85 - 200 mm
Load centre

600 mm
Lowering speed with/without load

0,09 / 0,02 m/s
Model

Ameise® HPT A25
Net weight

68 kg
Operator type

Manual
Overall length

1540 mm
Overall width

540 mm
Pallet truck material

Steel
Pump strokes to max. lift height

5
Rapid lift

Yes
Route

Short distance
Section

Performance
Steering wheel diameter

200 mm
Steering wheel material

Solid rubber
Steering wheel width

50 mm
Temperature range

5 - 40 °C
Tiller RAL colour

RAL 7016 anthracite grey
Tiller height

1250 mm
Tiller surface

powder-coated
Turning radius

1275 mm

Item description

Ameise® PTM 2.5 hand pallet truck with quick lift, capacity 2,500 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers

The Ameise® hand pallet truck with 1150 mm fork length and 2500 kg capacity has established itself as the industry standard for continuous daily use in industrial, production and trade environments. We also offer this robust and reliable all-rounder with a quick lift function up to 120 kg, which saves you both time and effort in your daily pallet handling.

Quick lift (up to 120 kg)
2500 kg capacity
Durable high-performance hydraulic pump
Welded and reinforced sectional steel frame
Easy pallet insertion thanks to entry and exit rollers
Maintenance-friendly thanks to grease nipples

Save time and effort during pallet handling with proven Ameise® quality

This pallet truck offers robust Ameise® quality for daily use in a wide range of applications. Our industry standard model for your pallet transport needs is also available with a quick lift function up to 120 kg. Thanks to the quick lift, the Ameise® pallet truck makes contact with the bottom of the pallet after just one pump stroke. After the third pump stroke, the pallet has been lifted off the ground and is ready for transport. The maximum lift height of 200 mm is reached after five strokes.

The large user-friendly handle allows you to control all functions with utmost ease and comfort. Loads can be lowered with fully variable precision via the hand lever. The model with 2500 kg capacity features a rubberised handle, which is very comfortable to use and offers effective cold protection in lower temperatures.

The maintenance-free, manual hydraulics are equipped with a reliable, oil-tight and waterproof hydraulic system. The high-performance pump is made from high-quality steel with chrome-plated pressure pistons, making it extremely durable in continuous daily use. This in turn saves you time, effort and costs.

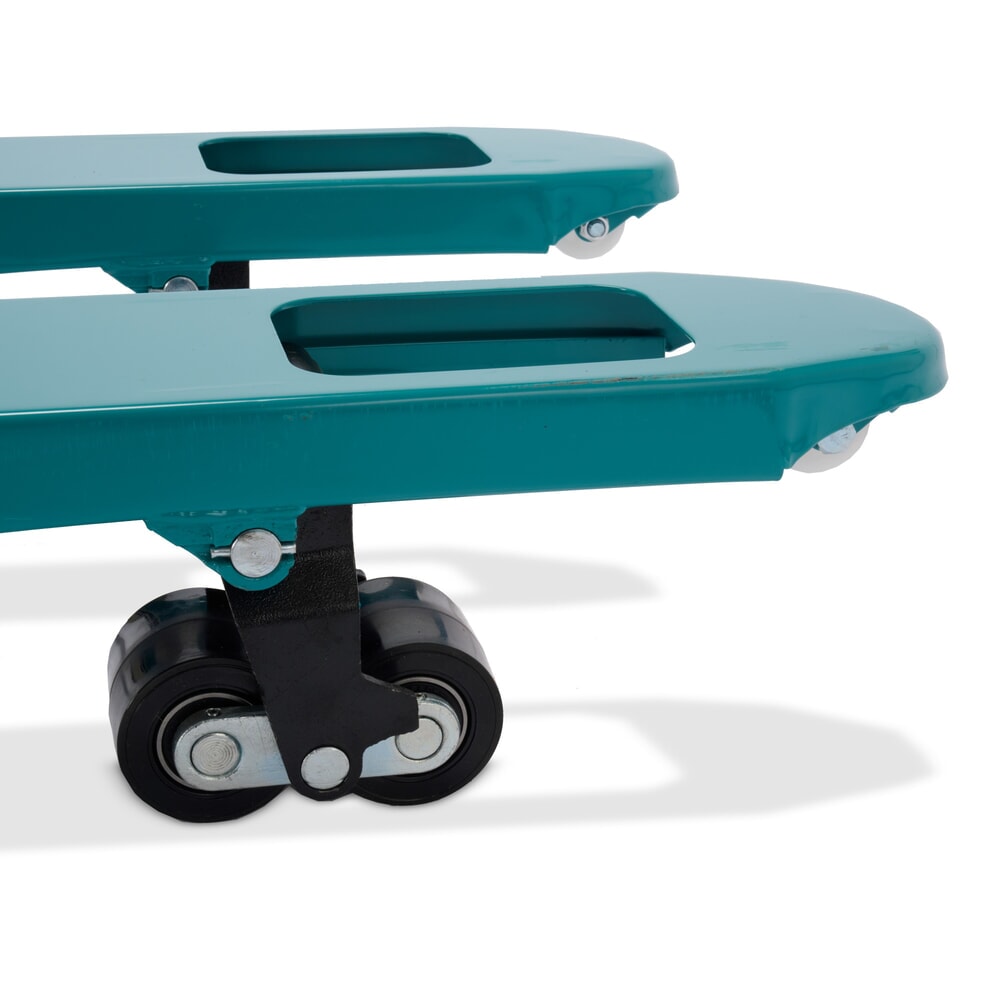

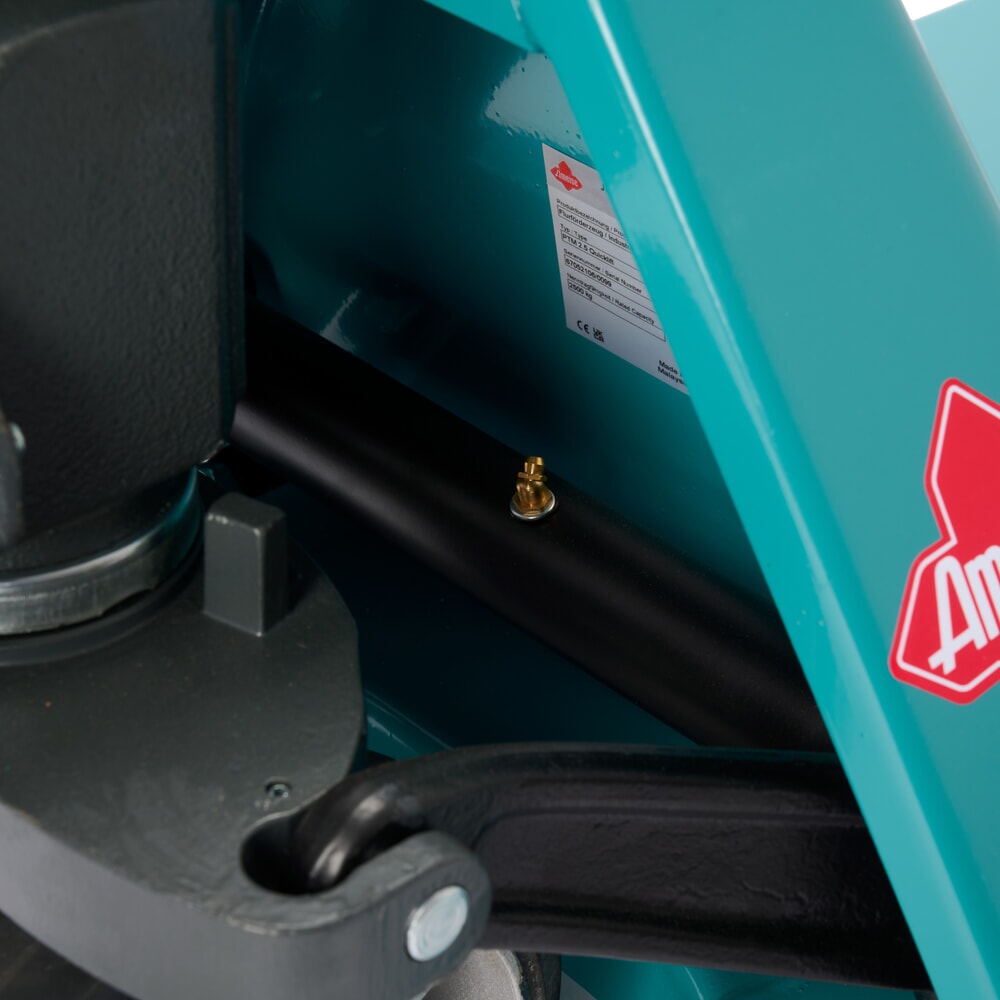

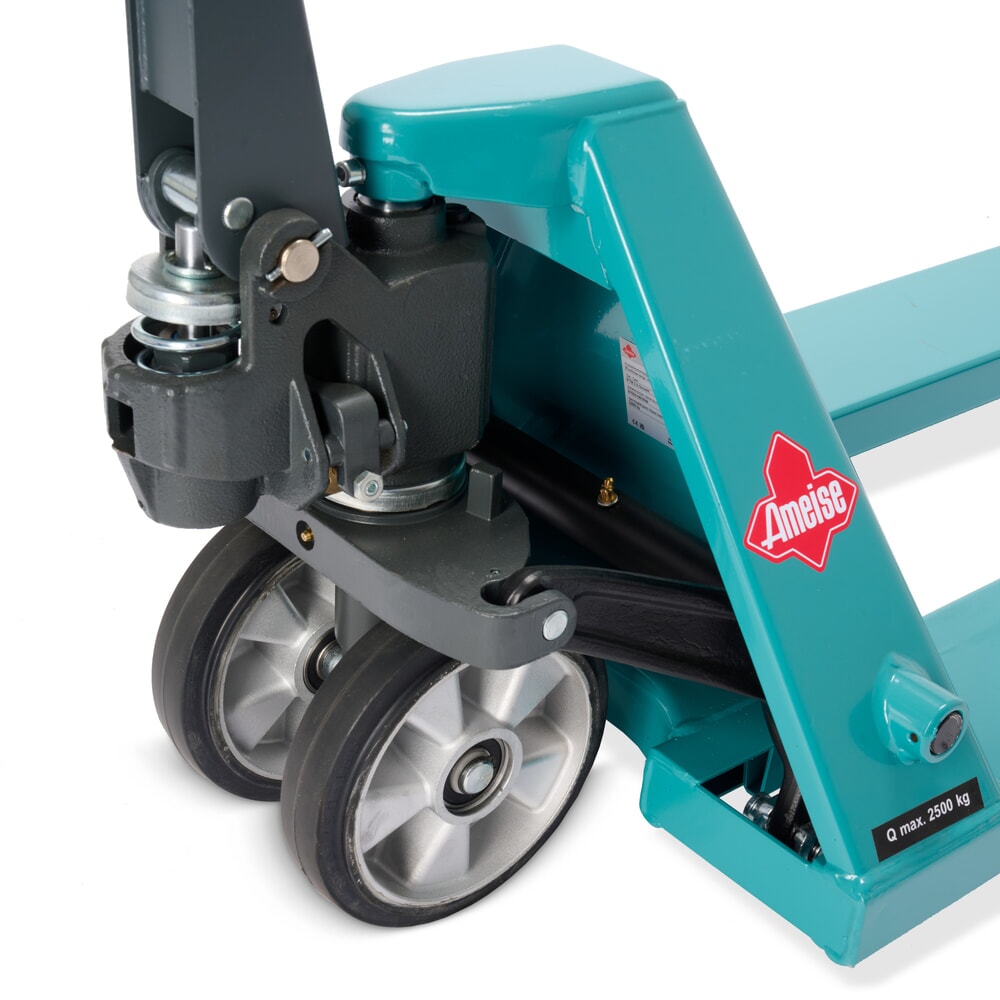

The tiller features a 210° steering angle, allowing the Ameise® pallet truck with quick lift to be manoeuvred with ease in even the tightest of spaces. Entry and exit rollers ensure easy pallet insertion and smooth running on uneven floors. The welded sectional steel frame is torsion-free and very hard wearing, allowing the pallet truck to retain its shape even under maximum load. Grease nipples are fitted for ease of maintenance and utmost durability.

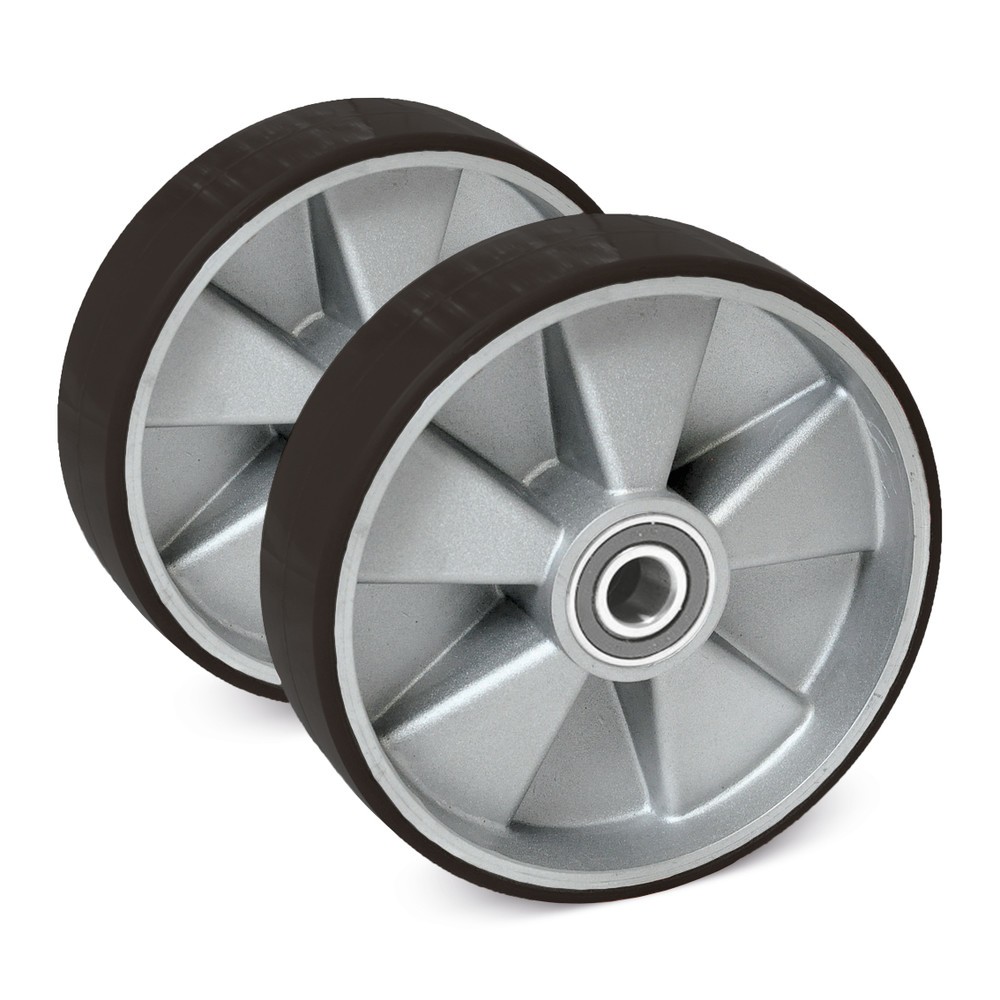

The solid steel parking brake is available as an optional accessory. This allows you to park the truck securely on sloping surfaces. Depending on the ground conditions and your specific application, you can choose between a range of tyre materials. You can also opt for single or tandem fork rollers.

Benefit from efficient pallet handling by ordering the Ameise® hand pallet truck with quick lift from our shop in your chosen configuration.
