Topseller
Item number:
167633
Scissor lift table, single scissor, capacity 500 kg, platform dimensions 1,300 x 800 mm, Ameise®
Electric lifting and lowering for effective working at an ergonomic height
Technical details
Scissor lift table, single scissor, capacity 500 kg, platform dimensions 1,300 x 800 mm, Ameise®
-
Amperage16 A
-
BrandAmeise®
-
Capacity500 kg
-
Deliveryfully assembled
-
Frequency50 Hz
-
Hydraulic oil quantity1 l
-
Hydraulic oil typeMineral oil
-
Hydraulic oil viscosity acc. to ISO-VG32
-
Lift820 mm
-
Lift cycles max.10 Per hour
-
Lift functionelectric
-
Lift motor output0.75 kW
-
Lift range190 - 1010 mm
-
Lift speed with/without load55 mm/s
-
Lift time15 s
-
Lowering speed with/without load35 mm/s
-
MaterialSteel
-
Net weight183 kg
-
No. of cylinders1
-
Platform depth1300 mm
-
Platform height65 mm
-
Platform typeclosed
-
Platform width800 mm
-
RAL colourRAL 5018 turquoise blue, RAL 7046 telegrey 2
-
Scissors typeSingle scissors
-
SectionPerformance
-
Surfacepowder-coated
-
Voltage380 V
Item description

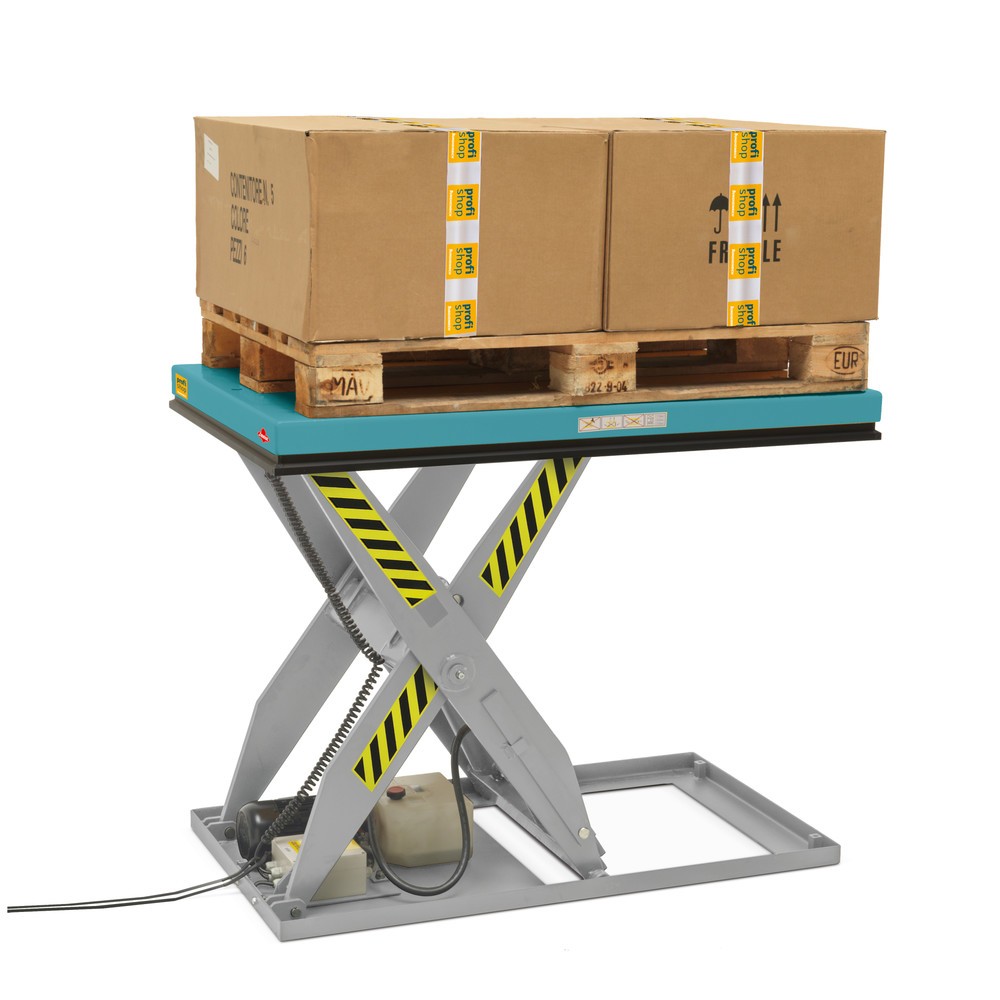

Scissor lift table, single scissor, capacity 500 kg, platform dimensions 1,300 x 800 mm, Ameise®
The stationary, single-scissor Ameise® lift table can be attached to the floor or embedded in the ground. The platform is raised and lowered with electric power, making ergonomic working even more comfortable and productive.
- Electric lifting and lowering of the platform
- Fully variable hydraulic height adjustment

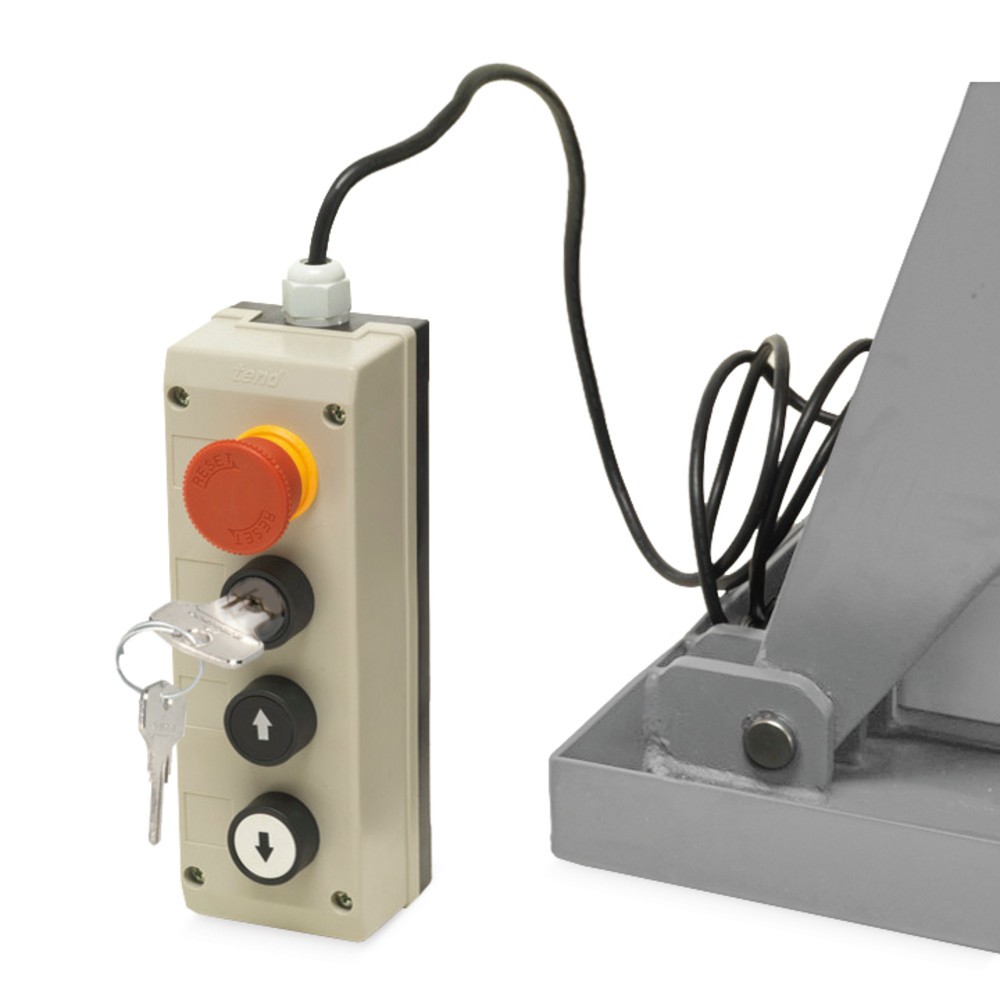

- External control unit with pushbuttons, key switch and emergency disconnect
- High-quality pump with safety valve for long service life
- Maintenance-friendly design
Ameise® scissor lift table with electrically operated lift function for highly ergonomic working
The Ameise® scissor lift table impresses with its robust and proven quality and is designed to withstand the rigours of everyday use. The stationary lift table can be attached to the floor or embedded in the ground. The fully variable, hydraulic height adjustment of the platform is operated via convenient push-buttons. You can thus easily raise the load on the scissor lift table to your ideal, ergonomic height for fatigue-free working. The control unit is connected to the lift table via a 2.65 m cable for safe operation from any distance using the push-buttons with key switch and emergency disconnect. The high-quality hydraulic pump with safety valve ensures a long service life and protects against overloading.
Inspection supports prevent accidental lowering of the lift table during servicing, with additional safety provided by the protective frame.
The tough, durable construction comprises a powder-coated platform made from sheet steel, a subframe made from welded angle sections and robust scissor bracing. The Ameise® scissor lift table is available with different capacities.
The Ameise® single scissor lift table represents an ideal solution with regard to ergonomics, functionality and safety. Order the correct version for your needs from our shop.
The Ameise® scissor lift table impresses with its robust and proven quality and is designed to withstand the rigours of everyday use. The stationary lift table can be attached to the floor or embedded in the ground. The fully variable, hydraulic height adjustment of the platform is operated via convenient push-buttons. You can thus easily raise the load on the scissor lift table to your ideal, ergonomic height for fatigue-free working. The control unit is connected to the lift table via a 2.65 m cable for safe operation from any distance using the push-buttons with key switch and emergency disconnect. The high-quality hydraulic pump with safety valve ensures a long service life and protects against overloading.
Inspection supports prevent accidental lowering of the lift table during servicing, with additional safety provided by the protective frame.
The tough, durable construction comprises a powder-coated platform made from sheet steel, a subframe made from welded angle sections and robust scissor bracing. The Ameise® scissor lift table is available with different capacities.
The Ameise® single scissor lift table represents an ideal solution with regard to ergonomics, functionality and safety. Order the correct version for your needs from our shop.
Product Notes
Die angegebene Tragkraft gilt nur bei gleichmäßig verteilter Last. Für eine ungleichmäßig verteilte oder rollende Last muss gegebenenfalls ein anderer Hubtisch gewählt werden. Bitte nehmen Sie hierzu Kontakt zu unserer Fachberatung auf.
