Item number: 170221

Scissor lift table on wheels, fixed handlebar, capacity 750 kg, dimensions 1,000 x 510 mm, Ameise®

Name: Scissor lift table on wheels, fixed handlebar, capacity 750 kg, dimensions 1,000 x 510 mm, Ameise®
Brand: Ameise®
SKU: 170221
Price: 640.0 GBP
Availability: InStock

For order picking and transporting at an ergonomic height

Go to product description

B-Ware Ameise® Scissor Lift Table Trolley, Fixed Bracket, load capacity 500 kg, 850 x 500 mm

Select variant:

Capacity:

500 kg

750 kg

Height:

985 mm

990 mm

Length:

1095 mm

1330 mm

Lift range:

350 mm

440 mm

9 Working days

£640.00

per Stk excl. VAT plus shipping

Technical details

Scissor lift table on wheels, fixed handlebar, capacity 750 kg, dimensions 1,000 x 510 mm, Ameise®

Brand

Ameise®
Capacity

750 kg
Castor locking function

yes
Castor material

Polyurethane (PU)
Cylinder diameter

35 mm
Delivery

pre-assembled
Fixed castor diameter

147 mm
Fixed castor width

50 mm
Foot guard

Yes
Foot pedal to max. lift height

45
Handle height

990 mm
Height

990 mm
Hydraulic oil quantity

0.4 l
Hydraulic oil type

Mineral oil
Hydraulic oil viscosity acc. to ISO-VG

32
Length

1330 mm
Lift

550 mm
Lift function

Foot pedal
Lift range

440 mm
Material

Steel
Net weight

122 kg
No. of cylinders

1
No. of fixed castors

2 Stk.
No. of swivel castors

2 Stk.
Platform depth

1000 mm
Platform height

50 mm
Platform type

closed
Platform width

510 mm
Push handle type

fixed
RAL colour

RAL 5018 turquoise blue, RAL 7046 telegrey 2
Scissors type

Single scissors
Section

Performance
Surface

powder-coated
Swivel castor diameter

147 mm
Swivel castor width

50 mm

Item description

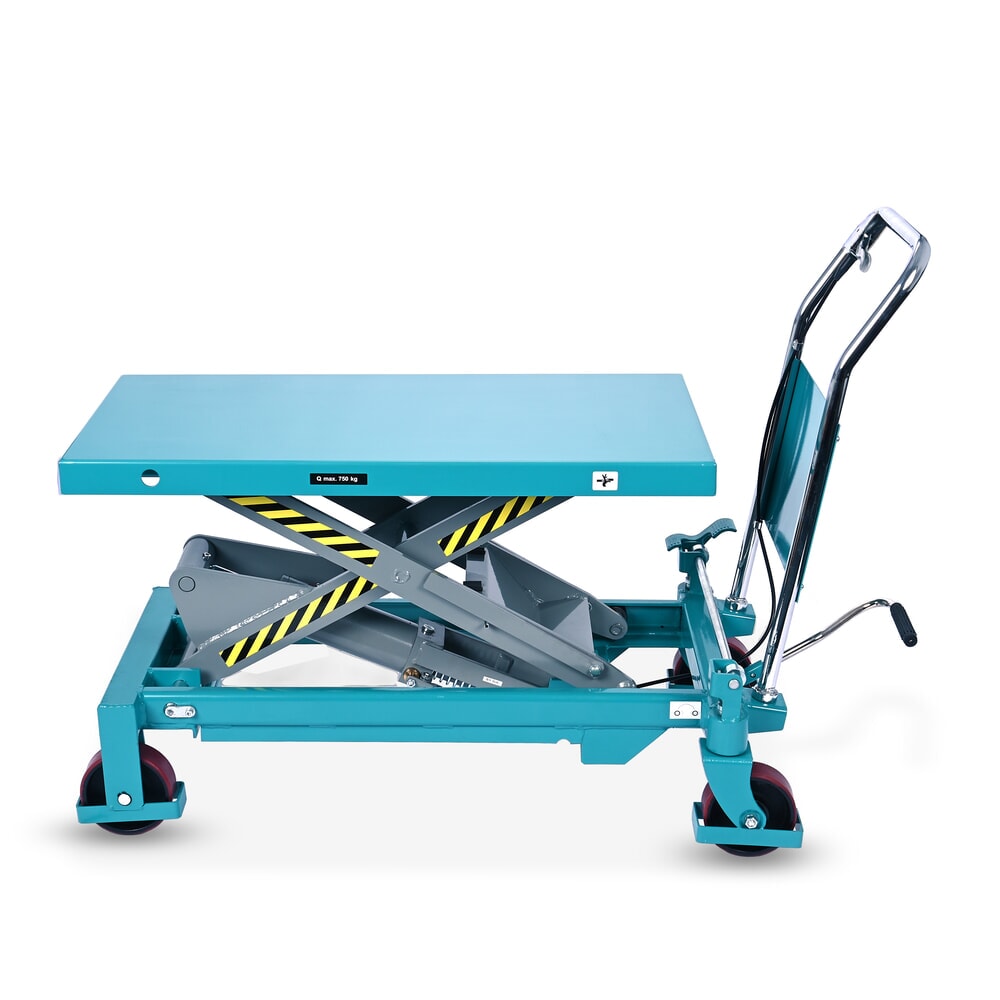

Scissor lift table on wheels, fixed handlebar, capacity 750 kg, dimensions 1,000 x 510 mm, Ameise®

The robust scissor lift platform truck is ideal for the transport and provisioning of workpieces and working materials at an ergonomic height. It is very easy to work with thanks to the foot-operated hydraulic pump.

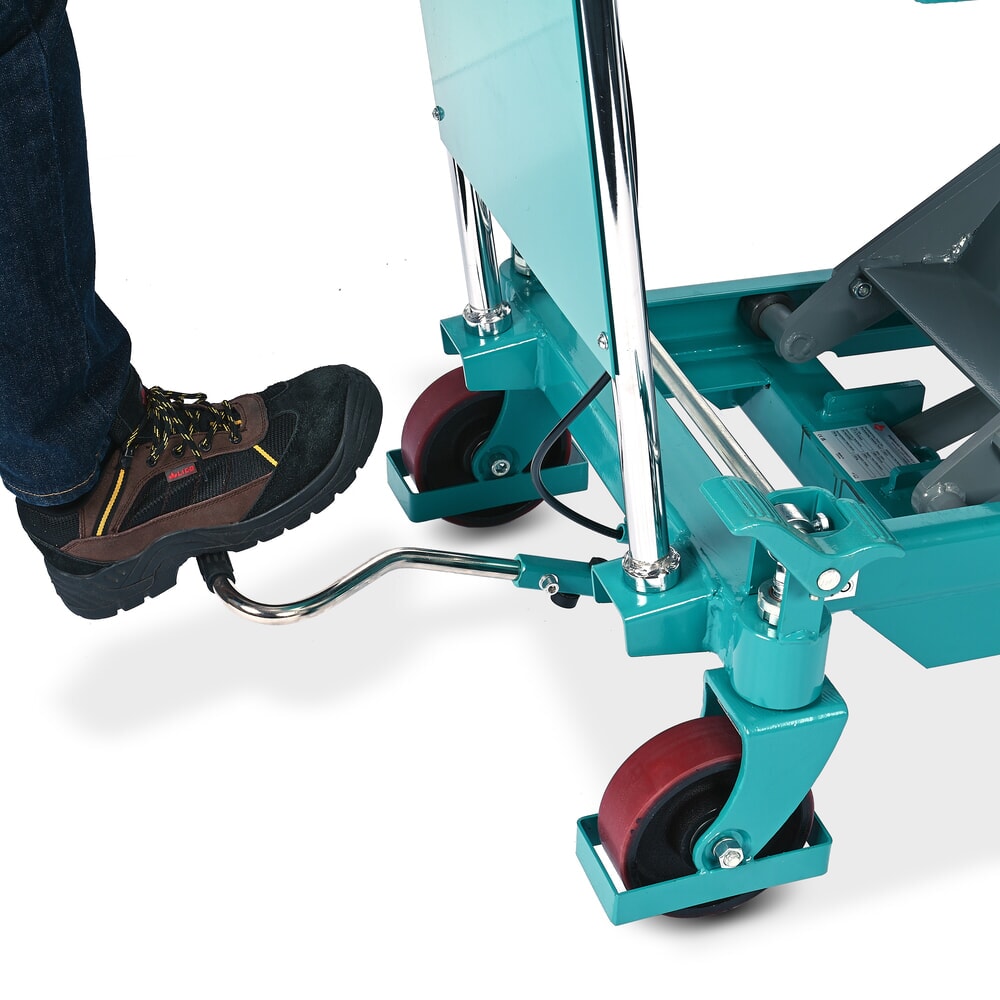

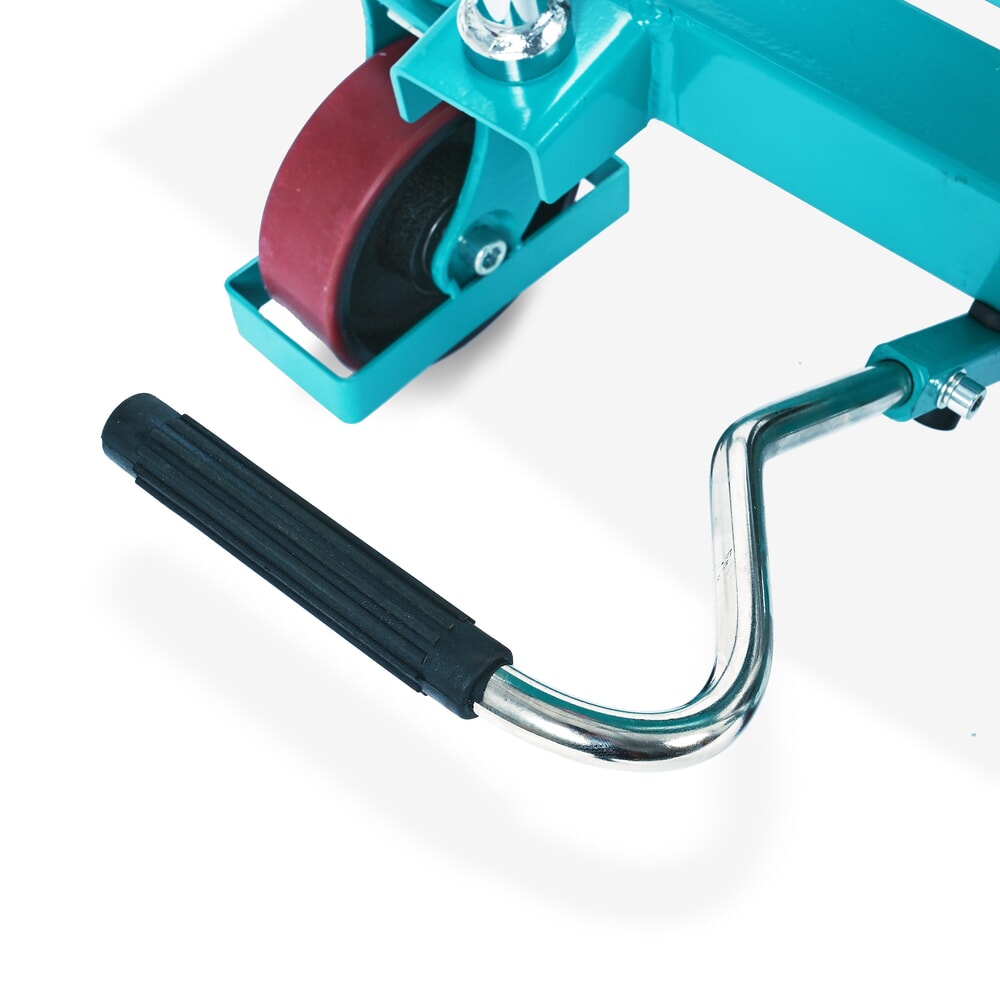

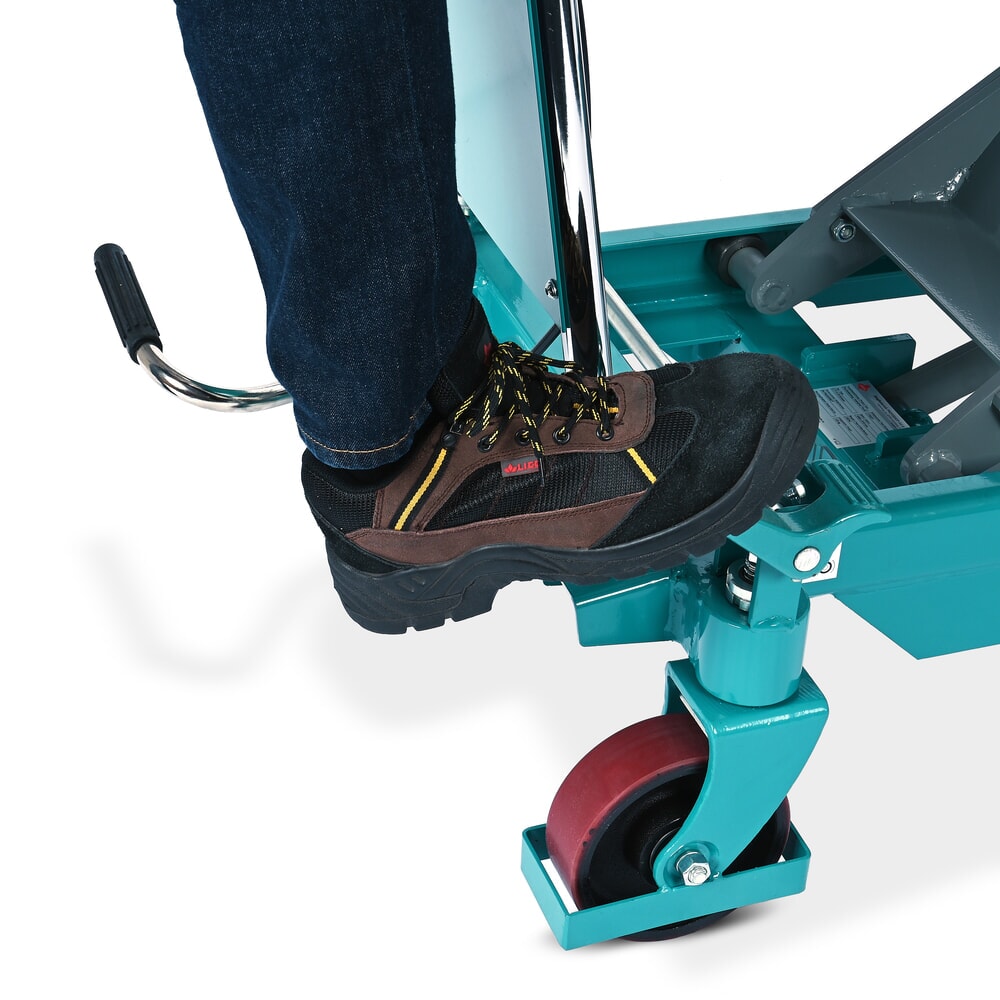

Foot pedal for easy lifting
Fully variable lowering valve for precision manual lowering
Chrome-plated handlebar
Steering and fixed castors made from robust polyurethane
Wheel stop and wheel guard

Convenient working with the Ameise® scissor lift table with wheels and fixed handlebar

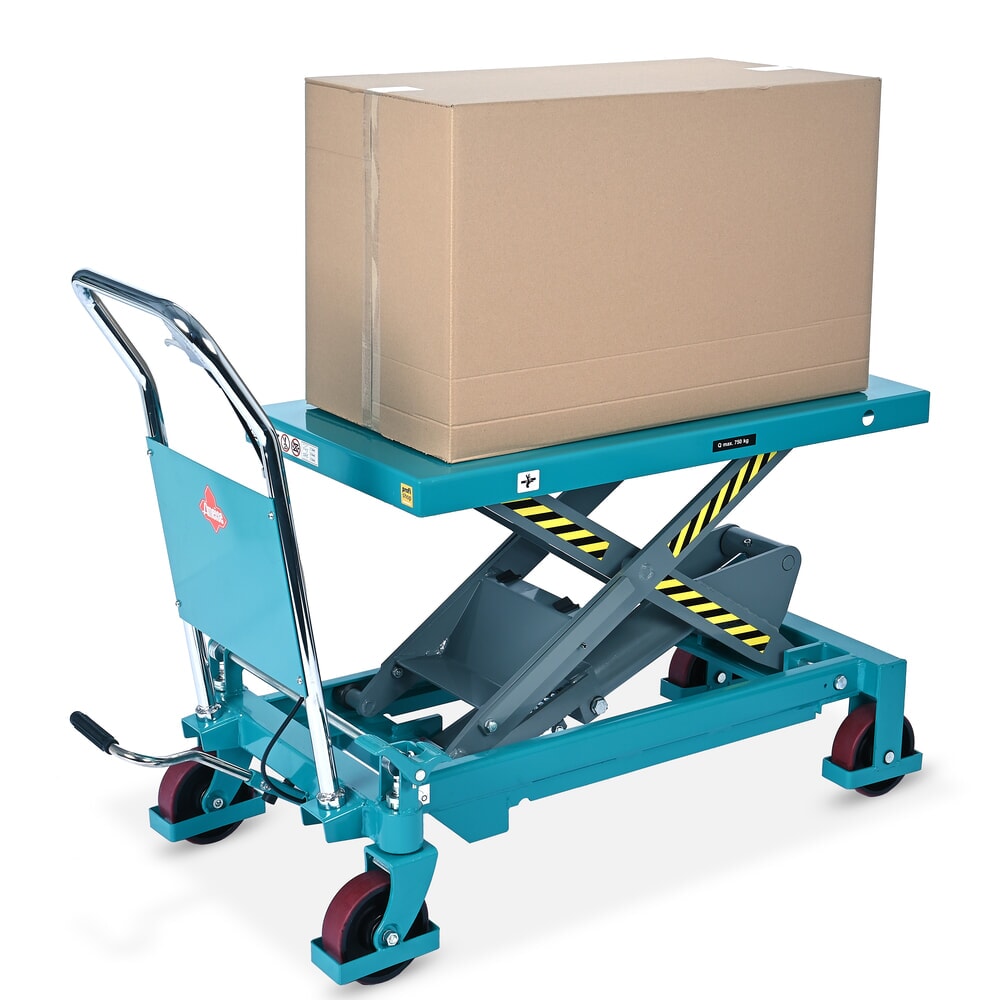

The powder-coated Ameise® scissor lift table with wheels is a high-quality product designed for everyday use. The mobile lift table is ideal for the transport and provisioning of goods at an ergonomic height, thus greatly reducing the strain on your back. You operate the high-quality hydraulic pump via a foot pedal, thereby raising the platform via the single scissor with utmost ease. The platform can be lowered gently and evenly using the fully variable lowering valve. The lowering handle on the chrome-plated handlebar is rubberised to ensure secure grip.

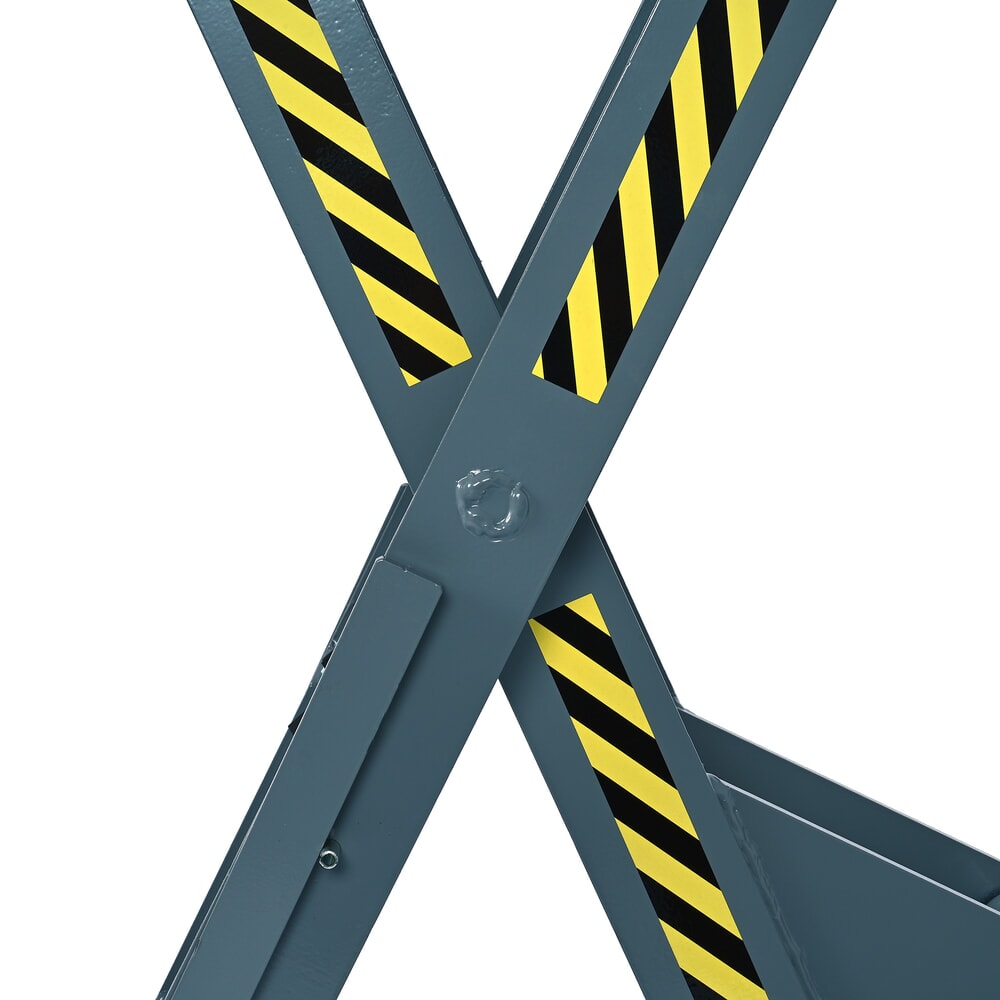

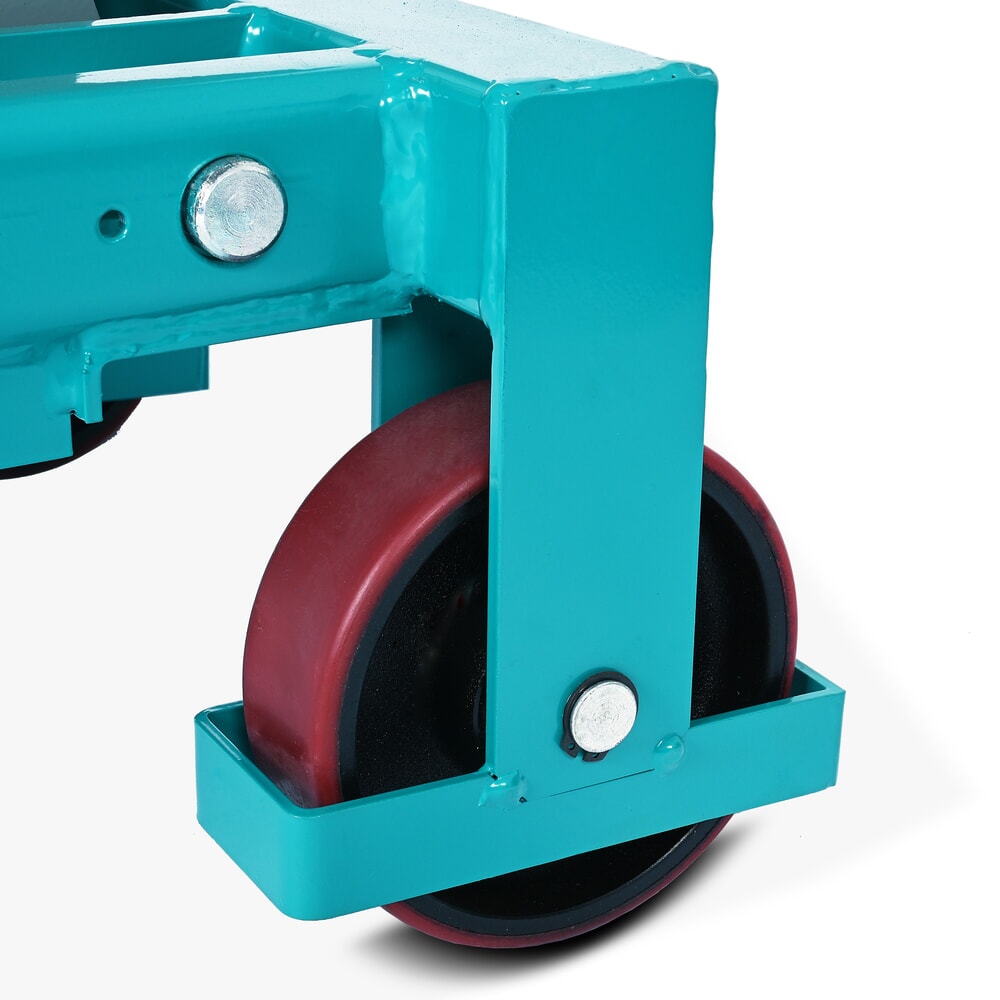

The inspection support on the lift table with wheels provides safe access to the lifting mechanism during service and maintenance work. The frame and scissors are made from welded sectional steel, while the table itself is constructed from rounded steel plate. Equipped with two steering castors and two fixed castors, all made from polyurethane, the scissor lift table can be moved with ease and minimal noise. The wheel stop on the steering castors ensures stability and security in use, while the wheel guards on all castors protect your feet when moving the lift table.

The Ameise® scissor lift table with wheels and fixed handlebar is available with different lift heights and capacities. Order the scissor lift table with wheels from our shop today.
