Item number:
167214
BASIC PSM 1.0 hydraulic stacker truck with single mast, lift height 1,600 mm, load capacity 1,000 kg
For light-duty use and occasional stacking up to 1600 mm lift height
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
BASIC PSM 1.0 hydraulic stacker truck with single mast, lift height 1,600 mm, load capacity 1,000 kg
Article number: 167214 | EAN/GTIN: 4055091146935
| Aisle width | 2000 mm |
| Brand | BASIC |
| Capacity | 1000 kg |
| Chassis RAL colour | RAL 2002 blood orange |
| Chassis surface | powder-coated |
| Control panel | right-handed |
| Drive | manual |
| Fork height | 60 mm |
| Fork length | 1150 mm |
| Fork roller diameter | 80 mm |
| Fork roller equipment | Single |
| Fork roller material | Nylon |
| Fork roller width | 58 mm |
| Fork support width | 550 mm |
| Fork width | 160 mm |
| Ground clearance | 28 mm |
| Lift | 1600 mm |
| Lift height per pump stroke | 28 mm |
| Lift range | 85 - 1600 mm |
| Load centre | 500 mm |
| Lowering speed with/without load | 0.02 / 0.02 m/s |
| Mast | Single-stage mast |
| Mast height | 2030 mm |
| Net weight | 224 kg |
| Operator type | Manual |
| Overall length | 1700 mm |
| Overall width | 720 mm |
| Section | Starter |
| Support arm height | 80 mm |
| Support arm length | 870 mm |
| Support arms outer distance | 470 mm |
| Support arm width | 100 mm |
| Swivel castor diameter | 180 mm |
| Swivel castor width | 50 mm |
| Temperature range | 5 - 40 °C |
| Tiller RAL colour | RAL 7016 anthracite grey |
| Tiller height | 2030 mm |
| Tiller surface | powder-coated |
| Turning radius | 1380 mm |
Item description
BASIC PSM 1.0 hydraulic stacker truck with single mast, lift height 1,600 mm, load capacity 1,000 kg
Article number: 167214 | EAN/GTIN: 4055091146935
The BASIC hydraulic stacker truck with single mast is an ideal solution for the manual transport of pallets or piece goods. These trucks can also be used for occasional stacking and retrieving of pallets or for loading and unloading HGVs without the aid of a ramp.
- Low-maintenance and highly robust
- Loads can be lifted via the foot pedal or tiller
- Rubberised tiller handle for maximum comfort
- Mechanical parking brake for security and stability
The BASIC hydraulic stacker truck with single mast is the affordable entry-level model for occasional stacking operations
With its manual lift function, the truck enables straightforward lifting of pallets via the hydraulic foot pump or by operating the reinforced tiller. The lowering valve in the tiller head enables fully variable lowering of the load with utmost precision. The ergonomic, rubberised handle is very comfortable to work with, particularly in lower temperatures.
The robust tubular push handles fitted to the steel frame ensure excellent manoeuvrability. The low weight and compact dimensions ensure safe and easy operation of the BASIC hydraulic stacker truck, even in confined spaces.
The sturdy welded frame with central support and load forks made from torsion-resistant sectional steel easily withstands loads of up to 1000 kg. Thanks to the maximum lift height of 1600 mm and the fixed fork arms, pallets can be raised and deposited with utmost ease and safety, even at higher rack levels. When lifting and lowering the pallets, additional stability is ensured by the mechanical parking brakes on the 2 steering castors.

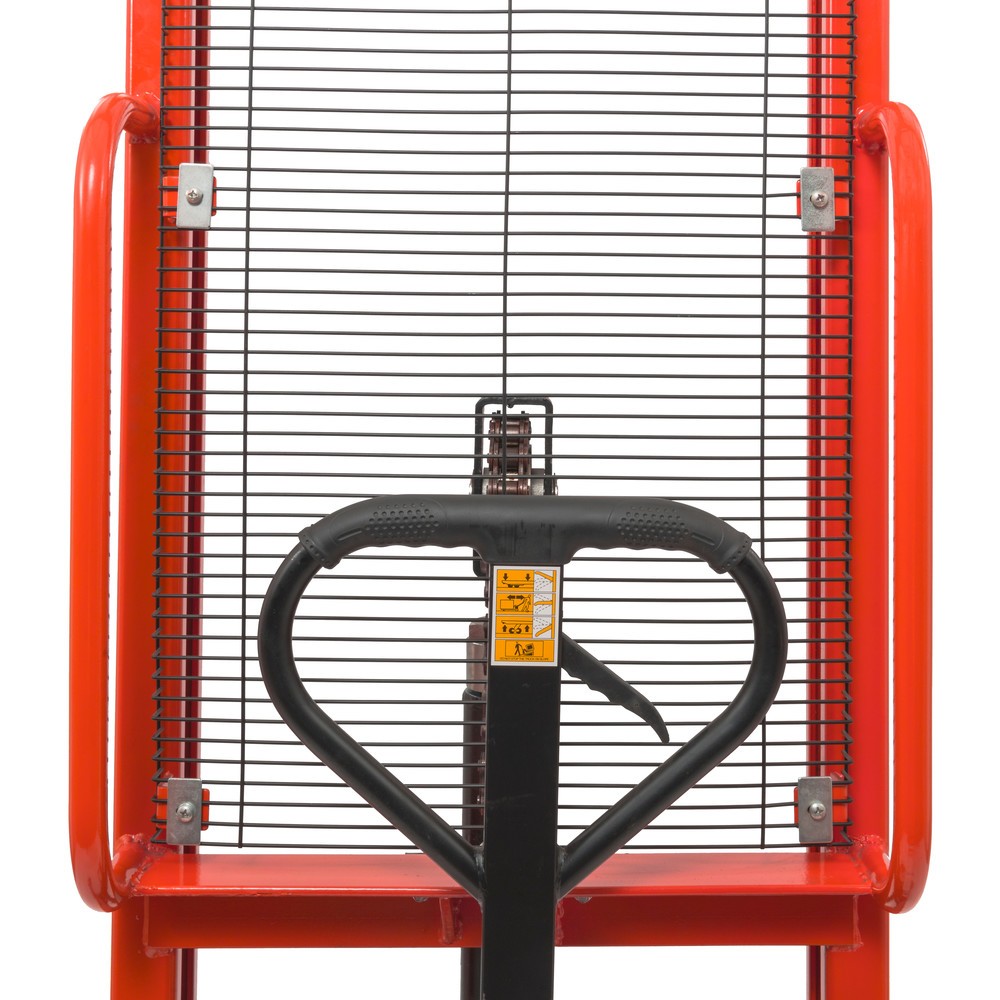

Thanks to the single mast, the height of the truck always remains the same, regardless of whether the forks are raised or lowered. The metal grid fitted within the steel frame offers protection against falling objects and provides a clear view in the direction of travel.
The two large steering castors and single fork rollers are made from wear-resistant nylon, thereby ensuring extremely smooth running.
Order the versatile BASIC hydraulic stacker truck from our shop today.
With its manual lift function, the truck enables straightforward lifting of pallets via the hydraulic foot pump or by operating the reinforced tiller. The lowering valve in the tiller head enables fully variable lowering of the load with utmost precision. The ergonomic, rubberised handle is very comfortable to work with, particularly in lower temperatures.
The robust tubular push handles fitted to the steel frame ensure excellent manoeuvrability. The low weight and compact dimensions ensure safe and easy operation of the BASIC hydraulic stacker truck, even in confined spaces.
The sturdy welded frame with central support and load forks made from torsion-resistant sectional steel easily withstands loads of up to 1000 kg. Thanks to the maximum lift height of 1600 mm and the fixed fork arms, pallets can be raised and deposited with utmost ease and safety, even at higher rack levels. When lifting and lowering the pallets, additional stability is ensured by the mechanical parking brakes on the 2 steering castors.
Thanks to the single mast, the height of the truck always remains the same, regardless of whether the forks are raised or lowered. The metal grid fitted within the steel frame offers protection against falling objects and provides a clear view in the direction of travel.
The two large steering castors and single fork rollers are made from wear-resistant nylon, thereby ensuring extremely smooth running.
Order the versatile BASIC hydraulic stacker truck from our shop today.
