Ameise® flat scissor lift table, closed, capacity 1,000 kg, platform dimensions 1,450 x 1,140 mm

Article number: 170214 | EAN/GTIN: 4055091127484

Amperage 16 A
Auto-levelling No
Brand Ameise®
Capacity 1000 kg
Control cable length 2,000 mm
Control unit depth 325 mm
Control unit height 1000 mm
Control unit weight 20 kg
Control unit width 630 mm
Cylinder diameter 70 mm
Delivery fully assembled
Depth 1450 mm
Frequency 50 Hz
Hydraulic oil quantity 1.5 l
Hydraulic oil type Mineral oil
Hydraulic oil viscosity acc. to ISO-VG 32
Leveller Yes
Leveller height 85 mm
Leveller length 885 mm
Leveller width 1140 mm
Lift 760 mm
Lift cycles max. 10 Per hour
Lift function electro-hydraulic
Lift range 80 - 840 mm
Lift speed with/without load 42 mm/s
Lift time 18 s
Lowering speed with/without load 84 mm/s
Material Steel
Net weight 250 kg
No. of cylinders 2
Operator type Manual, manual
Platform depth 1450 mm
Platform height 51 mm
Platform type closed
Platform width 1140 mm
Power 0,75 kW
Power supply Three-phase current
RAL colour RAL 5018 turquoise blue, RAL 7046 telegrey 2
Scissors type Single scissors
Section Performance
Surface powder-coated
Voltage 380 V
Width 1140 mm

Item description

Ameise® flat scissor lift table, closed, capacity 1,000 kg, platform dimensions 1,450 x 1,140 mm

Article number: 170214 | EAN/GTIN: 4055091127484

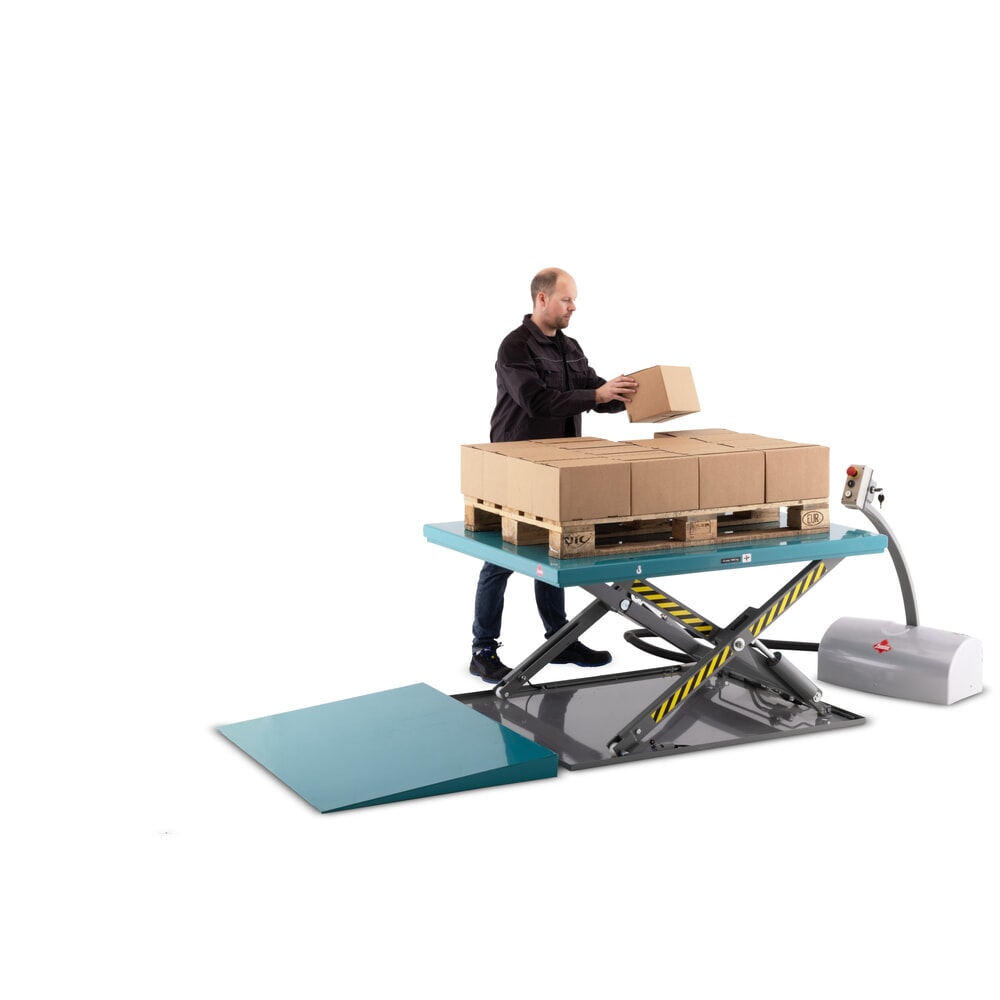

With the Ameise® closed flat scissor lift table, you can safely raise heavy loads to an ergonomic working and reach height. This allows you to work in a comfortable, fatigue-free manner. Thanks to the closed platform, you can quickly and easily load the lift table with pallets and non-palletised goods.
  • Robust steel construction
  • Leveller for easy loading and unloading
  • With separate control unit
  • Ready for connection
Lift and lower heavy loads with ease

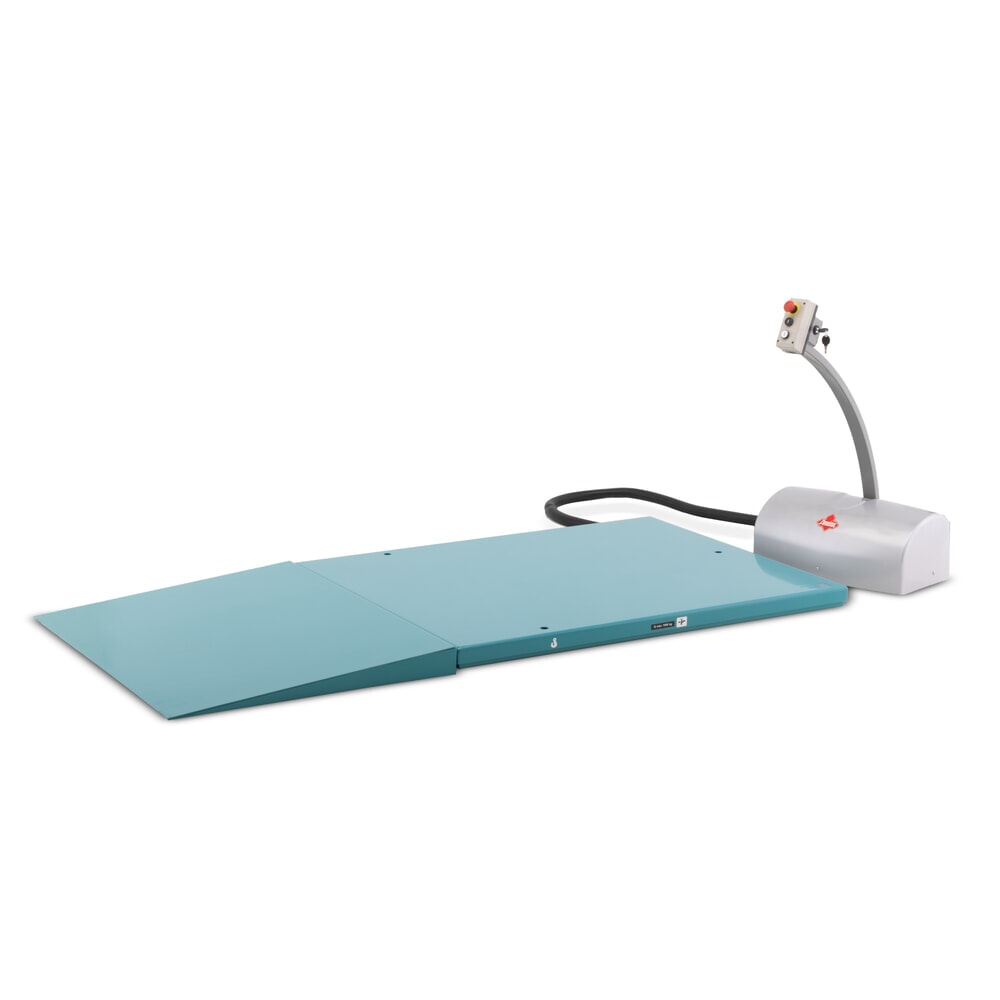

The low height of the Ameise® closed flat scissor lift table makes it extremely flexible and easy to transport.

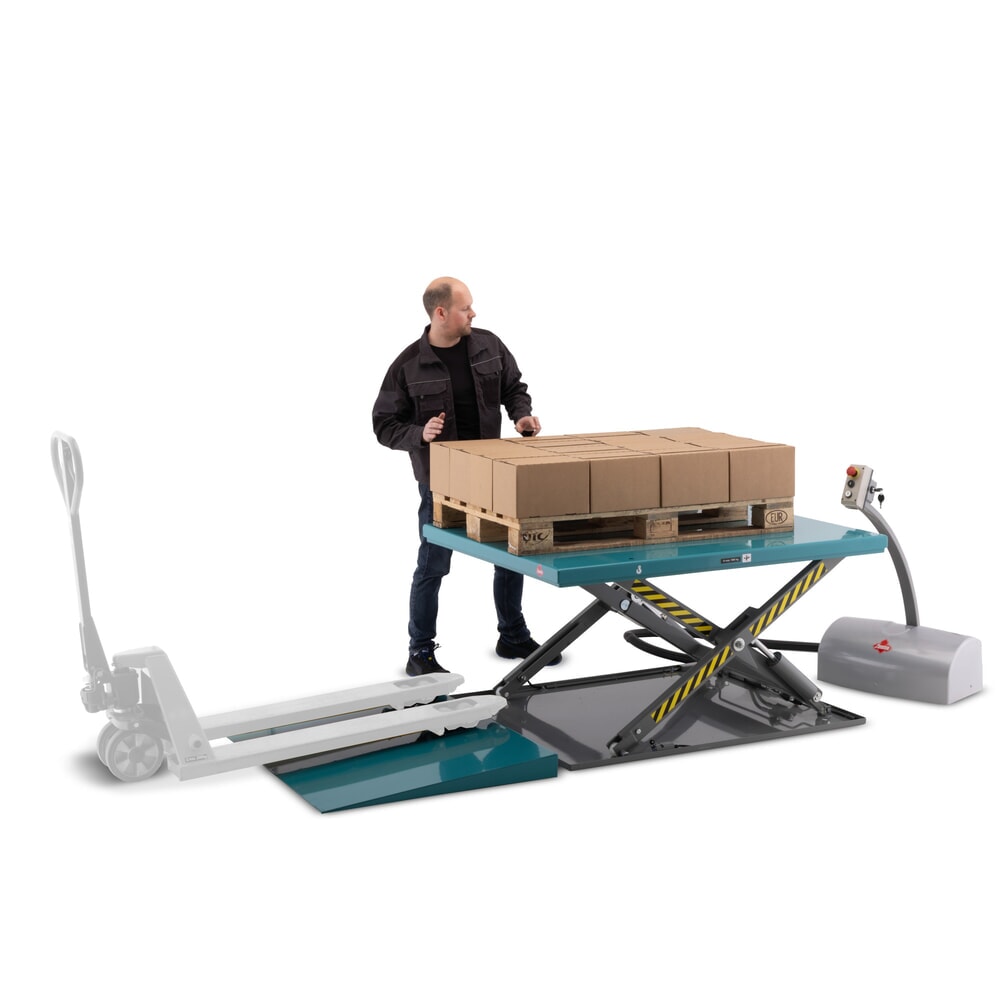

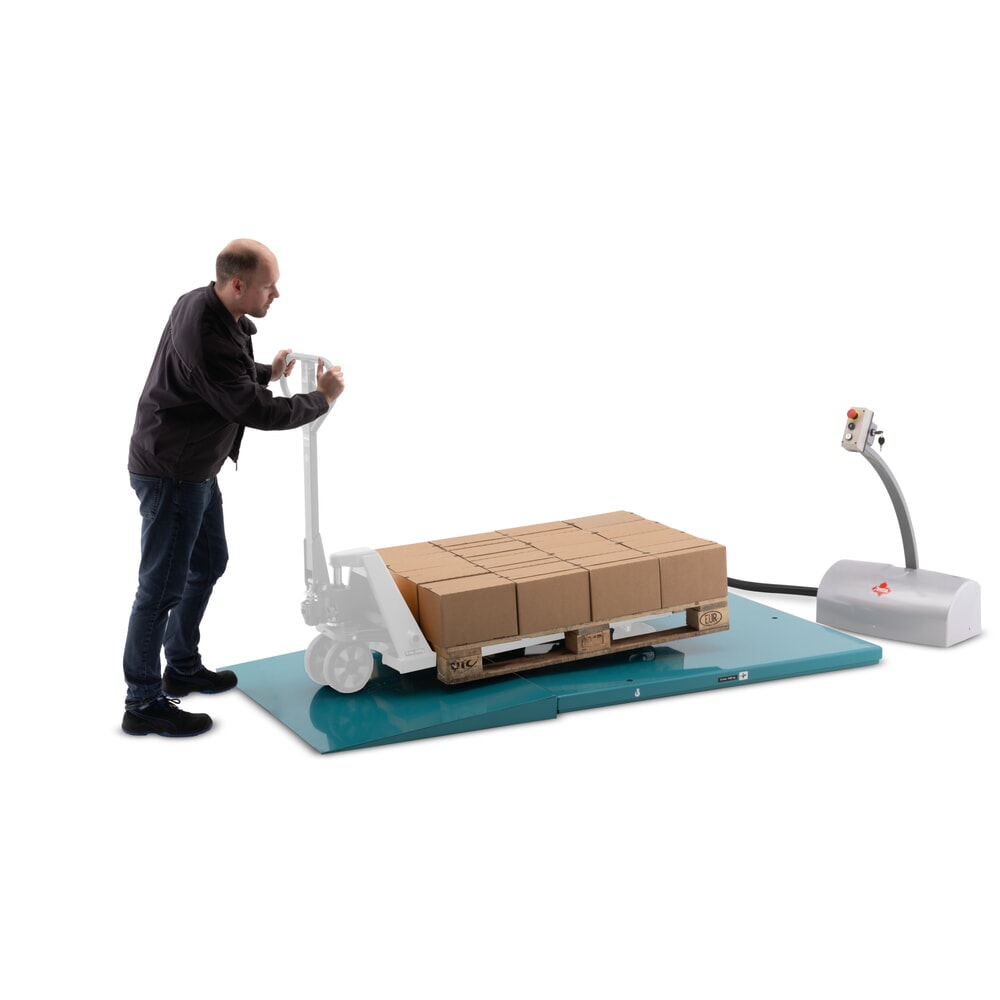

The lifting eyes / safety bolts enable secure transport to the required location with a forklift truck or crane. The leveller ensures straightforward loading and unloading using a truck.
The lift table is activated with a key switch on the separate control unit.

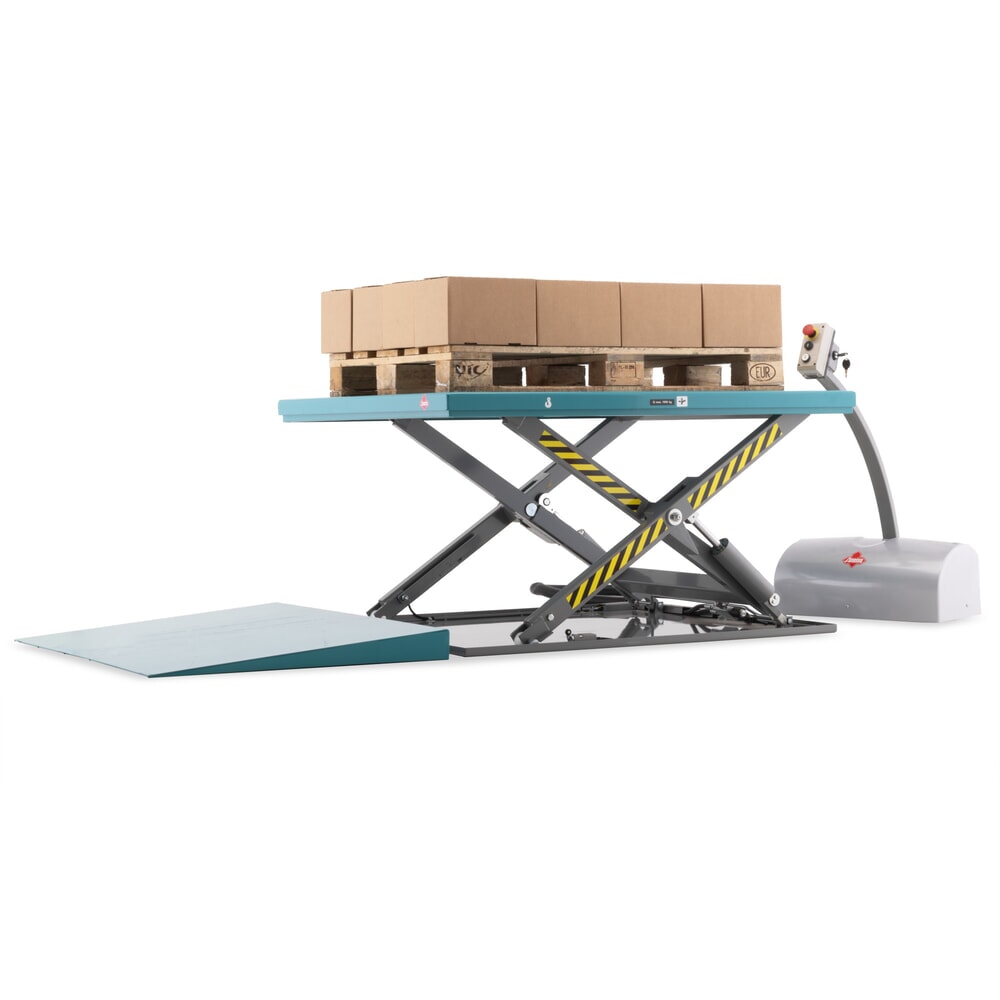

With an evenly distributed load, the lift table can support weights of up to 1000 kg.

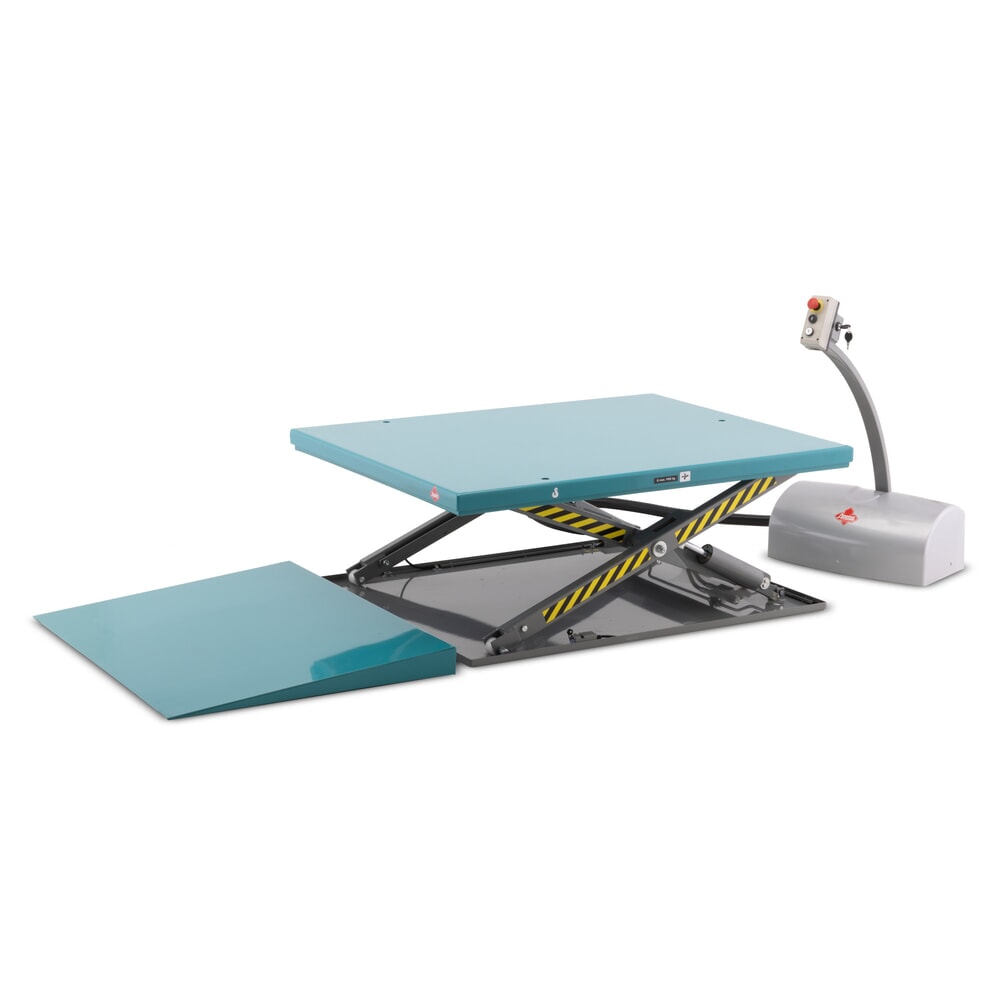

A number of safety measures are provided for your protection. The base plate features a raised edge, which not only offers foot protection but also ensures safe guidance of the scissor lift rollers.
To prevent crushing injuries, a foot protection contact strip below the platform ensures that the lowering motion of the lift table is halted immediately if any contact is made. In addition, the emergency disconnect on the control unit immediately interrupts the power supply so that the lift table can no longer move.
A safety device prevents accidental lowering of the lift table when performing repair or maintenance work.

Benefit from a robust, high-quality product by ordering the Ameise® scissor lift table with closed platform from our shop.

Product Notes

Die angegebene Tragkraft gilt nur bei gleichmäßig verteilter Last. Für eine ungleichmäßig verteilte oder rollende Last muss gegebenenfalls ein anderer Hubtisch gewählt werden. Bitte nehmen Sie hierzu Kontakt zu unserer Fachberatung auf.
