Ameise® flat scissor lift table, U-shaped, capacity 1,000 kg
Capacity 1,000 kg
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
Ameise® flat scissor lift table, U-shaped, capacity 1,000 kg
Article number: 170215 | EAN/GTIN: 4055091293196
| Amperage | 16 A |
| Auto-levelling | No |
| Brand | Ameise® |
| Capacity | 1000 kg |
| Control cable length | 2,000 mm |
| Control unit depth | 325 mm |
| Control unit height | 1000 mm |
| Control unit weight | 20 kg |
| Control unit width | 630 mm |
| Cylinder diameter | 70 mm |
| Delivery | fully assembled |
| Depth | 1450 mm |
| Frequency | 50 Hz |
| Hydraulic oil quantity | 1.5 l |
| Hydraulic oil type | Mineral oil |
| Hydraulic oil viscosity acc. to ISO-VG | 32 |
| Leveller | No |
| Lift | 760 mm |
| Lift cycles max. | 10 Per hour |
| Lift function | electro-hydraulic |
| Lift range | 80 - 840 mm |
| Lift speed with/without load | 42 mm/s |
| Lift time | 18 s |
| Lowering speed with/without load | 84 mm/s |
| Material | Steel |
| Net weight | 235 kg |
| No. of cylinders | 2 |
| Operator type | Manual, manual |
| Platform depth | 1450 mm |
| Platform height | 51 mm |
| Platform type | U-shaped |
| Platform width | 1140 mm |
| Power | 0,75 kW |
| Power supply | Three-phase current |
| RAL colour | RAL 5018 turquoise blue, RAL 7046 telegrey 2 |
| Scissors type | Single scissors |
| Section | Performance |
| Surface | powder-coated |
| U-shape interior dimension depth | 1050 mm |
| U-shape interior dimension width | 585 mm |
| Voltage | 380 V |
| Width | 1140 mm |
Item description
Ameise® flat scissor lift table, U-shaped, capacity 1,000 kg
Article number: 170215 | EAN/GTIN: 4055091293196

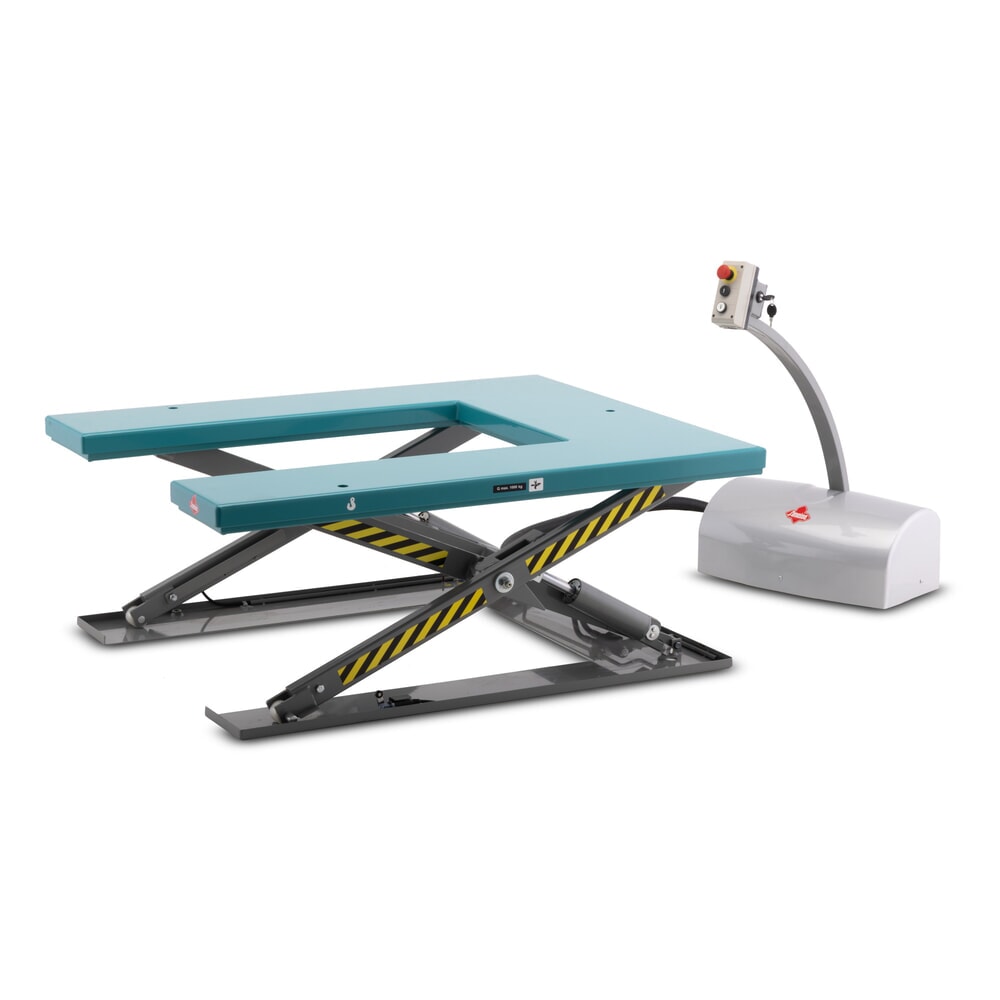

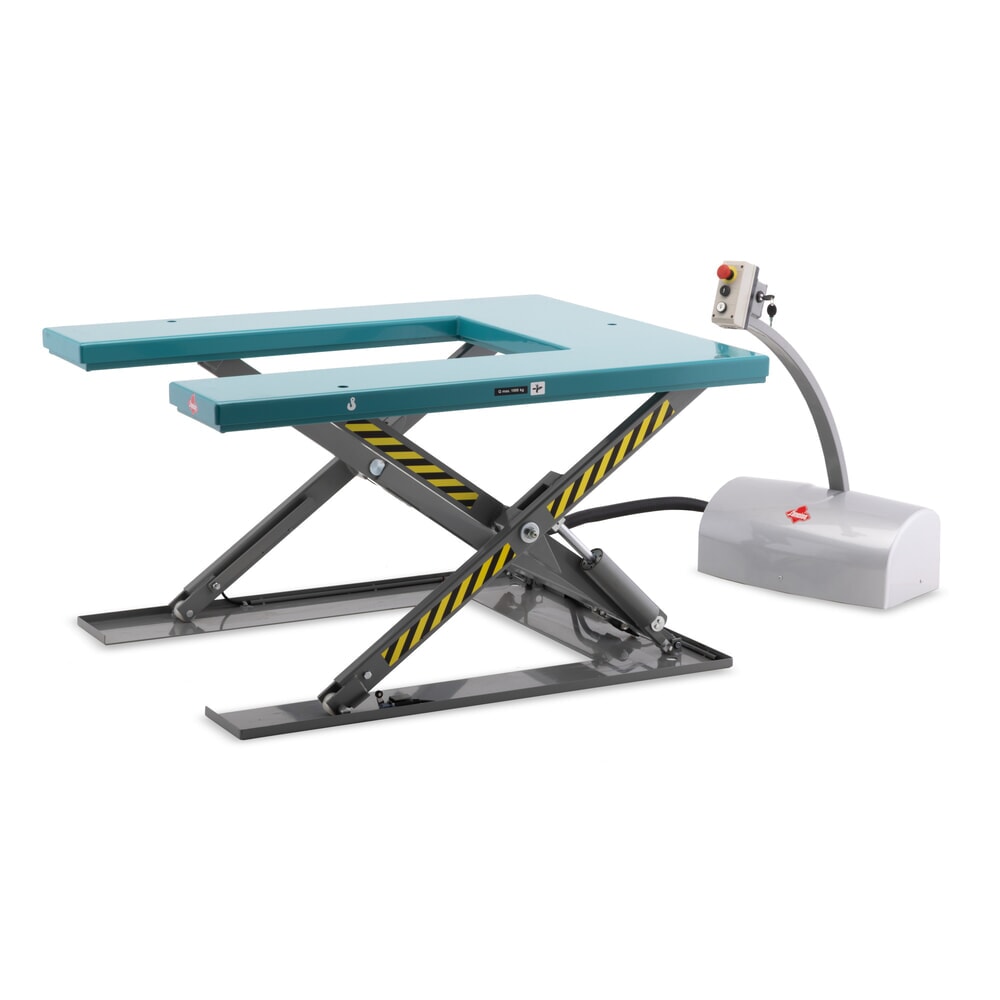

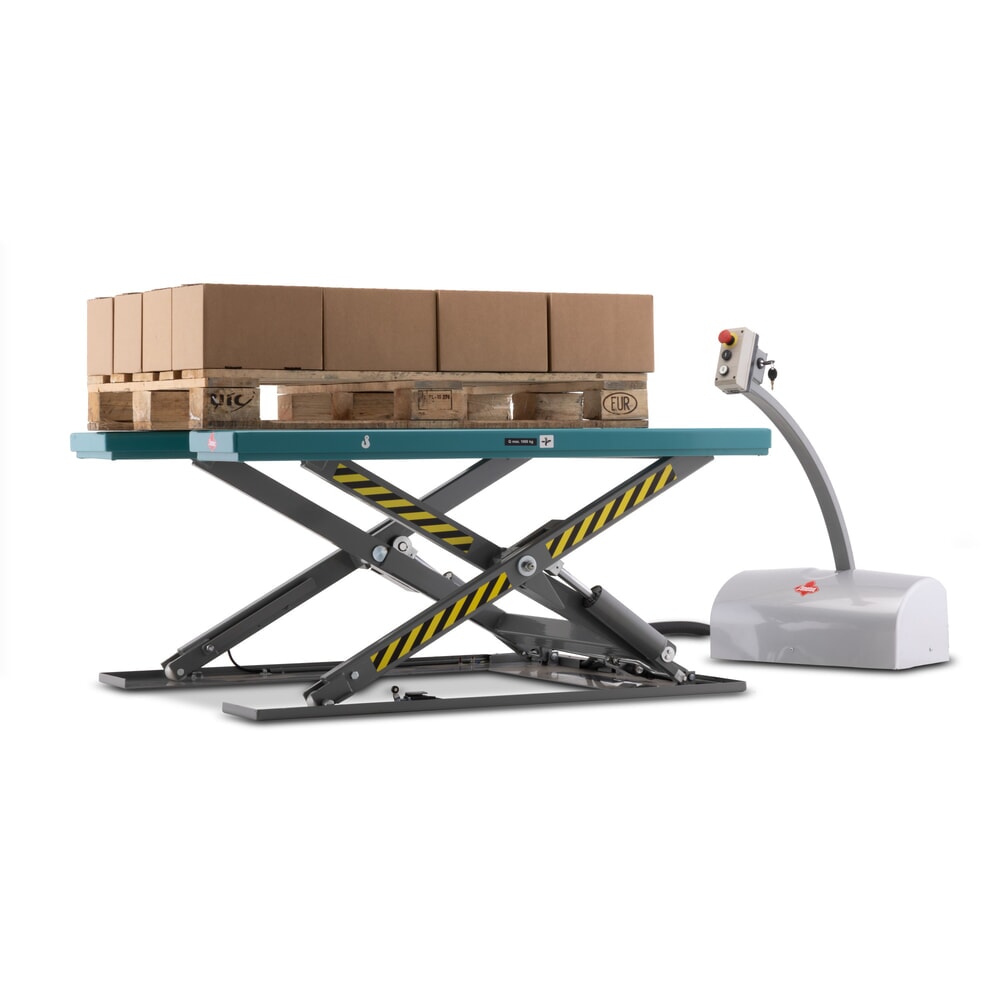

With the Ameise® U-shaped flat scissor lift table, you can raise heavy loads to an ergonomic working and reach height. The U-shaped design provides ideal access for a pallet truck or forklift, allowing you to deposit pallets on the platform. Thanks to the separate control unit, you can move the load with a virtually constant lifting and lowering speed.
- Robust construction with stable scissor bracing
- U-shaped platform for pallet and forklift trucks
- With separate control unit
- Incl. safety bolts
Robust lift table for flexible use
The Ameise® U-shaped flat scissor lift table is supplied with plug, meaning that it is immediately ready for use.

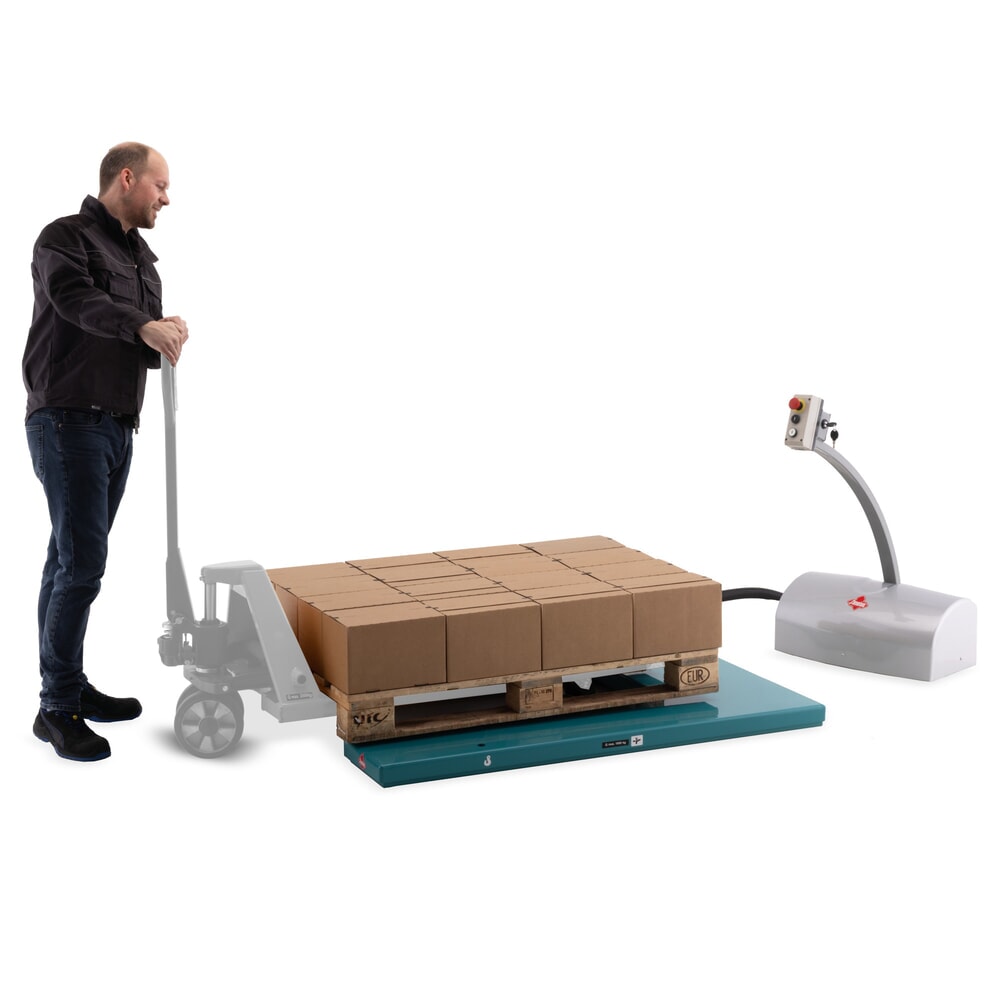

The low height makes the Ameise® U-shaped flat scissor lift table particularly flexible. Thanks to the safety bolts with lifting eyes, the table can be transported to the required location with a forklift truck or crane. When fully lowered, the lift table has a height of 80 mm, allowing it to be stored in a space-saving manner.

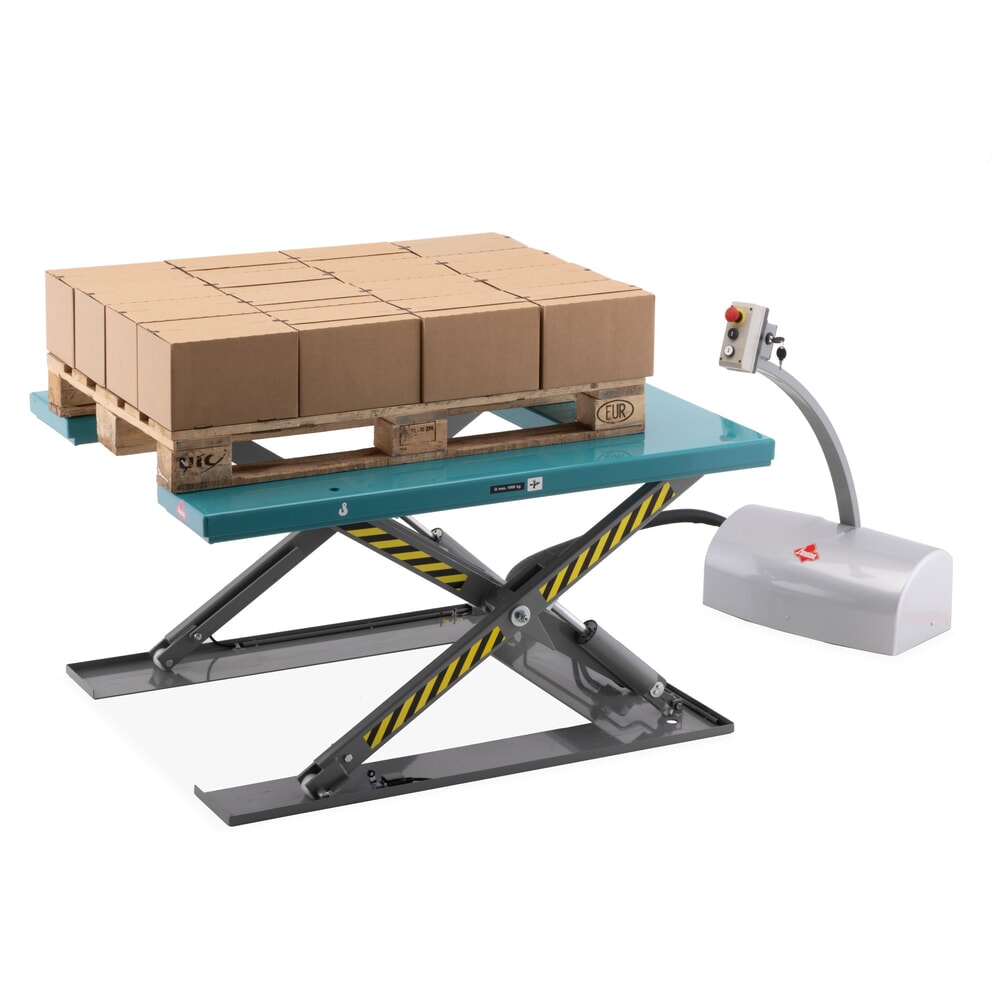

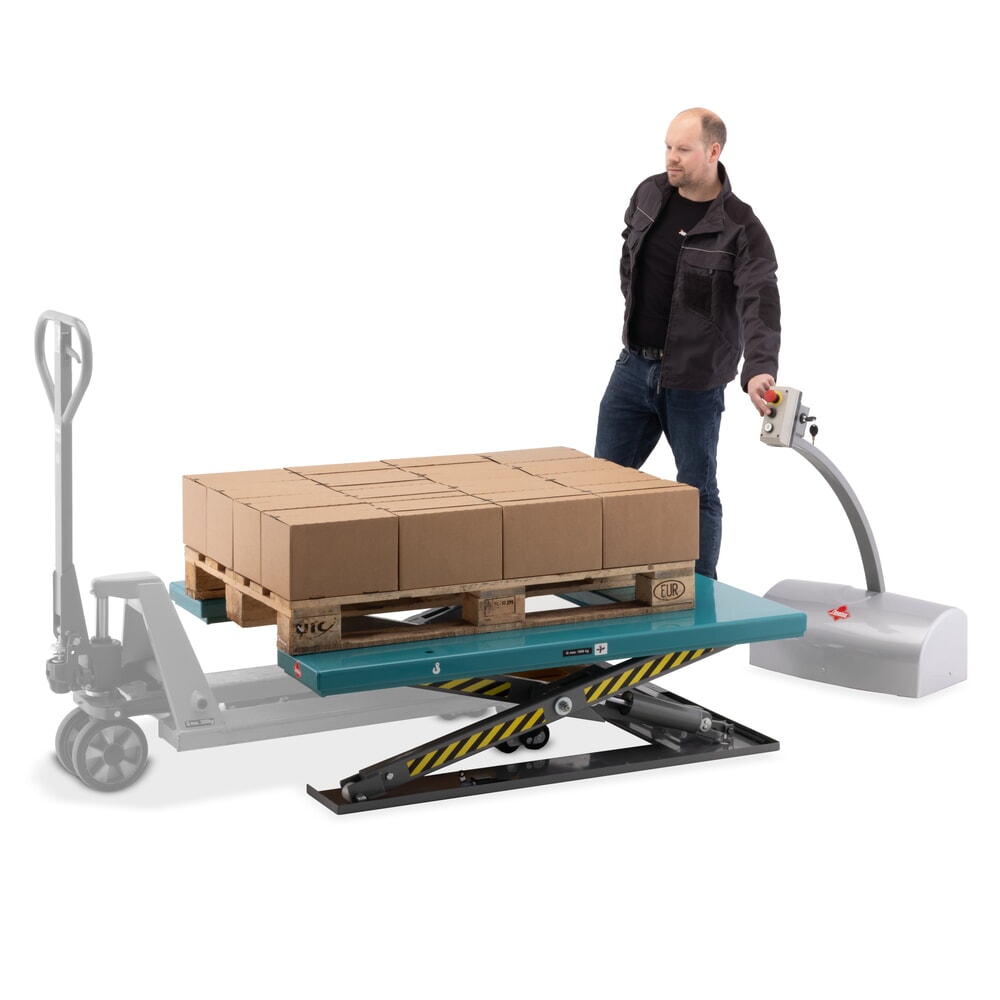

The U-shaped opening in the platform provides perfect access for a pallet or forklift truck when loading or unloading. This allows you to deposit pallets or pallet cages on the platform both quickly and safely.
You control the device via the key switch on the control unit. Thanks to its robust construction with stable scissor bracing, the lift table can support weights of up to 1000 kg, provided that the load is evenly distributed.
Multiple measures are in place for your safety. The base plate features a raised edge, which not only offers foot protection for the operator but also ensures safe guidance of the scissor lift rollers. To prevent crushing injuries, a foot protection contact strip below the platform ensures that the lowering motion of the lift table is halted immediately if any contact is made. In addition, the emergency disconnect on the control unit immediately interrupts the power supply so that the lift table can no longer move.
A safety device prevents accidental lowering of the lift table when performing repair or maintenance work.
Order the robust and flexible Ameise® U-shaped flat scissor lift table from our shop.
The Ameise® U-shaped flat scissor lift table is supplied with plug, meaning that it is immediately ready for use.
The low height makes the Ameise® U-shaped flat scissor lift table particularly flexible. Thanks to the safety bolts with lifting eyes, the table can be transported to the required location with a forklift truck or crane. When fully lowered, the lift table has a height of 80 mm, allowing it to be stored in a space-saving manner.
The U-shaped opening in the platform provides perfect access for a pallet or forklift truck when loading or unloading. This allows you to deposit pallets or pallet cages on the platform both quickly and safely.
You control the device via the key switch on the control unit. Thanks to its robust construction with stable scissor bracing, the lift table can support weights of up to 1000 kg, provided that the load is evenly distributed.
Multiple measures are in place for your safety. The base plate features a raised edge, which not only offers foot protection for the operator but also ensures safe guidance of the scissor lift rollers. To prevent crushing injuries, a foot protection contact strip below the platform ensures that the lowering motion of the lift table is halted immediately if any contact is made. In addition, the emergency disconnect on the control unit immediately interrupts the power supply so that the lift table can no longer move.
A safety device prevents accidental lowering of the lift table when performing repair or maintenance work.
Order the robust and flexible Ameise® U-shaped flat scissor lift table from our shop.
Product Notes
Die angegebene Tragkraft gilt nur bei gleichmäßig verteilter Last. Für eine ungleichmäßig verteilte oder rollende Last muss gegebenenfalls ein anderer Hubtisch gewählt werden. Bitte nehmen Sie hierzu Kontakt zu unserer Fachberatung auf.
