Technical details

HEMMDAL PTM 2.5 hand pallet truck, capacity 2,500 kg, fork length 1,150 mm, polyurethane, tandem rollers

Article number: 481009 | EAN/GTIN: 4055091298276

Brand HEMMDAL
Capacity 2500 kg
Chassis RAL colour RAL 7016 anthracite grey
Chassis surface powder-coated
Control panel right-handed
Drive manual
Face of forks length 390 mm
Fork length 1150 mm
Fork roller diameter 80 mm
Fork roller equipment Tandem
Fork roller material Polyurethane (PU)
Fork roller width 70 mm
Fork support width 540 mm
Fork width 160 mm
Grease nipple Yes
Ground clearance 35 mm
Handle fittings Steel
Hydraulic oil quantity 0.39 l
Hydraulic oil type Mineral oil
Hydraulic oil viscosity acc. to ISO-VG 32
Infeed rollers Yes
Lift 115 mm
Lift height per pump stroke 8 mm
Lift range 85 - 200 mm
Load centre 600 mm
Model HEMMDAL PTM 2.5
Net weight 72 kg
Operator type Manual
Overall length 1540 mm
Overall width 540 mm
Pallet truck material Steel
Pump strokes to max. lift height 13
Route Short distance
Section Starter
Steering radius 205 °
Steering wheel diameter 200 mm
Steering wheel material Polyurethane (PU)
Temperature range 5 - 40 °C
Tiller RAL colour RAL 7016 anthracite grey
Tiller height 1230 mm
Tiller surface powder-coated
Turning radius 1335 mm
Width 540 mm

Product Notes

Our offer is aimed exclusively at commercial customers (entrepreneurs). In particular, the product is not intended for use by consumers.

Item description

HEMMDAL PTM 2.5 hand pallet truck, capacity 2,500 kg, fork length 1,150 mm, polyurethane, tandem rollers

Article number: 481009 | EAN/GTIN: 4055091298276

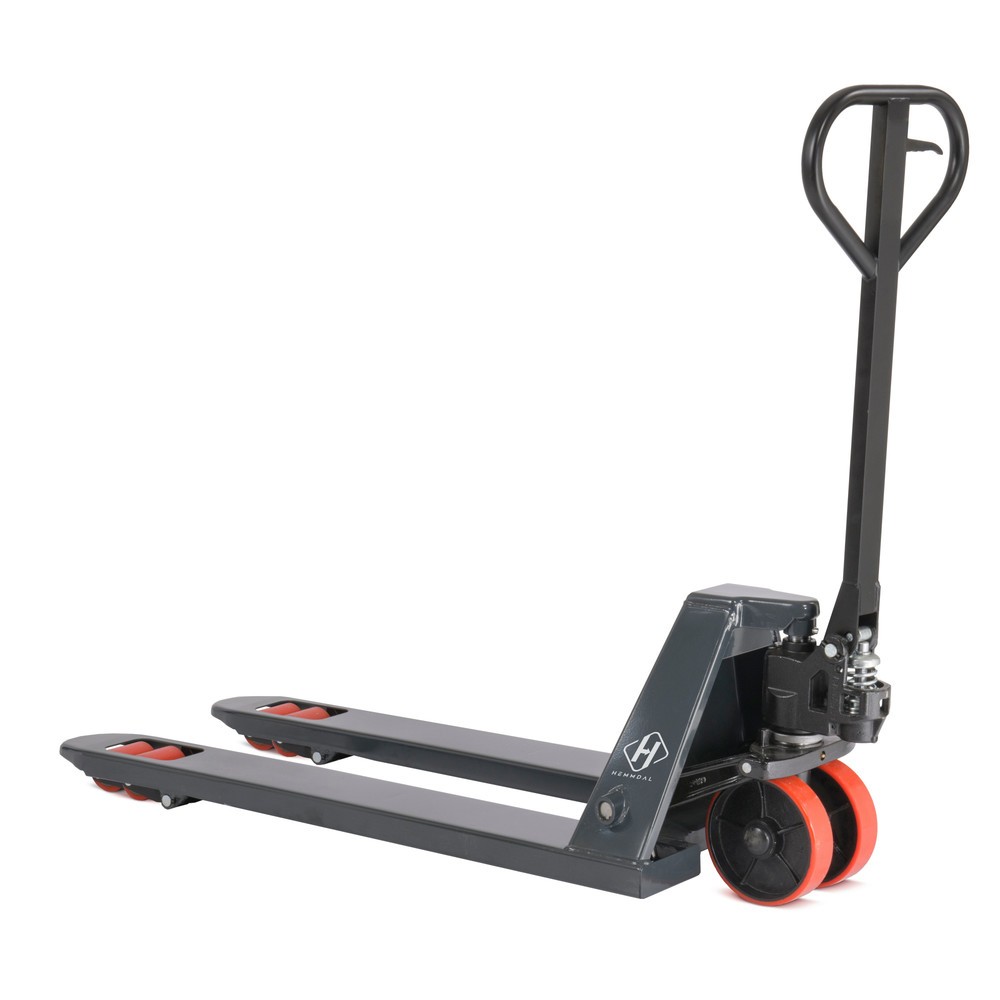

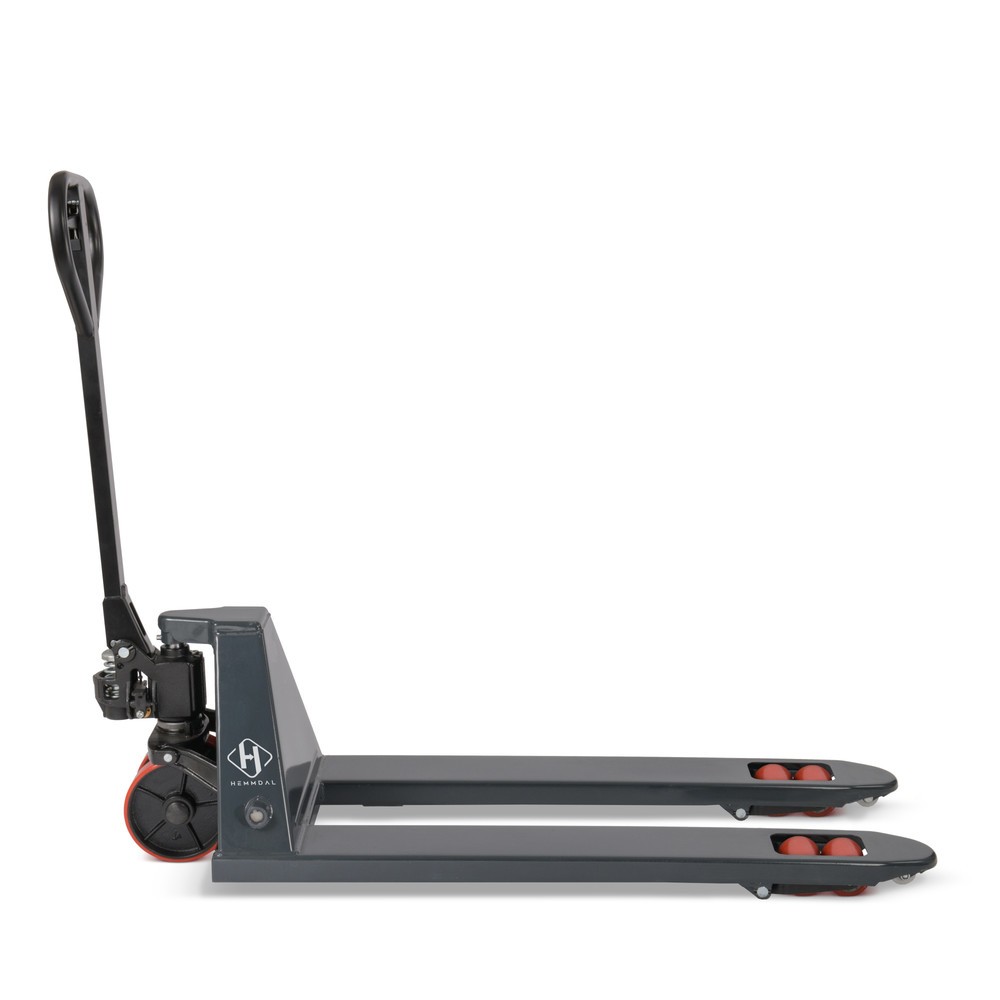

The Hemmdal PTM 2.5 hand pallet truck offers reliable quality at an affordable price and assists you in transporting pallets weighing up to 2,500 kg. It features standard forks with a length of 1,150 mm and is equipped with robust, low-maintenance lift hydraulics. The large tiller handle allows you to operate and manoeuvre the agile pallet truck with ease. The low-wear polyurethane tyres impress with their low rolling resistance and smooth running. Entry rollers assist when picking up pallets from the side.
  • Simple operation and high manoeuvrability
  • Robust, low-maintenance lift hydraulics
  • Reliable quality
  • Entry rollers for easy transverse pallet pick-up
  • Polyurethane tyres ensure very smooth running
  • Equipped with single or tandem rollers
  • Available in 2 colours (anthracite or vermilion)
Entry-level device with an attractive price-performance ratio

The Hemmdal PTM 2.5 hand pallet truck is our entry-level model that offers reliable quality at an affordable price. It provides welcome assistance when transporting palletised goods weighing up to 2,500 kg. Whether in warehouses or factories, the standard fork length of 1,150 mm makes the pallet truck ideal for the occasional transport of Euro pallets, mesh boxes and other load carriers. When transported on an HGV, you always have a reliable helper at your side for loading and unloading goods.

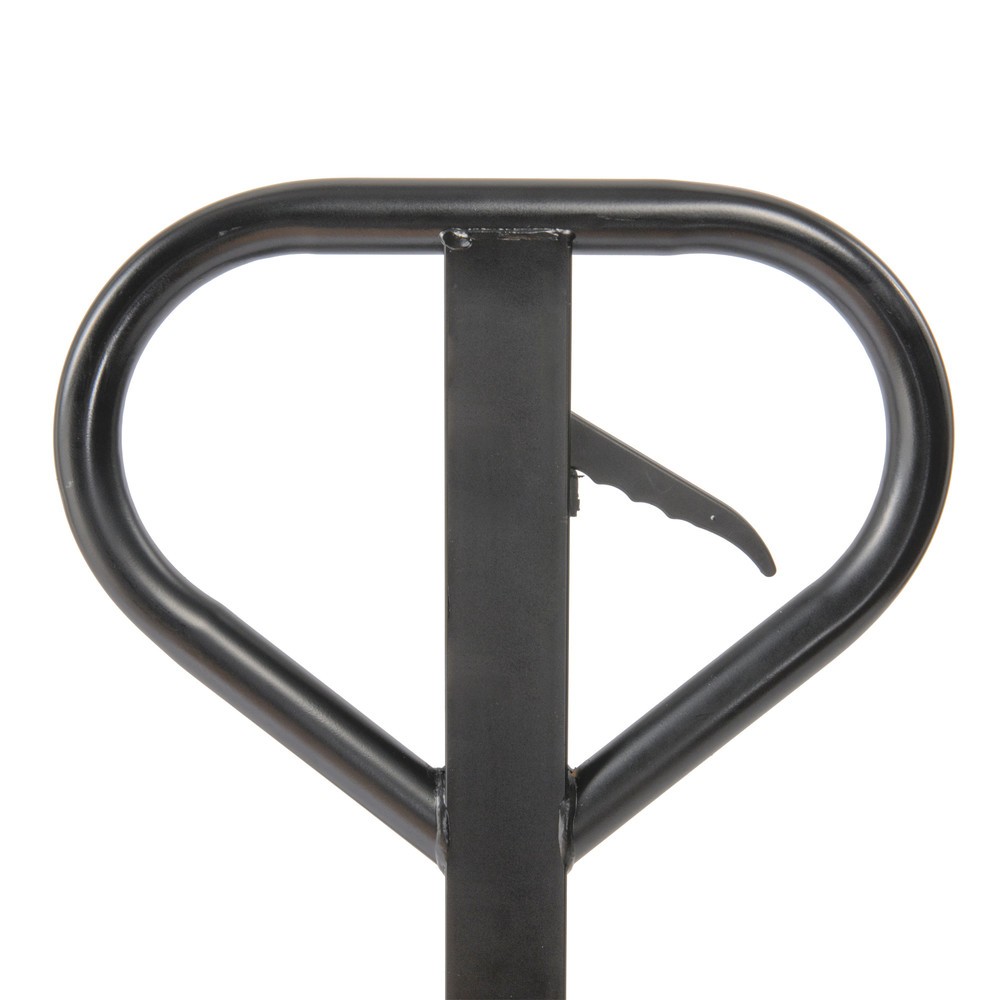

The PTM 2.5 is equipped with robust, low-maintenance lift hydraulics, making it both reliable and economical. The comfortable tiller handle ensures easy operation. You lift and move your pallets manually and lower the load at the destination with fully variable precision via the hand lever. Thanks to the large steering angle of the tiller, the pallet truck is extremely agile and can be easily turned and manoeuvred in the tightest of spaces. This makes it ideal for narrow aisles and confined sales areas. The steel frame is robust and torsion-free, meaning that the pallet truck retains its shape even when subjected to heavy loads.

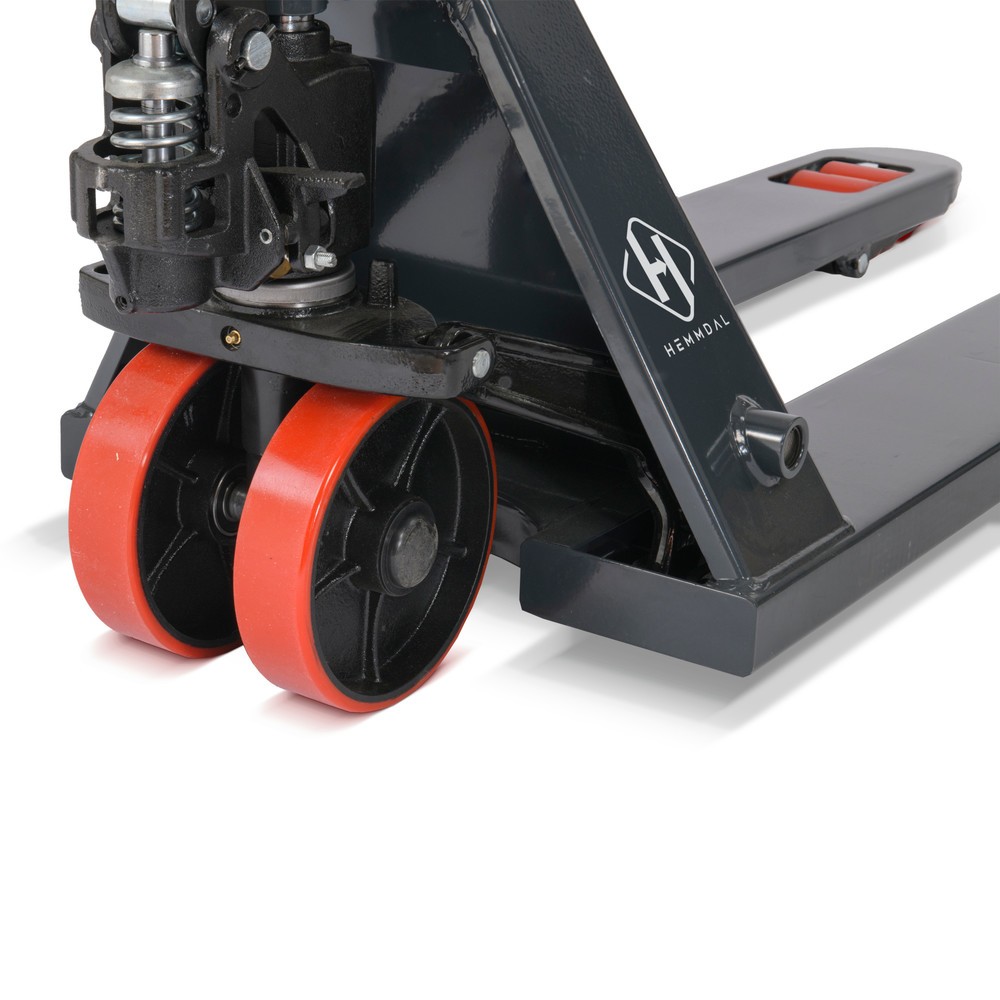

We offer the Hemmdal PTM 2.5 hand pallet truck with polyurethane tyres, which are characterised by their smooth running and low rolling resistance on hard and sensitive surfaces. They are also shock-absorbing, low-wear and non-marking. Choose between single or tandem fork rollers depending on the ground conditions. With tandem fork rollers, you can easily negotiate uneven floor surfaces. The additional entry rollers in the fork tips prove invaluable when picking up pallets from the side.

Experience the benefits for yourself by ordering the Hemmdal PTM 2.5 hand pallet truck with 2,500 kg capacity and 1150 mm fork length from our shop in your desired configuration and colour.
