Technical details

Jungheinrich AM 20 hand pallet truck, fork length 1,150 mm, polyurethane

  1. Aisle width
    1.743 mm
  2. Brand
    Jungheinrich
  3. Capacity
    2000 kg
  4. Chassis surface
    powder-coated
  5. Colour chassis
    Jungheinrich yellow
  6. Control panel
    two-handed
  7. Drive
    manual
  8. Face of forks length
    390 mm
  9. Fork height
    48 mm
  10. Fork length
    1.150 mm
  11. Fork roller diameter
    82 mm
  12. Fork roller equipment
    Single
  13. Fork roller material
    Polyurethane (PU)
  14. Fork roller width
    93 mm
  15. Fork support width
    540 mm
  16. Fork width
    160 mm
  17. Grease nipple
    Yes
  18. Ground clearance
    37 mm
  19. Handle fittings
    Steel
  20. Infeed rollers
    Yes
  21. Lift
    115 mm
  22. Lift height per pump stroke
    10 mm
  23. Lift range
    85 - 200 mm
  24. Load centre
    600 mm
  25. Lowering speed with/without load
    0,1 / 0,06 m/s
  26. Model
    Jungheinrich AM 20
  27. Net weight
    68 kg
  28. Operator type
    Manual
  29. Overall length
    1540
  30. Overall width
    540 mm
  31. Pallet truck material
    Steel
  32. Pump strokes to lift pallet
    6
  33. Pump strokes to max. lift height
    11
  34. Section
    Professional
  35. Steering wheel diameter
    200 mm
  36. Steering wheel material
    Polyurethane (PU)
  37. Steering wheel width
    50 mm
  38. Temperature range
    -10 - 50 °C
  39. Tiller RAL colour
    RAL 7016 anthracite grey
  40. Tiller height
    1,230 mm
  41. Tiller surface
    powder-coated
  42. Turning radius
    1.275 mm

Item description

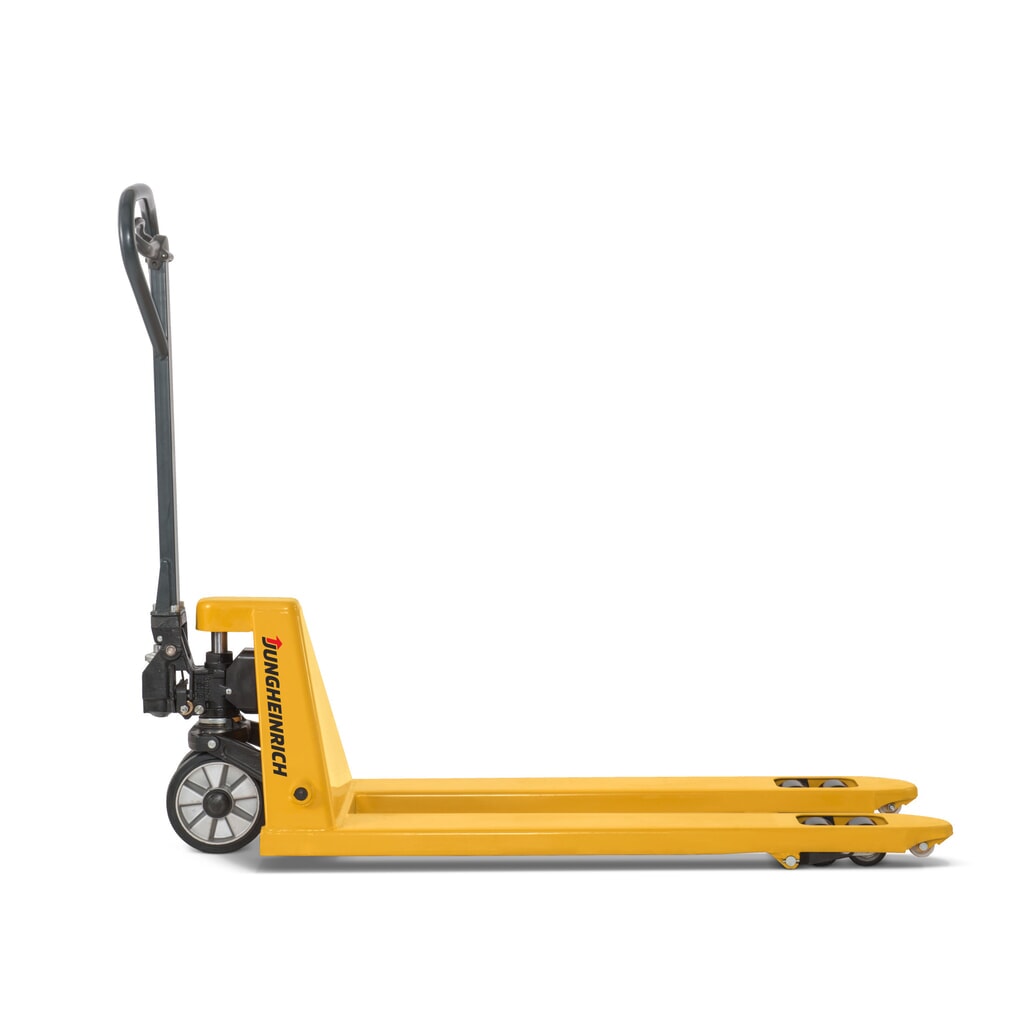

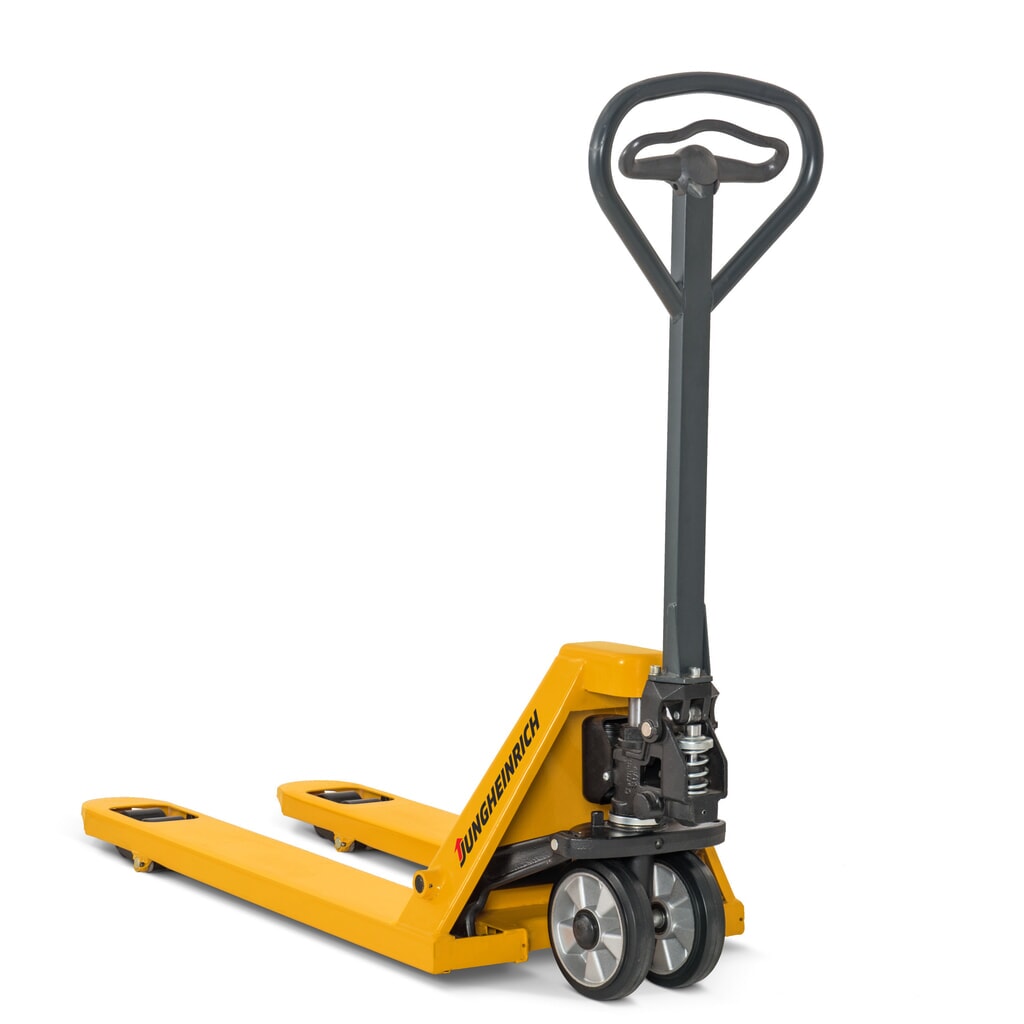

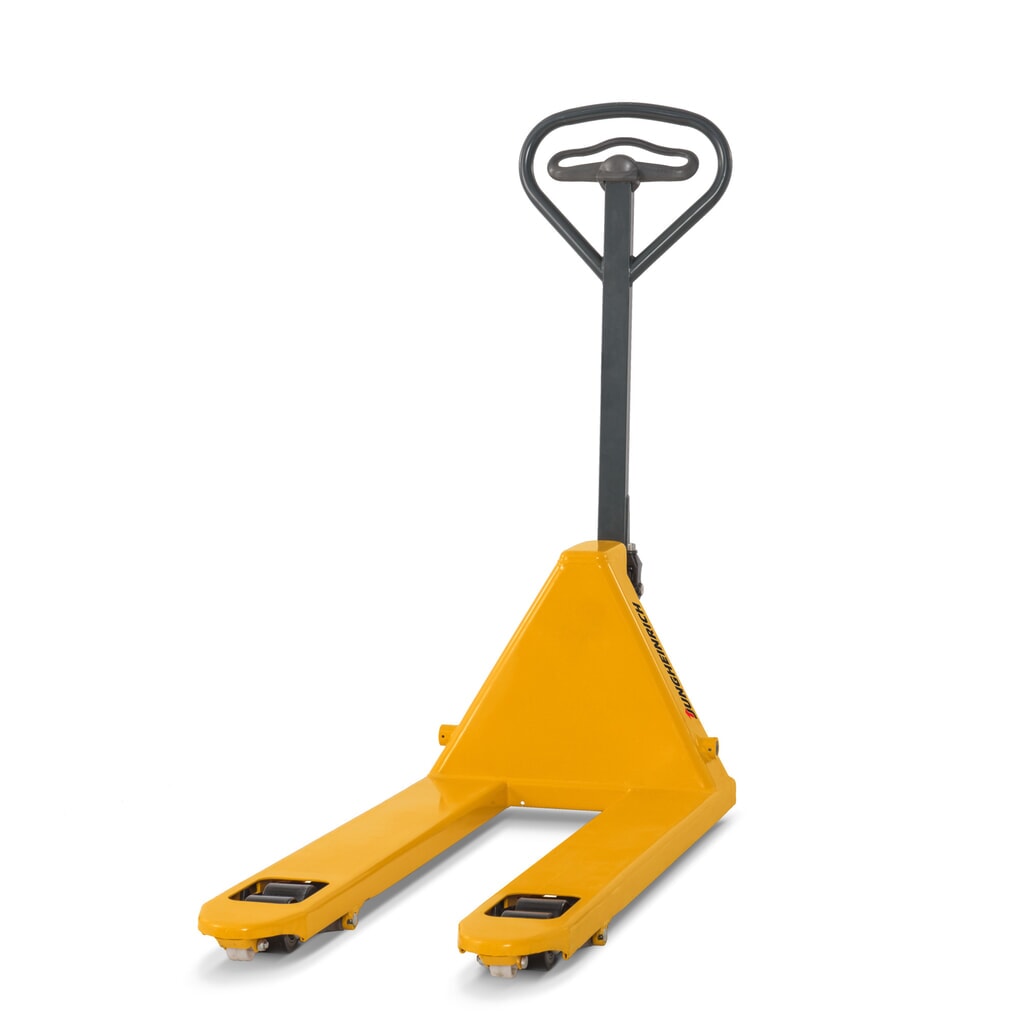

Jungheinrich AM 20 hand pallet truck, fork length 1,150 mm, polyurethane

The Jungheinrich AM 20 hand pallet truck with 2000 kg capacity offers tried-and-tested Jungheinrich quality. The robust and reliable premium product is ideal for continuous daily use thanks to its easy handling, maintenance-free construction and outstanding durability.
  • Ergonomic control element that can be operated with either hand
  • Powerful hydraulic pump with external hydraulic reservoir
  • Easy to steer thanks to ball-bearing mounted piston rod
  • Robust materials and solid construction ensure maximum durability
  • Maintenance-free design with all connections lubricated for life
Jungheinrich premium quality – now with 2000 kg capacity

The Jungheinrich AM 20 hand pallet truck with 2000 kg capacity combines proven quality with impressive equipment levels. The patented, ergonomic Jungheinrich operating concept allows the tiller to be controlled from any position and is equally well suited to right and left-handed users. All functions can be easily operated with one hand. Thanks to the special lowering valve, sensitive loads can be set down with utmost control and precision.

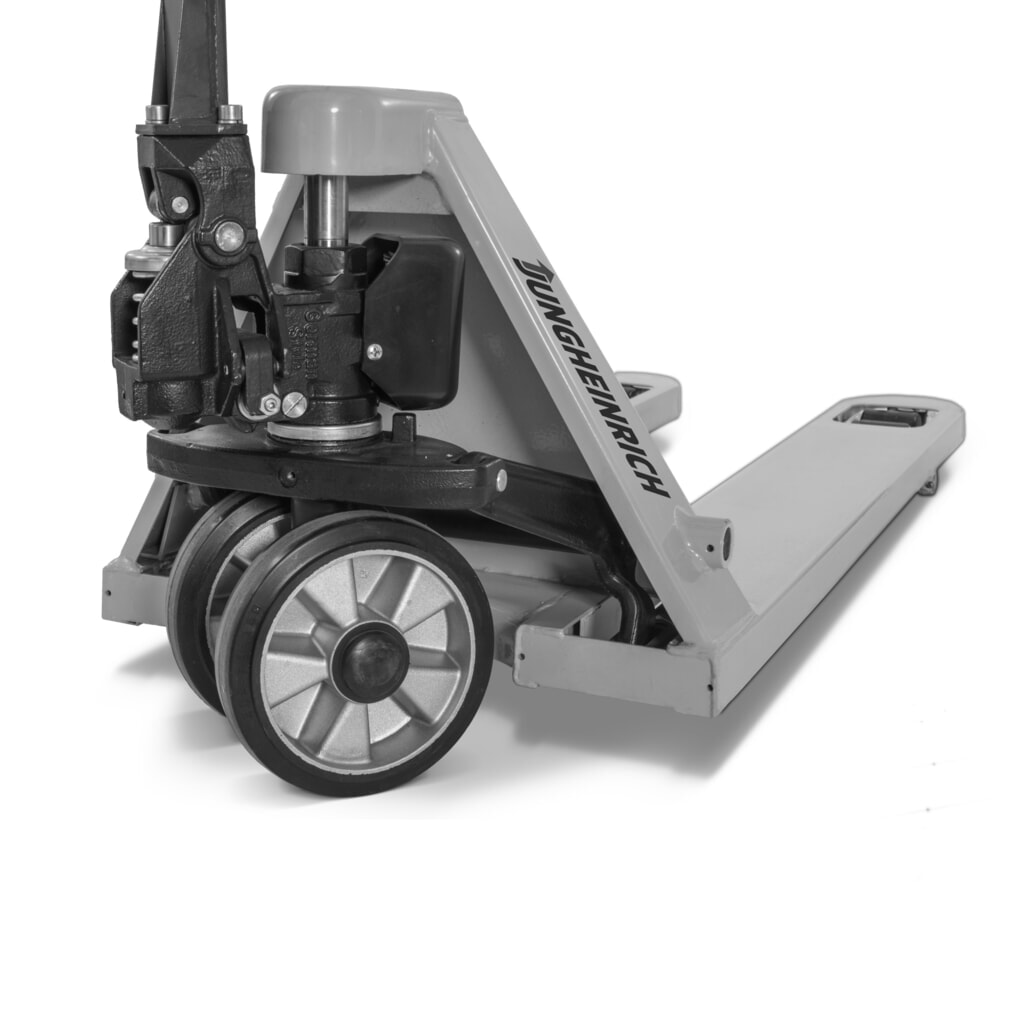

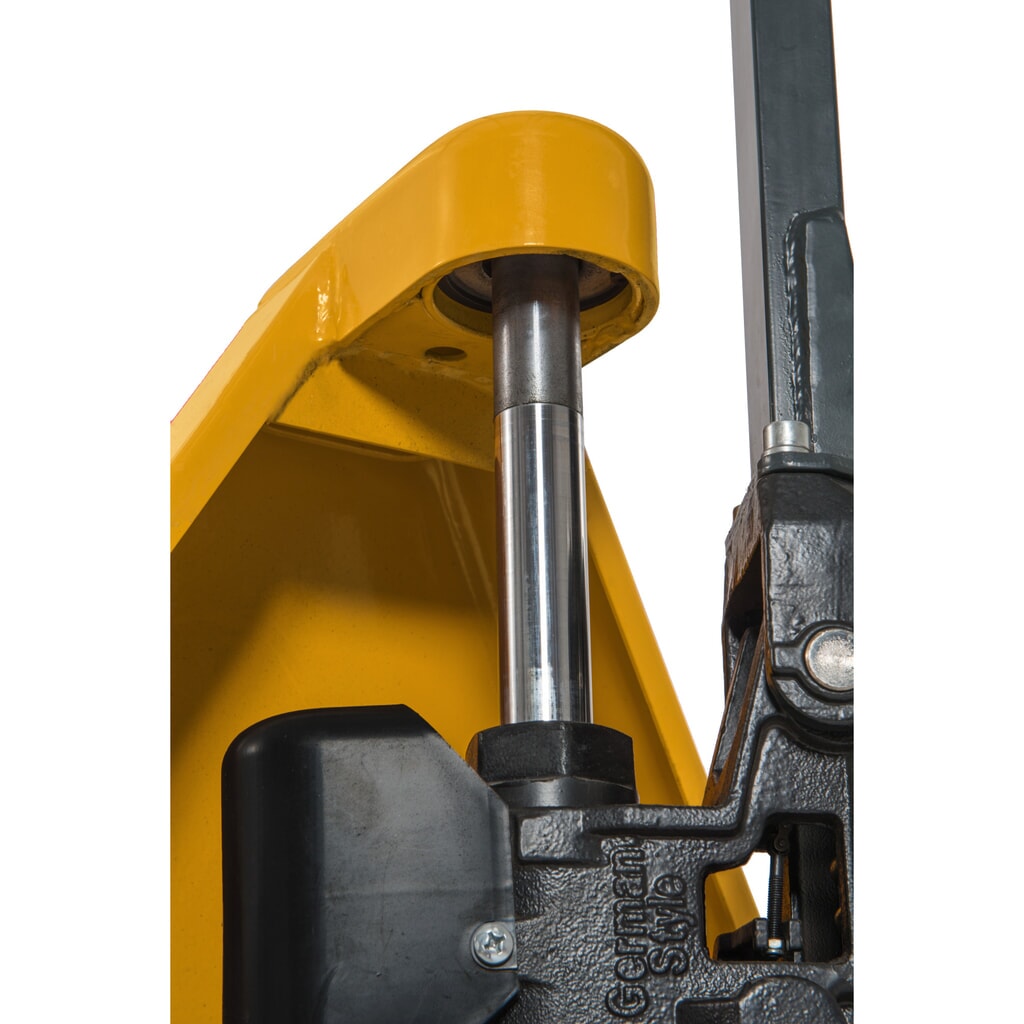

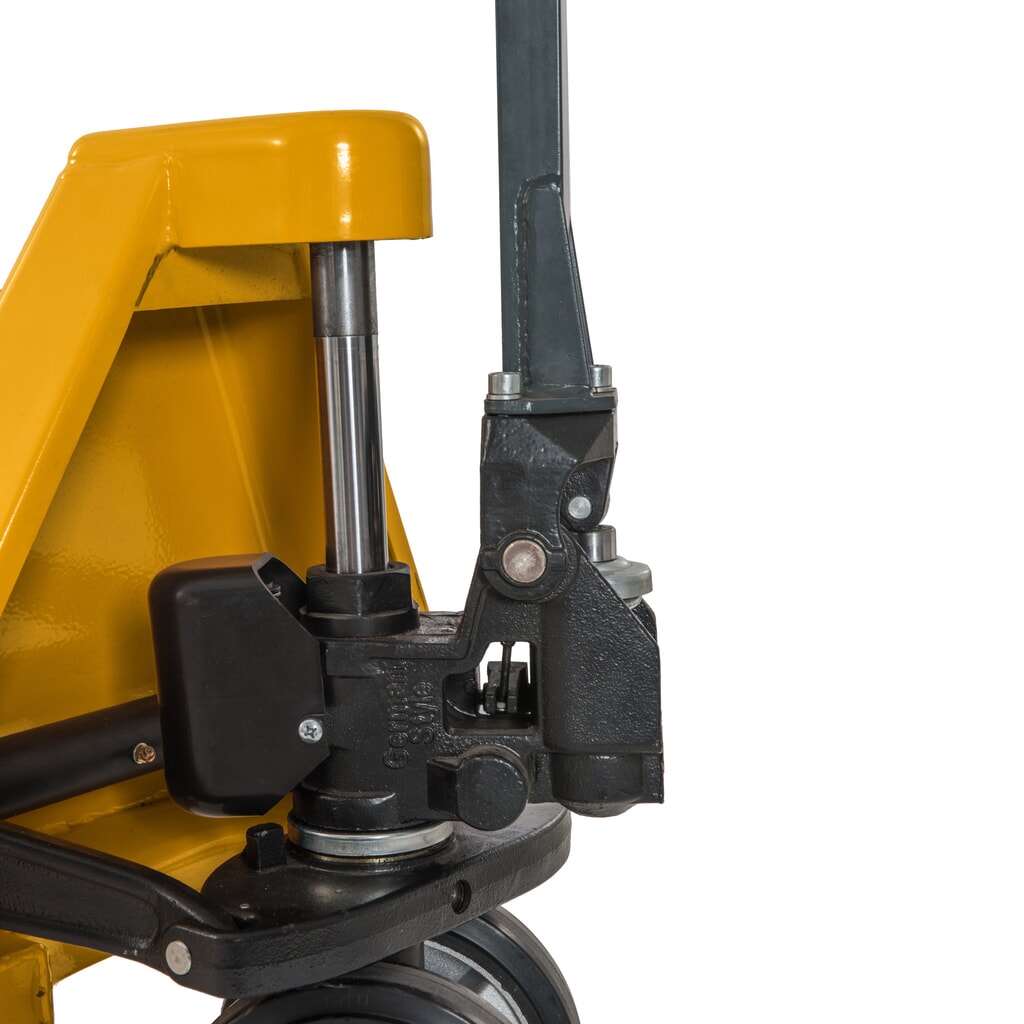

The AM 20 features a powerful hydraulic pump with an external hydraulic reservoir. The optimised, maintenance-free hydraulic system minimises the required pump force. The piston rod is mounted on ball bearings for reduced rotational resistance, easy steering and lower wear. Entry and exit rollers ensure smooth running over thresholds and easy insertion into pallets.

The hand pallet truck does not require any maintenance as the connections are lubricated for life. The outstanding stability and durability of the product is ensured by heavy-duty steel, a sophisticated design and a welded tiller mount. The sectional steel frame with its high-quality welded construction is torsion-free and extremely hard-wearing.

The Jungheinrich AM 20 hand pallet truck with 1150 mm fork length and 2000 kg capacity is available in different wheel configurations. Depending on the ground conditions and specific application, you can choose between a range of roller materials. You can also opt for single or tandem fork rollers.

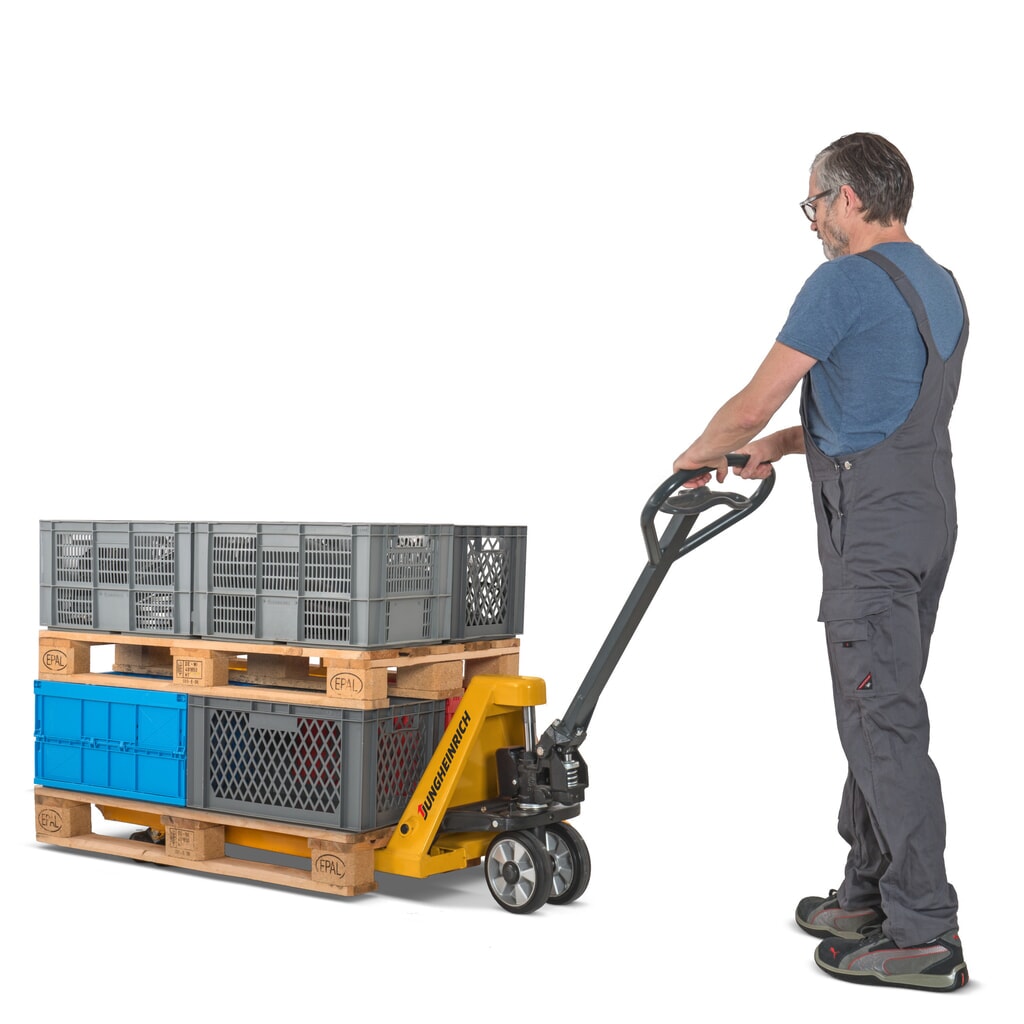

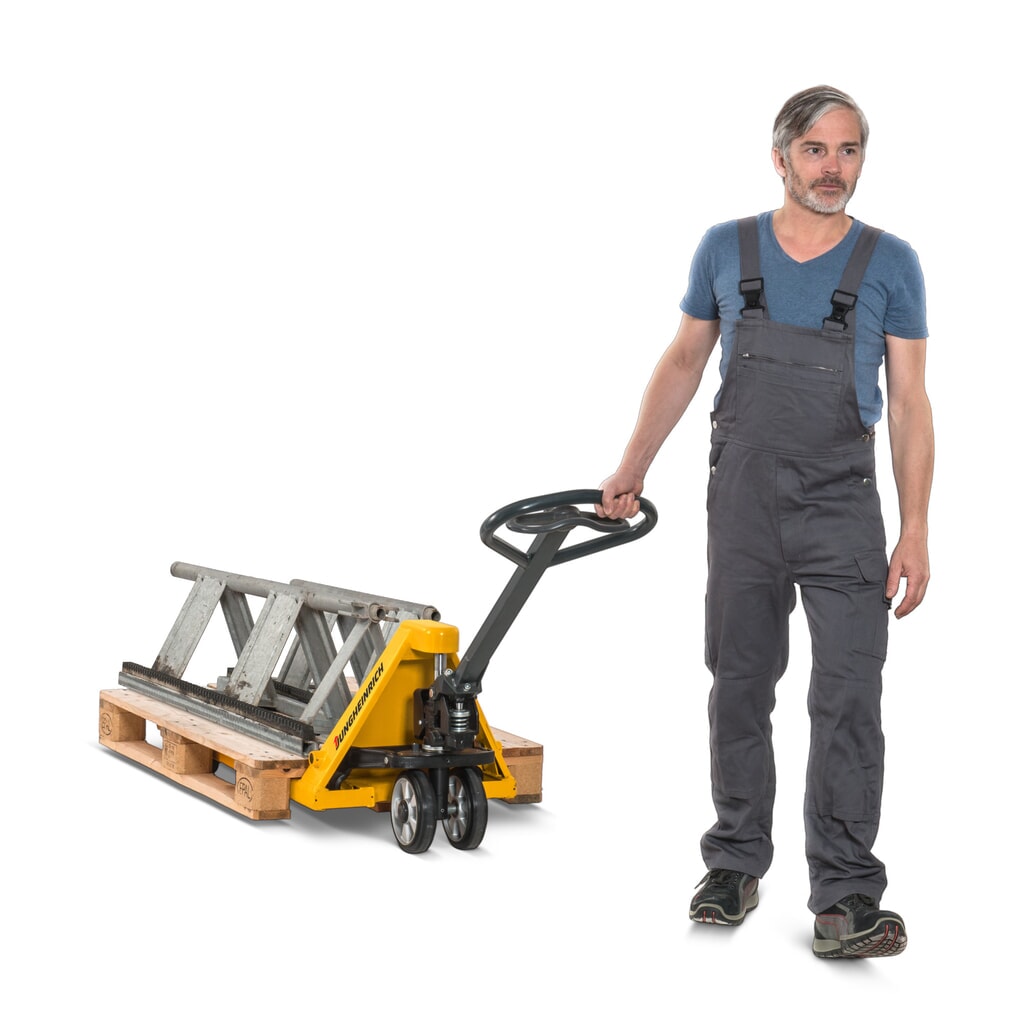

Durable, reliable and proven in continuous daily use – the Jungheinrich AM 20 hand pallet truck with 1150 mm fork length and 2000 kg capacity is the ideal partner for your everyday pallet transport. Order the pallet truck from our shop in your chosen configuration.
