Item number:
101225
Jungheinrich AM 22 hand pallet truck with quick lift, 795 mm fork length, nylon
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
Jungheinrich AM 22 hand pallet truck with quick lift, 795 mm fork length, nylon
Article number: 101225 | EAN/GTIN: 4055091295411
| Aisle width | 1784 mm |
| Brand | Jungheinrich |
| Capacity | 2200 kg |
| Chassis surface | powder-coated |
| Colour chassis | Jungheinrich yellow |
| Control panel | two-handed |
| Drive | manual |
| Face of forks length | 373 mm |
| Fork height | 53 mm |
| Fork length | 795 mm |
| Fork roller diameter | 82 mm |
| Fork roller equipment | Single |
| Fork roller material | Nylon (black) |
| Fork roller width | 96 mm |
| Fork support width | 520 mm |
| Fork width | 150 mm |
| Ground clearance | 30 mm |
| Handle fittings | Steel |
| Infeed rollers | Yes |
| Lift | 122 mm |
| Lift height per pump stroke | 25/10 mm |
| Lift range | 83 - 205 mm |
| Load centre | 400 mm |
| Lowering speed with/without load | 0,09 / 0,02 m/s |
| Model | Jungheinrich AM 22 |
| Net weight | 51,5 kg |
| Operator type | Manual |
| Overall length | 1165 mm |
| Overall width | 520 mm |
| Pallet truck material | Steel |
| Pump strokes to lift pallet | 3/7 |
| Pump strokes to max. lift height | 5/12 |
| Rapid lift | Yes |
| Route | Short distance |
| Section | Professional |
| Steering wheel diameter | 170 mm |
| Steering wheel material | Nylon (black) |
| Steering wheel width | 50 mm |
| Temperature range | -10 - 50 °C |
| Tiller RAL colour | RAL 7016 anthracite grey |
| Tiller height | 1234 mm |
| Tiller surface | powder-coated |
| Turning radius | 919 mm |
Item description
Jungheinrich AM 22 hand pallet truck with quick lift, 795 mm fork length, nylon
Article number: 101225 | EAN/GTIN: 4055091295411
Save time and energy with tried-and-tested Jungheinrich premium quality

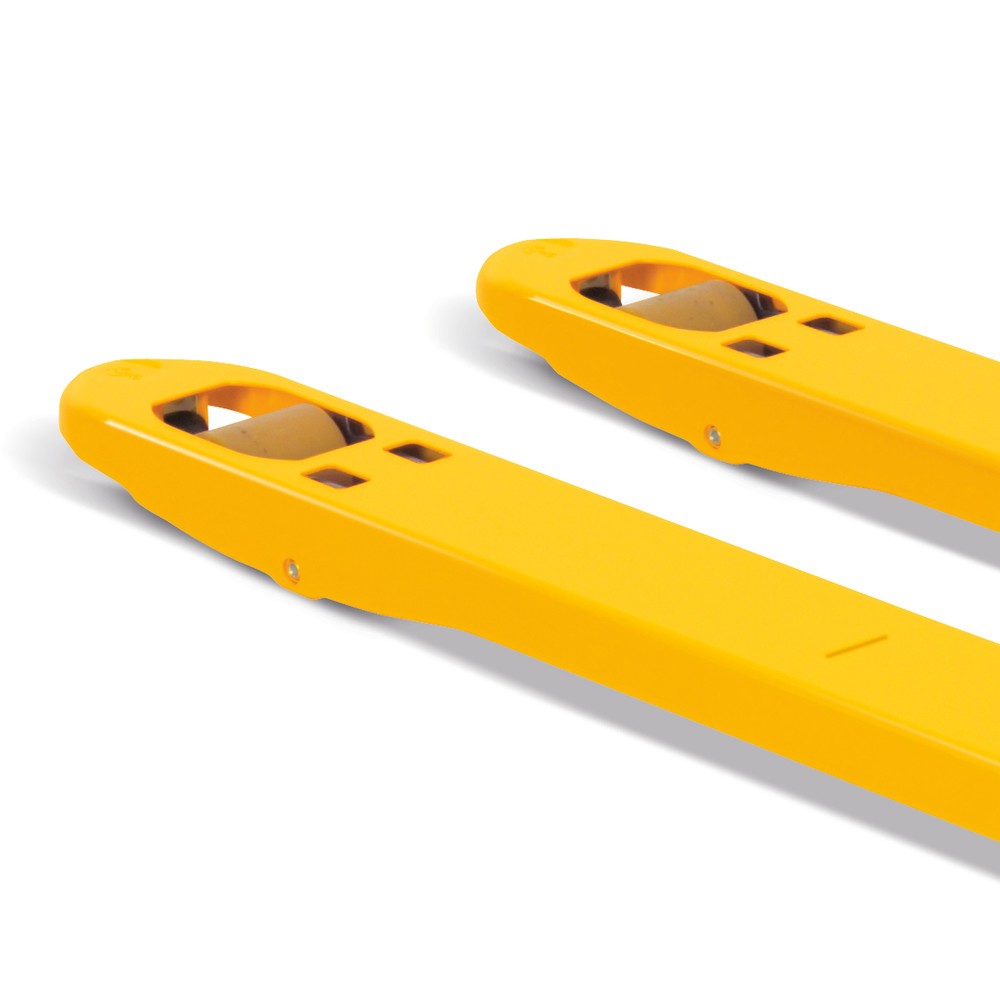

The Jungheinrich AM 22 hand pallet truck with quick lift and short forks is well known for its outstanding quality, long service life and maintenance-free operation. It is an ideal tool for transporting Euro, display, half and quarter pallets. Thanks to the small turning circle, short headlength and 105° steering angle on both sides, the pallet truck offers maximum agility and manoeuvrability in narrow aisles. It is also ideal for use on trucks. Thanks to the quick lift function (up to 120 kg), Euro pallets can be lifted clear of the ground with just three pump strokes. The maximum lift height is reached after just five strokes. This allows you to optimise the workflows of your in-house goods transport.
Thanks to the special lowering valve, loads can be set down with utmost control and precision. The hand pallet truck is operated via an ergonomic tiller that is equally well suited to right and left-handed users. The covered entry rollers and rounded fork tips make insertion and retraction from the pallet particularly easy.
The joints and connecting pieces feature lifetime lubrication, meaning that you do not have to perform any maintenance.
The robust hand pallet truck is made from extremely tough steel with a powder-coated surface and welded tiller mounting. In addition, the wheel bushings and joints are chromated to ensure quiet running and a long service life.
The Jungheinrich AM 22 hand pallet truck with quick lift, short forks and 2,200 kg capacity is available with different fork lengths. Depending on the ground conditions and specific application, you can choose between different steering castors and fork rollers. You can also opt for single or tandem fork rollers.
Benefit from a premium quality product by ordering the Jungheinrich AM 22 hand pallet truck with quick lift, short forks and a capacity of 2,200 kg from our shop.
The Jungheinrich AM 22 hand pallet truck with quick lift and short forks is well known for its outstanding quality, long service life and maintenance-free operation. It is an ideal tool for transporting Euro, display, half and quarter pallets. Thanks to the small turning circle, short headlength and 105° steering angle on both sides, the pallet truck offers maximum agility and manoeuvrability in narrow aisles. It is also ideal for use on trucks. Thanks to the quick lift function (up to 120 kg), Euro pallets can be lifted clear of the ground with just three pump strokes. The maximum lift height is reached after just five strokes. This allows you to optimise the workflows of your in-house goods transport.
Thanks to the special lowering valve, loads can be set down with utmost control and precision. The hand pallet truck is operated via an ergonomic tiller that is equally well suited to right and left-handed users. The covered entry rollers and rounded fork tips make insertion and retraction from the pallet particularly easy.
The joints and connecting pieces feature lifetime lubrication, meaning that you do not have to perform any maintenance.
The robust hand pallet truck is made from extremely tough steel with a powder-coated surface and welded tiller mounting. In addition, the wheel bushings and joints are chromated to ensure quiet running and a long service life.
The Jungheinrich AM 22 hand pallet truck with quick lift, short forks and 2,200 kg capacity is available with different fork lengths. Depending on the ground conditions and specific application, you can choose between different steering castors and fork rollers. You can also opt for single or tandem fork rollers.
Benefit from a premium quality product by ordering the Jungheinrich AM 22 hand pallet truck with quick lift, short forks and a capacity of 2,200 kg from our shop.
