Sale
Item number:
127016

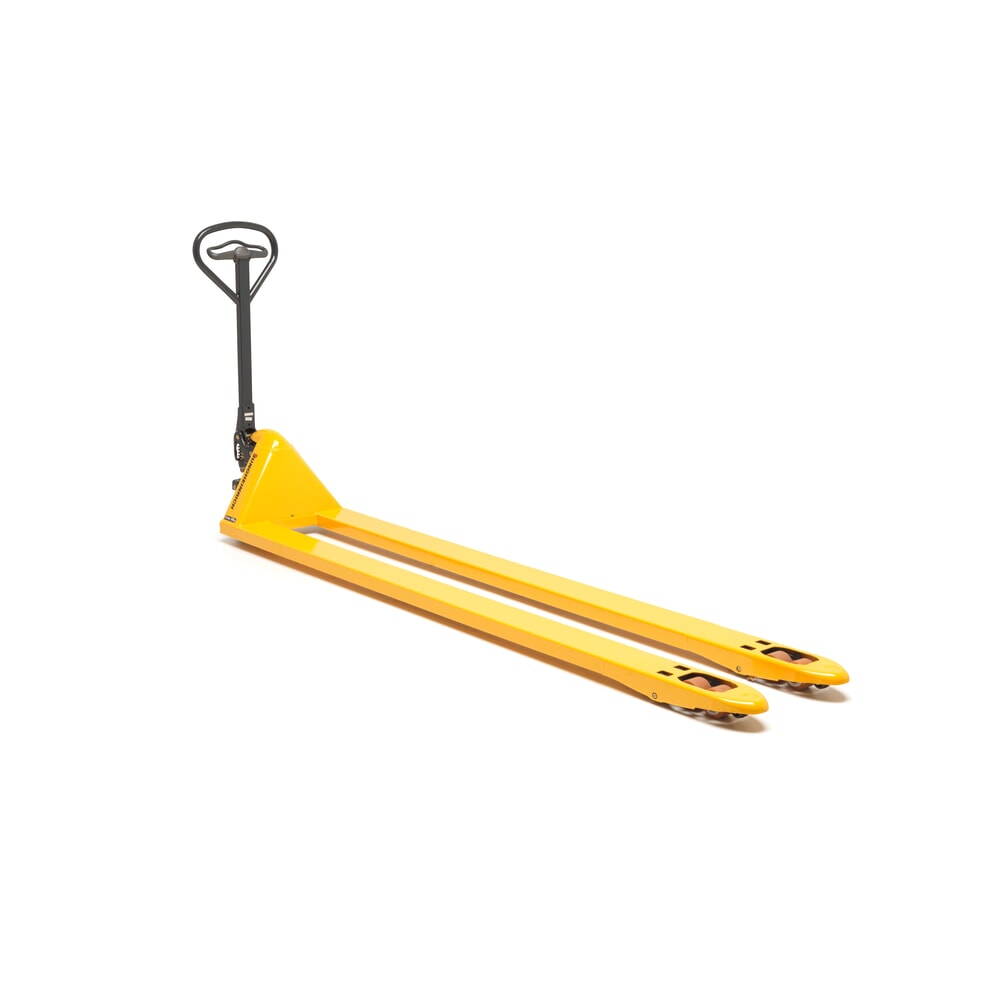

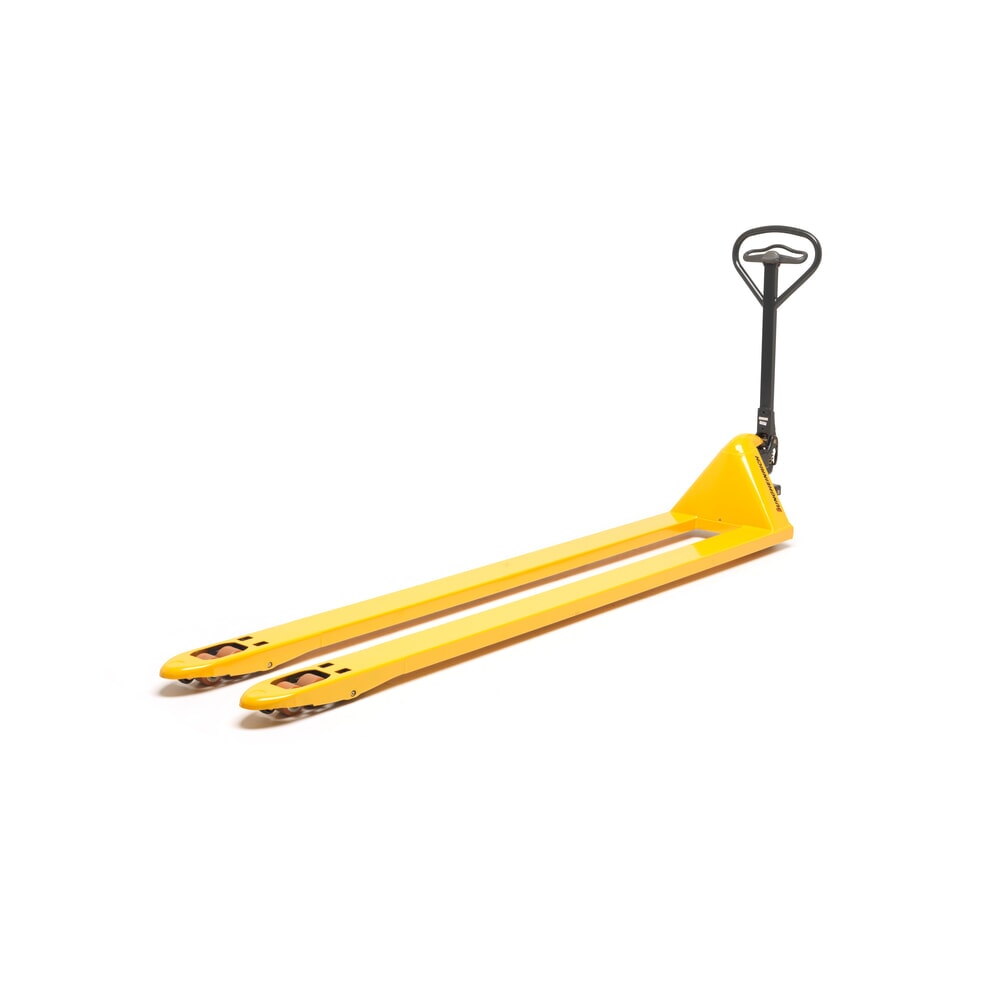

Jungheinrich AM 22 hand pallet truck, 2,400 mm fork length, 500 kg, solid rubber/polyurethane, tandem rollers
The premium product with extra long forks for load carriers with special dimensions or simultaneous transport of multiple pallets
Technical details
Jungheinrich AM 22 hand pallet truck, 2,400 mm fork length, 500 kg, solid rubber/polyurethane, tandem rollers
-
BrandJungheinrich
-
Capacity500 kg
-
Chassis surfacepowder-coated
-
Colour chassisJungheinrich yellow
-
Control paneltwo-handed
-
Drivemanual
-
Face of forks length373 mm
-
Fork height53 mm
-
Fork length2.400 mm
-
Fork roller diameter82 mm
-
Fork roller equipmentTandem
-
Fork roller materialPolyurethane (PU)
-
Fork roller width62 mm
-
Fork support width520 mm
-
Fork width150 mm
-
Ground clearance30 mm
-
Handle fittingsSteel
-
Infeed rollersYes
-
Lift122 mm
-
Lift height per pump stroke10 mm
-
Lift range83 - 205 mm
-
Load centre1200 mm
-
Lowering speed with/without load0,09 / 0,02 m/s
-
ModelJungheinrich AM 22
-
Net weight90 kg
-
Operator typeManual
-
Overall length2773 mm
-
Overall width520 mm
-
Pallet truck materialSteel
-
Pump strokes to lift pallet7
-
Pump strokes to max. lift height12
-
RouteShort distance
-
SectionProfessional
-
Steering wheel diameter170 mm
-
Steering wheel materialSolid rubber
-
Steering wheel width50 mm
-
Temperature range-10 - 50 °C
-
Tiller RAL colourRAL 7016 anthracite grey
-
Tiller height1234 mm
-
Tiller surfacepowder-coated
-
Turning radius2524 mm
Item description
Jungheinrich AM 22 hand pallet truck, 2,400 mm fork length, 500 kg, solid rubber/polyurethane, tandem rollers
The hand pallet truck for long goods is a premium product delivering proven Jungheinrich quality for continuous, regular use in your operation. Quiet operation and maintenance-free construction make it an ideal transport aid for custom-length goods.
- Extra-long forks in different lengths for all applications
- Optimised hydraulics and smooth-running wheels for effortless use
- Quiet operation and maximum stability thanks to tandem fork rollers
- Ergonomic tiller suitable for both right and left-handed users
- Entry rollers for easy pallet pick-up
Jungheinrich AM 22 hand pallet truck - premium quality for long goods transport
If you frequently transport long goods in your warehouse, the long fork pallet truck from Jungheinrich is the ideal tool for your needs. To allow you to transport particularly long goods or multiple pallets simultaneously, the long fork pallet trucks are available in different fork lengths and with varying capacities. Thanks to the short headlength, the hand pallet truck remains highly agile and manoeuvrable despite its long forks.
The patented, ergonomic Jungheinrich operating concept allows the tiller to be controlled from any position and is equally well suited to right and left-handed users. Thanks to the special lowering valve, loads can be set down with utmost control and precision.
The Jungheinrich AM 22 hand pallet truck impresses with its outstanding stability and long service life. This is ensured by thicker forks, a sophisticated design, welded tiller mounting and harder steel. The steel construction is torsion-free, extremely hard-wearing and retains its shape even under the heaviest loads. The wheel bushings are chromated and all connections are lubricated for life to ensure extremely quiet operation and maintenance-free use.
The solid rubber steering castors combined with tandem fork rollers made from polyurethane ensure high-quality, comfortable and low-noise travel. Tandem rollers offer utmost stability, especially on uneven floors, and minimise point loading. Rounded fork tips and entry rollers underneath the forks make for easy insertion into the pallets.
Whenever you are handling long goods, the AM 22 hand pallet truck with extra long forks is the ideal tool for continuous everyday use. Order the long fork pallet truck from our shop in your chosen configuration.
If you frequently transport long goods in your warehouse, the long fork pallet truck from Jungheinrich is the ideal tool for your needs. To allow you to transport particularly long goods or multiple pallets simultaneously, the long fork pallet trucks are available in different fork lengths and with varying capacities. Thanks to the short headlength, the hand pallet truck remains highly agile and manoeuvrable despite its long forks.
The patented, ergonomic Jungheinrich operating concept allows the tiller to be controlled from any position and is equally well suited to right and left-handed users. Thanks to the special lowering valve, loads can be set down with utmost control and precision.
The Jungheinrich AM 22 hand pallet truck impresses with its outstanding stability and long service life. This is ensured by thicker forks, a sophisticated design, welded tiller mounting and harder steel. The steel construction is torsion-free, extremely hard-wearing and retains its shape even under the heaviest loads. The wheel bushings are chromated and all connections are lubricated for life to ensure extremely quiet operation and maintenance-free use.
The solid rubber steering castors combined with tandem fork rollers made from polyurethane ensure high-quality, comfortable and low-noise travel. Tandem rollers offer utmost stability, especially on uneven floors, and minimise point loading. Rounded fork tips and entry rollers underneath the forks make for easy insertion into the pallets.
Whenever you are handling long goods, the AM 22 hand pallet truck with extra long forks is the ideal tool for continuous everyday use. Order the long fork pallet truck from our shop in your chosen configuration.
