Item number:
106765
Jungheinrich AM 22 hand pallet truck with quick lift, 1,600 mm fork length, solid rubber / polyurethane, tandem rollers
Ergonomic and safe
Technical details
Jungheinrich AM 22 hand pallet truck with quick lift, 1,600 mm fork length, solid rubber / polyurethane, tandem rollers
-
Aisle width1.791 mm
-
BrandJungheinrich
-
Capacity1700 kg
-
Chassis surfacepowder-coated
-
Colour chassisJungheinrich yellow
-
Control paneltwo-handed
-
Drivemanual
-
Face of forks length373 mm
-
Fork height53 mm
-
Fork length1.600 mm
-
Fork roller diameter82 mm
-
Fork roller equipmentTandem
-
Fork roller materialPolyurethane (PU)
-
Fork roller width62 mm
-
Fork support width520 mm
-
Fork width150 mm
-
Ground clearance30 mm
-
Handle fittingsSteel
-
Infeed rollersYes
-
Lift122 mm
-
Lift height per pump stroke25/10 mm
-
Lift range83 - 205 mm
-
Load centre610 mm
-
Lowering speed with/without load0,09 / 0,02 m/s
-
ModelJungheinrich AM 22
-
Net weight82,6 kg
-
Operator typeManual
-
Overall length1970 mm
-
Overall width520 mm
-
Pallet truck materialSteel
-
Pump strokes to lift pallet3/7
-
Pump strokes to max. lift height5/12
-
Rapid liftYes
-
RouteShort distance
-
SectionProfessional
-
Steering wheel diameter170 mm
-
Steering wheel materialSolid rubber
-
Steering wheel width50 mm
-
Temperature range-10 - 50 °C
-
Tiller RAL colourRAL 7016 anthracite grey
-
Tiller height1234 mm
-
Tiller surfacepowder-coated
Item description
Jungheinrich AM 22 hand pallet truck with quick lift, 1,600 mm fork length, solid rubber / polyurethane, tandem rollers
The Jungheinrich AM 22 hand pallet truck with quick lift and long forks is a premium product for continuous daily use and particularly well suited for transporting long goods or multiple pallets simultaneously. Thanks to the quick lift function, you can increase your throughput while minimising the required effort.
- Quick lift (up to 120 kg)
- For load carriers with special dimensions or simultaneous transport of multiple pallets
- Durable and robust thanks to high-quality materials and first-class construction
- Maintenance-free use: no regreasing required
- Entry rollers for easy pallet pick-up and smooth travel over thresholds
Transport long goods or multiple pallets simultaneously
The Jungheinrich AM 22 hand pallet truck with quick lift and long forks is well known for its outstanding quality, long service life and maintenance-free operation. Thanks to the quick lift function (up to 120 kg), Euro pallets can be lifted clear of the ground with just three pump strokes. The maximum lift height is reached after just five strokes. This allows you to optimise the workflows of your in-house goods transport.

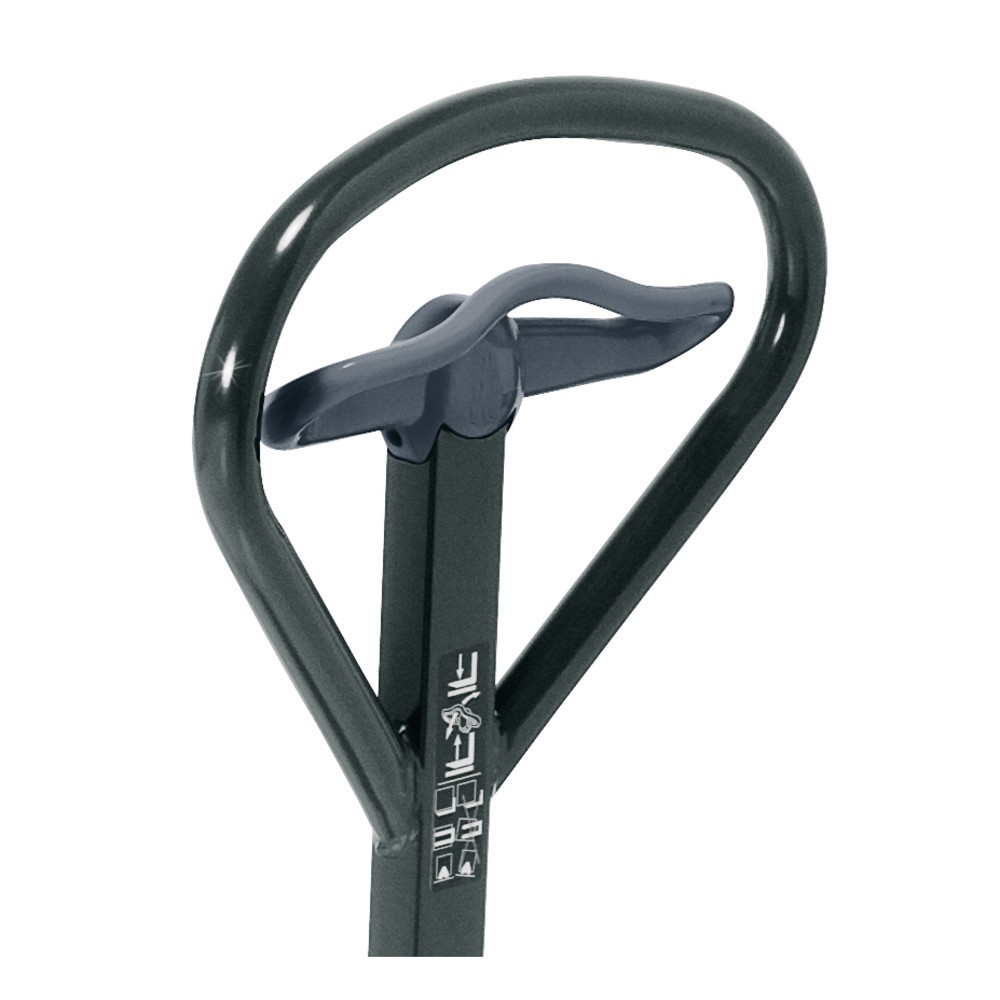

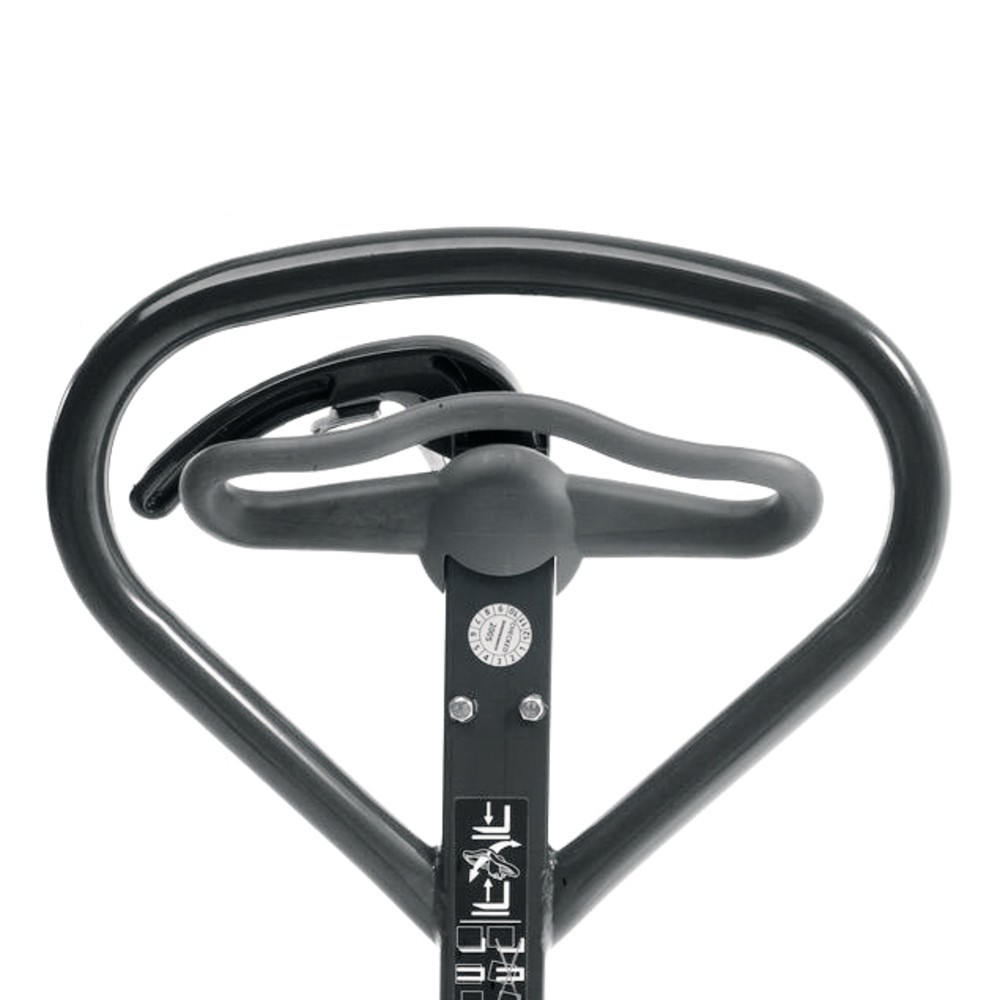

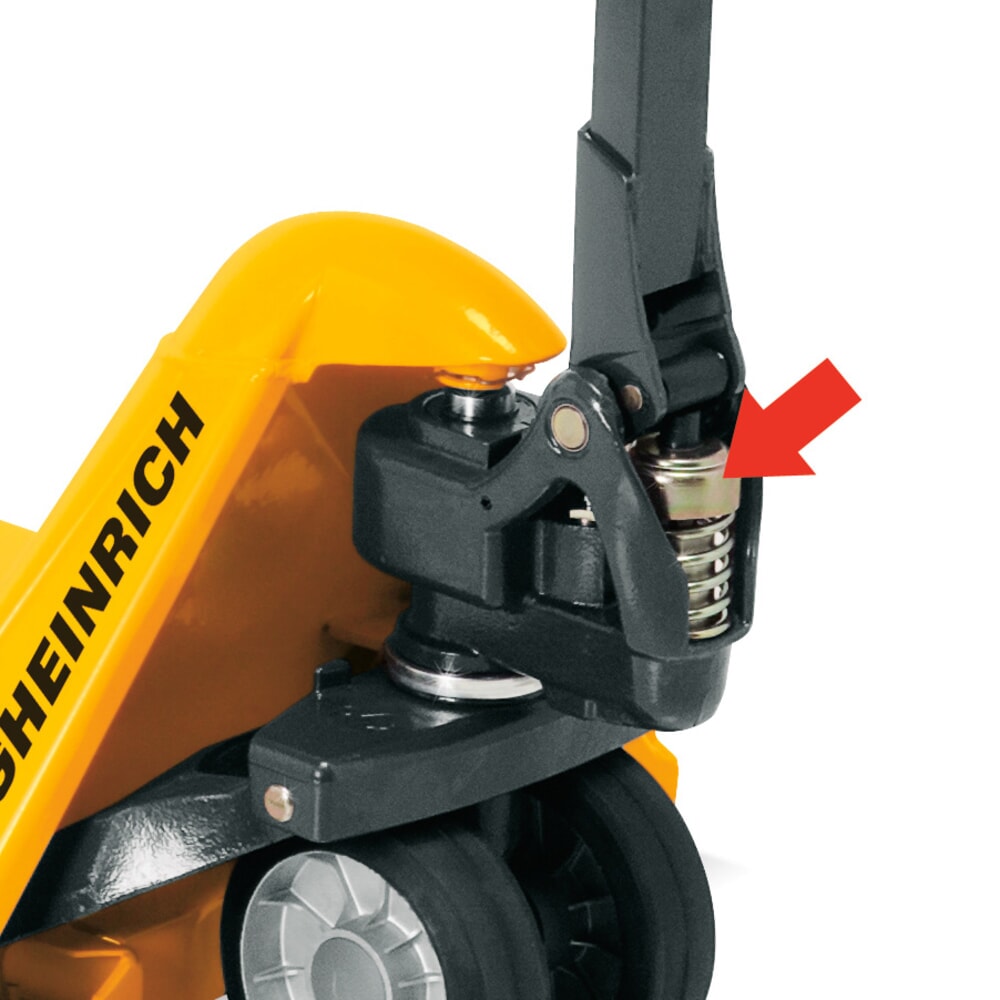

Thanks to the special lowering valve, loads can be set down with utmost control and precision. The hand pallet truck is operated via an ergonomic tiller that is equally well suited to right and left-handed users. The greatly reduced headlength ensures maximum manoeuvrability in tight spaces. The long forks allow you to pick up and transport load carriers with special dimensions or multiple pallets simultaneously.
The covered entry rollers and rounded fork tips make insertion and retraction from the pallet particularly easy. The joints and connecting pieces feature lifetime lubrication, meaning that you do not have to perform any maintenance. The robust hand pallet truck is made from extremely tough steel with a powder-coated surface and welded tiller mounting. In addition, the wheel bushings and joints are chromated to ensure quiet running and a long service life.
The Jungheinrich AM 22 hand pallet truck with quick lift and long forks is available with different capacities and fork lengths. Depending on the ground conditions and specific application, you can choose between different steering castors and fork rollers. You can also opt for single or tandem fork rollers.
Benefit from a premium quality product by ordering the Jungheinrich AM 22 hand pallet truck with quick lift and long forks from our shop.
The Jungheinrich AM 22 hand pallet truck with quick lift and long forks is well known for its outstanding quality, long service life and maintenance-free operation. Thanks to the quick lift function (up to 120 kg), Euro pallets can be lifted clear of the ground with just three pump strokes. The maximum lift height is reached after just five strokes. This allows you to optimise the workflows of your in-house goods transport.
Thanks to the special lowering valve, loads can be set down with utmost control and precision. The hand pallet truck is operated via an ergonomic tiller that is equally well suited to right and left-handed users. The greatly reduced headlength ensures maximum manoeuvrability in tight spaces. The long forks allow you to pick up and transport load carriers with special dimensions or multiple pallets simultaneously.
The covered entry rollers and rounded fork tips make insertion and retraction from the pallet particularly easy. The joints and connecting pieces feature lifetime lubrication, meaning that you do not have to perform any maintenance. The robust hand pallet truck is made from extremely tough steel with a powder-coated surface and welded tiller mounting. In addition, the wheel bushings and joints are chromated to ensure quiet running and a long service life.
The Jungheinrich AM 22 hand pallet truck with quick lift and long forks is available with different capacities and fork lengths. Depending on the ground conditions and specific application, you can choose between different steering castors and fork rollers. You can also opt for single or tandem fork rollers.
Benefit from a premium quality product by ordering the Jungheinrich AM 22 hand pallet truck with quick lift and long forks from our shop.
