Jungheinrich AM 22 hand pallet truck, 795 mm fork length, nylon
Article number: 118483 | EAN/GTIN: 4260329041696
| Aisle width | 1784 mm |
| Brand | Jungheinrich |
| Capacity | 2200 kg |
| Chassis surface | powder-coated |
| Colour chassis | Jungheinrich yellow |
| Control panel | two-handed |
| Drive | manual |
| Face of forks length | 373 mm |
| Fork height | 53 mm |
| Fork length | 795 mm |
| Fork roller diameter | 82 mm |
| Fork roller equipment | Single |
| Fork roller material | Nylon (black) |
| Fork roller width | 96 mm |
| Fork support width | 520 mm |
| Fork width | 150 mm |
| Ground clearance | 30 mm |
| Handle fittings | Steel |
| Infeed rollers | Yes |
| Lift | 122 mm |
| Lift height per pump stroke | 10 mm |
| Lift range | 83 - 205 mm |
| Load centre | 400 mm |
| Lowering speed with/without load | 0,09 / 0,02 m/s |
| Model | Jungheinrich AM 22 |
| Net weight | 51 kg |
| Operator type | Manual |
| Overall length | 1165 mm |
| Overall width | 520 mm |
| Pallet truck material | Steel |
| Pump strokes to lift pallet | 7 |
| Pump strokes to max. lift height | 12 |
| Route | Short distance |
| Section | Professional |
| Steering wheel diameter | 170 mm |
| Steering wheel material | Nylon (black) |
| Steering wheel width | 50 mm |
| Temperature range | -10 - 50 °C |
| Tiller RAL colour | RAL 7016 anthracite grey |
| Tiller height | 1234 mm |
| Tiller surface | powder-coated |
| Turning radius | 919 mm |
Item description

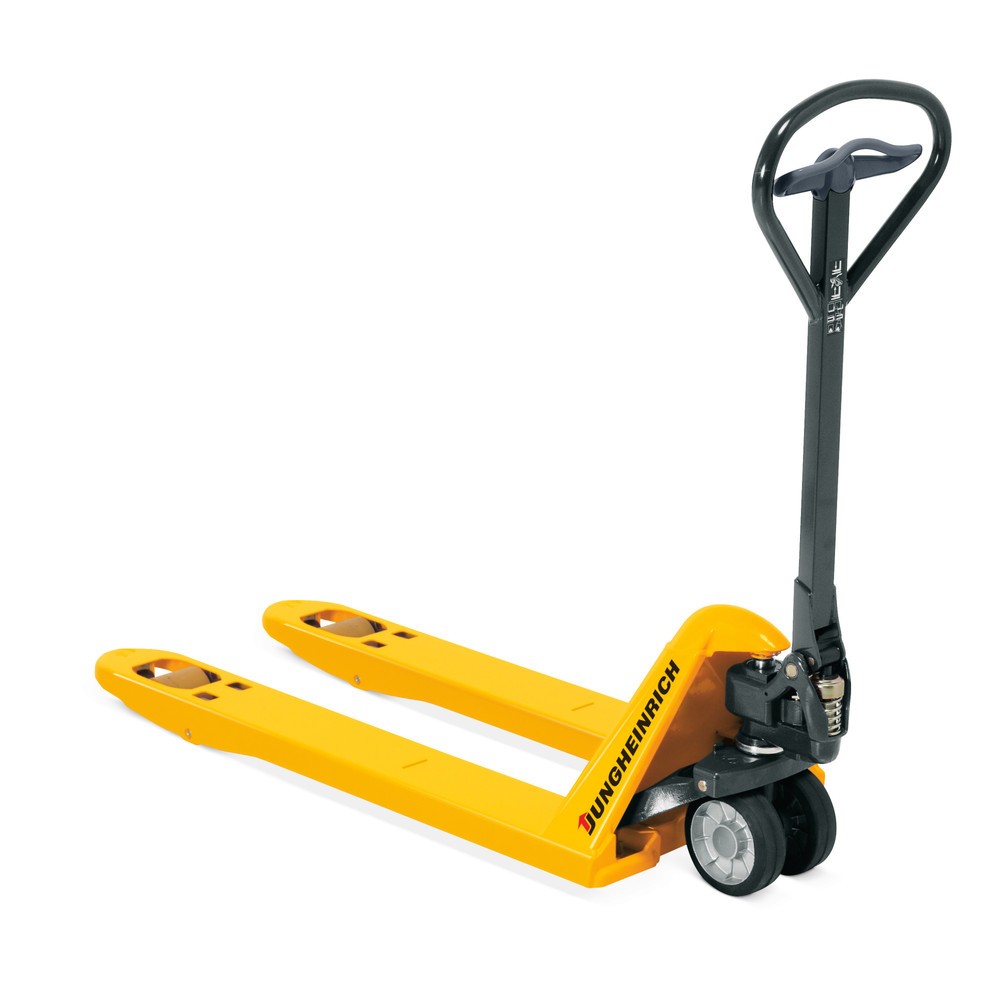

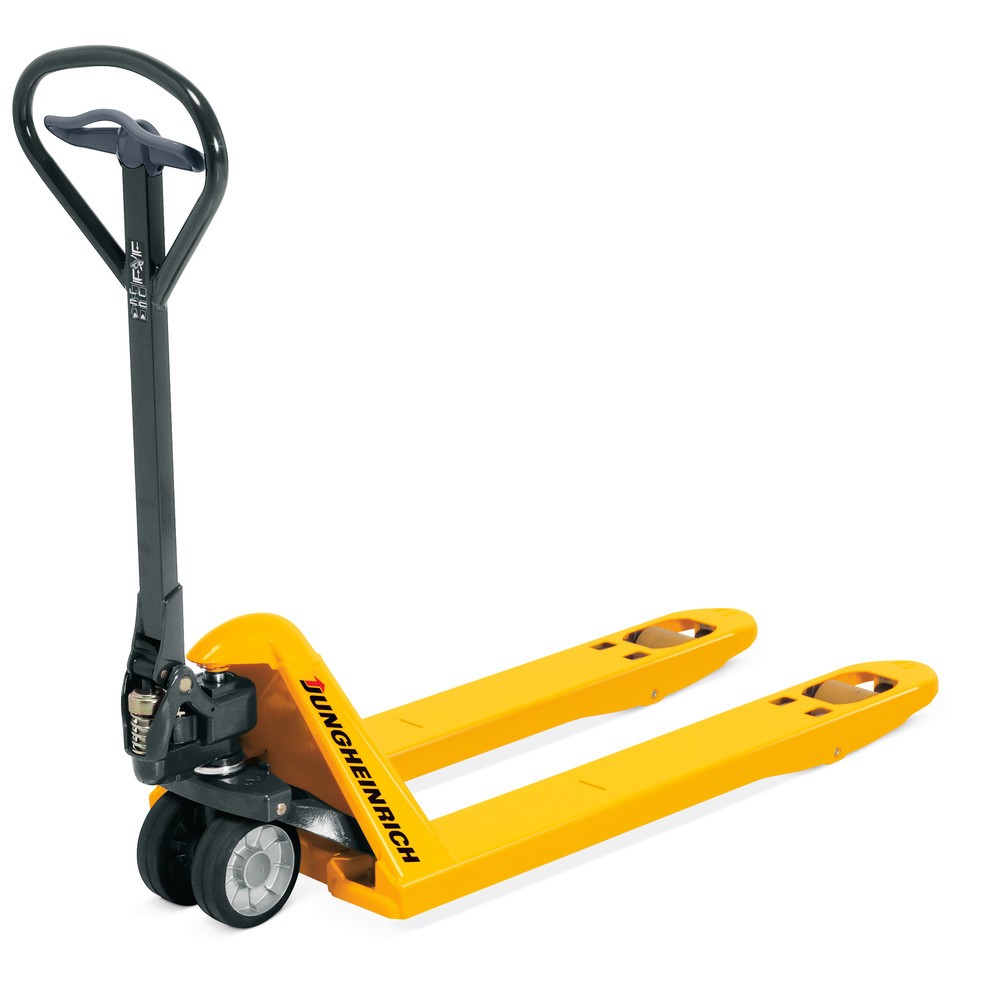

Jungheinrich AM 22 hand pallet truck, 795 mm fork length, nylon
Article number: 118483 | EAN/GTIN: 4260329041696
AM 22 - the Jungheinrich classic with short forks for special applications
The Jungheinrich AM 22 hand pallet truck with short forks and a capacity of 2200 kg is a high quality solution for working in small spaces. Its short fork length makes it ideal for transport in trucks or vans. Thanks to its small turning circle and short fork length, it offers impressive agility and manoeuvrability in narrow aisles. It can also be used to transport special pallets.

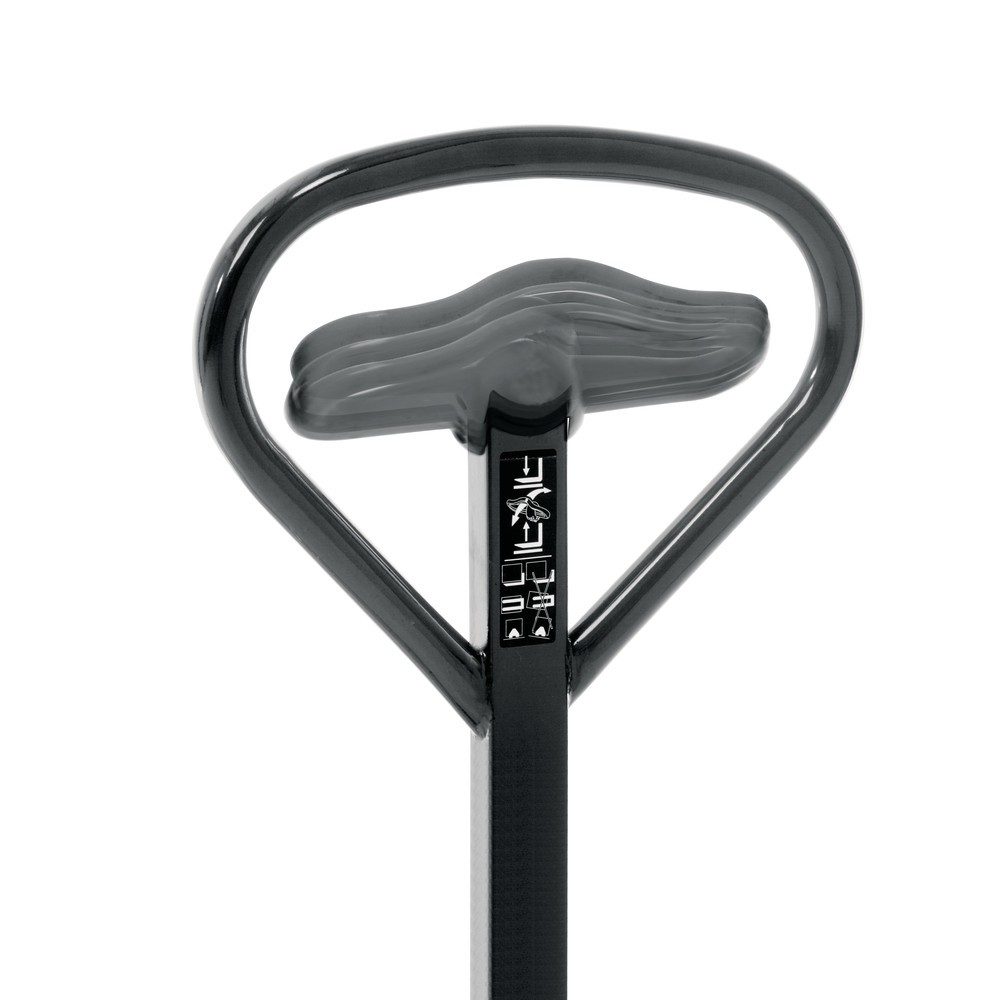

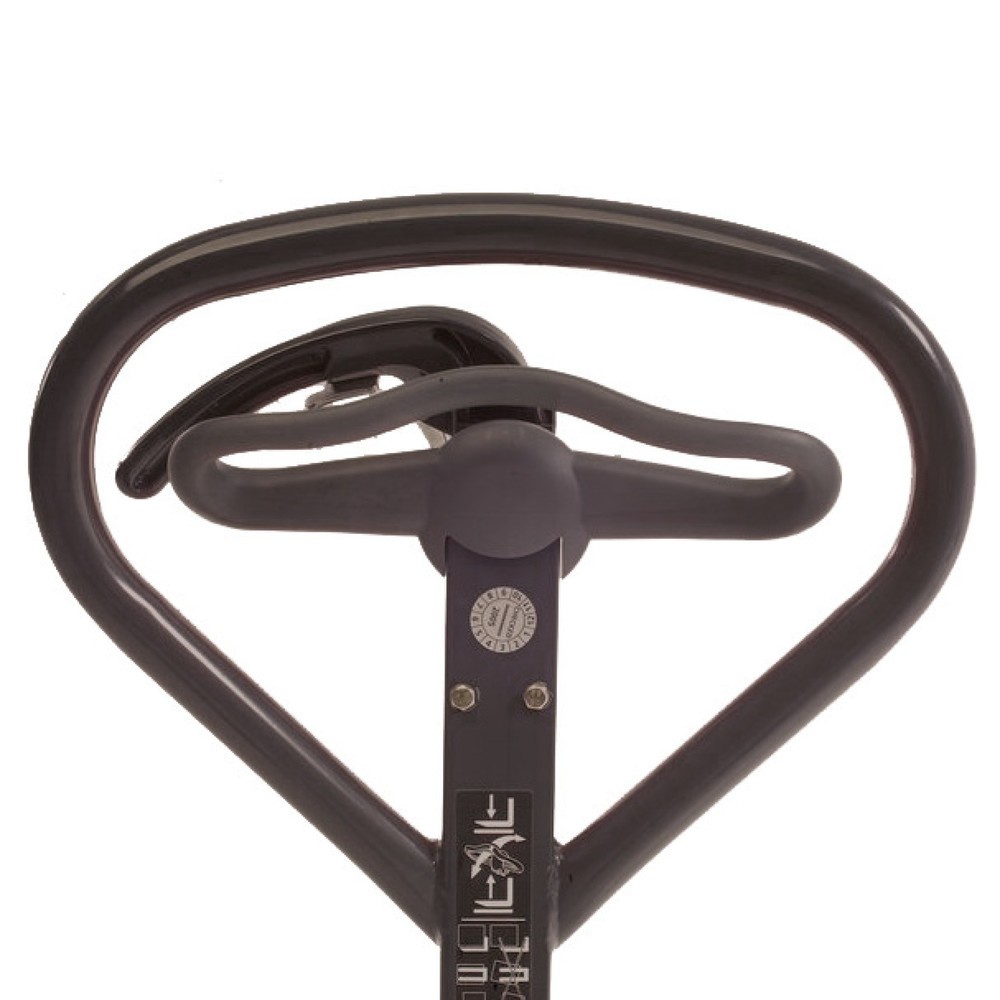

The patented, ergonomic Jungheinrich operating concept allows the tiller to be controlled from any position and is equally well suited to right and left-handed users. All functions can be easily reached with one hand. Thanks to the special lowering valve, sensitive loads can be set down with utmost control and precision.
The hand pallet truck does not require any servicing as the connections are lubricated for life and the pump hydraulics are maintenance-free. The outstanding stability and durability of the product is ensured by heavy-duty steel, a sophisticated design and a welded tiller mount. The entry rollers and rounded fork tips facilitate insertion and retraction from the pallet.
The Jungheinrich AM 22 hand pallet truck with a capacity of 2200 kg is offered in short fork lengths ranging from 600 to 950 mm. Depending on the ground conditions and specific application, you can choose between a range of roller materials. You can also opt for single or tandem fork rollers.
Durable, reliable and proven in continuous daily use - the Jungheinrich AM 22 hand pallet truck with short forks and a capacity of 2200 kg is the ideal partner for your everyday pallet transport – even when things get tight. Order the hand pallet truck from our shop in your chosen configuration.
