Sale
Item number:
118503

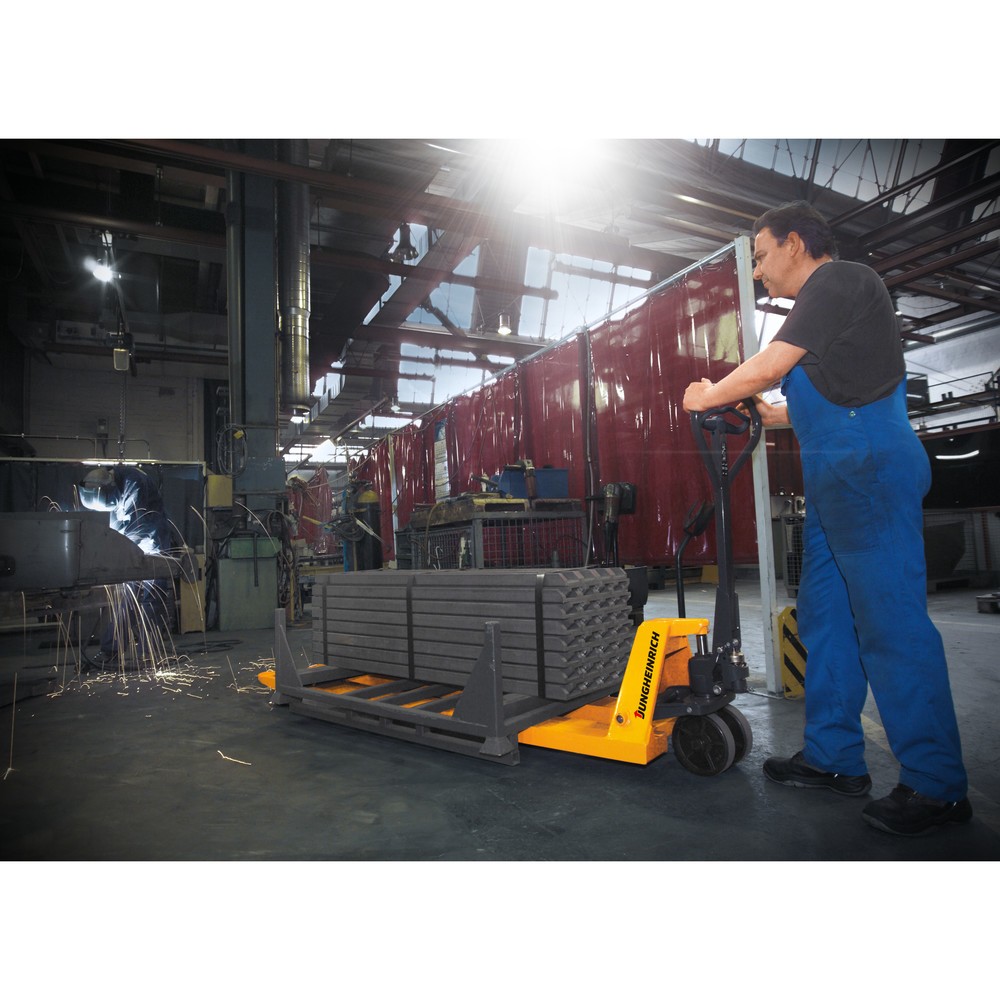

Jungheinrich AM 30 hand pallet truck with quick lift, 1,220 mm fork length, polyurethane, tandem rollers
Reinforced frame for handling heavy loads
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
Jungheinrich AM 30 hand pallet truck with quick lift, 1,220 mm fork length, polyurethane, tandem rollers
Article number: 118503 | EAN/GTIN: 4055091295879
| Aisle width | 1803 mm |
| Brand | Jungheinrich |
| Capacity | 3000 kg |
| Chassis surface | powder-coated |
| Colour chassis | Jungheinrich yellow |
| Control panel | two-handed |
| Drive | manual |
| Face of forks length | 383 mm |
| Fork height | 45 mm |
| Fork length | 1220 mm |
| Fork roller diameter | 80 mm |
| Fork roller equipment | Tandem |
| Fork roller material | Polyurethane (PU) |
| Fork roller width | 70 mm |
| Fork support width | 550 mm |
| Fork width | 160 mm |
| Ground clearance | 36 mm |
| Handle fittings | Steel |
| Infeed rollers | Yes |
| Lift | 120 mm |
| Lift height per pump stroke | 10 mm |
| Lift range | 85 - 205 mm |
| Load centre | 600 mm |
| Lowering speed with/without load | 0,09 / 0,05 m/s |
| Model | Jungheinrich AM 30 |
| Net weight | 86 kg |
| Operator type | Manual |
| Overall length | 1603 mm |
| Overall width | 550 mm |
| Pallet truck material | Steel |
| Pump strokes to lift pallet | 7 |
| Pump strokes to max. lift height | 12 |
| Rapid lift | Yes |
| Route | Short distance |
| Section | Professional |
| Steering wheel diameter | 200 mm |
| Steering wheel material | Polyurethane (PU) |
| Steering wheel width | 50 mm |
| Temperature range | -10 - 50 °C |
| Tiller RAL colour | RAL 7016 anthracite grey |
| Tiller height | 1234 mm |
| Tiller surface | powder-coated |
| Turning radius | 1319 mm |
Item description
Jungheinrich AM 30 hand pallet truck with quick lift, 1,220 mm fork length, polyurethane, tandem rollers
Article number: 118503 | EAN/GTIN: 4055091295879
The Jungheinrich AM 30 hand pallet truck with quick lift is a reliable aid for transporting goods weighing up to 3000 kg. The robust construction is maintenance free thanks to the high-quality pump hydraulics and lifetime lubrication of all joints.
- Hard-wearing heavy-duty pallet truck with a capacity of 3000 kg
- Time-saving rapid lift for loads of up to 120 kg
- Ergonomic tiller suitable for both right and left-handed users
- Flexible steering angle of up to 105° for excellent manoeuvrability
Highly robust and maintenance-free – the heavy-duty hand pallet truck with quick lift
When moving heavy goods weighing up to 3000 kg around your warehouse, the Jungheinrich AM 30 hand pallet truck offers reliable stability combined with excellent operating characteristics. In the case of lighter loads, you can use the quick lift function to lift pallets off the ground with just three pumps of the tiller. The full lift height is reached after five pumps.
The pallet truck offers excellent comfort, even in narrow aisles or on winding routes. A 105° steering angle on both sides ensures maximum manoeuvrability at all times. The pallet truck is controlled using an ergonomic tiller that is equally well suited to right and left-handed users. Thanks to the sophisticated pump hydraulics, even the heaviest of pallets can be lifted with minimal effort. Protected entry rollers and rounded fork tips ensure that picking up the goods is a very straightforward process. Hard steel construction, a powder-coated surface, chromated wheel bushings and joints as well as a welded tiller mount all combined to deliver a product with maximum durability. Both the steering castors and the tandem fork rollers are made from hard-wearing, abrasion-resistant polyurethane. We offer the heavy-duty hand pallet truck with a number of different fork lengths.
Transport your heavy goods with maximum comfort and safety by ordering the Jungheinrich AM 30 hand pallet truck with quick lift and 3000 kg capacity from our shop.
When moving heavy goods weighing up to 3000 kg around your warehouse, the Jungheinrich AM 30 hand pallet truck offers reliable stability combined with excellent operating characteristics. In the case of lighter loads, you can use the quick lift function to lift pallets off the ground with just three pumps of the tiller. The full lift height is reached after five pumps.
The pallet truck offers excellent comfort, even in narrow aisles or on winding routes. A 105° steering angle on both sides ensures maximum manoeuvrability at all times. The pallet truck is controlled using an ergonomic tiller that is equally well suited to right and left-handed users. Thanks to the sophisticated pump hydraulics, even the heaviest of pallets can be lifted with minimal effort. Protected entry rollers and rounded fork tips ensure that picking up the goods is a very straightforward process. Hard steel construction, a powder-coated surface, chromated wheel bushings and joints as well as a welded tiller mount all combined to deliver a product with maximum durability. Both the steering castors and the tandem fork rollers are made from hard-wearing, abrasion-resistant polyurethane. We offer the heavy-duty hand pallet truck with a number of different fork lengths.
Transport your heavy goods with maximum comfort and safety by ordering the Jungheinrich AM 30 hand pallet truck with quick lift and 3000 kg capacity from our shop.
