Pallet trucks
Item number: 107484

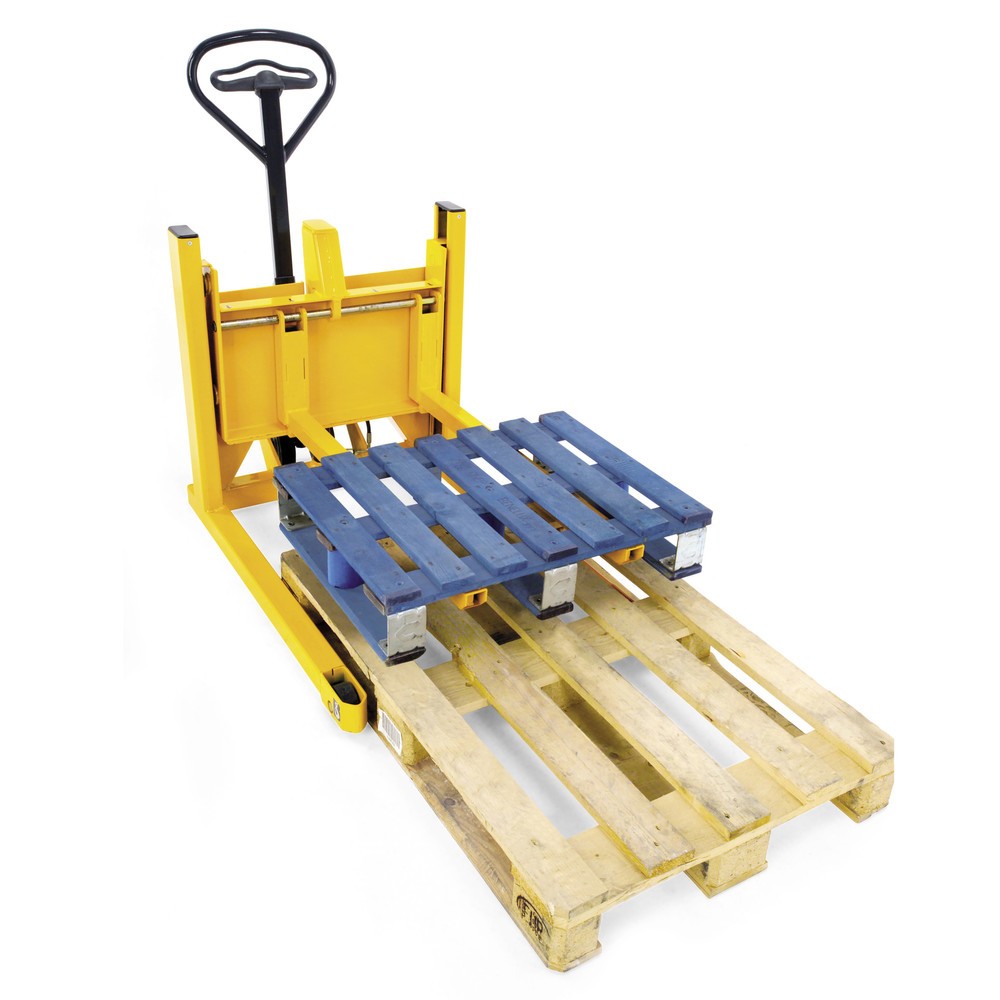

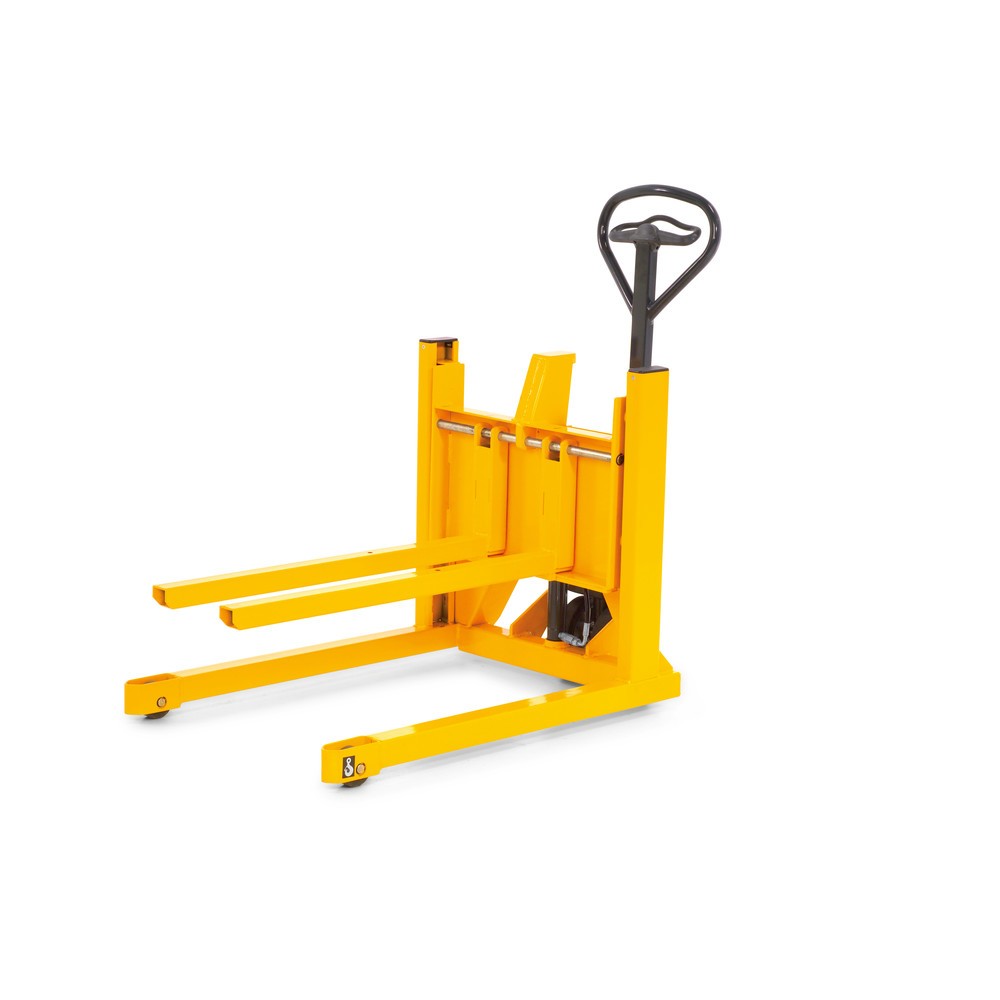

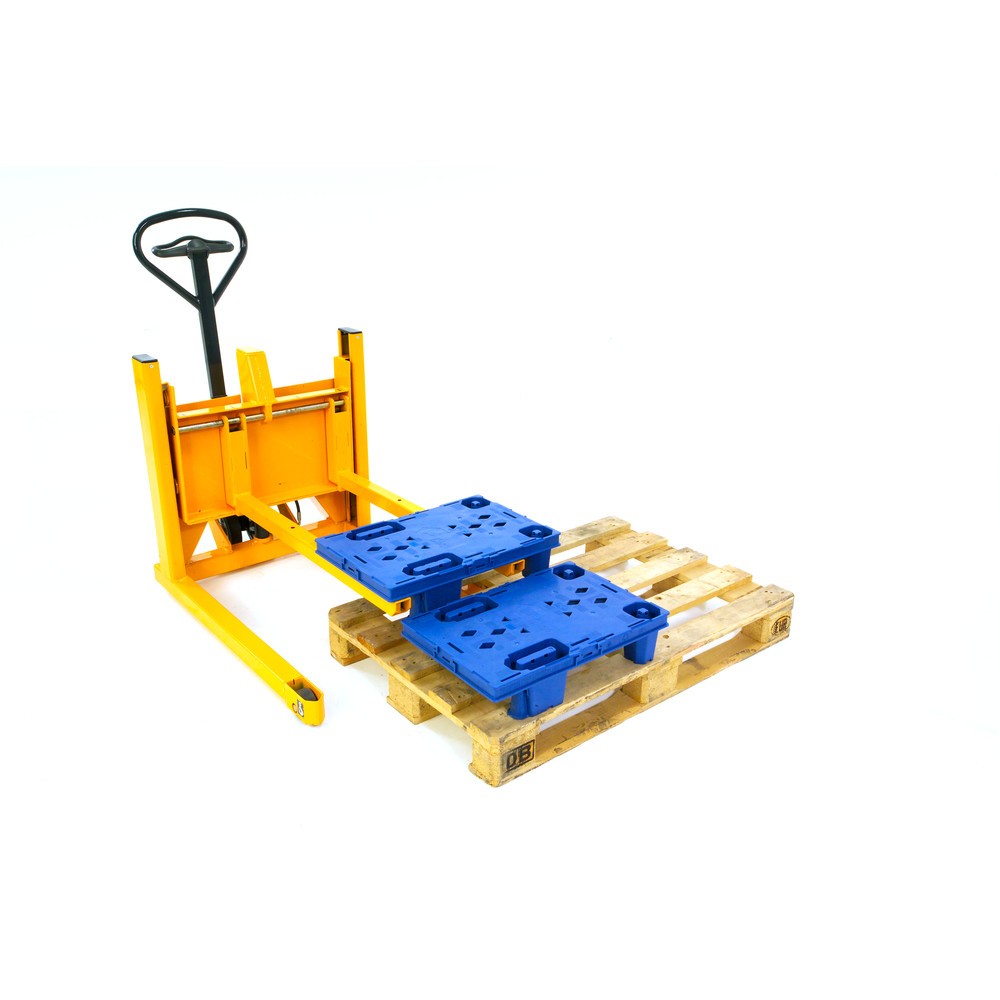

Jungheinrich AM V05 hand pallet truck, with wide track for display pallets

With adjustable fork spacing for transporting display pallets
Go to product description
  • Jungheinrich
  • Professional
Fork length:
Fork roller equipment:
Fork roller material:
Steering wheel material:

10 Working days

£1,190.00

per Stk excl. VAT plus shipping

Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Buyer protection – Trusted Shops

Technical details

Jungheinrich AM V05 hand pallet truck, with wide track for display pallets

  1. Aisle width
    2005 mm
  2. Brand
    Jungheinrich
  3. Capacity
    500 kg
  4. Chassis RAL colour
    RAL 1028 melon yellow
  5. Chassis surface
    powder-coated
  6. Control panel
    two-handed
  7. Drive
    manual
  8. Face of forks length
    450 mm
  9. Fork height
    50 mm
  10. Fork length
    955 mm
  11. Fork roller diameter
    82 mm
  12. Fork roller equipment
    Single
  13. Fork roller material
    Nylon
  14. Fork roller width
    40 mm
  15. Fork support width
    140 mm
  16. Fork width
    50 mm
  17. Ground clearance
    30 mm
  18. Handle fittings
    Steel
  19. Infeed rollers
    Yes
  20. Lift
    305 mm
  21. Lift height per pump stroke
    25/10 mm
  22. Lift range
    85 - 390 mm
  23. Load centre
    400 mm
  24. Lowering speed with/without load
    0,09 / 0,05 m/s
  25. Model
    Jungheinrich AM V05
  26. Net weight
    153 kg
  27. Operator type
    Manual
  28. Overall length
    1405 mm
  29. Overall width
    760 mm
  30. Pallet truck material
    Steel
  31. Pump strokes to lift pallet
    3/7
  32. Pump strokes to max. lift height
    5/12
  33. Route
    Short distance
  34. Section
    Professional
  35. Steering wheel diameter
    180 mm
  36. Steering wheel material
    Solid rubber
  37. Steering wheel width
    50 mm
  38. Temperature range
    -10 - 50 °C
  39. Tiller RAL colour
    RAL 7016 anthracite grey
  40. Tiller height
    1210 mm
  41. Tiller surface
    powder-coated
  42. Turning radius
    1425 mm

Item description

Jungheinrich AM V05 hand pallet truck, with wide track for display pallets

This Jungheinrich hand pallet truck is ideal for picking up and transporting smaller pallet formats, such as display pallets weighing up to 500 kg, both safely and securely. The fork spacing can be easily adjusted between 140 and 585 mm.
  • Manually adjustable fork spacing (140-585 mm)
  • Extremely quiet operation
  • Quick lift up to 120 kg for quick and easy goods transport
  • Precision Jungheinrich pump hydraulics and special lowering valve
  • Ergonomic tiller suitable for both right and left-handed users
The Jungheinrich wide-track hand pallet truck for pallets with special dimensions

This wide-track display pallet truck with manually adjustable fork spacing of 140 to 585 mm is ideal for handling quarter, half and special pallets. Thanks to durable, tried-and-tested Jungheinrich quality, you can pick up, transport and lower your pallets with utmost confidence. The hand pallet truck is very easy to operate using the ergonomic tiller. The quick lift function up to 120 kg allows you to lift the pallet clear of the ground with just three pumps. The maximum lift height of 390 mm is reached after just five pump strokes. Thanks to the special lowering valve, loads can be set down with utmost control and precision. Robust, solid rubber steering castors ensure extremely quiet operation. The single fork rollers are made from wear-resistant, smooth-running nylon. The powder coating protects the steel construction against corrosion.

Transport your display pallets safely and efficiently by ordering the Jungheinrich AM V05 wide-track hand pallet truck from our shop.
