Jungheinrich AMX 10e scissor lift pallet truck, capacity 1,000 kg, nylon
With electric lift to raise the load to an ergonomic working height
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
Jungheinrich AMX 10e scissor lift pallet truck, capacity 1,000 kg, nylon
Article number: 174822 | EAN/GTIN: 4055091293233
| Aisle width | 2005 mm |
| Battery capacity | 70 Ah/per unit |
| Battery type | Lead-gel battery |
| Battery voltage | 12 V/per unit |
| Battery weight | 24 kg |
| Brand | Jungheinrich |
| Capacity | 1000 kg |
| Charger | integrated |
| Chassis surface | powder-coated |
| Colour chassis | Jungheinrich yellow |
| Control panel | two-handed |
| Drive | manual |
| Face of forks length | 500 mm |
| Fork height | 53 mm |
| Fork length | 1150 mm |
| Fork roller diameter | 82 mm |
| Fork roller equipment | Single |
| Fork roller material | Nylon (black) |
| Fork roller width | 62 mm |
| Fork support width | 560 mm |
| Fork width | 150 mm |
| Ground clearance | 30 mm |
| Handle fittings | Steel |
| Lift | 714 mm |
| Lift motor output | 0.5 kW |
| Lift range | 86 - 800 mm |
| Lift speed with/without load | 0.03 / 0.05 m/s |
| Lift type | electric |
| Load centre | 600 mm |
| Lowering speed with/without load | 0,13 / 0,05 m/s |
| Model | Jungheinrich AMX 10e |
| Net weight | 202 kg |
| Operator type | Manual |
| Overall length | 1650 mm |
| Overall width | 560 mm |
| Pallet truck material | Steel |
| Rapid lift | Yes |
| Route | Short distance |
| Section | Professional |
| Steering wheel diameter | 170 mm |
| Steering wheel material | Nylon (black) |
| Steering wheel width | 50 mm |
| Temperature range | 0 - 40 °C |
| Tiller RAL colour | RAL 7016 anthracite grey |
| Tiller height | 1299 mm |
| Tiller surface | powder-coated |
| Turning radius | 1635 mm |
Item description
Jungheinrich AMX 10e scissor lift pallet truck, capacity 1,000 kg, nylon
Article number: 174822 | EAN/GTIN: 4055091293233
The AMX 10e scissor lift pallet truck delivers premium Jungheinrich quality in a highly versatile package. You can use it as a hand pallet truck, lift table, provisioning table or workbench. At the touch of a button, the 0.5 kW lift motor easily raises loads of up to 1000 kg to a comfortable, fatigue-free working height. The on-board charger enables straightforward charging at any 230 V socket.
- 0.5 kW motor for electro-hydraulic lifting
- Maintenance-free 12 V / 70 Ah battery
- Flexible application, can also be used as a lift table or workbench
- Ergonomic tiller handle that can be operated with either hand
- Pressure relief valve protects against overload
- Simple charging via on-board charger
- Available with optional lateral support rollers
Switch working heights at the touch of button
The AMX 10e scissor lift pallet truck is a premium Jungheinrich product offering durable and reliable quality. As a combination between a pallet truck and lift table, the scissor lift pallet truck is extremely flexible and versatile.
Thanks to the 0.5 kW lift motor, you can easily raise loads weighing up to 1000 kg to an optimum height, allowing you to work in an ergonomic, fatigue-free manner. In the case of frequently changing working heights, you can easily make adjustments at the touch of a button. The truck thus serves as an invaluable aid when working with pallets or pallet cages since you do not have to bend down and pick up heavy loads. It goes without saying that you can also use the AMX 10e as a hand pallet truck to transport your goods.

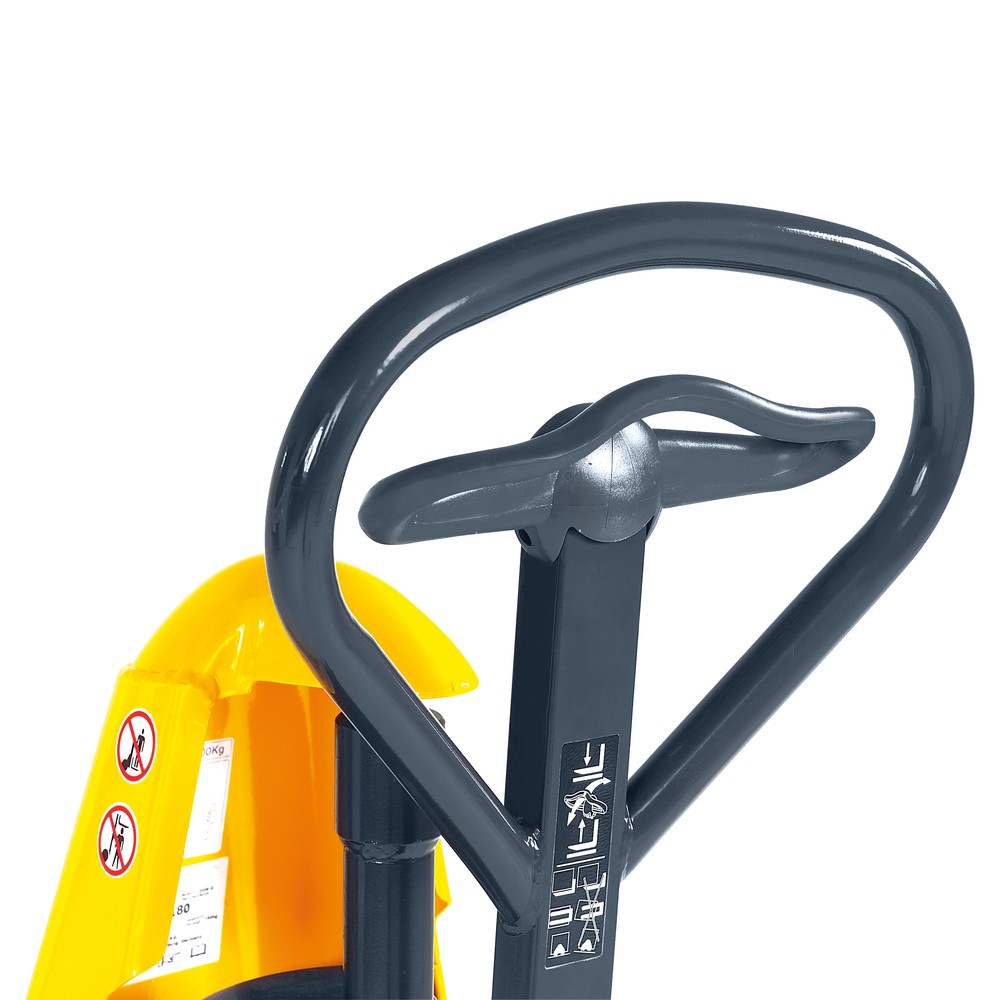

The lift/travel/lower functions are controlled via the ergonomic tiller handle, which can be easily operated with either hand. Thanks to the special lowering valve, sensitive loads can be set down with utmost control and precision. You can adjust the working height of the AMX 10e up to a height of 800 mm. As of a lift height of around 400 mm, side-mounted support feet provide additional stability. They secure the pallet truck, which can then no longer move and thus serves as a useful work table. You also have the option of equipping the scissor lift pallet truck with lateral support rollers so that you can also move it when raised.
The fork arms with their closed fork tips and welded construction are torsion-free and highly durable. As a result, the scissor lift pallet truck retains its shape even under the heaviest loads. The single-stage lift cylinder makes the AMX 10e particularly resilient and minimises the risk of leaks. The pressure relief valve protects the hydraulic system against overload. Thanks to the on-board charger, you can easily charge the maintenance-free 70 Ah battery at any 230 V socket.
Depending on the ground conditions and specific application, you can choose between a range of wheel and roller materials. Benefit from an ergonomic working aid by ordering the electro-hydraulic scissor lift pallet truck from our shop in your chosen configuration.
The AMX 10e scissor lift pallet truck is a premium Jungheinrich product offering durable and reliable quality. As a combination between a pallet truck and lift table, the scissor lift pallet truck is extremely flexible and versatile.
Thanks to the 0.5 kW lift motor, you can easily raise loads weighing up to 1000 kg to an optimum height, allowing you to work in an ergonomic, fatigue-free manner. In the case of frequently changing working heights, you can easily make adjustments at the touch of a button. The truck thus serves as an invaluable aid when working with pallets or pallet cages since you do not have to bend down and pick up heavy loads. It goes without saying that you can also use the AMX 10e as a hand pallet truck to transport your goods.
The lift/travel/lower functions are controlled via the ergonomic tiller handle, which can be easily operated with either hand. Thanks to the special lowering valve, sensitive loads can be set down with utmost control and precision. You can adjust the working height of the AMX 10e up to a height of 800 mm. As of a lift height of around 400 mm, side-mounted support feet provide additional stability. They secure the pallet truck, which can then no longer move and thus serves as a useful work table. You also have the option of equipping the scissor lift pallet truck with lateral support rollers so that you can also move it when raised.
The fork arms with their closed fork tips and welded construction are torsion-free and highly durable. As a result, the scissor lift pallet truck retains its shape even under the heaviest loads. The single-stage lift cylinder makes the AMX 10e particularly resilient and minimises the risk of leaks. The pressure relief valve protects the hydraulic system against overload. Thanks to the on-board charger, you can easily charge the maintenance-free 70 Ah battery at any 230 V socket.
Depending on the ground conditions and specific application, you can choose between a range of wheel and roller materials. Benefit from an ergonomic working aid by ordering the electro-hydraulic scissor lift pallet truck from our shop in your chosen configuration.
