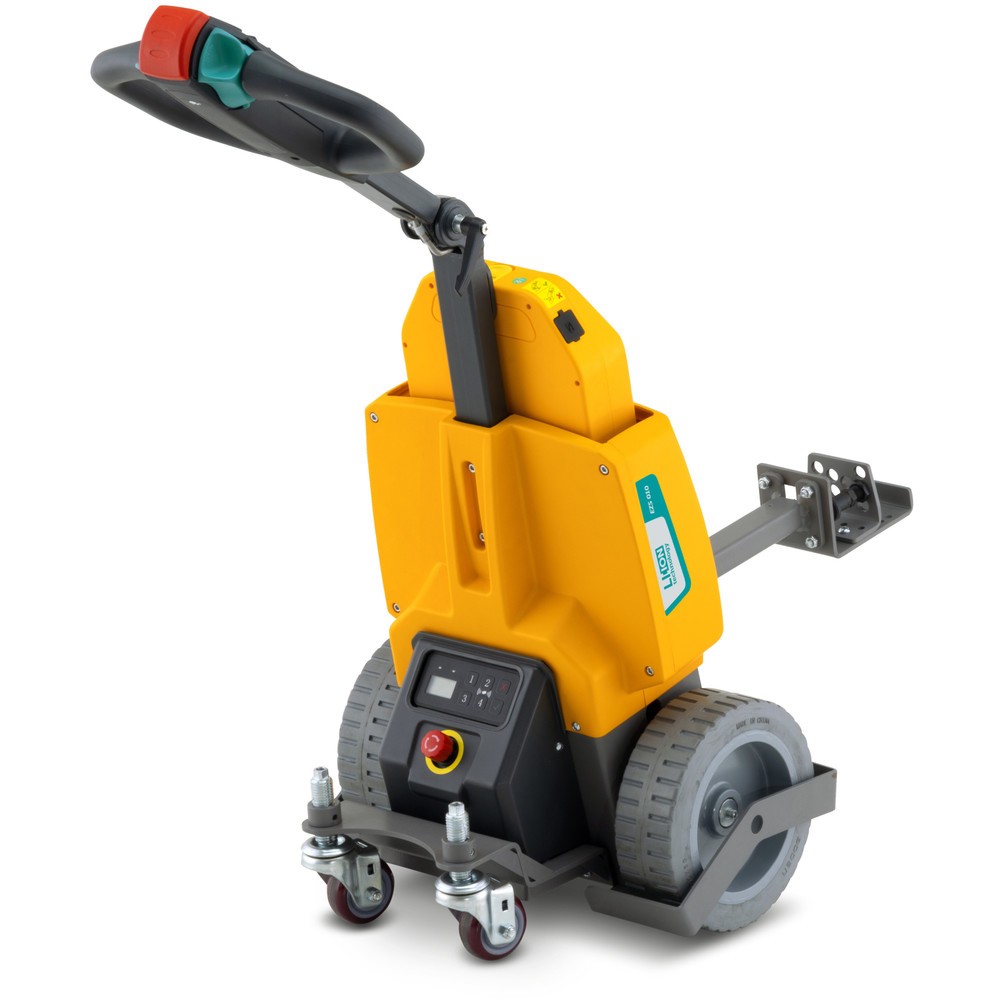

Jungheinrich EZS 010 electric tow tractor – lithium-ion, incl. coupling for square profiles, mechanically adjustable

The Jungheinrich EZS 010 electric tow tractor – lithium-ion is a compact pedestrian tow tractor for the convenient, energy-saving and safe movement of rolling load carriers with a towing capacity of up to 1,000 kg. This highly versatile, ergonomic towing aid can be used in confined spaces, indoors and outdoors as well as on inclines. With the standard coupling for square profiles, you can transport a wide range of rolling load carriers. The maintenance-free and powerful lithium-ion battery impresses with its high performance, short charging times and long service life.

Versatile application and powerful performance thanks to lithium-ion technology

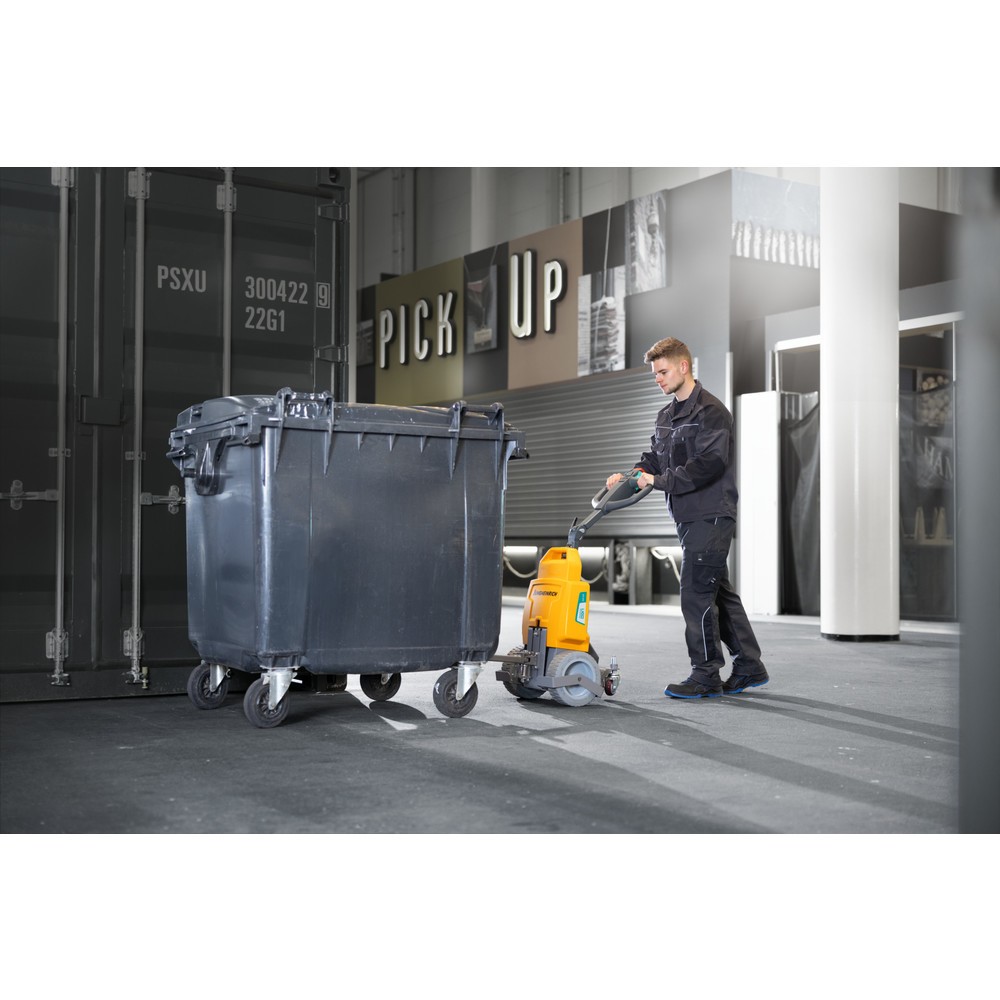

The Jungheinrich EZS 010 electric tow tractor – lithium-ion serves as a flexible and efficient all-rounder that allows you transport goods with greater speed and productivity. The electric travel function assists your employees in their daily work by enabling comfortable and fatigue-free transport of various trailers and trolleys with loads of up to 1,000 kg. The electric tow tractor was developed for light-duty use over short distances, both indoors and outdoors, and can also be used on inclines. The electric towing aid is suitable for a wide range of applications and offers impressive performance in production, order picking, retail or as a last-mile solution.

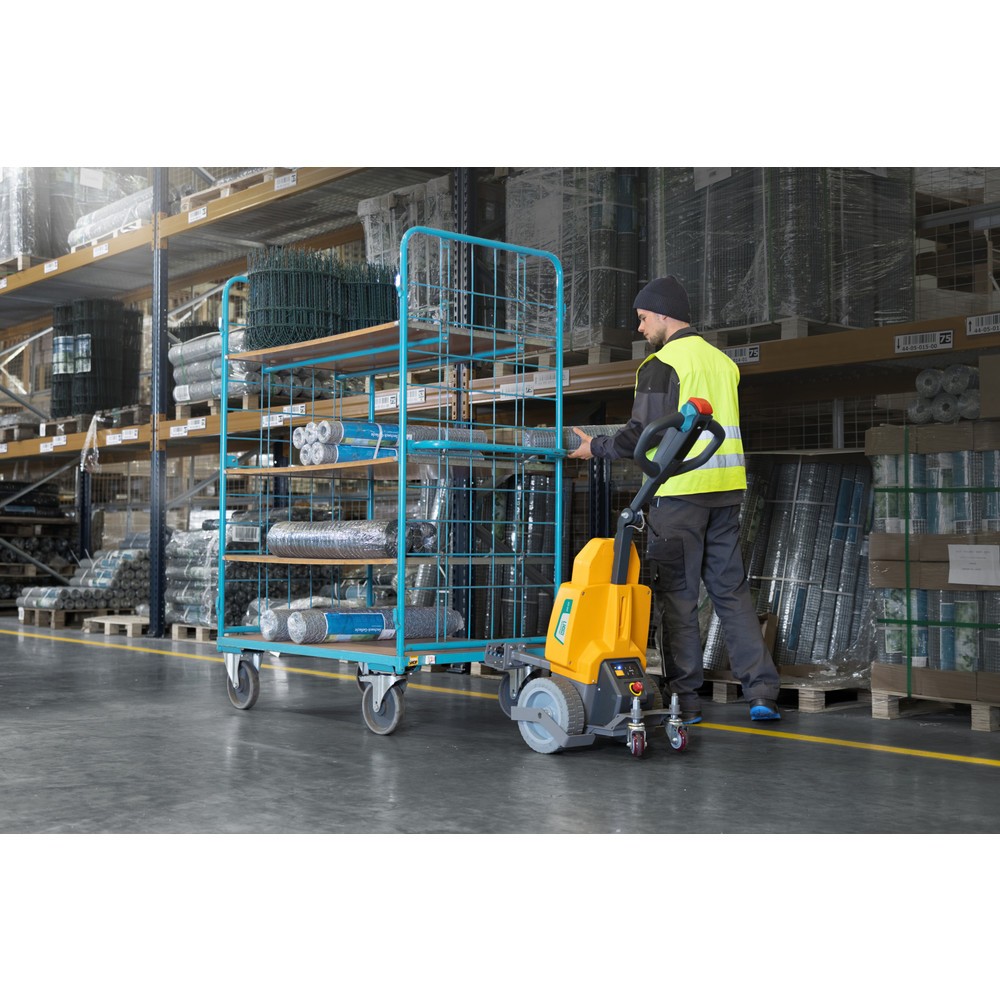

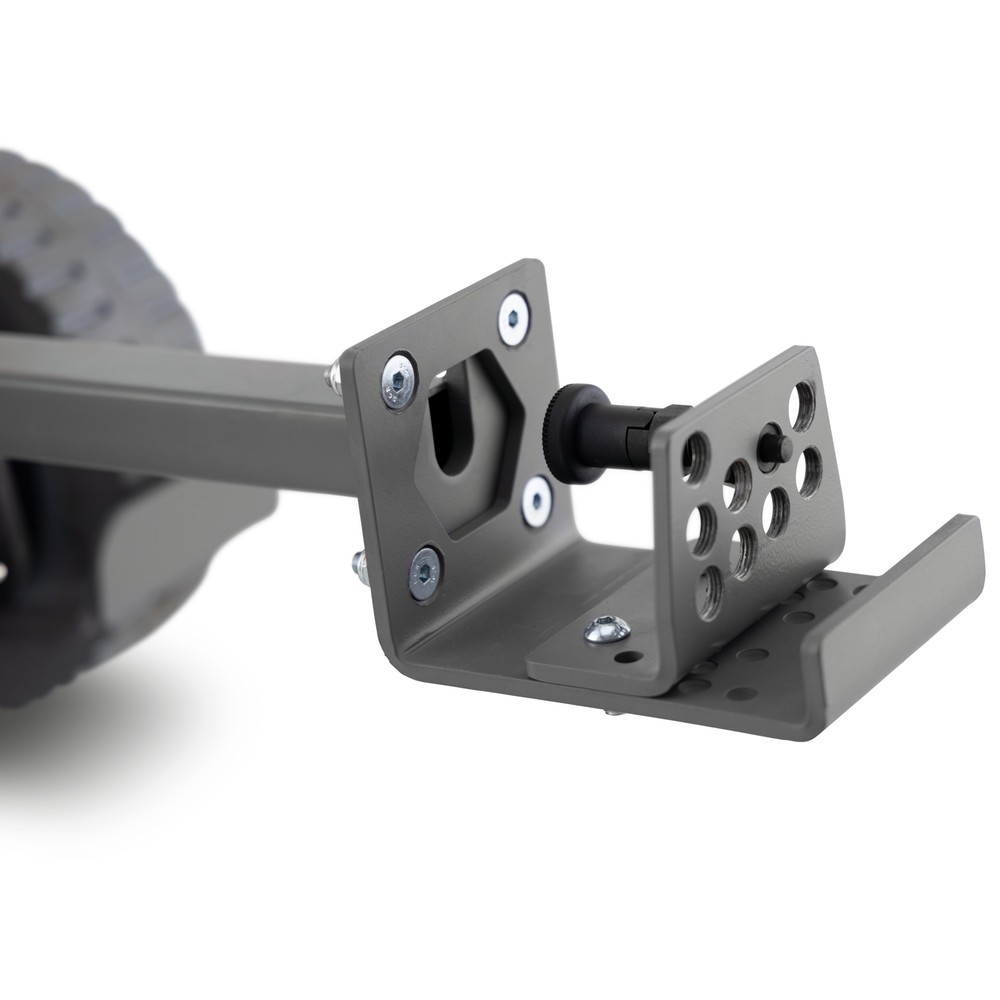

The Jungheinrich electric tow tractor is supplied with a coupling with square profile. This provides you with a standard coupling for a wide range of rolling load carriers, such as roll cages, assembly, order picking and shelf trolleys as well as other rolling trailers. The trolleys merely require a square profile on the lower edge to accommodate the coupling. The coupling is designed for profile edges with a depth of 5 to 60 mm. The mechanical adjustment is made in 5 mm increments. The height of the coupling arm is infinitely adjustable from 85 to 235 mm. For better tracking, the trolleys must be equipped with 2 steering castors on the coupling side and 2 rigid fixed castors at the rear. This ensures reliable straight-ahead travel during transport while also enabling a good level of manoeuvrability.

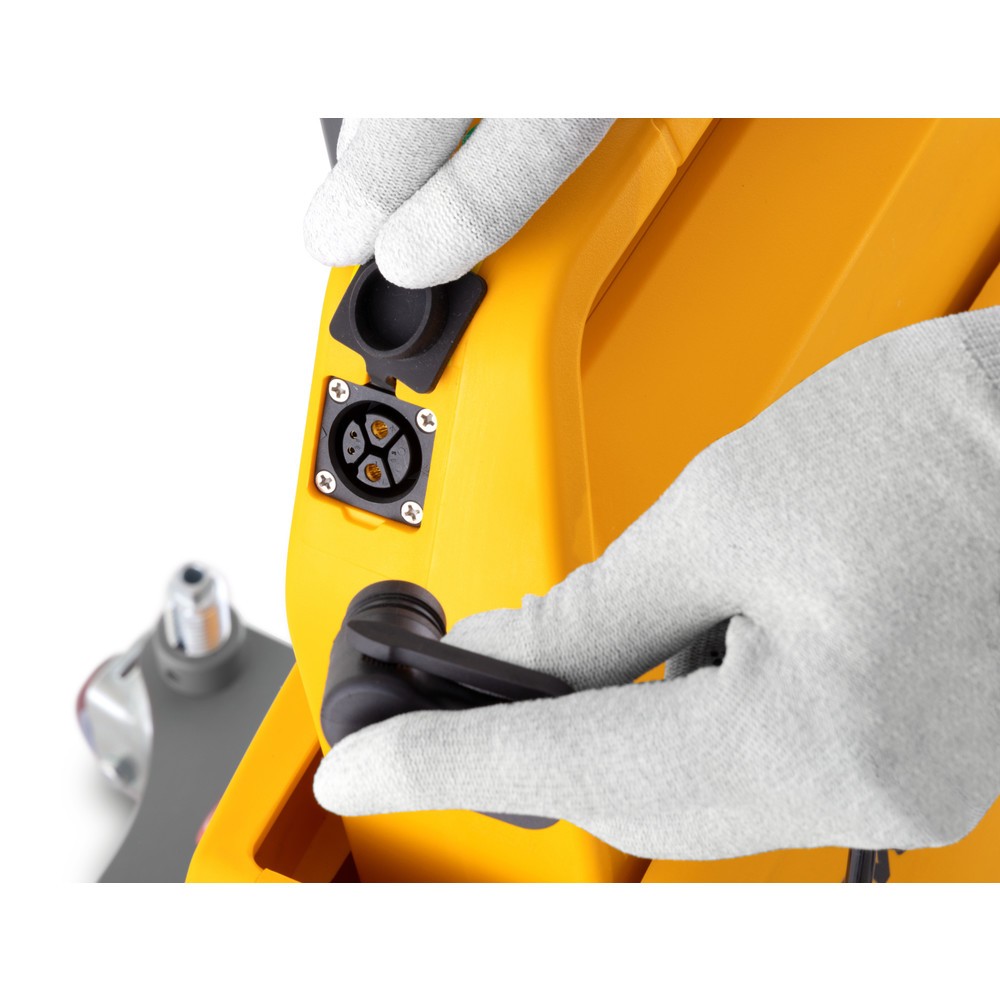

The EZS 010 electric tow tractor offers maximum efficiency and safety levels. The powerful and maintenance-free 24-V lithium-ion battery is characterised by its impressive performance, short charging times and long service life. The external charger enables rapid intermediate charging without memory effect at any 230-V socket, thereby maximising the availability of the electric tow tractor. The optional replacement battery further increases flexibility. Changing the battery is an uncomplicated process that can be completed in mere seconds thanks to its low weight.

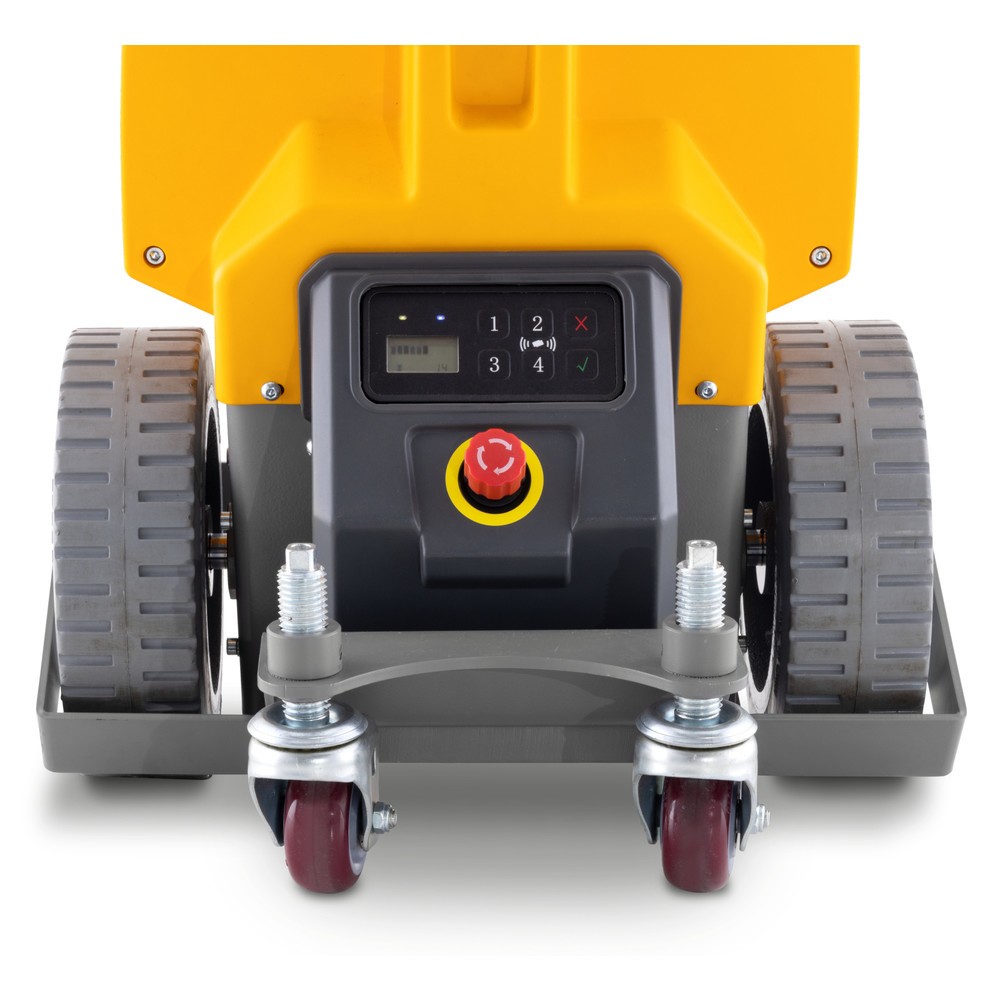

You start the tow tractor by entering a 4-digit PIN code, thus preventing use by unauthorised persons. Control indicators such as the battery charge status, operating hours, slow travel symbol and applicable fault codes are clearly arranged on the LCD display so that you are always well informed about the truck status. For additional ease of use, you can adjust the tiller height of the pedestrian tow tractor in stages to suit your individual ergonomic needs. You control the desired direction of movement and travel speed via the multifunction tiller head, which can be infinitely adjusted. With the electromagnetic brake, you can effortlessly bring the tow tractor to a standstill. The brake also prevents the tractor from rolling away unintentionally, e.g. on inclines. The collision safety switch integrated in the tiller head provides effective collision protection: in the event of physical contact, the electric tow tractor immediately travels in the opposite direction and stops automatically.

The electric tow tractor from Jungheinrich offers robust and durable quality.

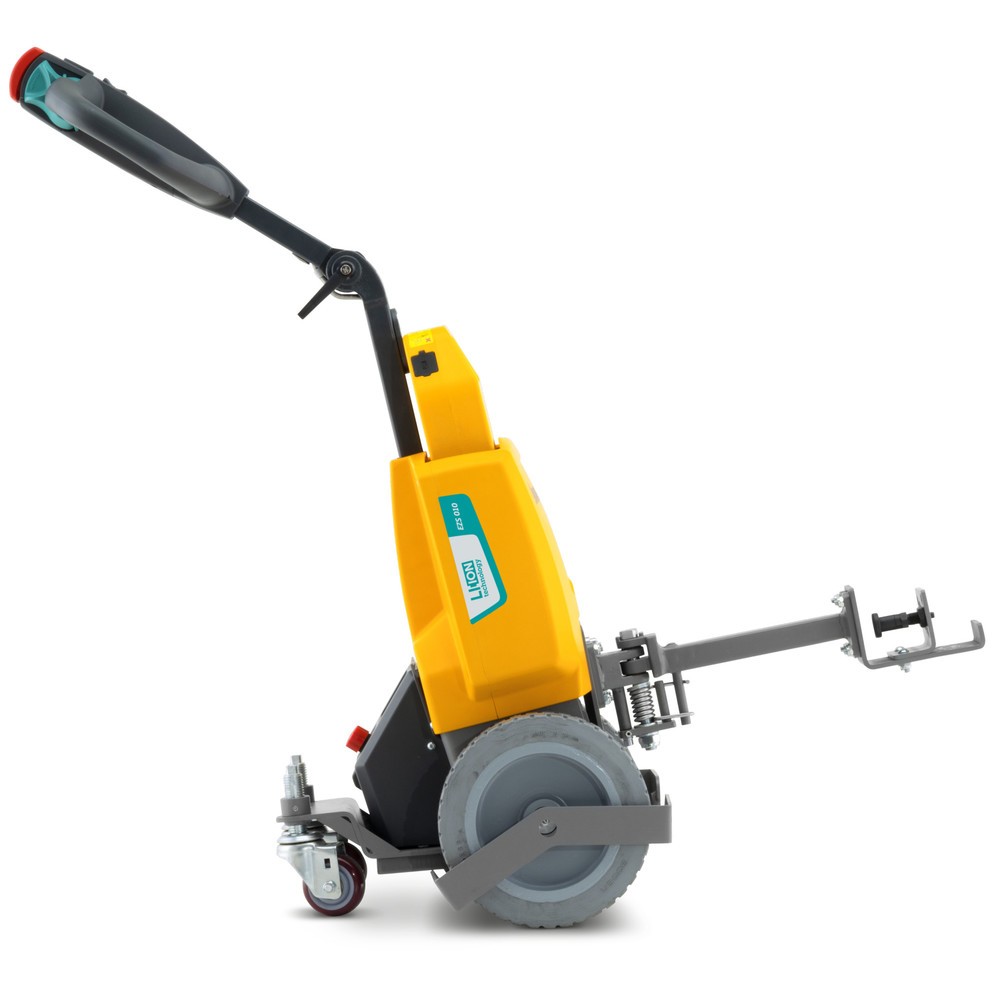

Thanks to its low weight and compact design, the pedestrian tow tractor is extremely manoeuvrable, meaning that you can use it safely even in confined spaces. The EZS 010 features a slow travel mode, which allows you to manoeuvre the tow tractor at a very slow speed. The compact design also offers optimum visibility of the coupling, so that you can always keep an eye on the trailer connections. Two large drive wheels made from non-marking solid rubber ensure optimum manoeuvring even on uneven ground. The protective bars on the wheels provide effective collision protection. The two sturdy polyurethane steering castors ensure optimum stability.

The electric tow tractor is attended to by Jungheinrich Service. With more than 3000 service engineers worldwide, we guarantee a partner in your vicinity at all times along with an optimum spare parts supply.

The Jungheinrich EZS 010 electric tow tractor – lithium-ion is the ideal solution for transporting a wide variety of rolling load carriers with a square profile. Buy the powerful electric towing aid incl. coupling for square profiles, mechanically adjustable here in our shop.
