Item number:
197970
Workshop crane with spread chassis and rapid lift, foldable, capacity 1500-2000 kg, RAL 3020 traffic red
With a load capacity of 1.500-2.000 kg
8 Working days
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
Workshop crane with spread chassis and rapid lift, foldable, capacity 1500-2000 kg, RAL 3020 traffic red
Article number: 197970 | EAN/GTIN: 4055091293417
| Cantilever length | 1330 - 1630 mm |
| Capacity | 1500 - 2000 kg |
| Castor material | HT150, Nylon, Polyurethane (PU) |
| Chassis | spread |
| Delivery | pre-assembled |
| Depth | 2000 mm |
| Fixed castor diameter | 200 mm |
| Fixed castor width | 50 mm |
| Folding | 2x |
| Frame height | 208 mm |
| Height | 2073 mm |
| Hydraulic oil quantity | 1.25 l |
| Insertion width | 980 mm |
| Lift range | 260 - 2490 mm |
| Material | Steel |
| Net weight | 165 g |
| No. of fixed castors | 2 Stk. |
| No. of swivel castors | 2 Stk. |
| RAL colour | RAL 3020 traffic red |
| Rapid lift | Yes |
| Scope | Indoor |
| Section | Performance |
| Surface | powder-coated |
| Swivel castor diameter | 125 mm |
| Swivel castor width | 40 mm |
| Width | 1170 mm |
Produkt Hinweise
Our offer is aimed exclusively at commercial customers (entrepreneurs). In particular, the product is not intended for use by consumers.
Warn- und Sicherheitshinweise
Datenblätter & Anleitungen
Item description
Workshop crane with spread chassis and rapid lift, foldable, capacity 1500-2000 kg, RAL 3020 traffic red
Article number: 197970 | EAN/GTIN: 4055091293417

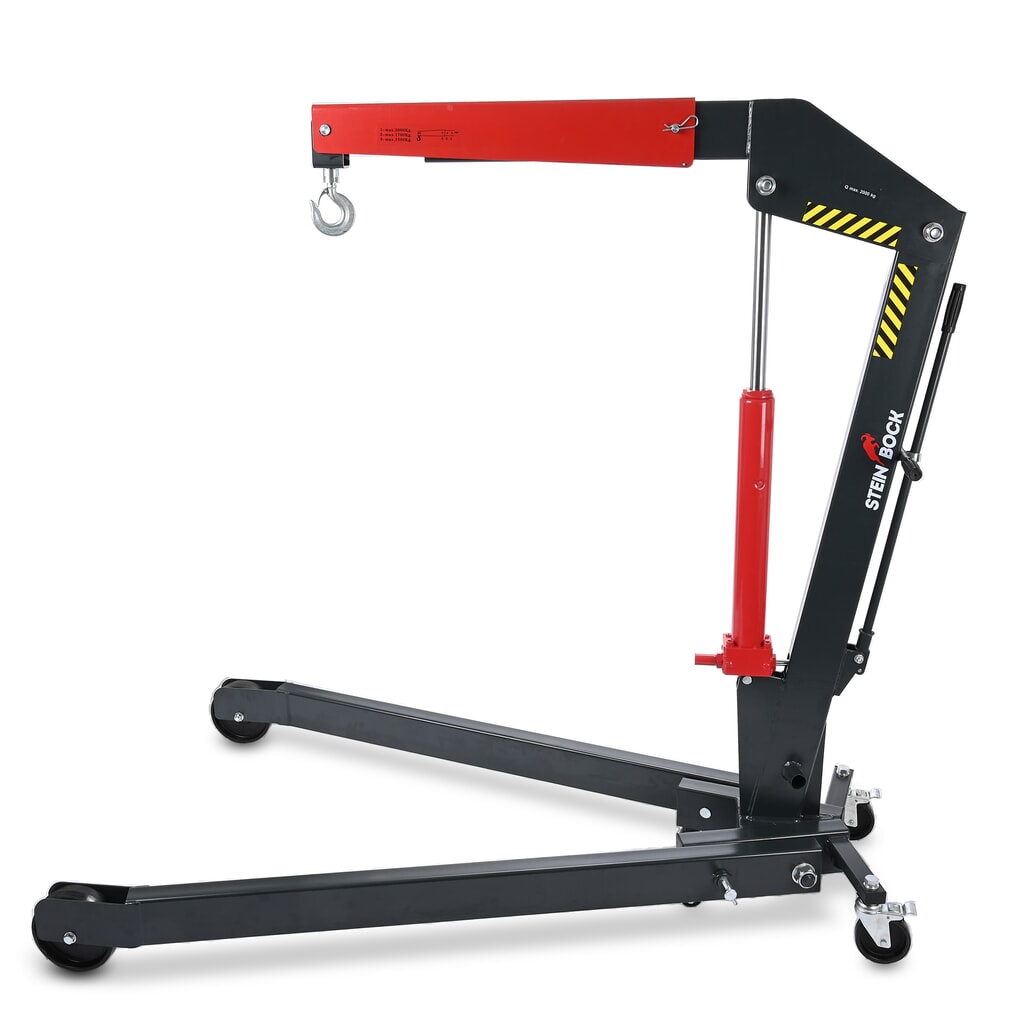

This workshop crane features a folding chassis, making it ideal for mobile use and space-saving storage. The crane boom features four adjustment settings, while the rapid lift function allows you to raise the goods quickly and effortlessly.
- Mobile workshop crane with spread chassis

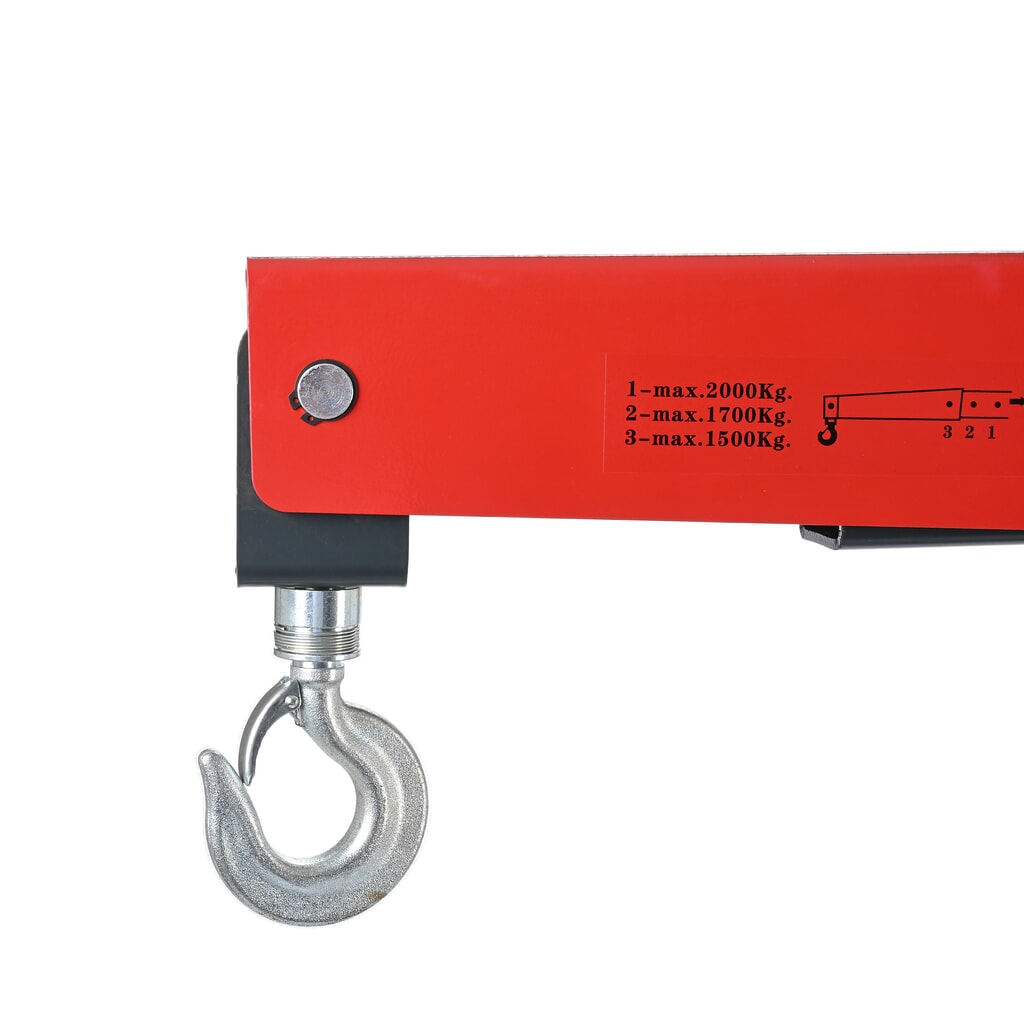

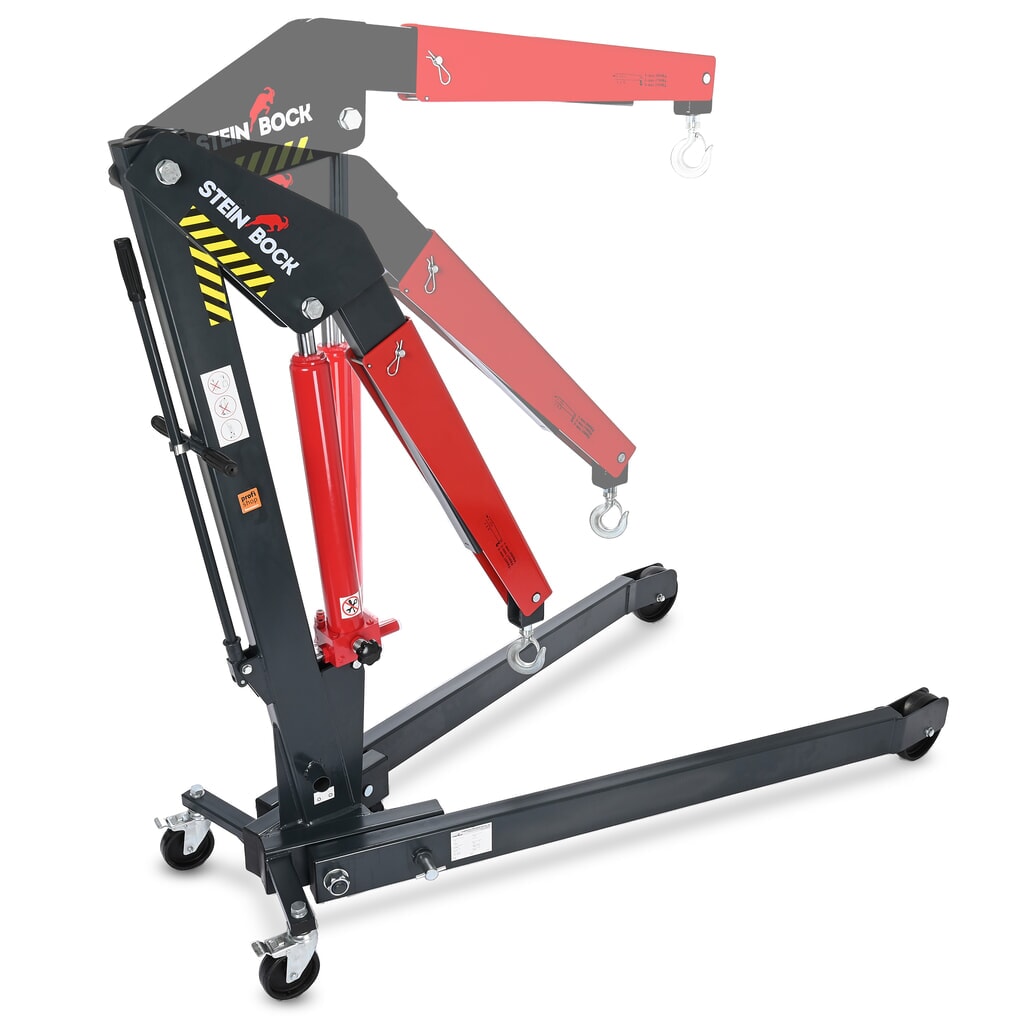

- Four-stage crane boom with 1.500–2.000 kg load capacity
- Folding crane column and chassis for space-saving storage

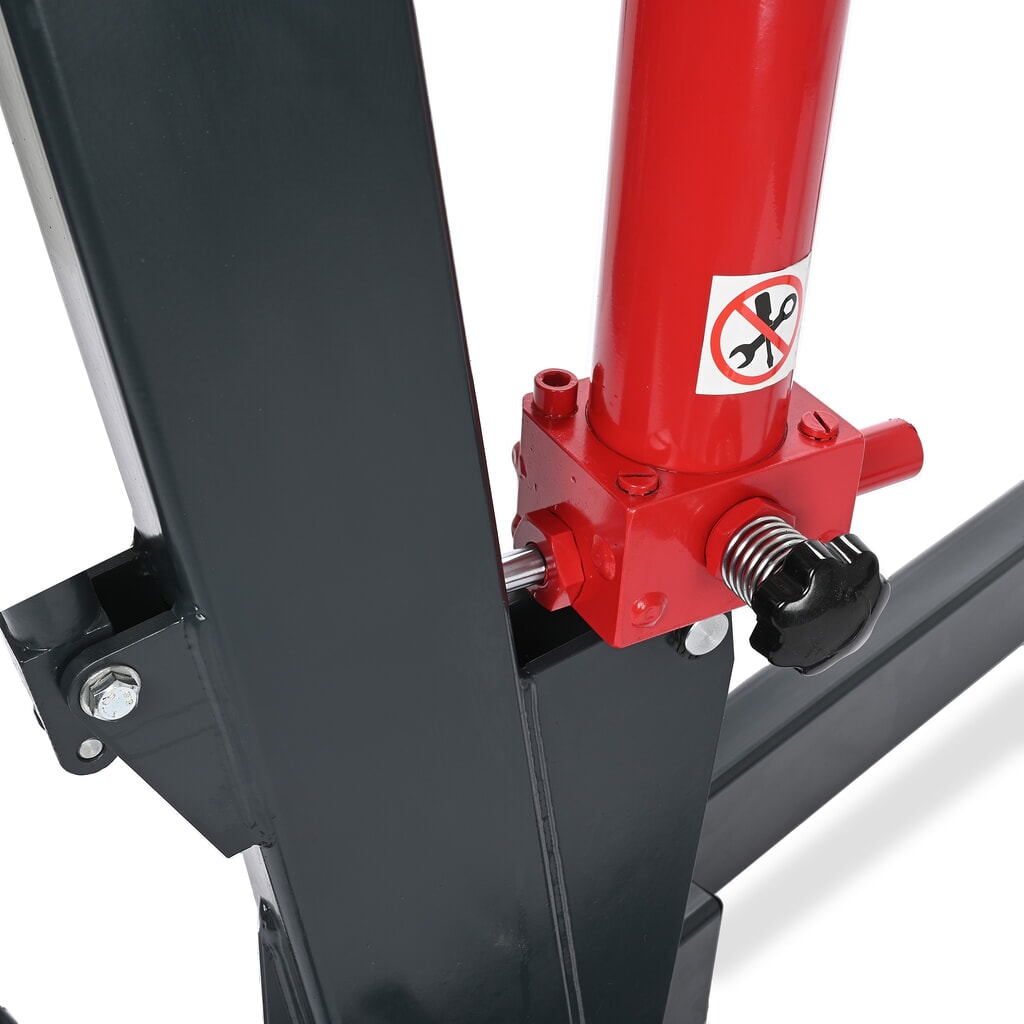

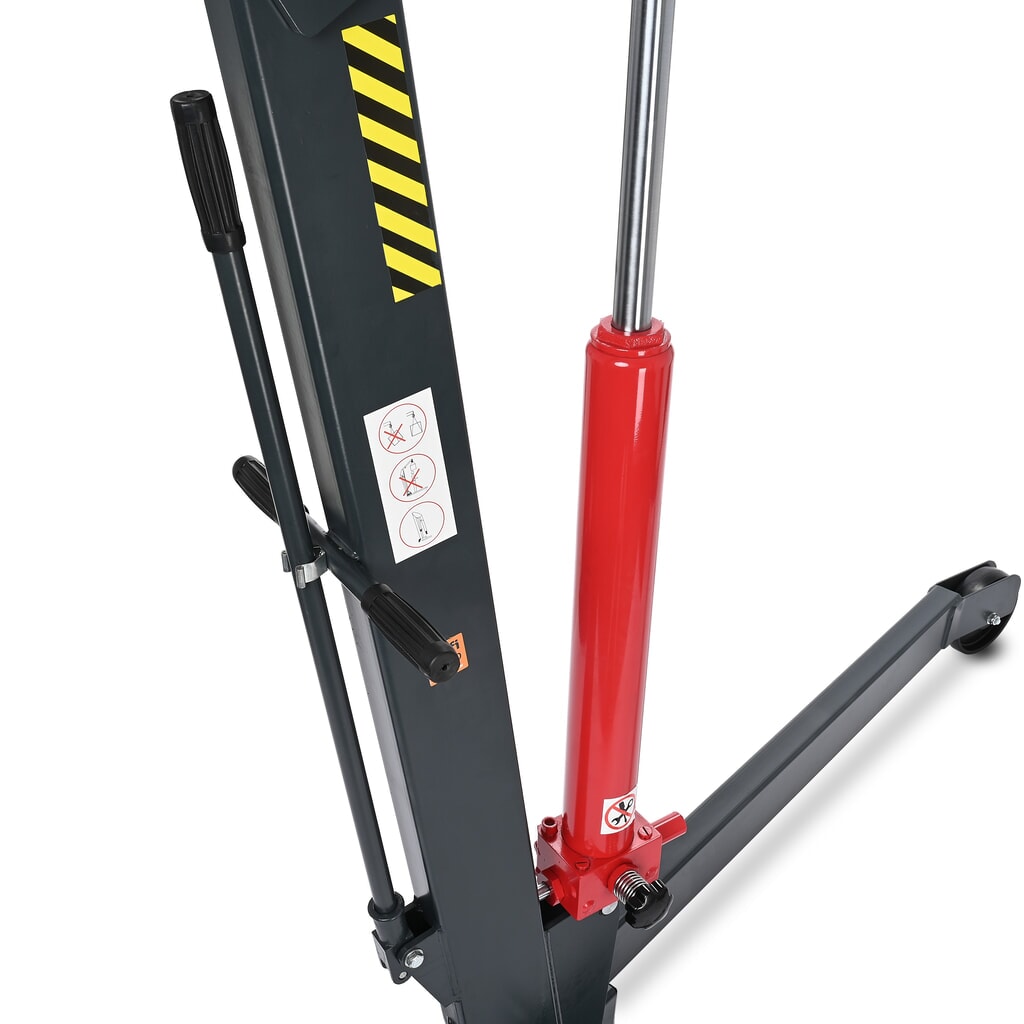

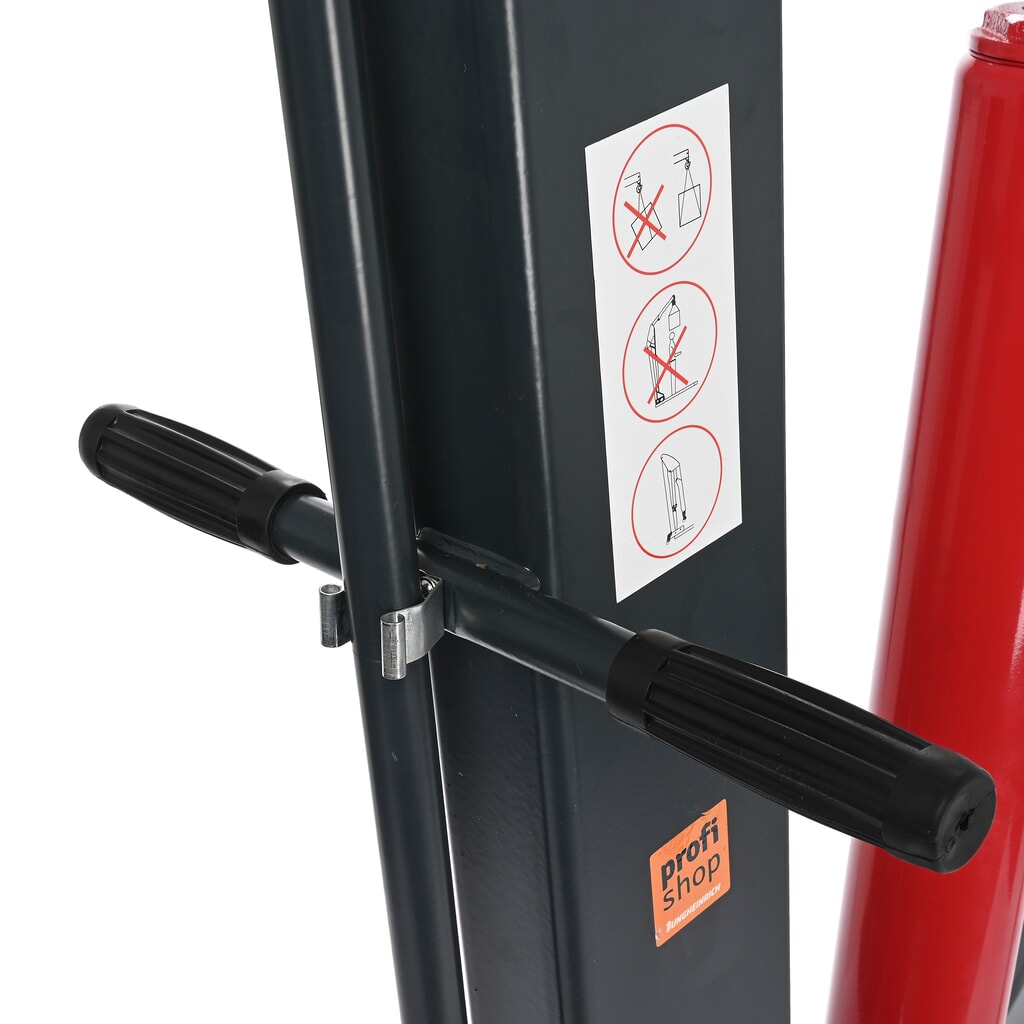

- Pump hydraulics with rapid lift up to 50 kg and removable pump handle
Versatile lightweight crane for safe and efficient lifting

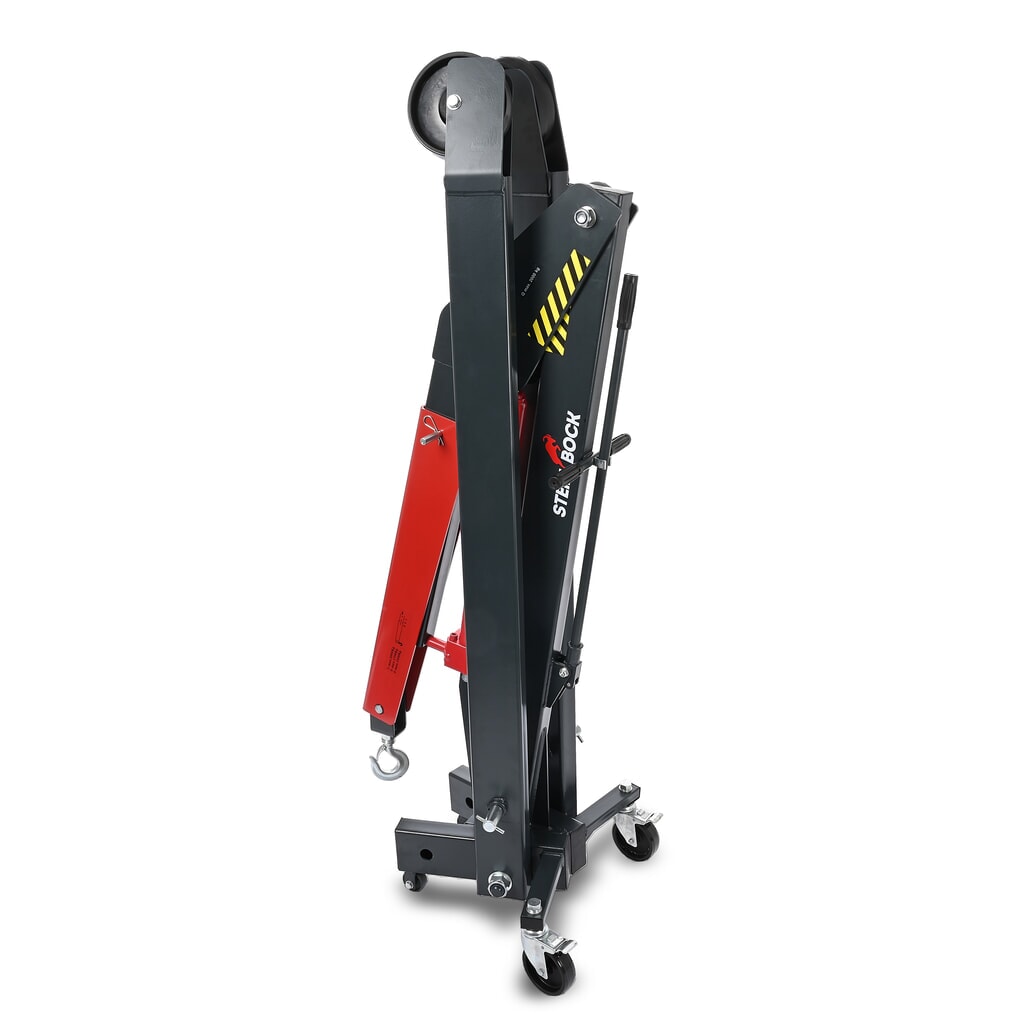

This flexible workshop crane is suitable for short-term use and can be stored in a space-saving manner thanks to its folding design. To store the crane, you collapse the spread chassis and crane column and remove the pump handle.

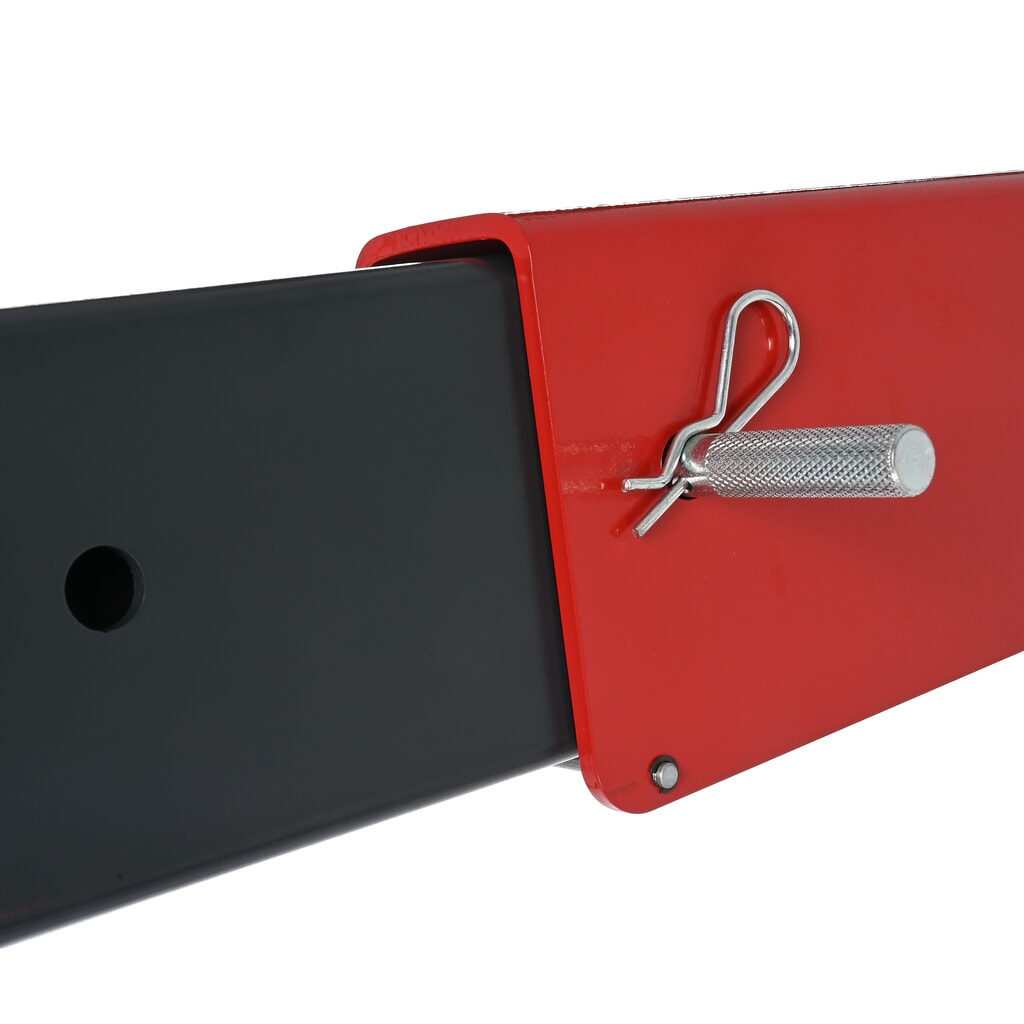

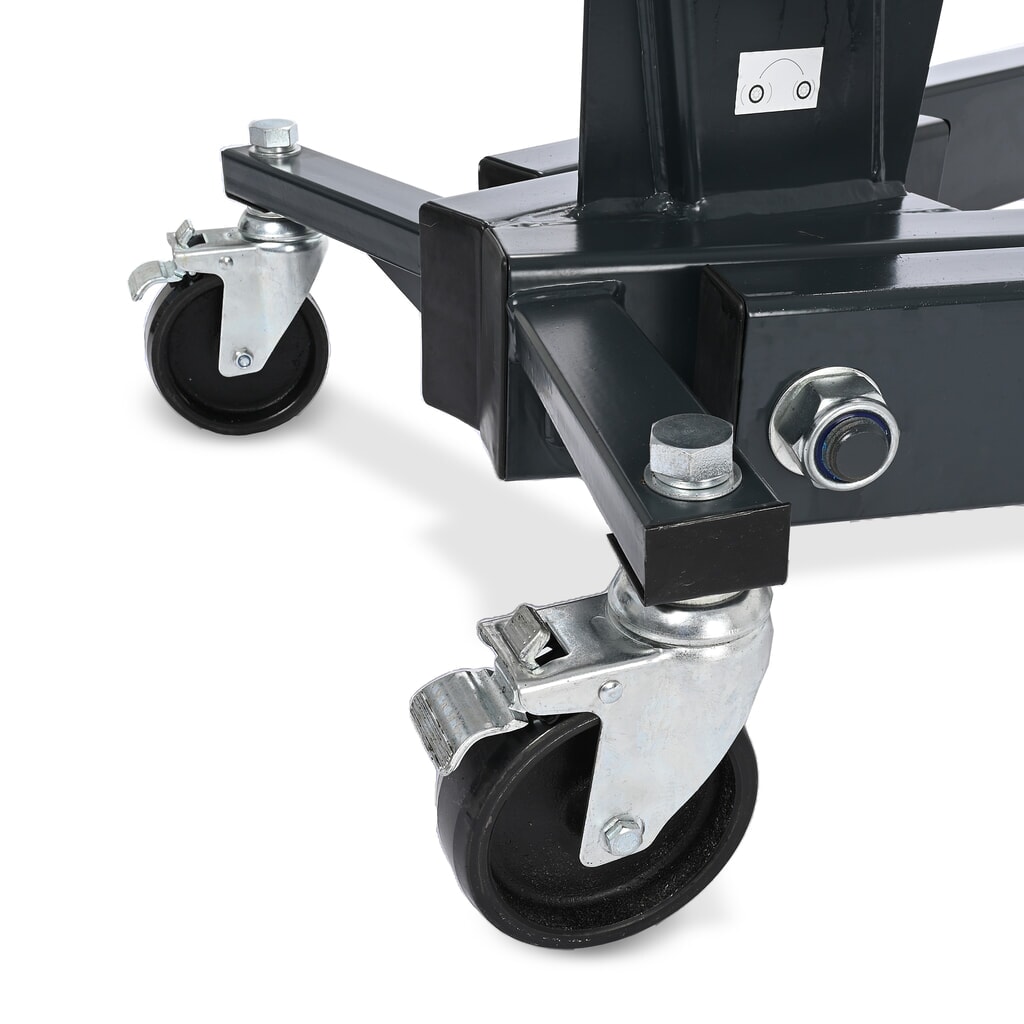

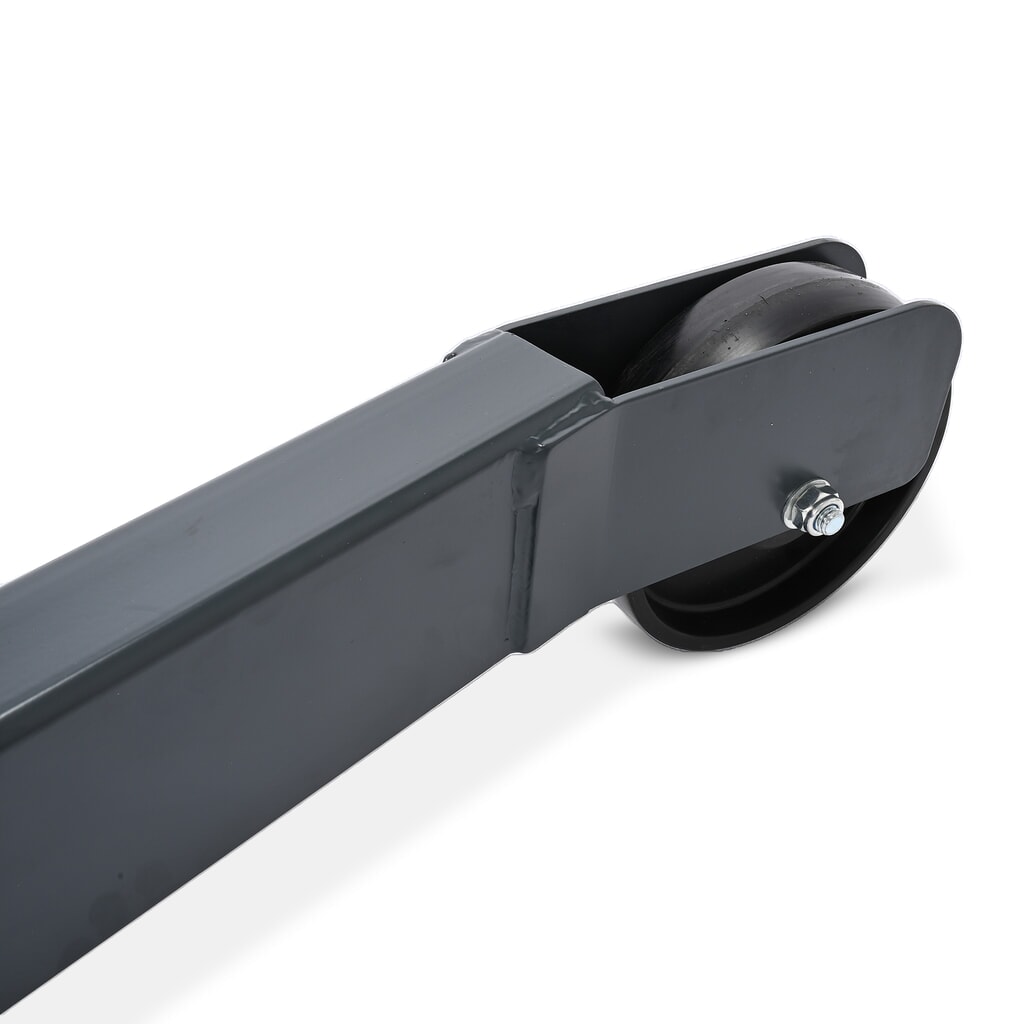

The pump hydraulics with rapid lift up to 50 kg offer a maximum lift height of 2.705 mm. When in use, the four-stage crane boom and the chassis are locked in place with steel bolts. A cotter pin provides additional security. Two steering castors and two rollers ensure quick and easy transport to the required location. The lightweight crane has a net weight of 165 kg and a load capacity of 1.500–2.000 kg
Benefit from a flexible, space-saving lifting solution by ordering the folding workshop crane with spread chassis and rapid lift from our shop.
This flexible workshop crane is suitable for short-term use and can be stored in a space-saving manner thanks to its folding design. To store the crane, you collapse the spread chassis and crane column and remove the pump handle.
The pump hydraulics with rapid lift up to 50 kg offer a maximum lift height of 2.705 mm. When in use, the four-stage crane boom and the chassis are locked in place with steel bolts. A cotter pin provides additional security. Two steering castors and two rollers ensure quick and easy transport to the required location. The lightweight crane has a net weight of 165 kg and a load capacity of 1.500–2.000 kg
Benefit from a flexible, space-saving lifting solution by ordering the folding workshop crane with spread chassis and rapid lift from our shop.
